Gamber-Johnson Docking Station for Getac V110 Convertible Notebook
Engineered for the demanding work environments in utility, public safety, and field service applications.

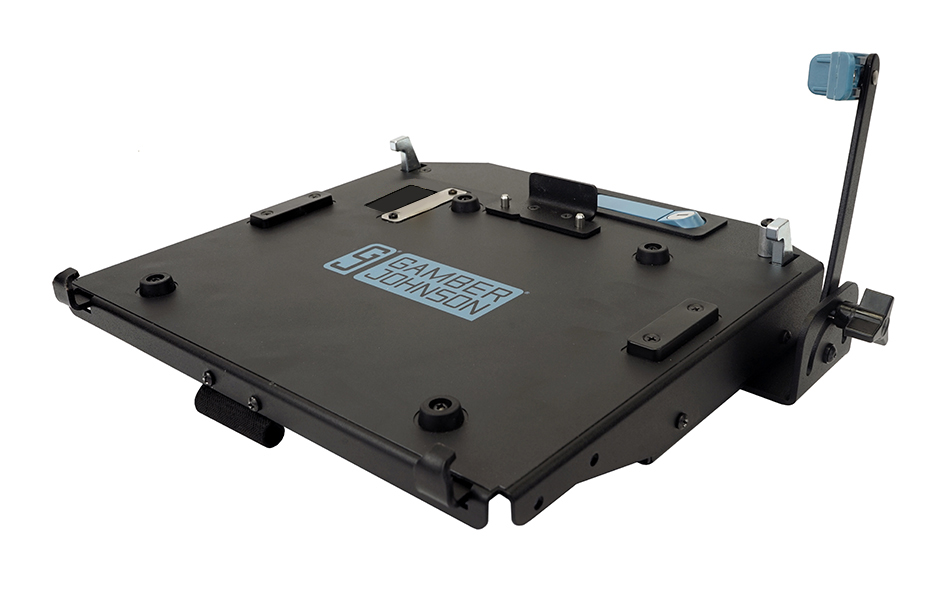

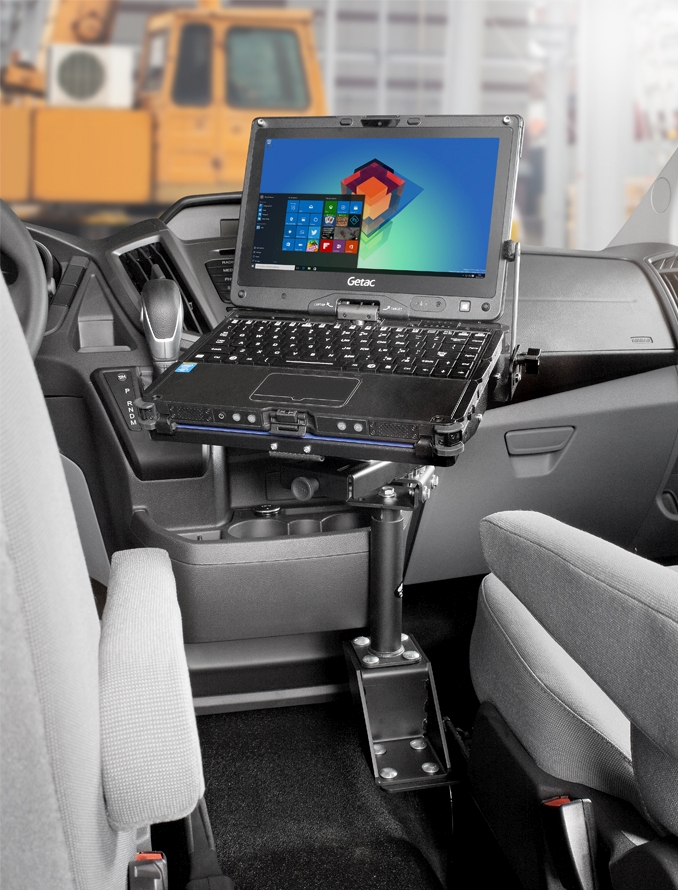

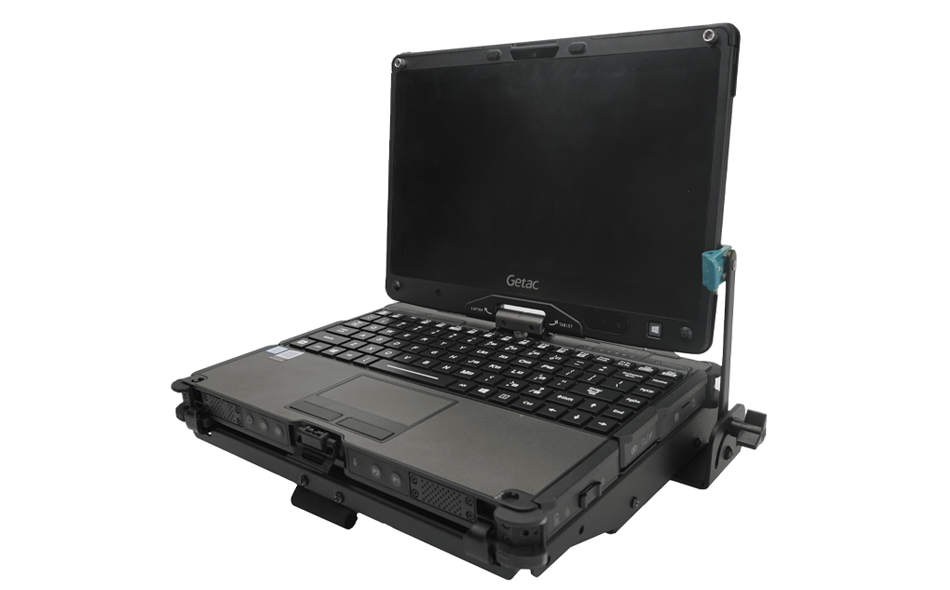

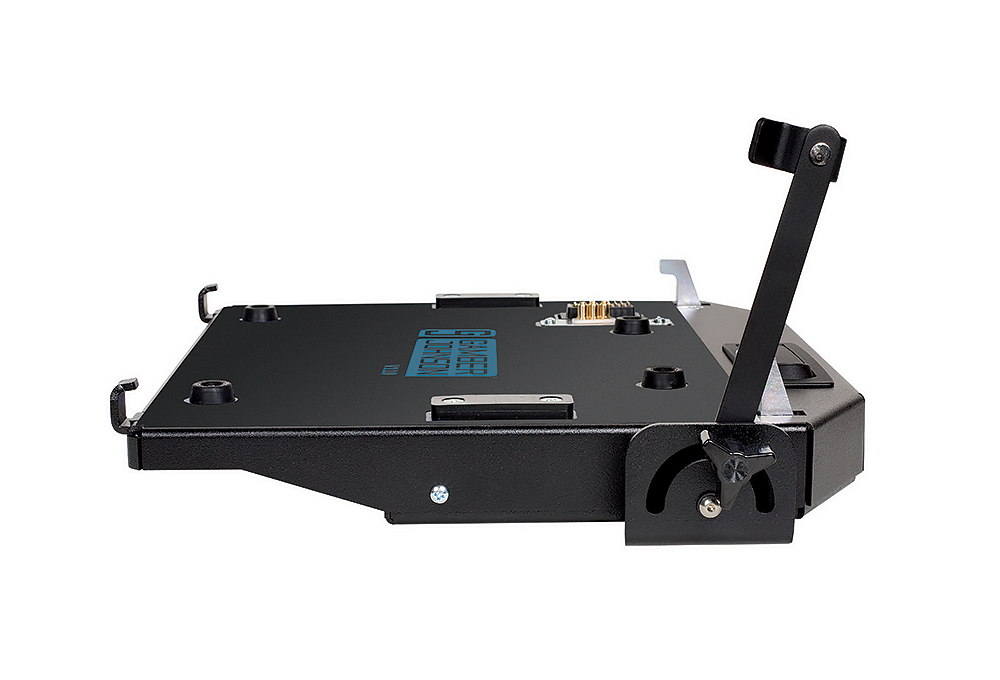

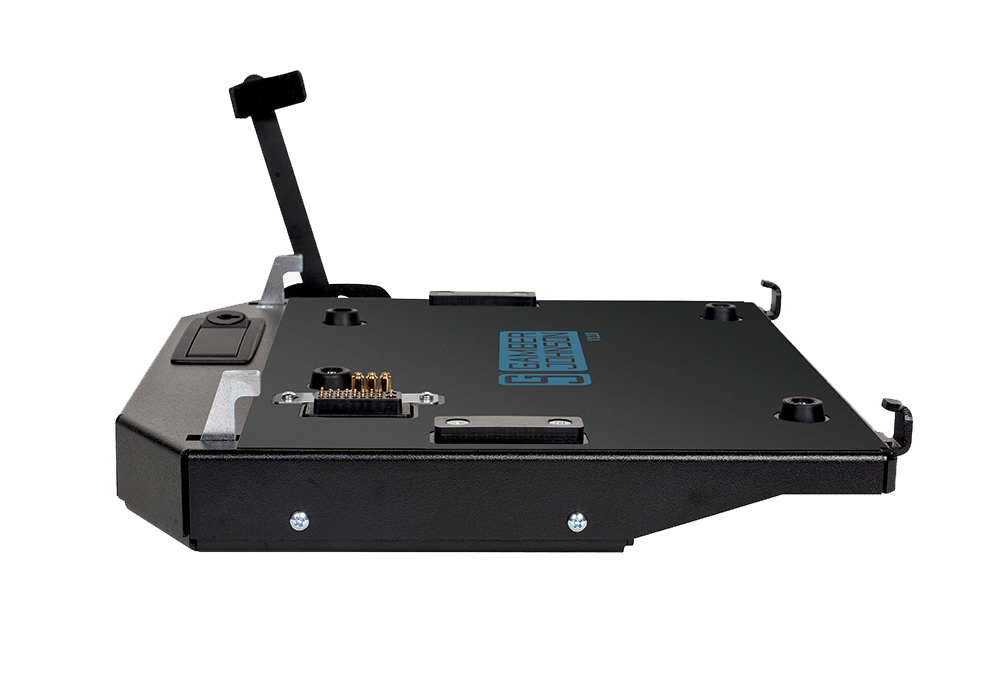

Gamber-Johnson’s Getac V110 Vehicle Docking Station is the perfect match for the Getac V110 fully-rugged notebook. The dock can be rotated for use in either tablet or laptop position offering more flexibility to your mobile office. The front safety bracket is designed to help align your computer making is easier to dock and undock your computer.
- Compatible with Getac V110 convertible computer
- Can be used in tablet or laptop position
- Front-facing l/O ports, integrated cable strain relief system
- POGO pin style docking connector for easy docking activation
- Front safety bracket helps align computer for proper docking connectivity
- Built-in stylus holder
-
Push button latch with keyed lock for theft deterrence:
- Push the latch to release the docking connector
- Insert computer and push latch closed to dock computer
- VESA 75 mounting pattern
- Screen support is included with the dock
| Part Number | Description | Price* |
| 543312900006 | Gamber-Johnson 7160-0568-00 Vehicle Cradle without Vehicle Charger for V110 | £395.00 |

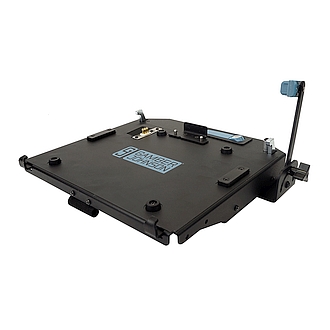

| 543312900015 | Gamber-Johnson 7160-0568-03 Vehicle Cradle with Tri Pass-through, without Vehicle Charger for V110 | £465.00 |
| 543312900001 | Gamber-Johnson 7160-0515-00 Vehicle Dock without Vehicle Charger for V110 | £747.00 |
| 543312900002 | Gamber-Johnson 7160-0515-03 Vehicle Dock with Tri Pass-through, without Vehicle Charger for V110 | £819.00 |
*Please note all prices shown are exclusive of VAT
| Certifications and Testing | Getac Certified |
| Vibration Tested: MIL-STD 810G Operational/Non-Operational | |
| Cycle Test: Latch, Lock, and Docking Connector - 30,000 Cycles | |
| Environmental: Thermal Shock; High/Low Temperature Operational & Storage | |
| FCC, RoHS Certified | |
| C-Tick, E-Mark | |
| SAE Standard J1455 Crash Test | |
| Dimensions | Weight: 3.80 lbs (1.70 kg) |
| Height: 1.38 in (3.50 cm) | |
| Width: 11.60 in (29.5 cm) | |
| Depth: 10.75 in (27.30 cm) | |
| Port Replication | Getac Certified Electronics |
| Serial D-Sub 9 Pin (2) | |
| VGA D-Sub 15 Pin (1) | |
| HDMI 19 Pin (1) | |
| USB 2.0 - 4 Pin (3) | |
| USB 3.0 - 9 Pin (1) | |
| Ethernet RJ45 (1) | |
| Microphone/Speaker (1) | |
| Power Input: 19 Vdc | |
| Antenna: TRI RF (SMA) (optional) |
These Gamber-Johnson docking stations are compatible with the following Getac models:
Getac V110 Convertible Notebook G1-6
Getac V110 Convertible Notebook G7
