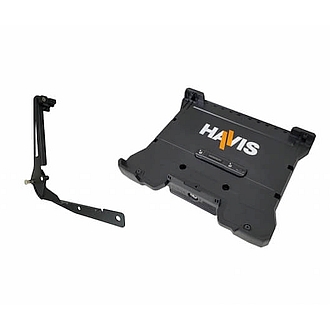

Havis Docking Station for Getac B360 Notebook with Screen Support
Part Numbers 543390100101/2
- Supports the Getac B360 and B360 Pro
- Includes DS-GTC-1201 docking station and DS-DA-418 screen support
- Ideal for public safety, military, utilities, manufacturing and other demanding environments
- Fits either computer size - no dock adjustments needed
- Durable, compact and lightweight
- One-handed docking
- Advanced port replication
- Reinforced mounting bracket
- Spring-loaded connector head
- Keyed-lock
- Powered by Getac 120W vehicle adapter (sold separately)
- Made in the USA
| Part Number | Description | Price* |
| 543390100101 | Havis PKG-DS-GTC-1201 Docking Station without Vehicle Charger, with Screen Support for B360 Notebook | £816.00 |
| 543390100102 | Havis PKG-DS-GTC-1201-3 Docking Station without Vehicle Charger, with Tri Pass-through and Screen Support for B360 Notebook | £943.00 |
*Please note all prices shown are exclusive of VAT
| Compatible computer(s) | Getac B360 and B360 Pro laptops |
| Docking station dimensions (with mounting bracket) | 11.52" l x 13.79" w x 2.54" h (293mm x 350mm x 64mm) |
| Docking station dimensions (without mounting bracket) | 11.52" l x 13.79" w x 2.41" h (293mm x 350mm x 61mm) |
| Certifications | Vibration Testing: MIL-STD 810H 514.8; crash test: SAE J1455 30mph Crash Testing; cycle test: latch handle & docking connectors mechanism, 30,000 cycles; environmental testing: hot/cold operational & storage and thermal shock; bump testing |
| Connectivity | USB: fully-powered USB 2.0 (3 total - 2 front facing, 1 on rear I/O panel), USB 3.0 (3); Ethernet: RJ45 (2); serial: DB9 (1); video: VGA (1), HDMI (1); dock input power: (1); optional rf: (3 SMA connectors) |
| Dock input power | 19V DC |
| Docking station product weight (without mounting bracket) | 3.28 lbs (1.49 kg) |
| Docking station product weight (with mounting bracket) | 5.22 lbs (2.36 kg) |
| Docking station product weight | 6.50 lbs (2.95 kg) |
| Product weight | 8.0 lbs (3.63 kg) |
| Gross weight | 8.3 lbs |
These Havis docking stations are compatible with the following Getac models:
Getac B360 Notebook G1
Getac B360 Notebook G2
Getac B360 Notebook G3
Getac B360 Pro Notebook G1
Getac B360 Pro Notebook G2
Getac B360 Pro Notebook G3
