Havis Docking Station for Getac ZX10 Tablet

Part Numbers 543391900101/2

Havis Docking Station for Getac ZX10 Tablet DS-GTC-1301, DS-GTC-1301-3

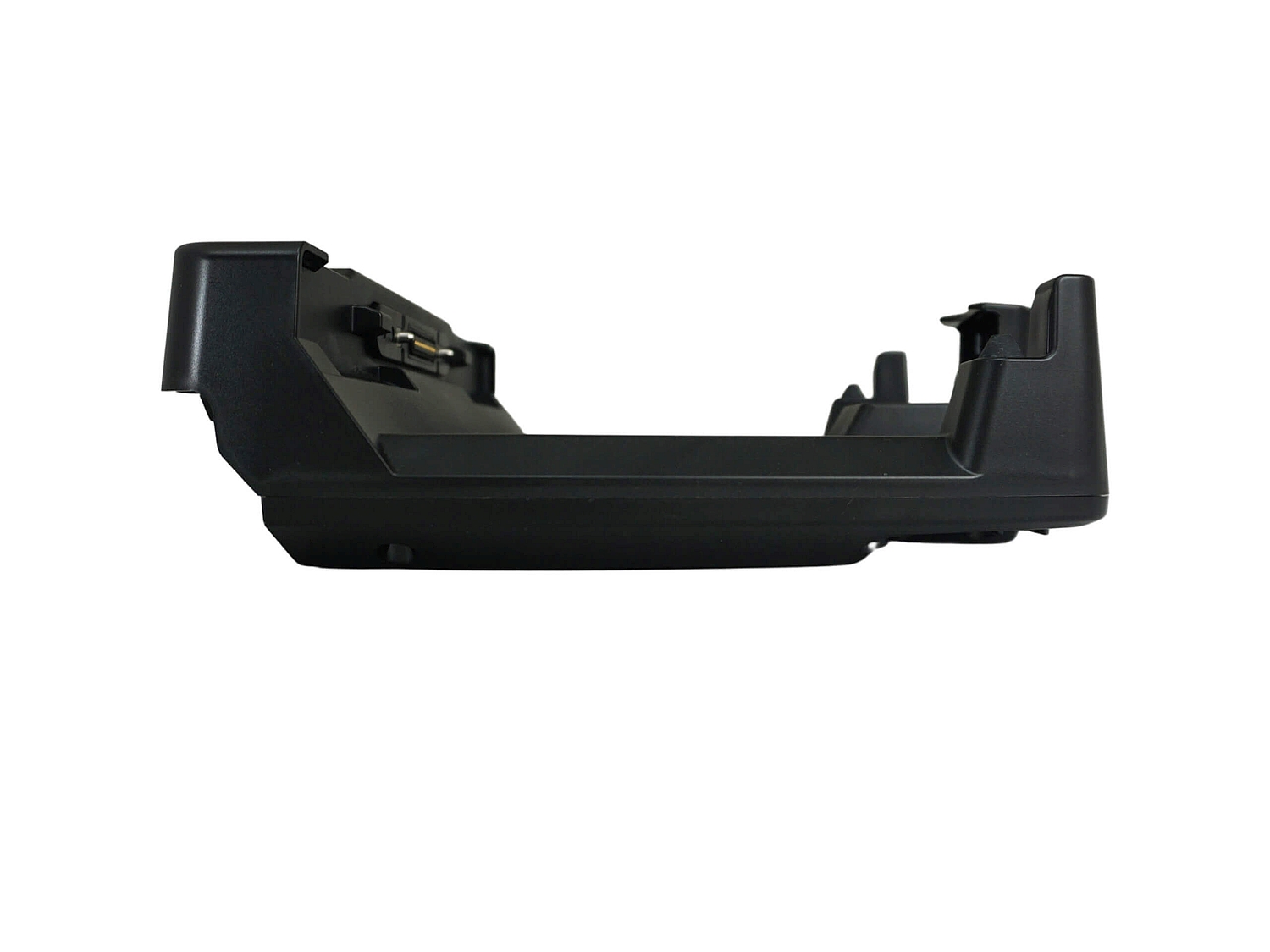

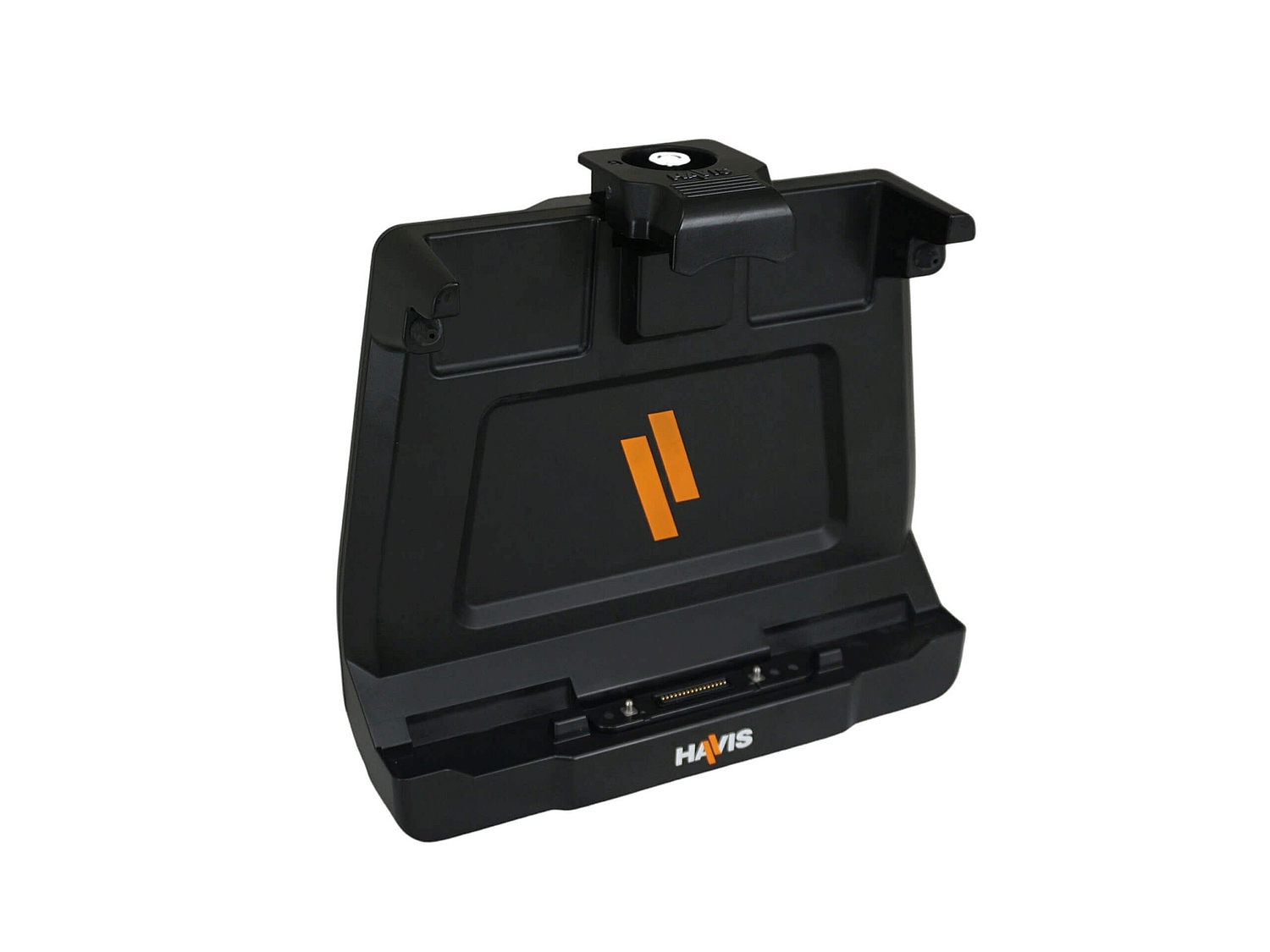

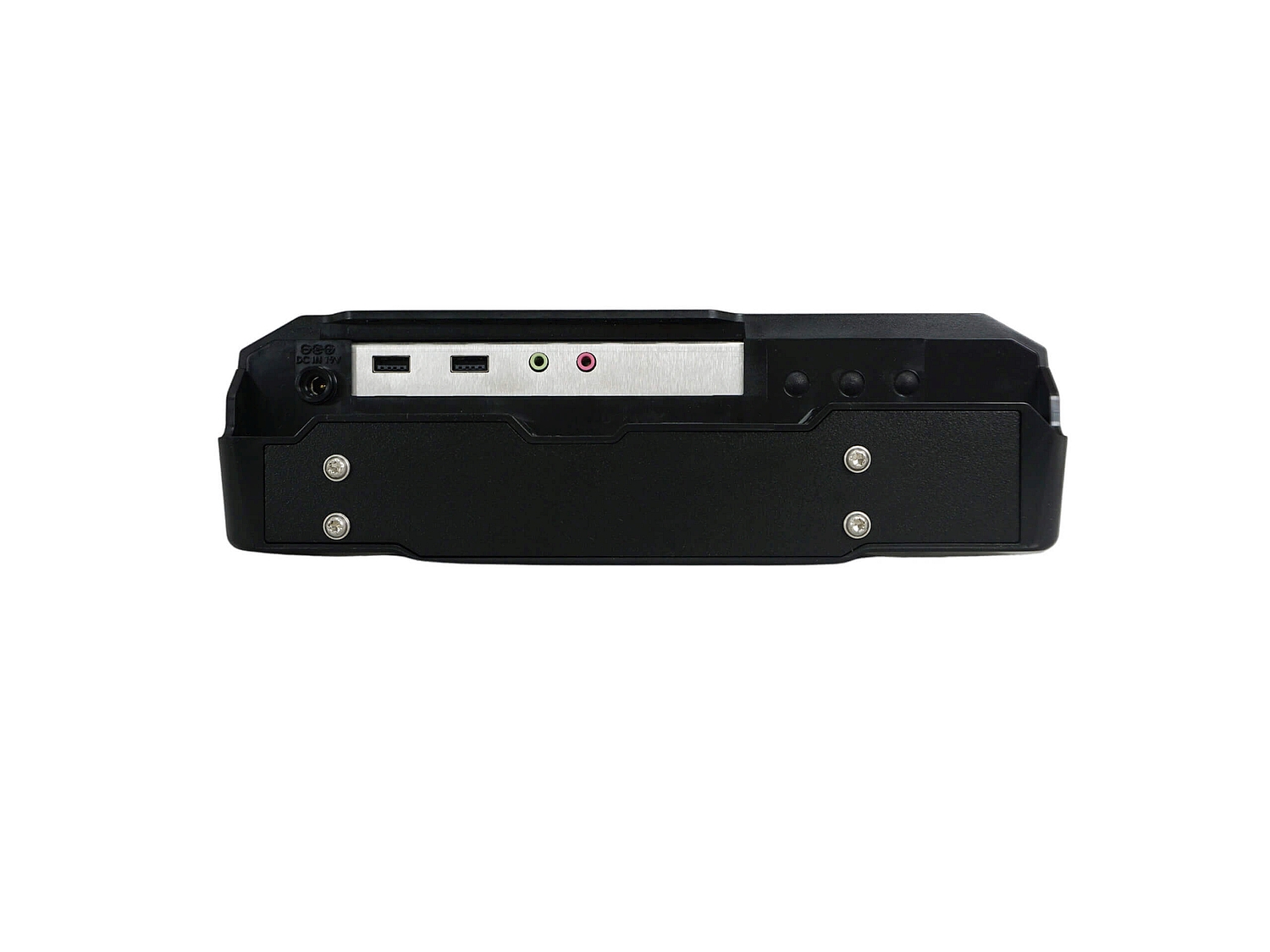

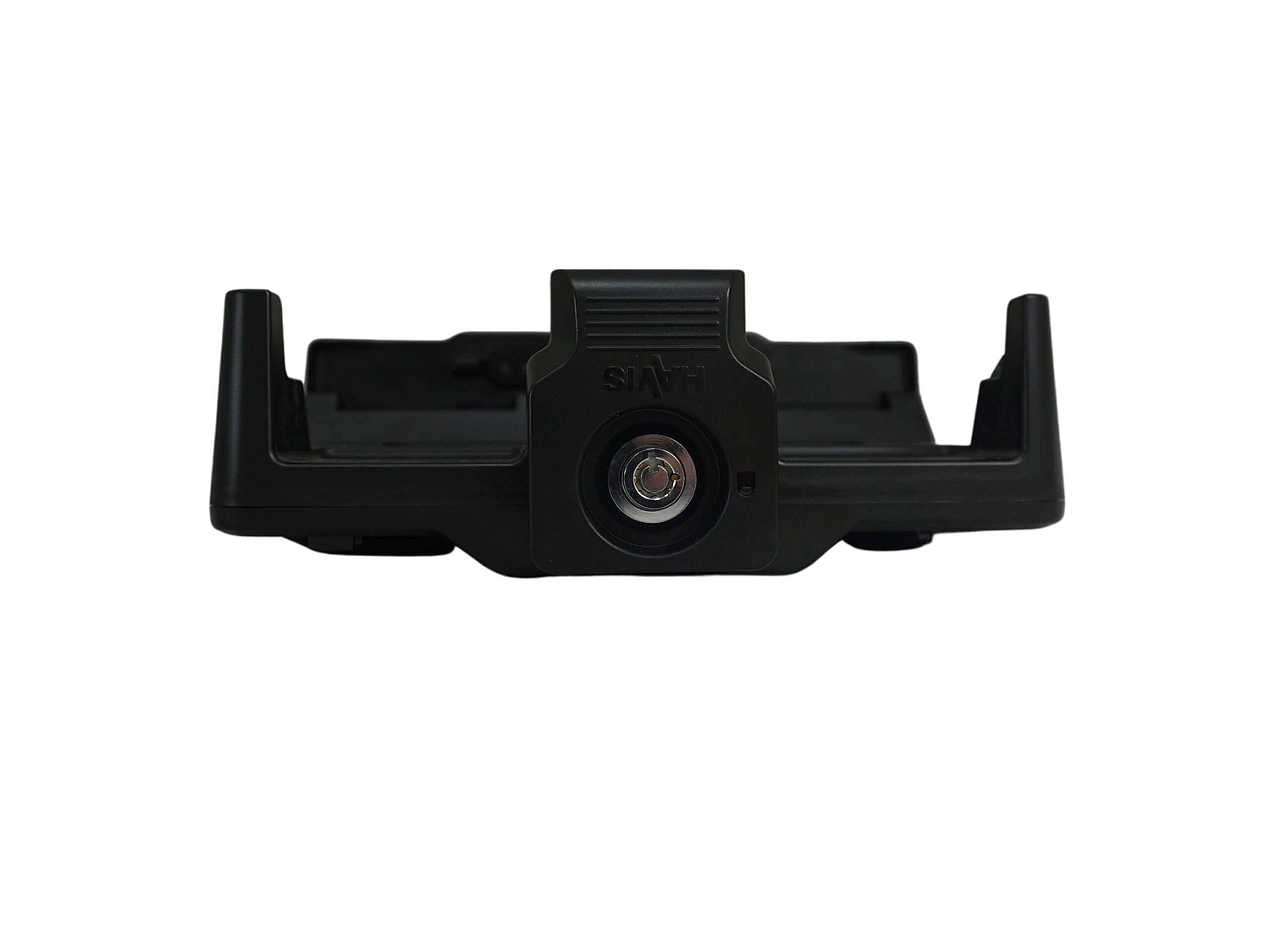

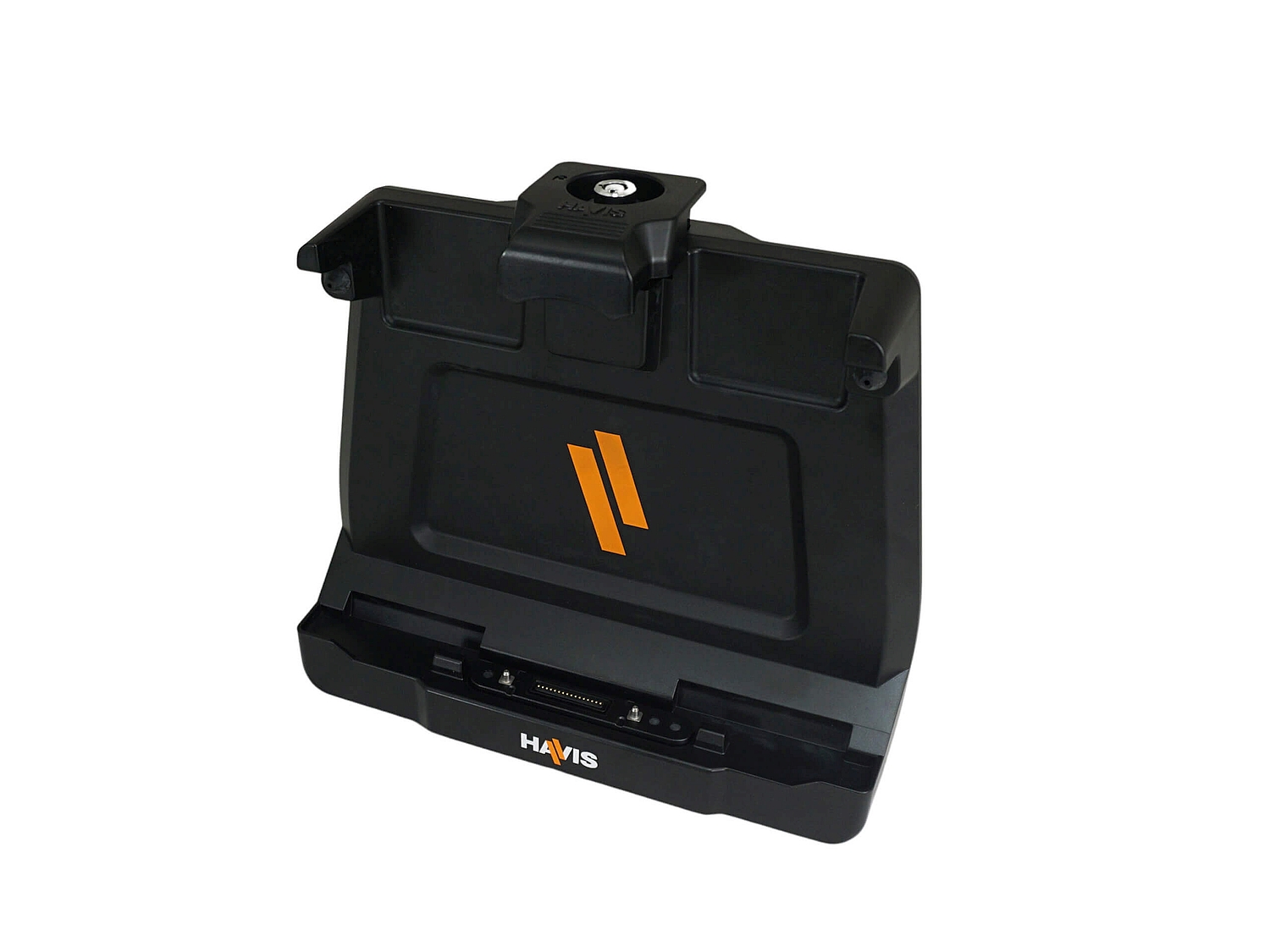

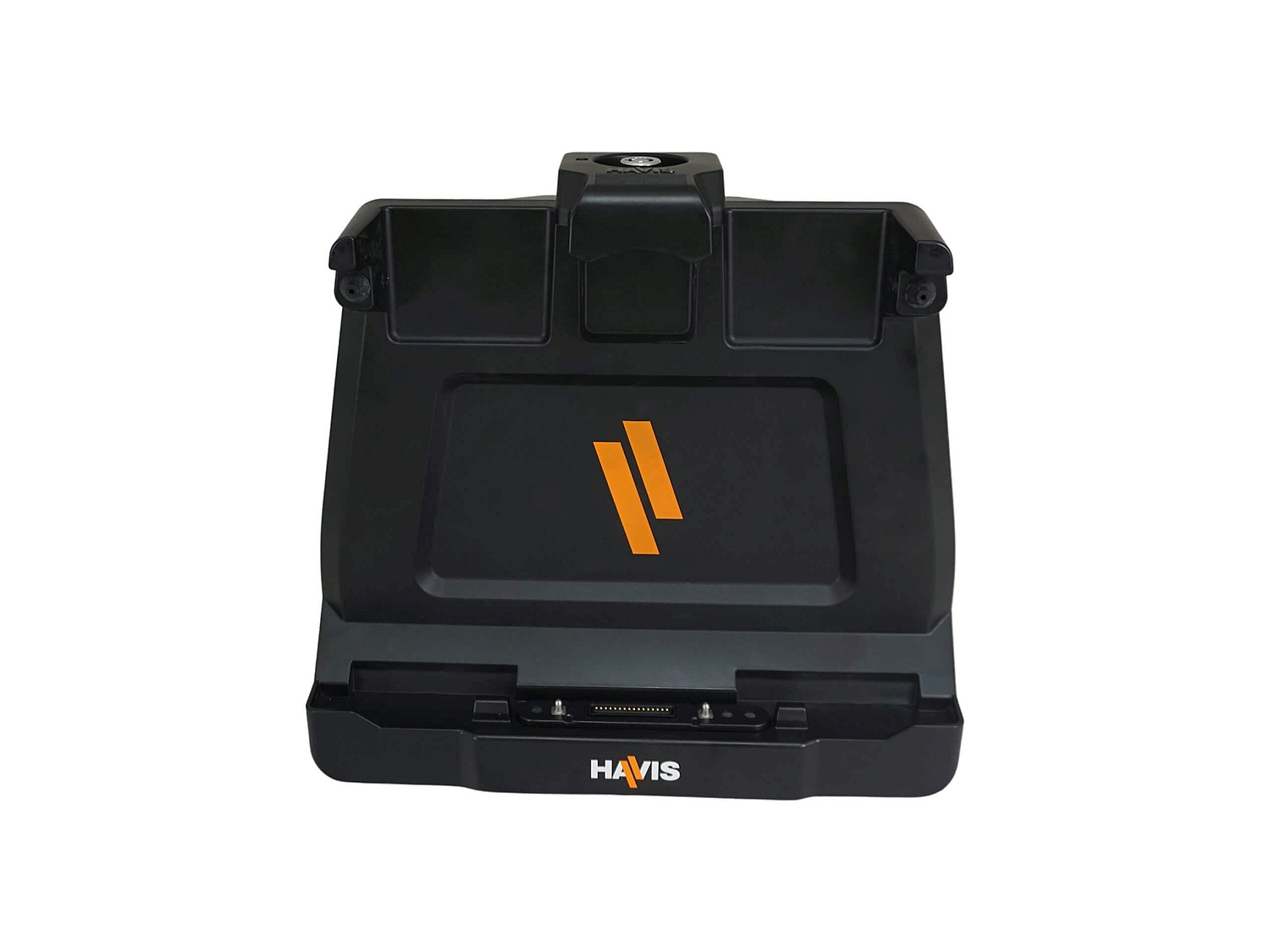

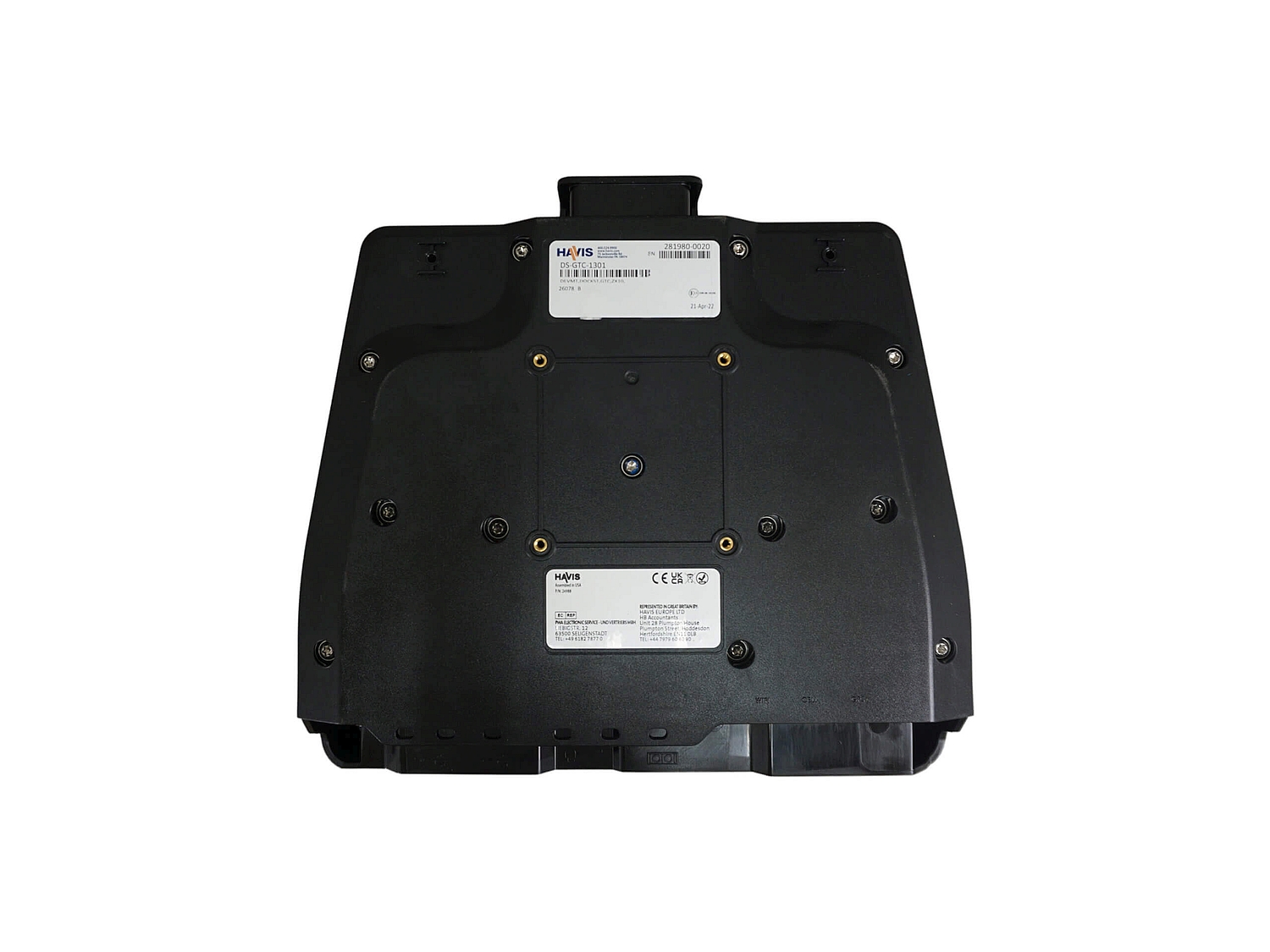

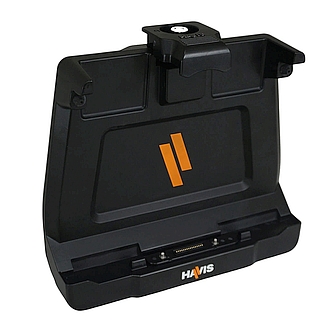

Havis Docking Station for Getac ZX10 Tablet Front Left DS-GTC-1301 Havis Docking Station for Getac ZX10 Tablet Front DS-GTC-1301 Havis Docking Station for Getac ZX10 Tablet Top Right DS-GTC-1301 Havis Docking Station for Getac ZX10 Tablet Right Side DS-GTC-1301 Havis Docking Station for Getac ZX10 Tablet Top DS-GTC-1301 Havis Docking Station for Getac ZX10 Tablet Rear DS-GTC-1301 Havis Docking Station for Getac ZX10 Tablet Bottom DS-GTC-1301 Havis Docking Station for Getac ZX10 Tablet Connector DS-GTC-1301

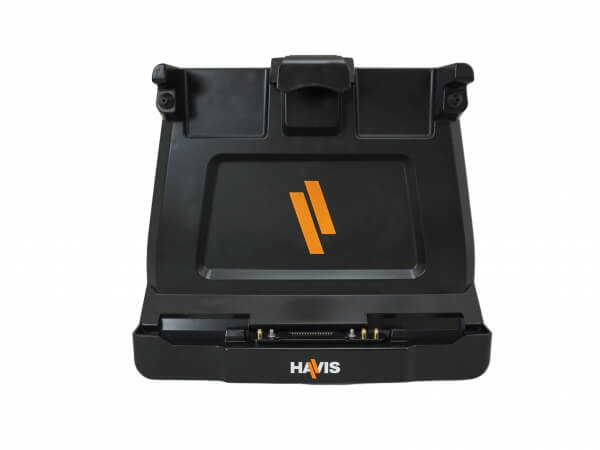

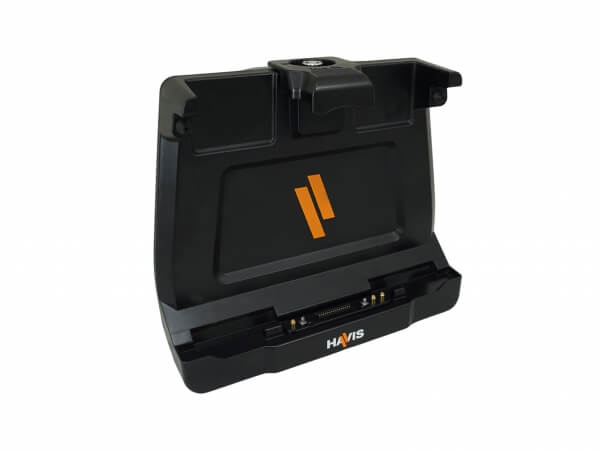

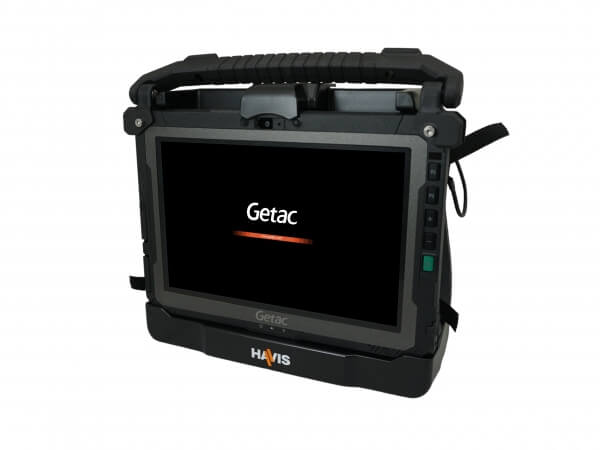

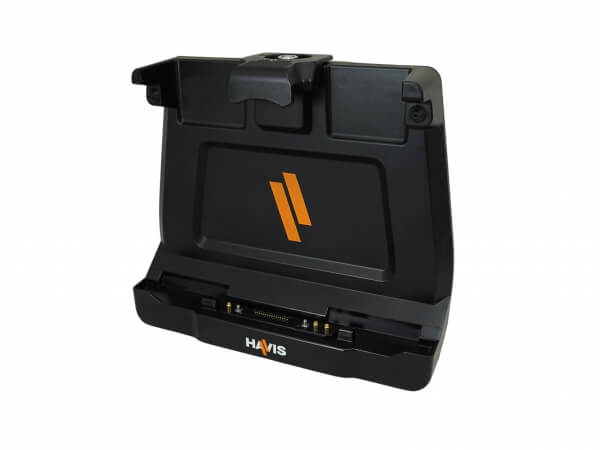

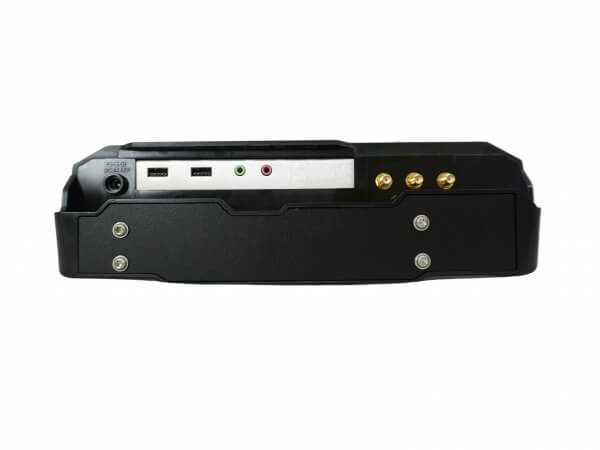

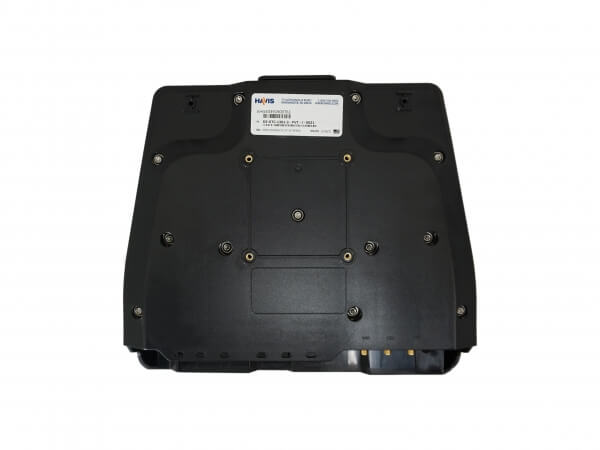

Havis Docking Station for Getac ZX10 Tablet with Tri-Pass-through Front Left DS-GTC-1301-3 Havis Docking Station for Getac ZX10 Tablet with Tri-Pass-through Front DS-GTC-1301-3 Havis Docking Station for Getac ZX10 Tablet with Tri-Pass-through Front Right DS-GTC-1301-3 Havis Docking Station for Getac ZX10 Tablet with Tri-Pass-through Rear DS-GTC-1301-3 Havis Docking Station for Getac ZX10 Tablet with Tri-Pass-through Bottom DS-GTC-1301-3 Havis Docking Station for Getac ZX10 Tablet with Tri-Pass-through with Tablet DS-GTC-1301-3 Havis Docking Station for Getac ZX10 Tablet with Tri-Pass-through with Tablet DS-GTC-1301-3 Havis Docking Station for Getac ZX10 Tablet with Tri-Pass-through with Tablet DS-GTC-1301-3



  • Supports Getac's ZX10 tablet in demanding environments like material handling, utility services, industrial manufacturing and more
  • Accommodates Getac accessories like rotating hand strap, hard handle, RFID reader, smart card reader, and extended battery
  • Preserves access to tablet's features like control buttons, ports, front-facing camera, and stylus while tablet is docked
  • One-handed docking & undocking
  • Lightweight & compact design
  • Compatible with LPS-125 Isolated power supply 95 watt used for 12-32 VDC input forklifts
  • Rounded edges for comfort & safety
  • Getac certfied port replication
  • Optional Triple pass-through antenna connections (SMA type)
  • Integrated cable management system
  • Integrated VESA 75 mounting pattern
  • Keyed lock
  • Made in the USA



Havis Docking Stations
Part Number Description Price*
543391900101 Havis DS-GTC-1301 Vehicle Dock without Vehicle Charger for ZX10 £462.00
543391900102 Havis DS-GTC-1301-3 Vehicle Dock with Tri Pass-through, without Vehicle Charger for ZX10 £582.00

*Please note all prices shown are exclusive of VAT



Request a Quotation





Havis Docking Station Specifications
Dimensions 9.7" (24.5 cm) x 11.1" (28.3 cm) x 3.4" (8.6 cm)
Certifications Vibration Testing: MIL-STD 810H 514.8, crash test: SAE J1455 30mph Crash Testing, shock testing: MIL-STD 810H 516.8, cycle test: latch handle & docking connectors mechanism 30,000 cycles, hot/cold storage testing, humidity, testing, CE, Ro
Connectivity includes USB: fully-powered USB 2.0 (2), speaker (1), mic (1), input voltage: 19V DC, optional antenna: triple high gain pass-thru connectors (SMA connectors)
Product weight 2.9 lbs (1.32 kg)
Gross weight 3.5 lbs



These Havis docking stations are compatible with the following Getac models:

Getac ZX10 Tablet G1
Getac ZX10 Tablet G2
