Havis Vehicle Cradle for Getac ZX10 Tablet

Part Numbers 543391900105/6

Havis Vehicle Cradle for Getac ZX10 Tablet DS-GTC-1303, DS-GTC-1303-3

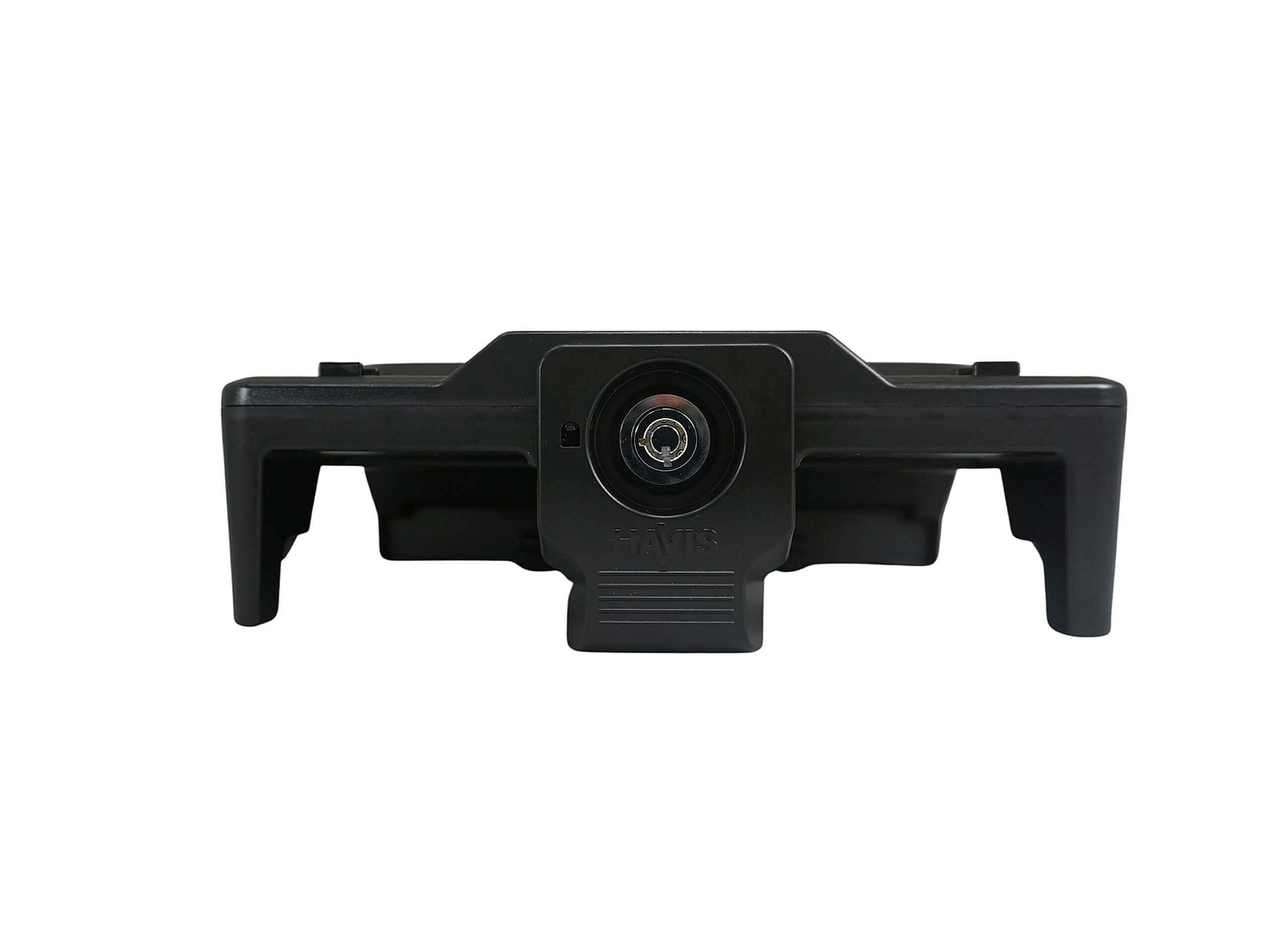

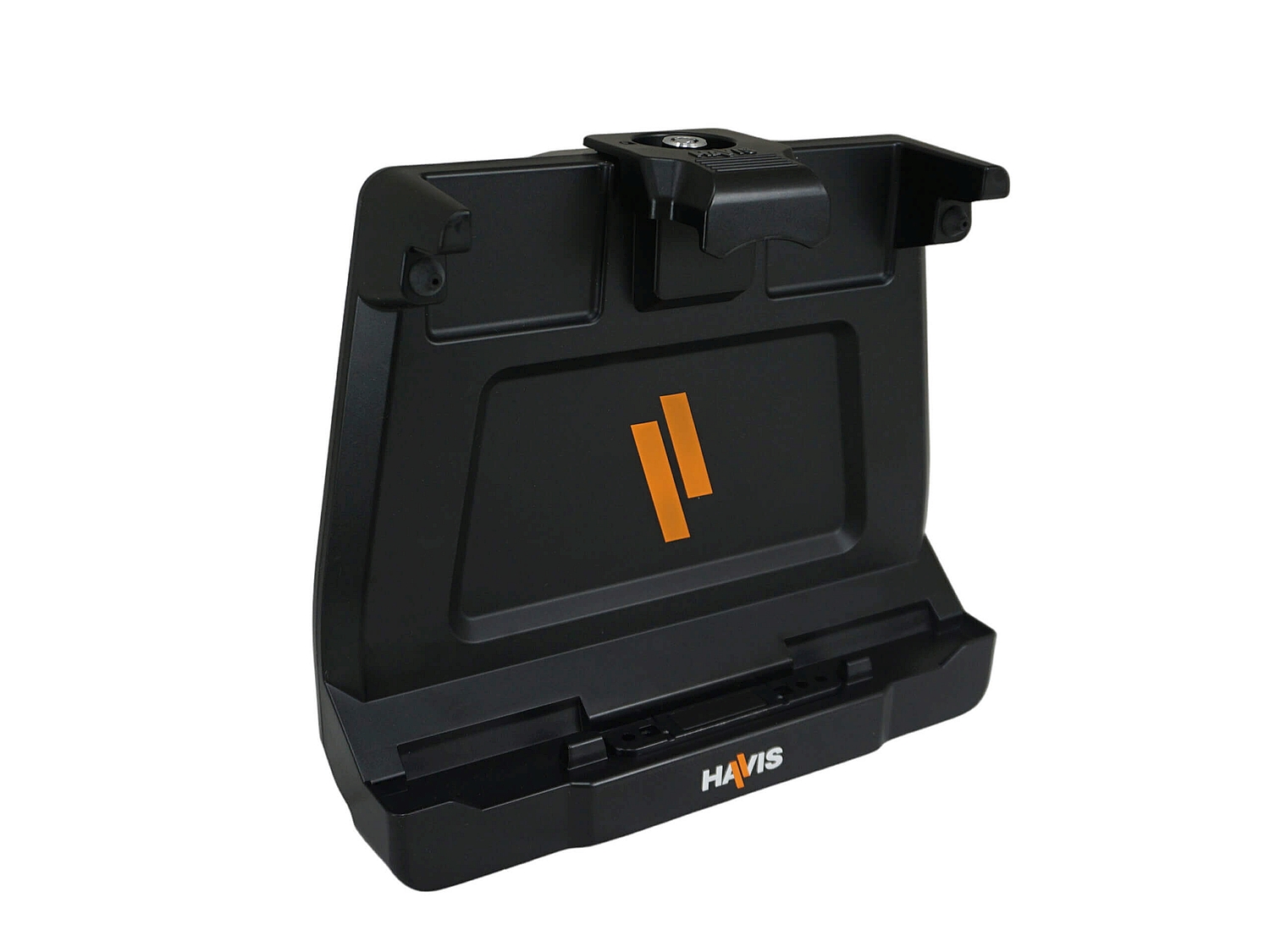

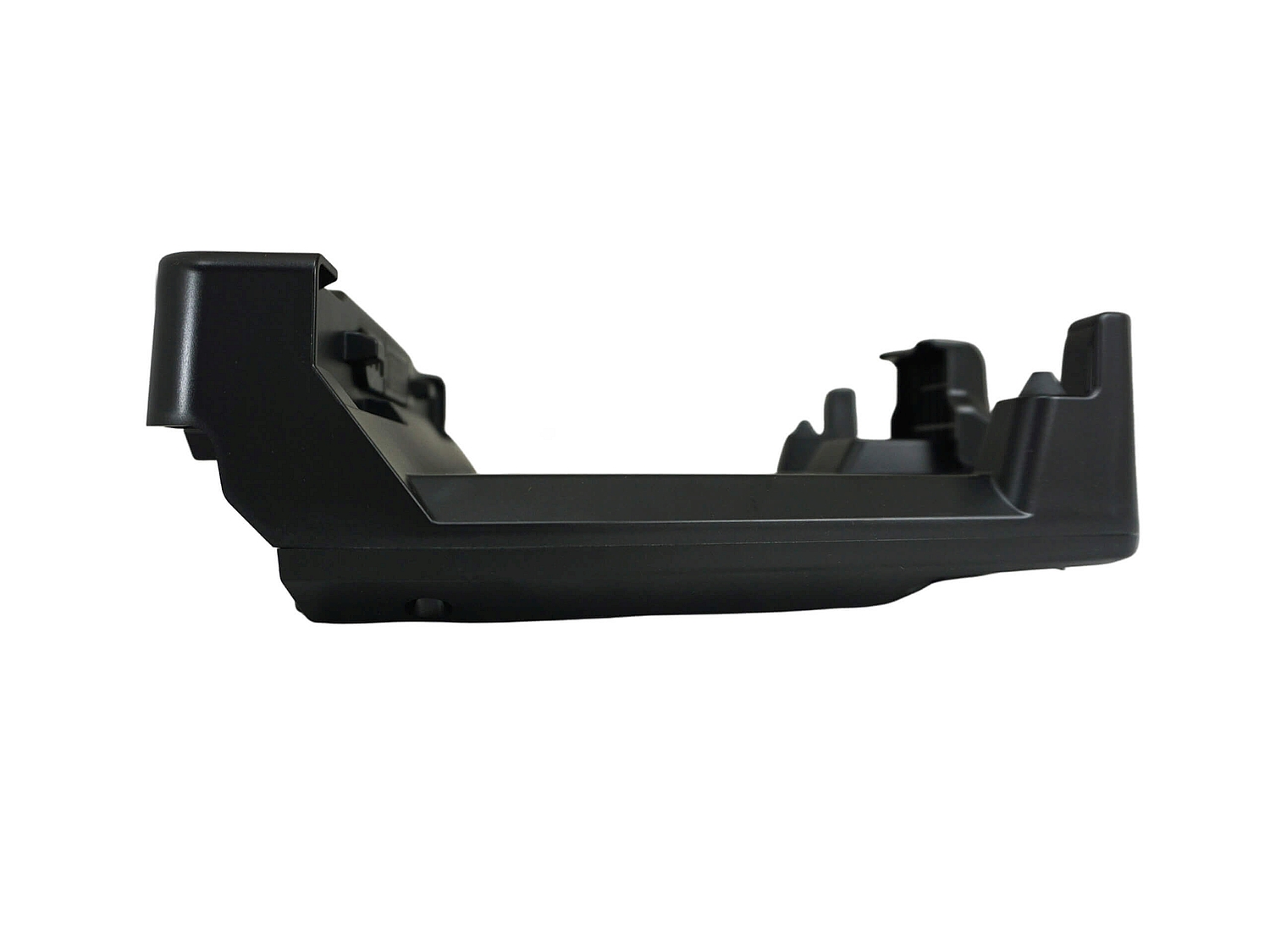

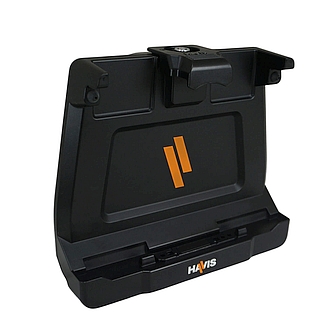

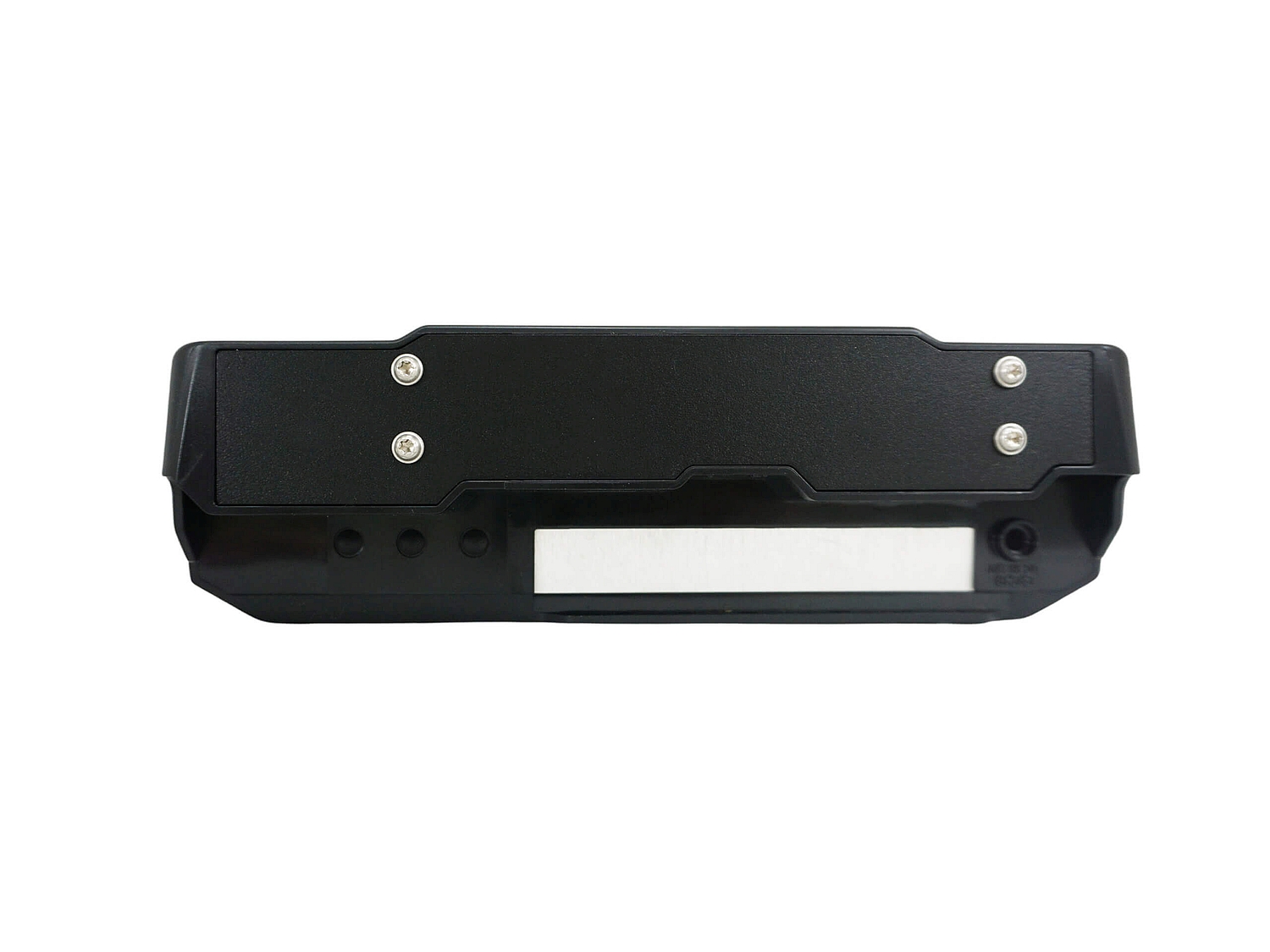

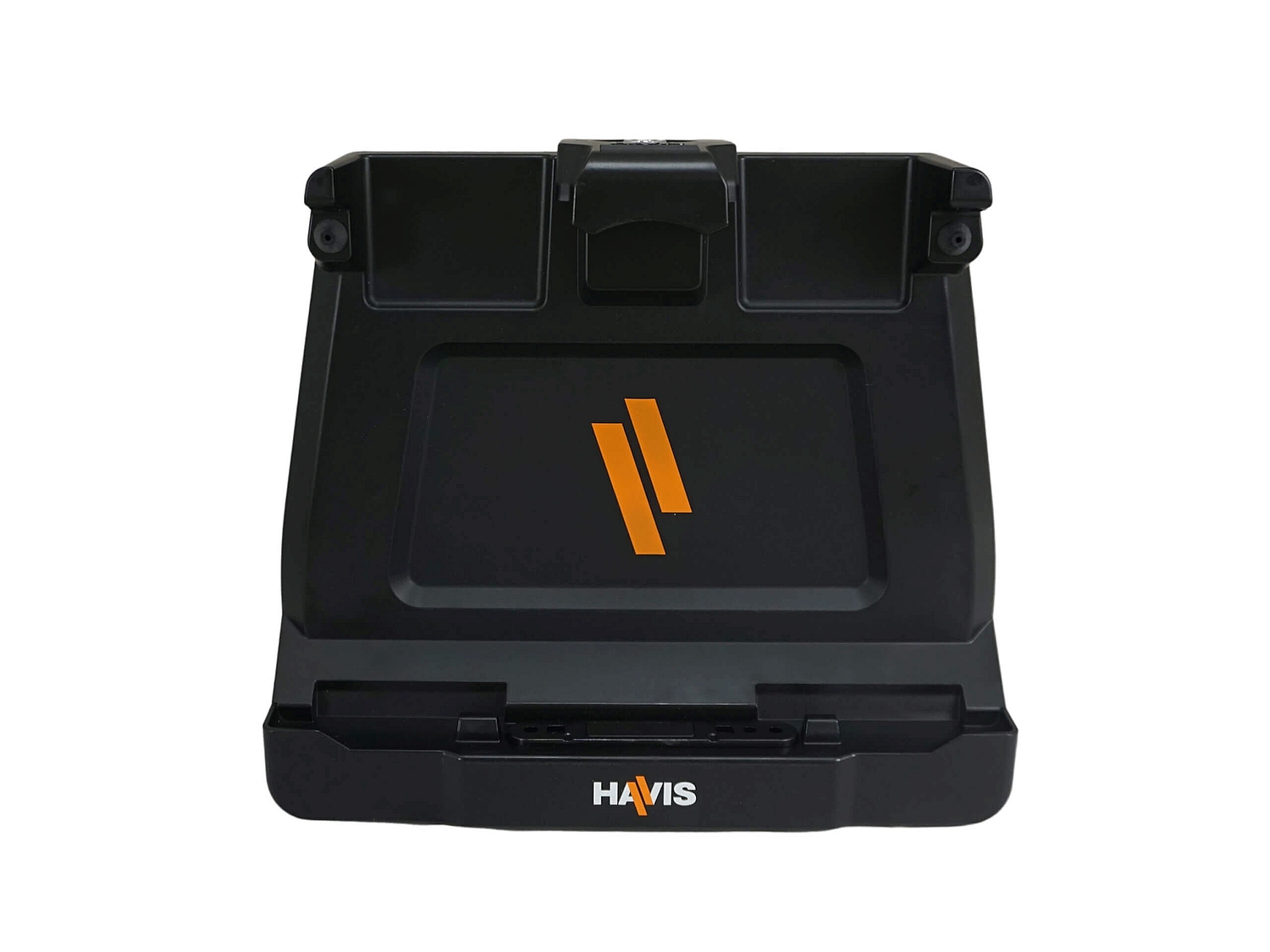

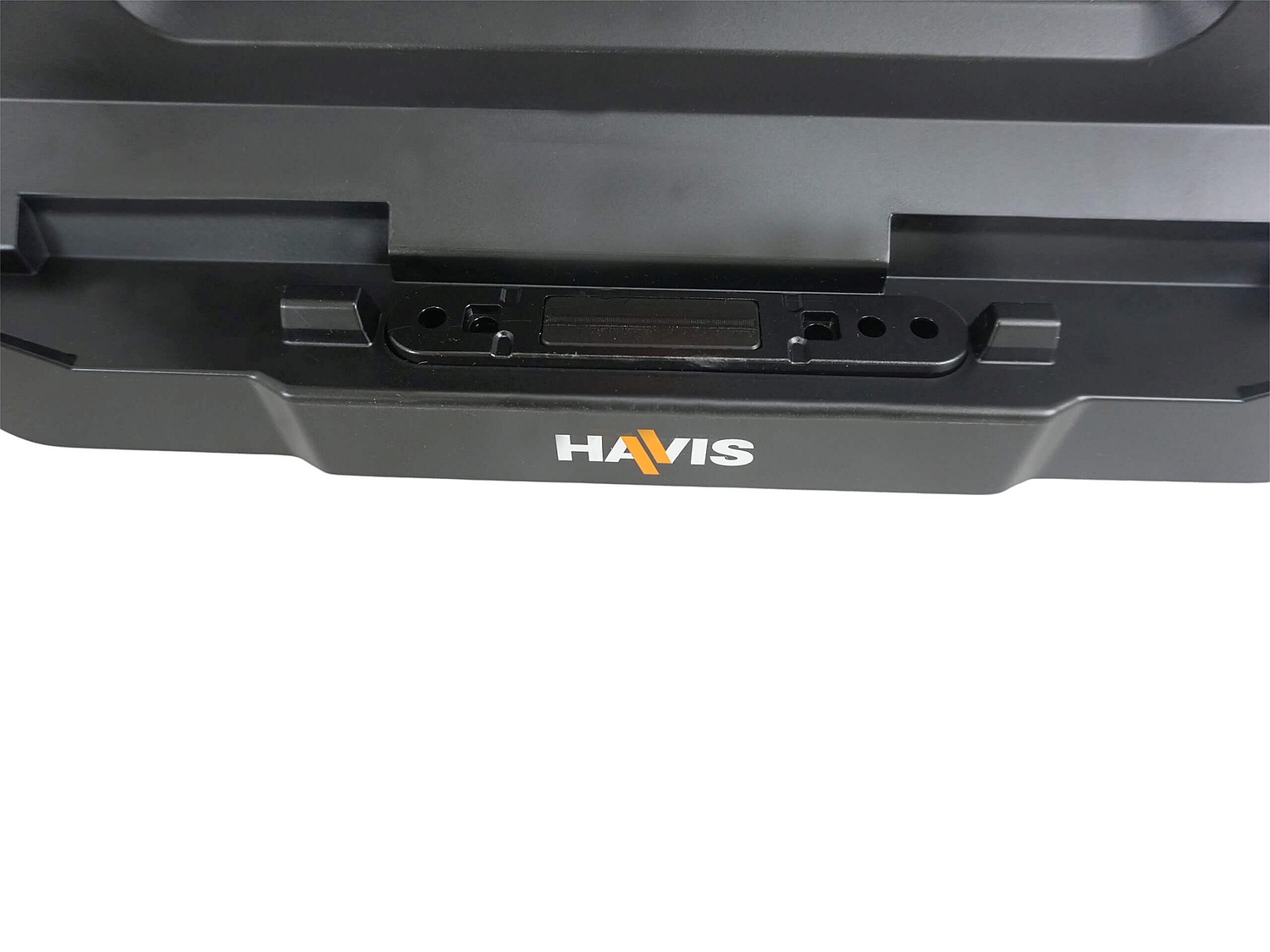

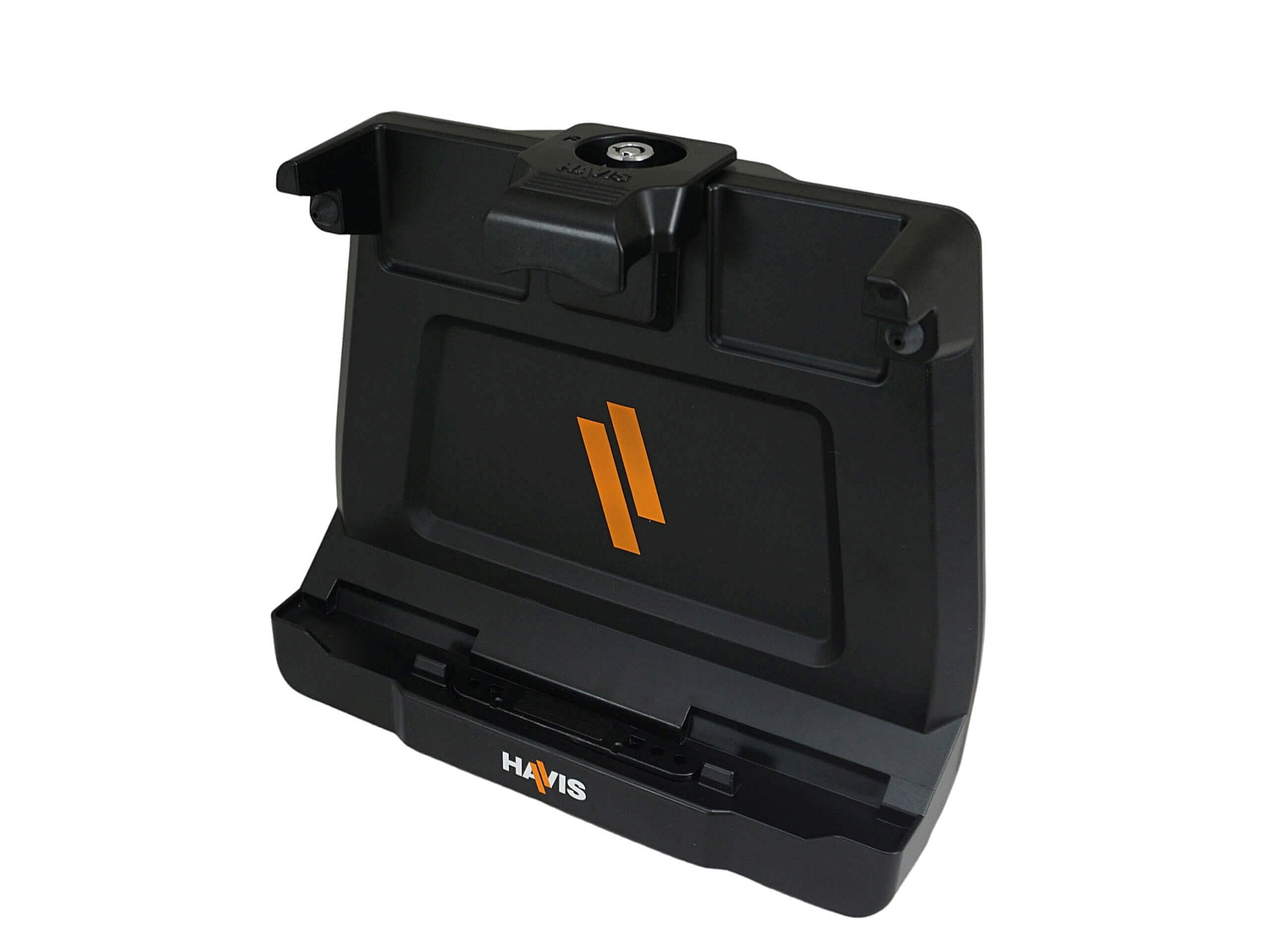

Havis Vehicle Cradle for Getac ZX10 Tablet Front Left DS-GTC-1303 Havis Vehicle Cradle for Getac ZX10 Tablet Front DS-GTC-1303 Havis Vehicle Cradle for Getac ZX10 Front Right Tablet DS-GTC-1303 Havis Vehicle Cradle for Getac ZX10 Tablet Rear DS-GTC-1303 Havis Vehicle Cradle for Getac ZX10 Tablet Right Side DS-GTC-1303 Havis Vehicle Cradle for Getac ZX10 Tablet Top DS-GTC-1303 Havis Vehicle Cradle for Getac ZX10 Tablet Base DS-GTC-1303 Havis Vehicle Cradle for Getac ZX10 Tablet Bottom DS-GTC-1303

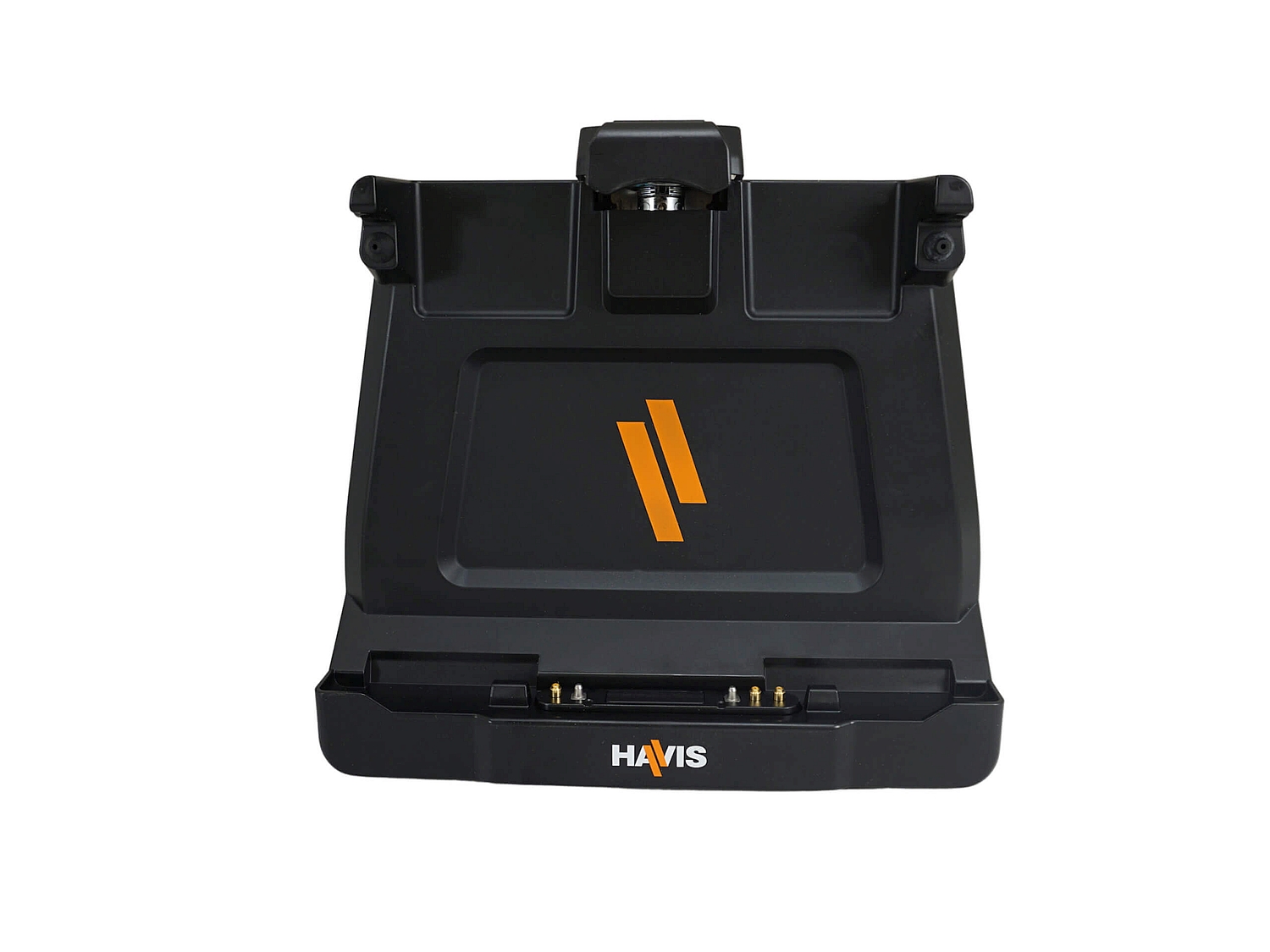

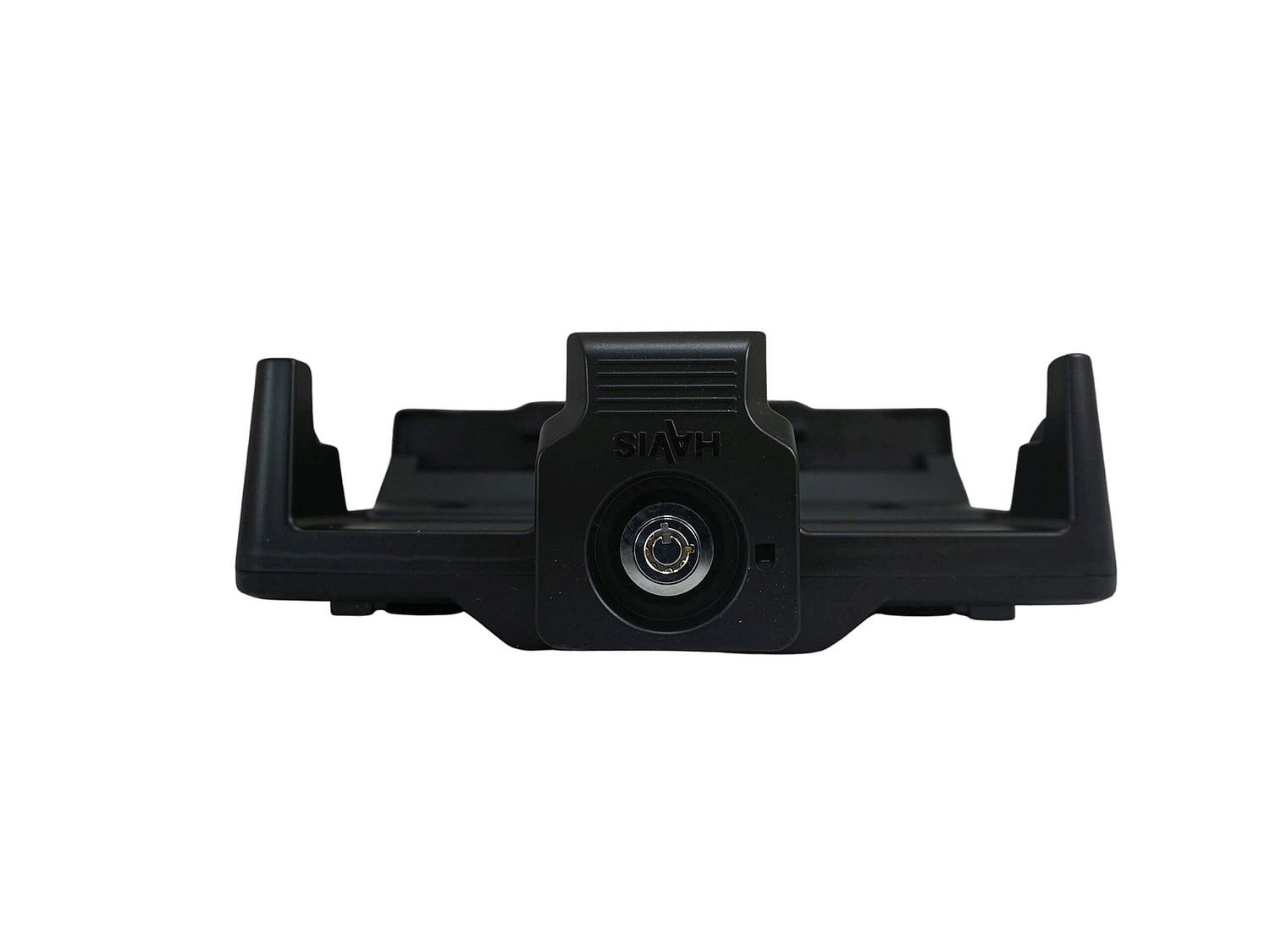

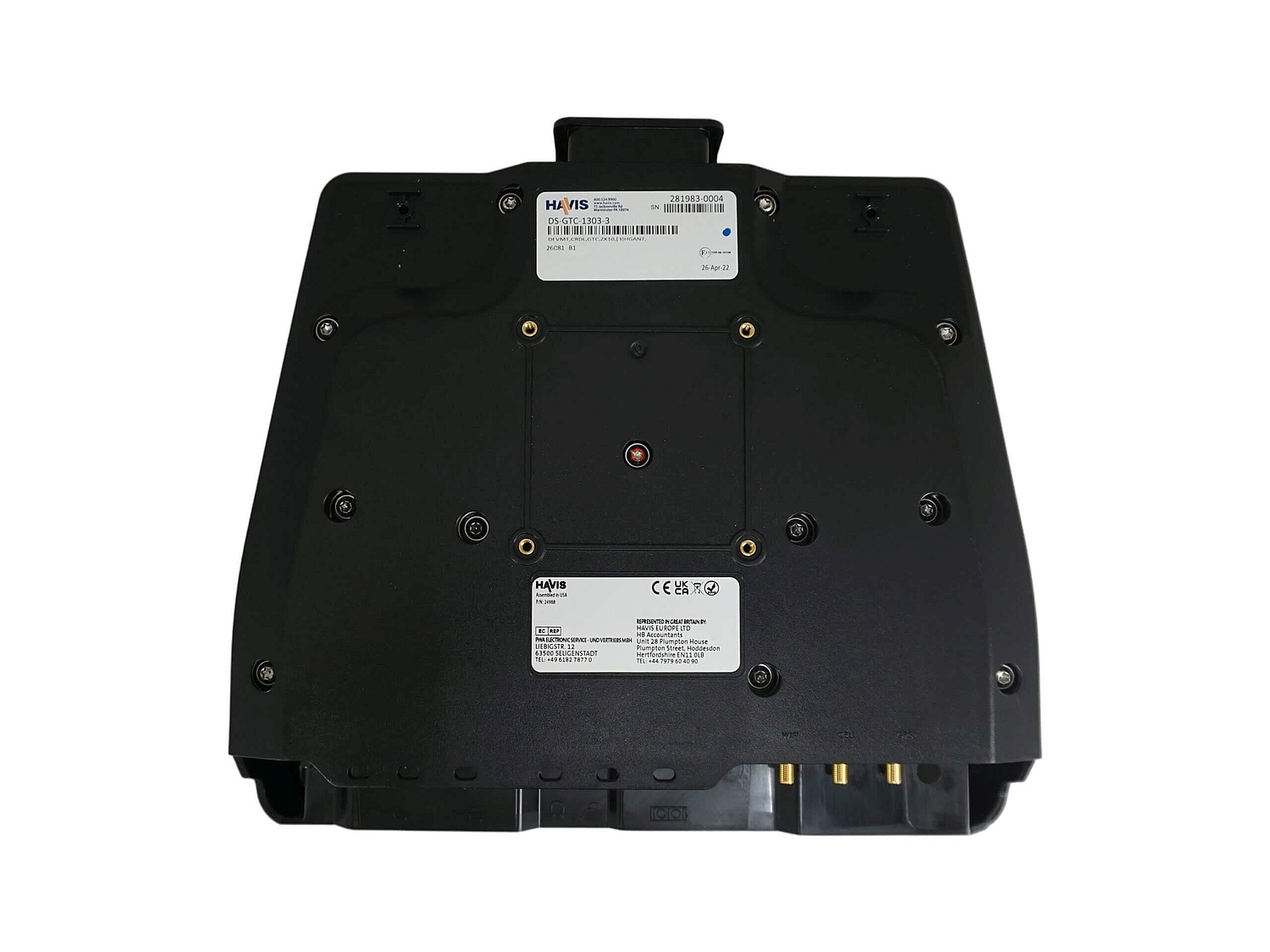

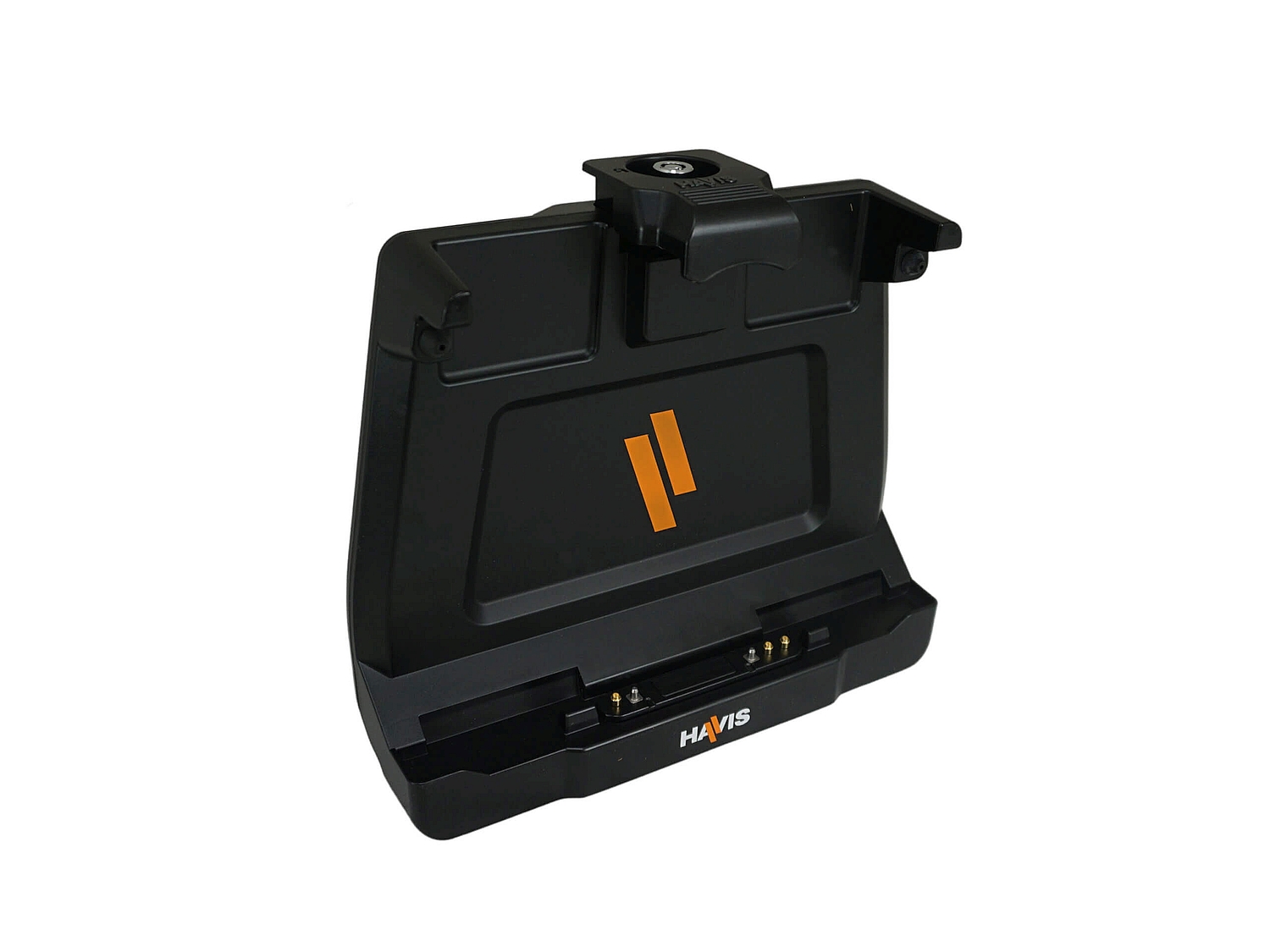

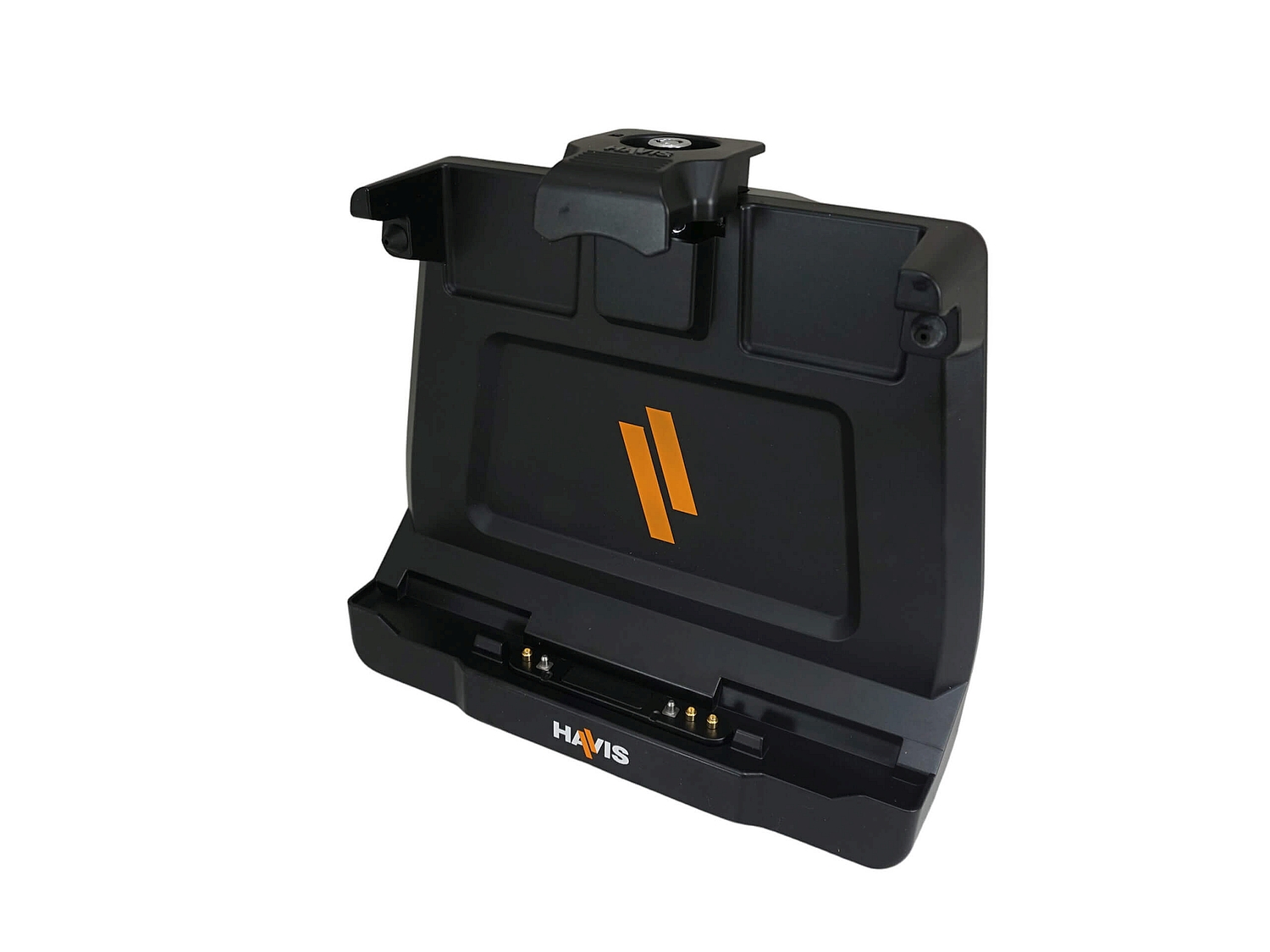

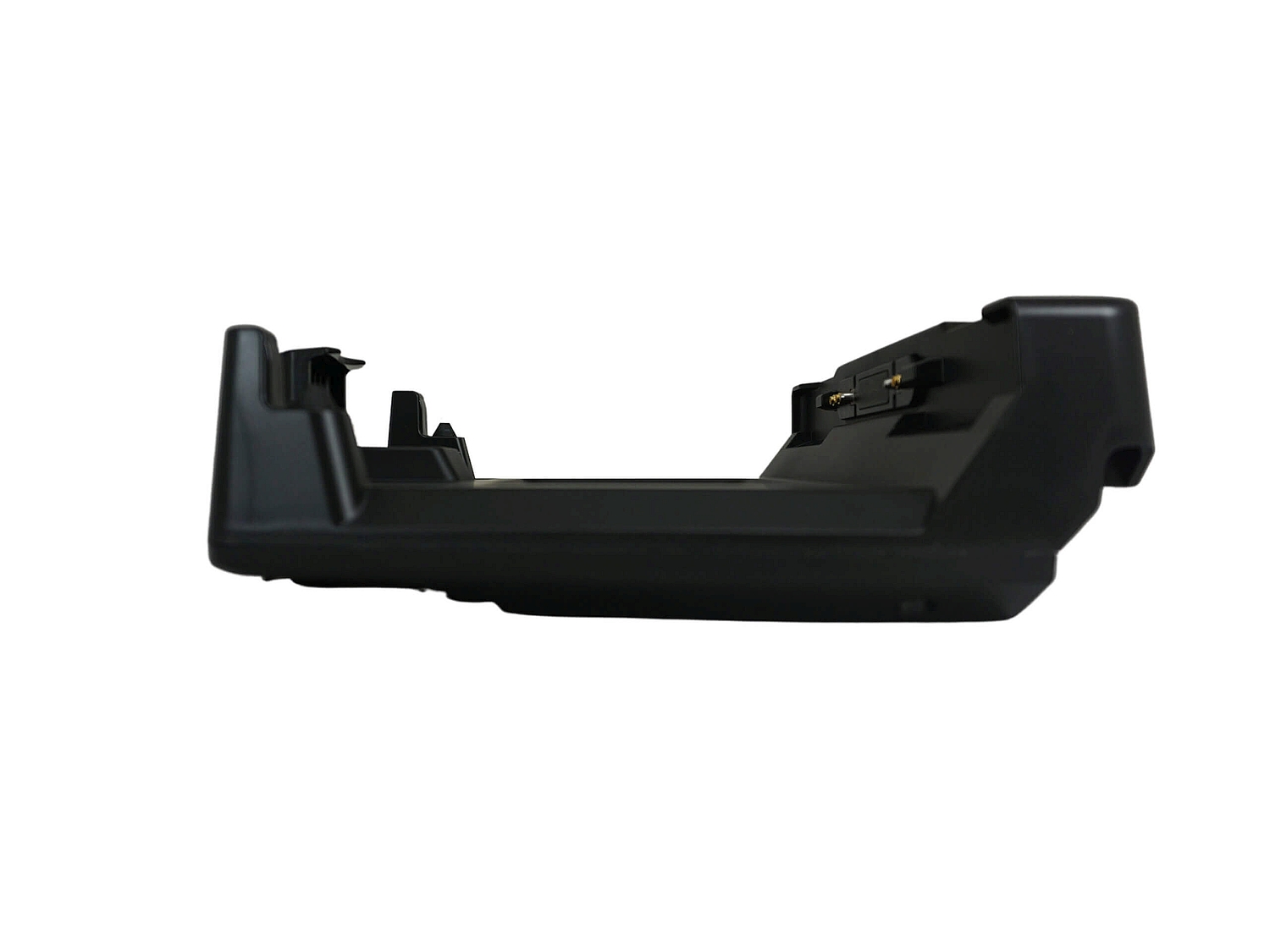

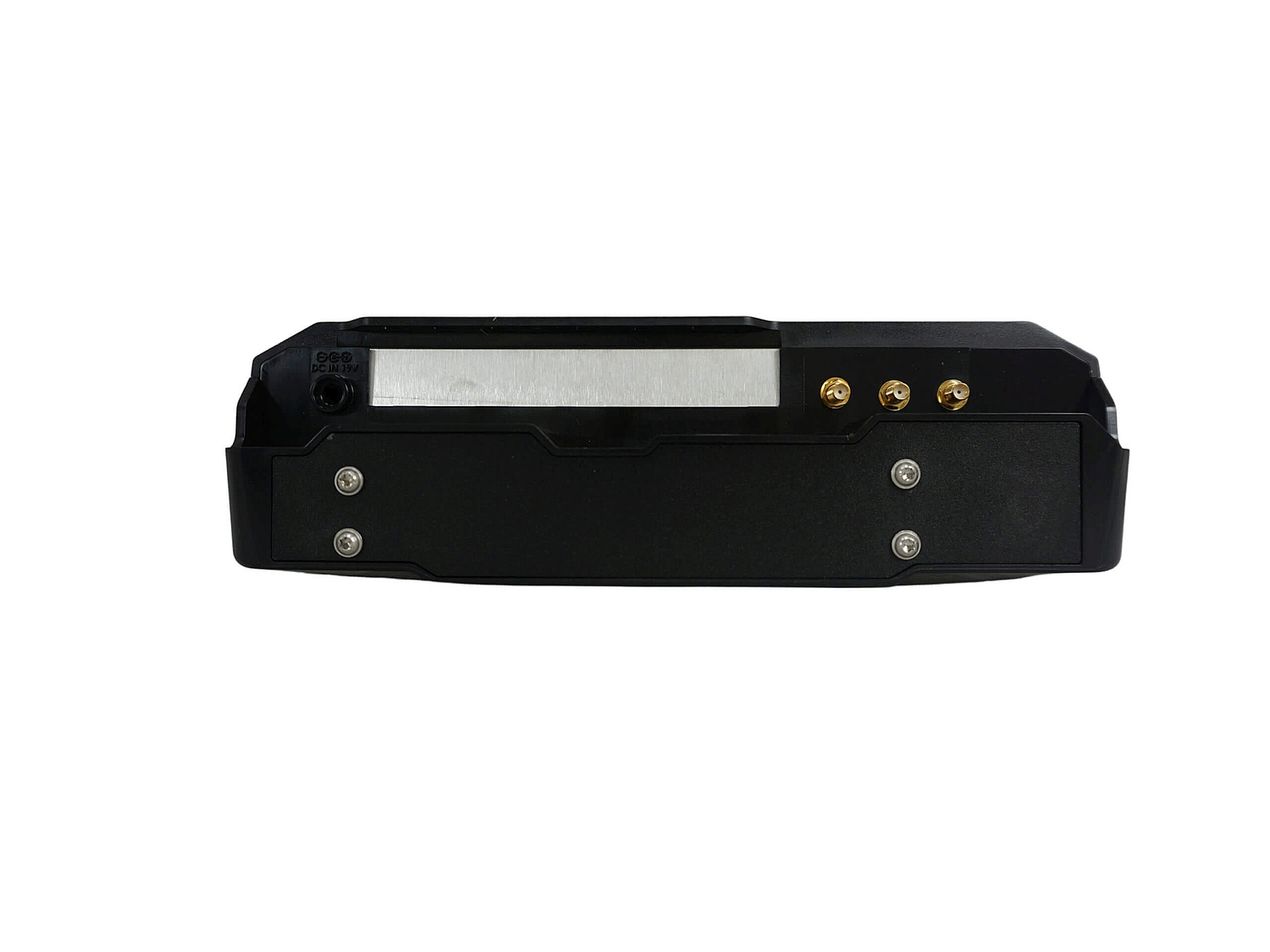

Havis Vehicle Cradle with Tri-pass-through for Getac ZX10 Tablet Front Left DS-GTC-1303-3 Havis Vehicle Cradle with Tri-pass-through for Getac ZX10 Tablet Front DS-GTC-1303-3 Havis Vehicle Cradle with Tri-pass-through for Getac ZX10 Tablet Front Right DS-GTC-1303-3 Havis Vehicle Cradle with Tri-pass-through for Getac ZX10 Tablet Rear DS-GTC-1303-3 Havis Vehicle Cradle with Tri-pass-through for Getac ZX10 Tablet Left Side DS-GTC-1303-3 Havis Vehicle Cradle with Tri-pass-through for Getac ZX10 Tablet Top DS-GTC-1303-3 Havis Vehicle Cradle with Tri-pass-through for Getac ZX10 Tablet DS-GTC-1303-3 Havis Vehicle Cradle with Tri-pass-through for Getac ZX10 Tablet DS-GTC-1303-3



  • Supports Getac's ZX10 tablet in demanding environments like material handling, utility services, industrial manufacturing and more
  • Accommodates Getac accessories like rotating hand strap, hard handle, RFID reader, smart card reader, and extended battery
  • Preserves access to tablet's features like control buttons, ports, front-facing camera, and stylus while tablet is docked
  • One-handed docking & undocking
  • Lightweight & compact design
  • Compatible with LPS-125 Isolated power supply 95 watt used for 12-32 VDC input forklifts
  • Rounded edges for comfort & safety

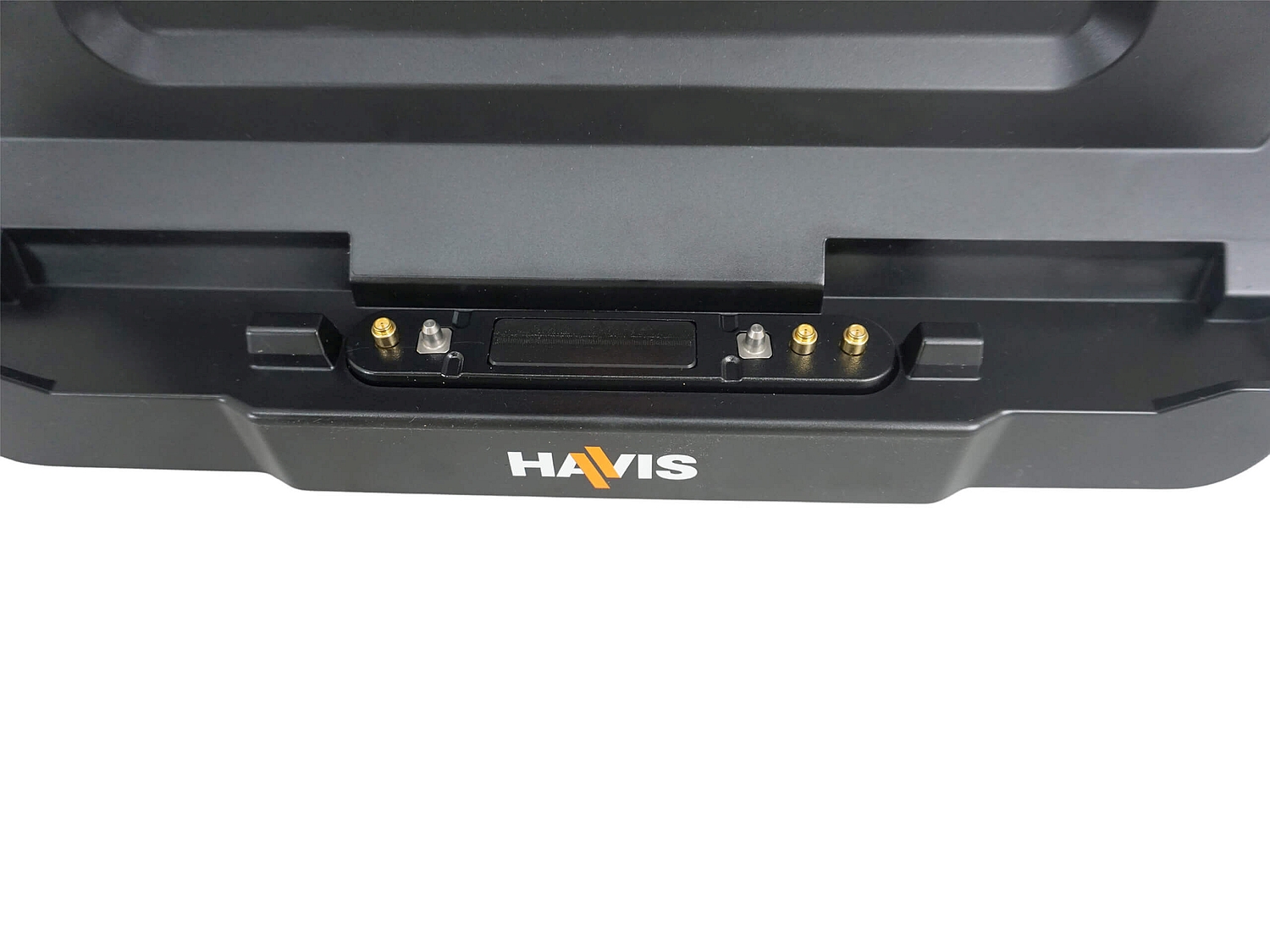

  • Optional Triple pass-through antenna connections (SMA type)
  • Integrated cable management system

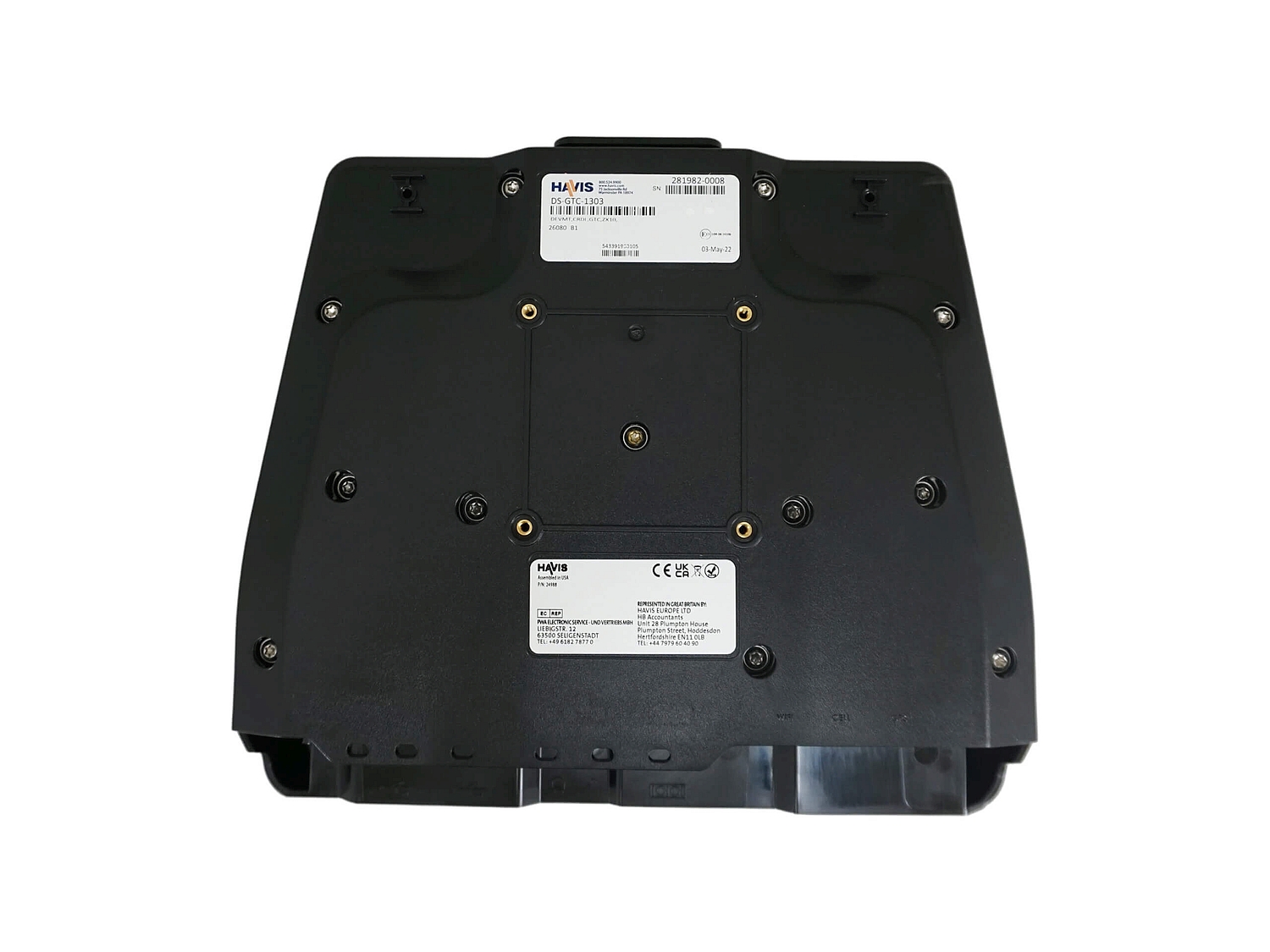

  • Integrated VESA 75 mounting pattern
  • Keyed lock
  • Made in the USA



Havis Vehicle Cradles
Part Number Description Price*
543391900105 Havis DS-GTC-1303 Vehicle Cradle without Vehicle Charger for ZX10 £290.00
543391900106 Havis DS-GTC-1303-3 Vehicle Cradle with Tri Pass-through, without Vehicle Charger for ZX10 £424.00

*Please note all prices shown are exclusive of VAT



Request a Quotation





Havis Vehicle Cradle Specifications
Dimensions 9.7" (24.5 cm) x 11.1" (28.3 cm) x 3.4" (8.6 cm)
Certifications Vibration Testing: MIL-STD 810H 514.8, crash test: SAE J1455 30mph Crash Testing, shock testing: MIL-STD 810H 516.8, cycle test: latch handle & docking connectors mechanism 30,000 cycles, hot/cold storage testing, humidity, testing, CE, Ro
Connectivity includes Optional antenna: triple high gain pass-thru connectors (SMA connectors)
Product weight 2.9 lbs (1.32 kg)
Gross weight 3.5 lbs



These Havis vehicle cradles are compatible with the following Getac models:

Getac ZX10 Tablet G1
Getac ZX10 Tablet G2

Note:
(1) ZX10 G1: DC Jack vehicle adapter (GAD6X1/GAD6X2/GAD6T1) plugs directly into the tablet 's DC Jack.
(2) ZX10 G2: USB-C vehicle adapter (25W of above) plugs direcly into the tablet's USB-C port.
