Gamber-Johnson Docking Station for Getac B360 Laptop

Engineered for the demanding work environments in utility, public safety, and material handling

Gamber-Johnson Docking Station for Getac B360 Laptop 7160-1432-00, 7160-1431-00

Gamber-Johnson’s new B360 laptop docking station is designed for the Getac B360 rugged computer and the new Getac B360 Pro with the high capacity battery and factory installed expansion capability. The B360 docking station features a convenient front-facing docking release latch making it simple to dock/release the computer without reaching.

The front-facing dual USB ports are convenient when you need temporary port access but utilize the rear-facing full port replication to more permanently connect the peripherals you use on a daily basis. This docking station provides fast-charging USB ports for situations where time is critical and a keyed lock to protect your investment when you are away from the vehicle. Combine Gamber-Johnson’s mounting equipment with the B360 docking station to create an ergonomic vehicle office for any application.



Gamber-Johnson Cradle for Getac B360 Laptop without RF Antenna Pass-through Front 7160-1432-00 Gamber-Johnson Cradle for Getac B360 Laptop without RF Antenna Pass-through with Screen Support 7160-1432-00 Gamber-Johnson Cradle for Getac B360 Laptop with RF Antenna Pass-through Front 7160-1432-03 Gamber-Johnson Cradle for Getac B360 Laptop with RF Antenna Pass-through and Screen Support 7160-1432-03 Gamber-Johnson Cradle for Getac B360 Laptop Dock Release

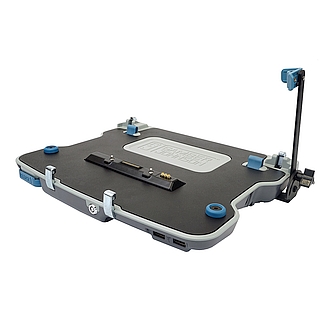

Gamber-Johnson Dock for Getac B360 Laptop without RF Antenna Pass-through Front 7160-1431-00 Gamber-Johnson Dock for Getac B360 Laptop without RF Antenna Pass-through with Screen Support 7160-1431-00 Gamber-Johnson Dock for Getac B360 Laptop with RF Antenna Pass-through Front 7160-1431-03 Gamber-Johnson Dock for Getac B360 Laptop with RF Antenna Pass-through and Screen Support 7160-1431-03 Gamber-Johnson Dock for Getac B360 Laptop without RF Antenna Pass-through with 120W Vehicle Adapter and Screen Support 7160-1431-00

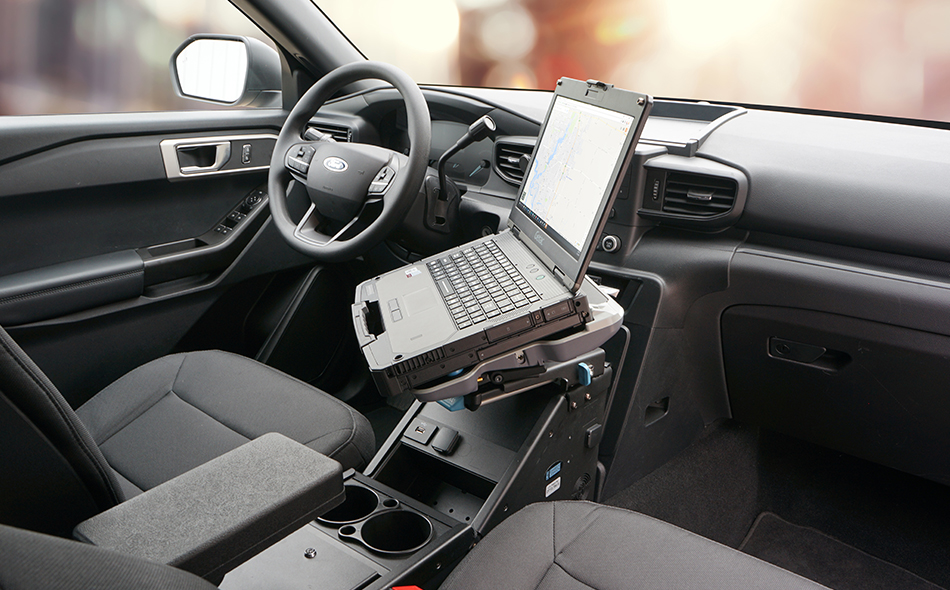

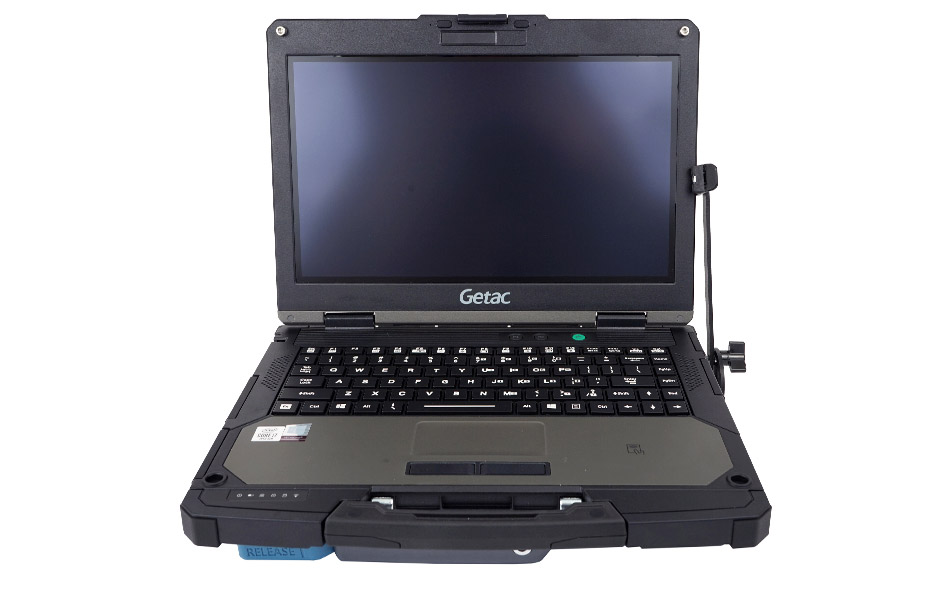

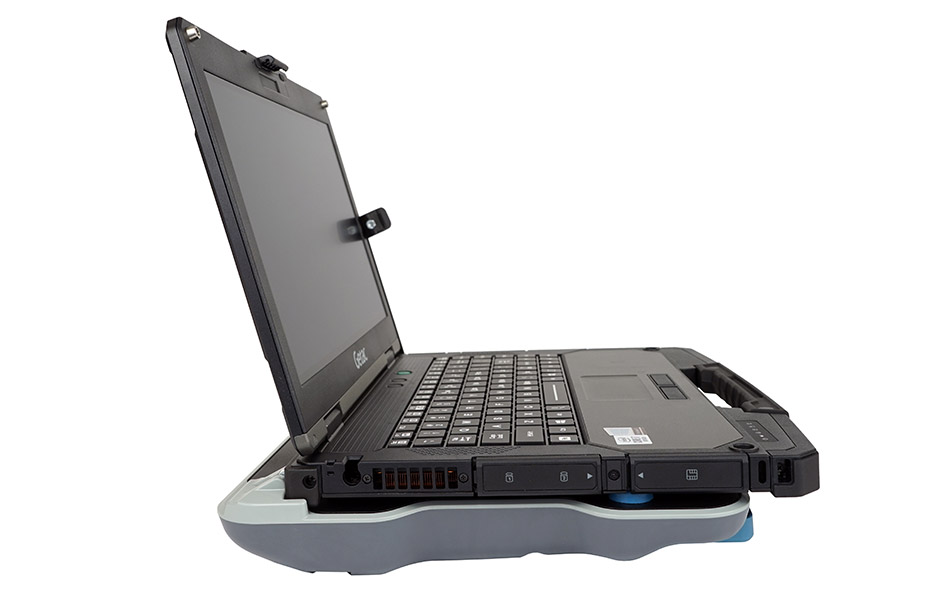

Gamber-Johnson Docking Station with Getac B360 Laptop and Screen Support Gamber-Johnson Docking Station with Getac B360 Laptop and Screen Support Gamber-Johnson Docking Station with Getac B360 Laptop and Screen Support Front Gamber-Johnson Docking Station with Getac B360 Laptop and Screen Support Side View Gamber-Johnson Docking Station with Getac B360 Laptop Mounted in Ford Vehicle



  • Getac Certified electronics
  • Floating docking connector with steel guide pins to ensure a reliable connection even in the most rugged environments

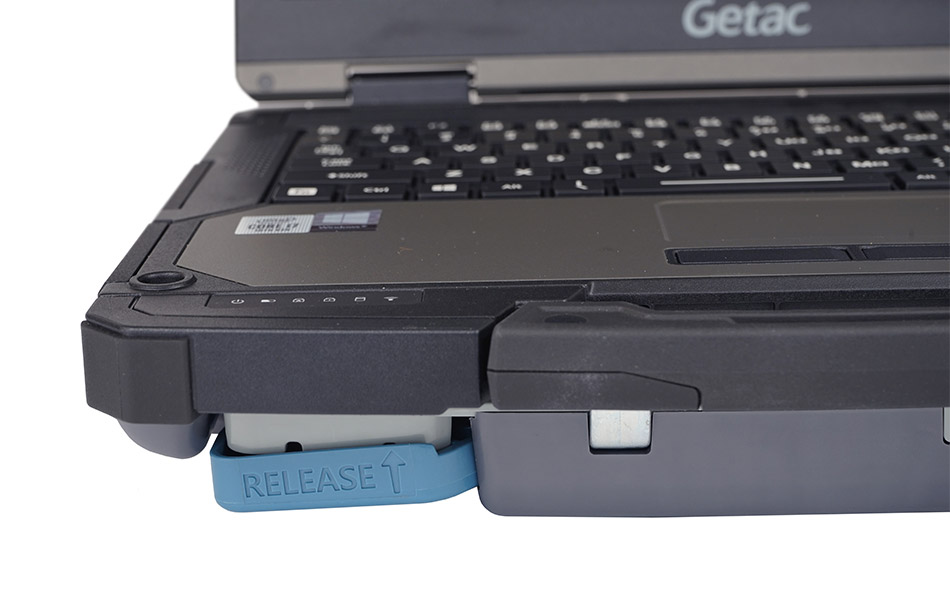

  • Front corner release latch, easily remove the computer by activating the latch
  • Access to all computer control buttons and ports while the computer is docked
  • Rear-facing I/O ports; integrated cable strain relief and cable management system
  • Screen support for additional stability (included)
  • Keyed lock for theft deterrence
  • Vesa 75mm mounting pattern
  • Rounded edges to enhance personal safety
  • Available with Tri RF antenna pass-through or No RF. Also available bundled with an automotive power adapter



Gamber-Johnson Docking Stations
Part Number Description Price*
543390100505 Gamber-Johnson 7160-1432-00 Vehicle Cradle without Vehicle Charger for B360 £428.00
543390100506 Gamber-Johnson 7160-1432-03 Vehicle Cradle with Tri Pass-through, without Vehicle Charger for B360 £513.00

543390100501 Gamber-Johnson 7160-1431-00 Vehicle Dock without Vehicle Charger for B360 £885.00
543390100502 Gamber-Johnson 7160-1431-03 Vehicle Dock with Tri Pass-through, without Vehicle Charger for B360 £959.00
543390100503 Gamber-Johnson 7160-0789-00 Vehicle Dock with 120W Vehicle Charger for B360 £1031.00

*Please note all prices shown are exclusive of VAT



Request a Quotation





Gamber-Johnson Docking Station Specifications
Certifications and Testing Getac Certified
  Vibration Tested: MIL-STD 810G Operational/Non-Operational
  Shock Crash Hazard: SAE J1455; Mechanical Shock: 40G
  Cycle Test: Latch, Lock, and Docking Connector - 30,000 Cycles
  Environmental: Thermal Shock; High/Low Temperature Operational & Storage
  FCC, CE, E-Mark, RoHS Certified
Dimensions Weight: 4.85 lbs (2.2 kg)
  Height: 2.25 in (5.72 cm)
  Width: 14 in (35.56 cm)
  Depth: 11.5 in (29.21 cm)
Port Replication Getac Certified Electronics
  USB 2.0 (1) 4 Pin Rear-Facing, (2) Front-Facing (500mA)
  USB 3.0 (3) - 9 Pin Rear-Facing (900mA)
  RS232 Serial (1)
  Ethernet (2) RJ45
  VGA (1) D-Sub 9 Pin
  HDMI (1) 19 Pin
  Power Input 19Vdc



These Gamber-Johnson docking stations are compatible with the following Getac models:

Getac B360 Laptop G1/2
Getac B360 Laptop G3
Getac B360 Pro Laptop G1/2
Getac B360 Pro Laptop G3
