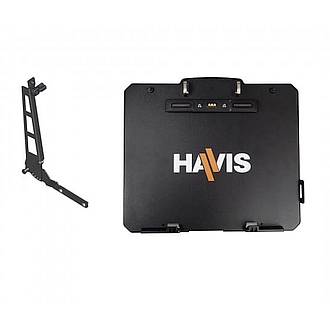

Havis Docking Station for Getac K120 Laptop with Screen Support
Part Numbers 543314200011/2
- Package - docking station with optional tri-pass rf antenna and DS-DA-422 (screen support) for Getac K120 convertible laptop
- Includes DS-DA-422 screen support, designed to support the laptop screen and reduce vibration
- Low profile design maximizes available space inside of vehicle
- Full port replication and integrated strain relieving provide simple, safe, and secure connectivity to essential peripherals, as well as convenient and efficient cable
- Rounded corners and edges provide safety in accidents and during airbag deployment, in addition to daily use and operation of docking station
- Designed to fit all Havis and VESA 75 hole pattern mounting equipment, as well as most competitors
- Lock and key supplied for peace of mind theft deterrence
| Part Number | Description | Price* |
| 543314200011 | Havis PKG-DS-GTC-1001 Docking Station without Vehicle Charger, with Screen Support for K120 Laptop | £1048.00 |
| 543314200012 | Havis PKG-DS-GTC-1001-3 Docking Station without Vehicle Charger, with Tri Pass-through and Screen Support for K120 Laptop | £1110.00 |
*Please note all prices shown are exclusive of VAT
| Compatible computer | Getac K120 convertible laptop |
| Docking station dimensions (with mounting bracket) | 11.66" l x 13.32" w x 2.68" h (296mm x 338mm x 68.2mm) |
| Docking station dimensions (without mounting bracket) | 11.66" l x 13.32" w x 2.43" h (296mm x 338mm x 61.7mm) |
| Certifications | Vibration Testing: MIL-STD 810G 514.8; crash test: SAE J1455 30mph Crash Testing; cycle test: latch handle & docking connectors mechanism, 30,000 cycles; environmental testing: hot/cold operational & storage and thermal shock; bump testing |
| Connectivity | USB: fully-powered USB 2.0 (3 total - 2 front facing, 1 on I/O panel), USB 3.0 (3); Ethernet: RJ45 (2); serial: DB9 (1); video: VGA (1), HDMI (1); dock input power: (1); optional rf: (3 SMA connectors) |
| Dock input power | 19V DC |
| Docking station product weight (without mounting bracket) | 4.41 lbs (2.00 kg) (PKG-DS-GTC-1001), 4.47 lbs (2.03 kg) (PKG-DS-GTC-1001-3) |
| Docking station product weight (with mounting bracket) | 5.79 lbs (2.63 kg) (PKG-DS-GTC-1001), 5.85 lbs (2.65 kg) (PKG-DS-GTC-1001-3) |
| Docking station product weight | 7.42 lbs (3.37 kg) (PKG-DS-GTC-1001), 7.48 lbs (3.39 kg) (PKG-DS-GTC-1001-3) |
| Product weight | 8.5 lbs (3.86 kg) |
| Gross weight | 8.5 lbs |
These Havis docking stations are compatible with the following Getac models:
Getac K120 Convertible Laptop G1
Getac K120 Convertible Laptop G2
Getac K120 Convertible Laptop G2-R
Getac K120 Convertible Laptop G3
