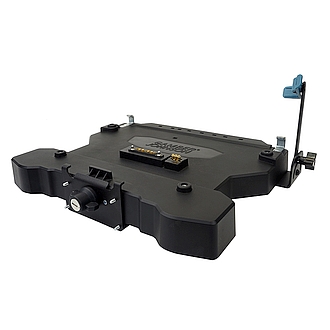

Gamber-Johnson Docking Station for Getac S410 Laptop
Engineered for the demanding work environments in utility, public safety, and material handling
Designed to protect the Getac S410 semi-rugged computer, Gamber-Johnson’s docking station offers rugged construction for durability. The docking station is thin and light, featuring a spring-loaded connnector to ensure connectivity even in the toughest terrain. The docking station is built with a push and turn lock with key for theft deterrence. To lock, just simply insert the rear portion of the computer and then push the latch and turn the lock.
- Small footprint designed to maximize available space
- Rear hooks and guide pins ensure proper alignment and docking connectivity
- Plate draws back into docking station when the computer is docked
- Accommodates optional VGA attachments
- Rear-facing I/O ports, integrated cable strain relief system, and convenient cable management system for docking stations
- Can be used with Gamber-Johnson motion attachments with the VESA 75mm hole pattern
- Rugged composite/steel construction with black powder coat finish for long-term durabililty
- Screen support is included with the dock
- Comes with a power supply bracket to attach the Getac power supply to the bottom of the dock
| Part Number | Description | Price* |
| 543387680014 | Gamber-Johnson 7160-0791-00 Vehicle Cradle without Vehicle Charger for S410 | £457.00 |
| 543387680015 | Gamber-Johnson 7160-0791-03 Vehicle Cradle with Tri Pass-through, without Vehicle Charger for S410 | £524.00 |
| 543387680012 | Gamber-Johnson 7160-0790-00 Vehicle Dock without Vehicle Charger for S410 | £821.00 |
| 543387680013 | Gamber-Johnson 7160-0790-03 Vehicle Dock with Tri Pass-through, without Vehicle Charger for S410 | £888.00 |
| 543387680021 | Gamber-Johnson 7160-0536 Vehicle Dock with 120W Vehicle Charger for S410 | £967.00 |
| 543387680022 | Gamber-Johnson 7160-0537 Vehicle Dock with Tri Pass-through and 120W Vehicle Charger for S410 | £1034.00 |
*Please note all prices shown are exclusive of VAT
| Certifications and Testing | Getac Certified |
| Vibration Tested: MIL-STD 810G Operational/Non-Operational | |
| MIL-STD 810G Environmental: Humidity, Temperature High/Low (Operational/Storage) | |
| Cycle Test: Latch, Lock, and Docking Connector - 30,000 Cycles | |
| FCC, RoHS Certified | |
| C-Tick | |
| SAE Standard J1455 Crash Test | |
| Dimensions | Weight: 4.47 lbs (2.03 kg) |
| Height: 12.39 in (31.47 cm) | |
| Width: 13.84 in (35.15 cm) | |
| Depth: 2.9 in (7.37 cm) | |
| Port Replication | Getac Certified Electronics |
| Serial: D-sub 9 Pin (2) | |
| VGA D-Sub 15 Pin (1) | |
| HDMI (1) | |
| USB 2.0 - 4 Pin (3) | |
| USB 3.0 - 9 Pin (1) | |
| Ethernet RJ45 (1) | |
| Speakers/Microphone (1 each) | |
| Power Input: 19 Vdc | |
| Antenna: TRI RF (SMA) (optional) |
These Gamber-Johnson docking stations are compatible with the following Getac models:
Getac S410 Laptop G1-4
Getac S410 Laptop G5
