Gamber-Johnson Docking Station for Getac S510 Laptop
Engineered for the demanding work environments in material handling, utility and public safety
Designed for the new Getac S510 laptop computer, this rugged docking station with optional TRI-RF pass through offers full port replication, including (2) front-facing USB 2.0, (2) USB 3.0, (1) Serial (RS232), (1) Ethernet (RJ45), (1) HDMI, and (1) USB-C ports. A convenient front release latch allows for easy undocking of the computer, while a keyed lock provides security. The floating docking connector ensures dependable connectivity even in the most rugged environments.
- Compatible with Getac’s S510 rugged laptop computers
- Floating docking connector with steel guide pins to ensure a reliable connection in even the most rugged environments
- Allows access to all computer control buttons and ports while computer is docked
- Front release latch for easy undocking of computer
- Keyed lock for theft deterrence
- Getac certified electronics
- Screen support for additional stability (included)
- VESA 75mm mounting pattern for compatibility with a variety of Gamber-Johnson motion attachments
| Part Number | Description | Price* |
| 5433GA890503 | Gamber-Johnson 7160-1931-00 Vehicle Cradle without Vehicle Charger for S510 | £375.00 |
| 5433GA890504 | Gamber-Johnson 7160-1931-03 Vehicle Cradle with Tri Pass-through, without Vehicle Charger for S510 | £457.00 |
| 5433GA890501 | Gamber-Johnson 7160-1929-00 Vehicle Dock without Vehicle Charger for S510 | £775.00 |
| 5433GA890502 | Gamber-Johnson 7160-1929-03 Vehicle Dock with Tri Pass-through, without Vehicle Charger for S510 | £851.00 |
*Please note all prices shown are exclusive of VAT
| Certifications and Testing | Getac Certified |
| Vibration Tested: MIL-STD 810G Operational/Non- Operational | |
| Shock Crash Hazard: SAEJ1455; Mechanical Shock: 40g | |
| Cycle Test: Latch, Lock and Docking Connector – 30,000 Cycles | |
| Environmental: Thermal Shock; High/Low Temperature Operational & Storage | |
| FCC, CE, E-Mark, RoHS Certified | |
| Dimensions | Weight: 4.71 lbs (2.14 kg) |
| Height: 2.65 in (6.73 cm) | |
| Width: 14.5 in (36.83 cm) | |
| Depth: 11.0 in (27.94 cm) | |
| Port Replication (Dock) | USB 2.0 (front) (2) |
| USB 3.2 (2) | |
| Serial (RS232) (1) | |
| Ethernet (RJ45) (1) | |
| HDMI (1) | |
| USB-C (1) | |

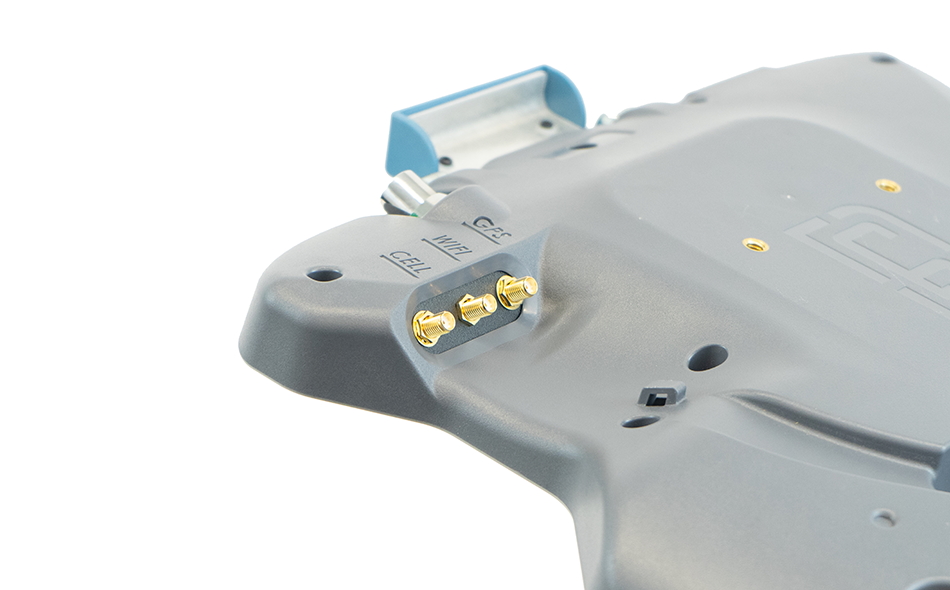

| Antenna: TRI RF (SMA) (optional) |
These Gamber-Johnson docking stations are compatible with the following Getac models:
Getac S510 Laptop G1
