Gamber-Johnson Docking Station for Getac K120 Tablet

Engineered for the demanding work environments in utility, public safety, and material handling

Gamber-Johnson Docking Station for Getac K120 Tablet 7160-1085-00, 7160-1084-00

Designed for the Getac K120 fully rugged tablet, the Gamber-Johnson K120 tablet docking station provides two front-facing USB ports and an array of rear replication ports to link peripherals within the vehicle.

The docking station features a quick release latch making it easy to take in and out of a vehicle and it accommodates the rotating hand strap, hard handle, and bar code scanner. The keyed lock provides added security and Gamber-Johnson’s quality and reliability ensure the dock will provide years of uninterrupted service.

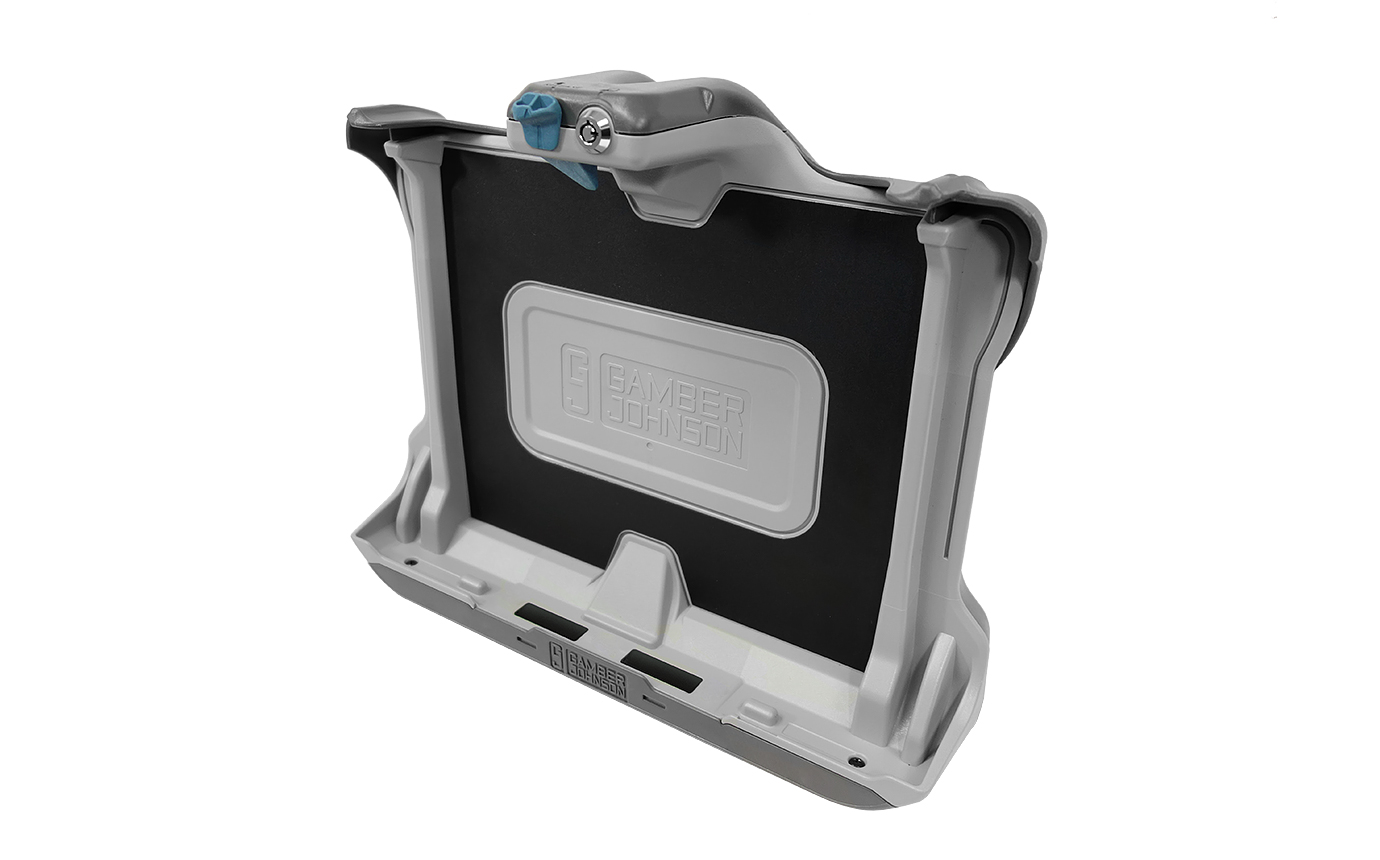

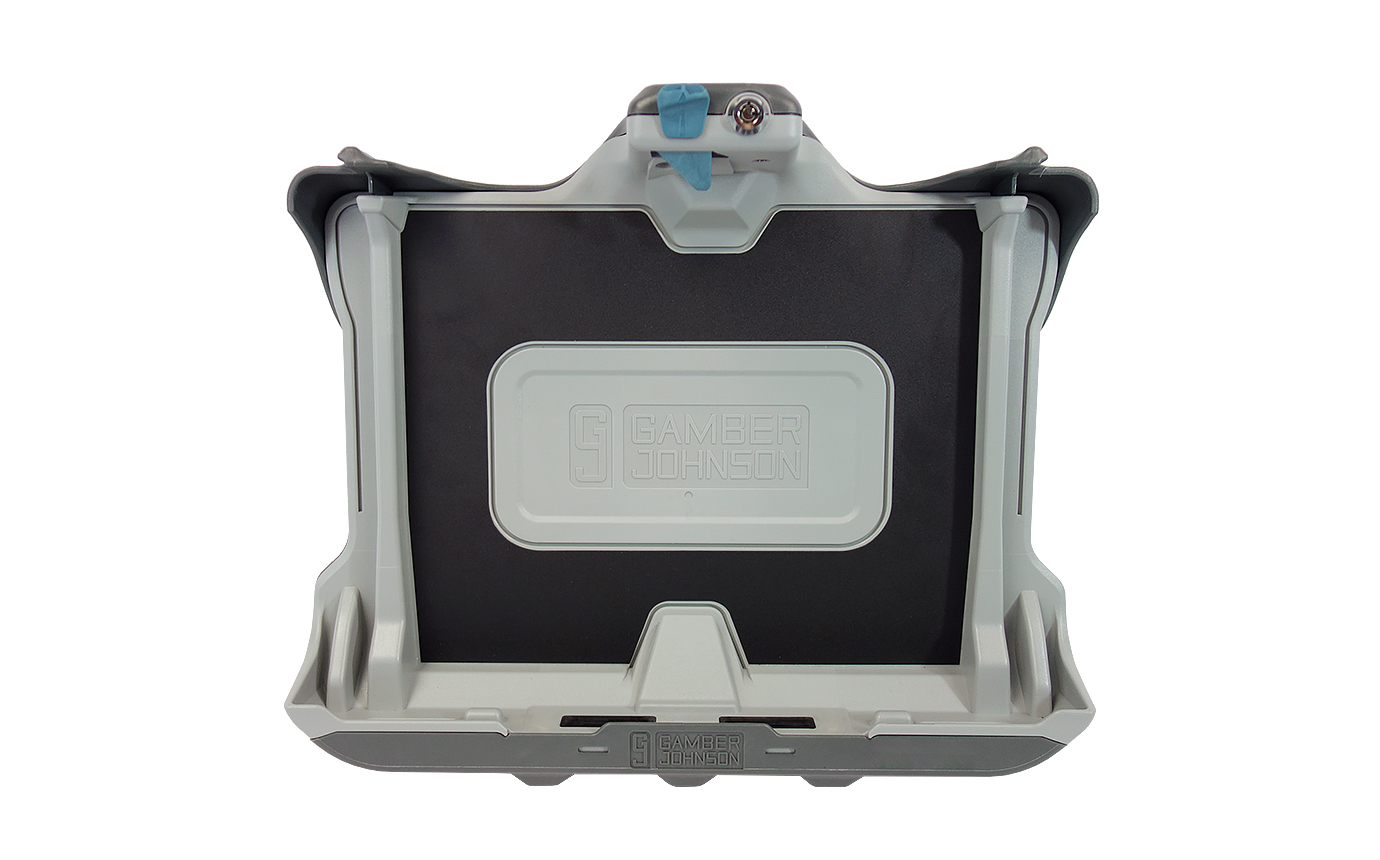

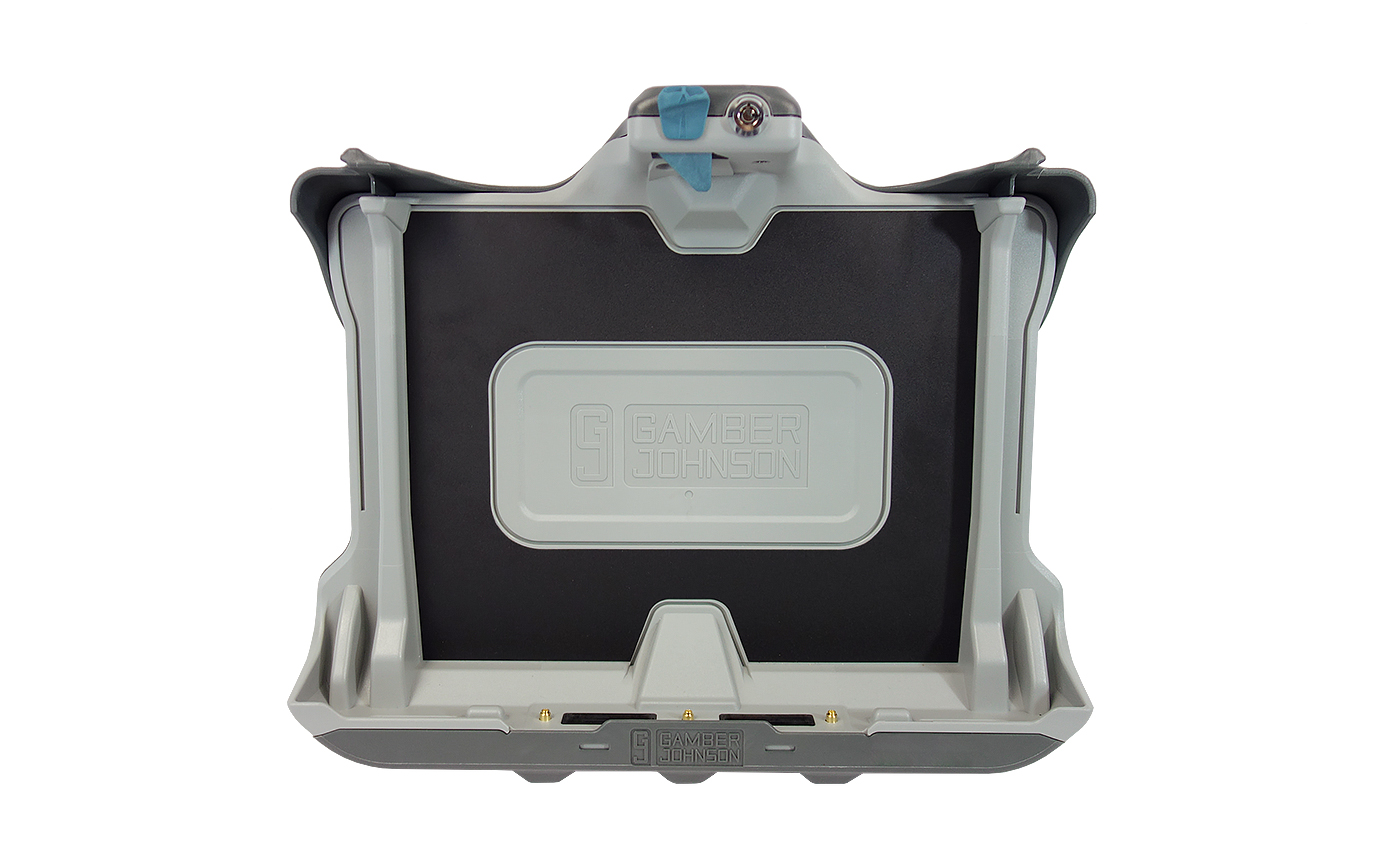

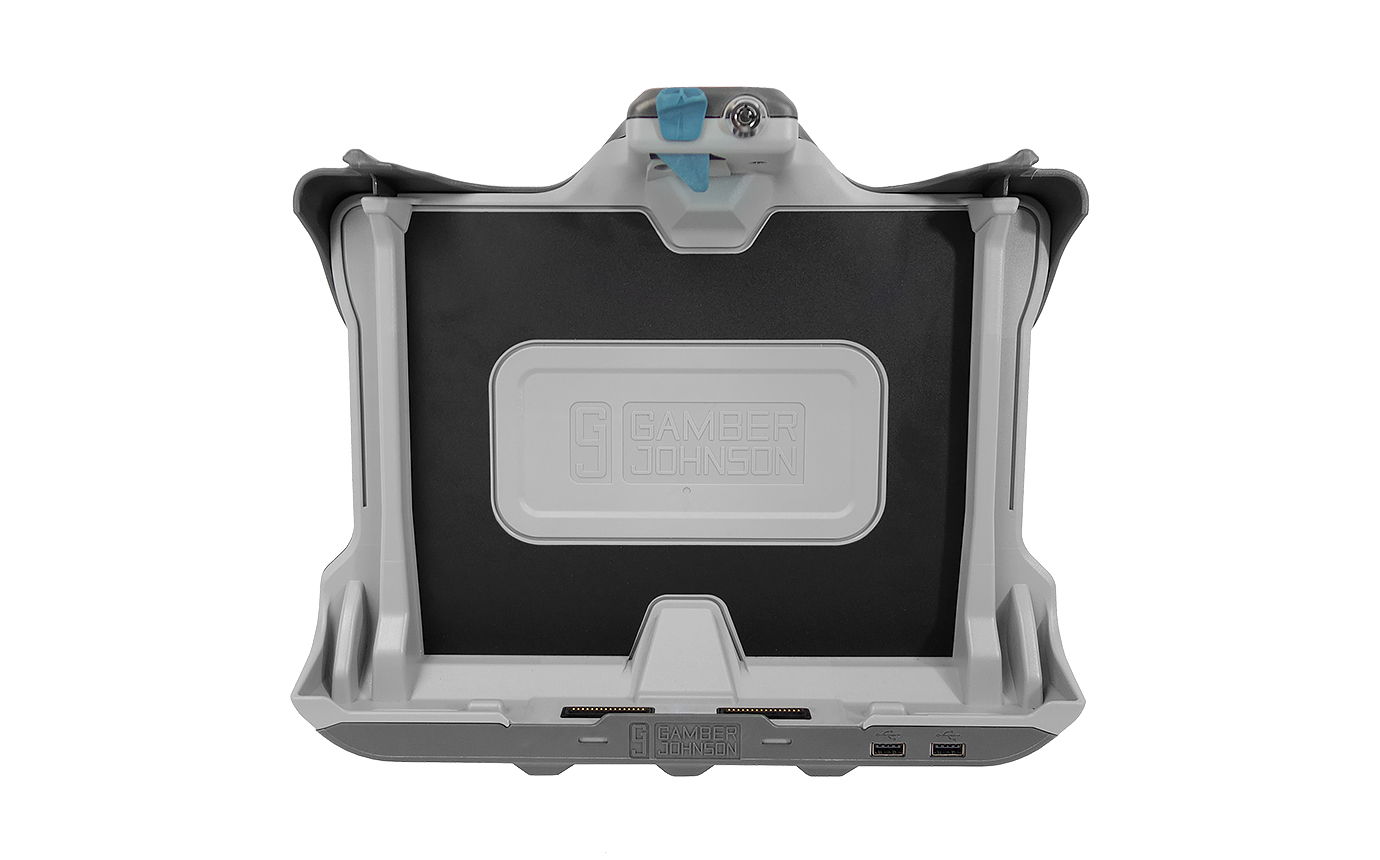

Gamber-Johnson Cradle for Getac K120 Tablet without RF Antenna Pass-through 7160-1085-00 Gamber-Johnson Cradle for Getac K120 Tablet without RF Antenna Pass-through 7160-1085-00 Gamber-Johnson Cradle for Getac K120 Tablet with RF Antenna Pass-through 7160-1085-03 Gamber-Johnson Cradle for Getac K120 Tablet with RF Antenna Pass-through 7160-1085-03 Gamber-Johnson Dock for Getac K120 Tablet without RF Antenna Pass-through 7160-1084-00 Gamber-Johnson Dock for Getac K120 Tablet without RF Antenna Pass-through 7160-1084-00 Gamber-Johnson Dock for Getac K120 Tablet without RF Antenna Pass-through 7160-1084-00 Close-up

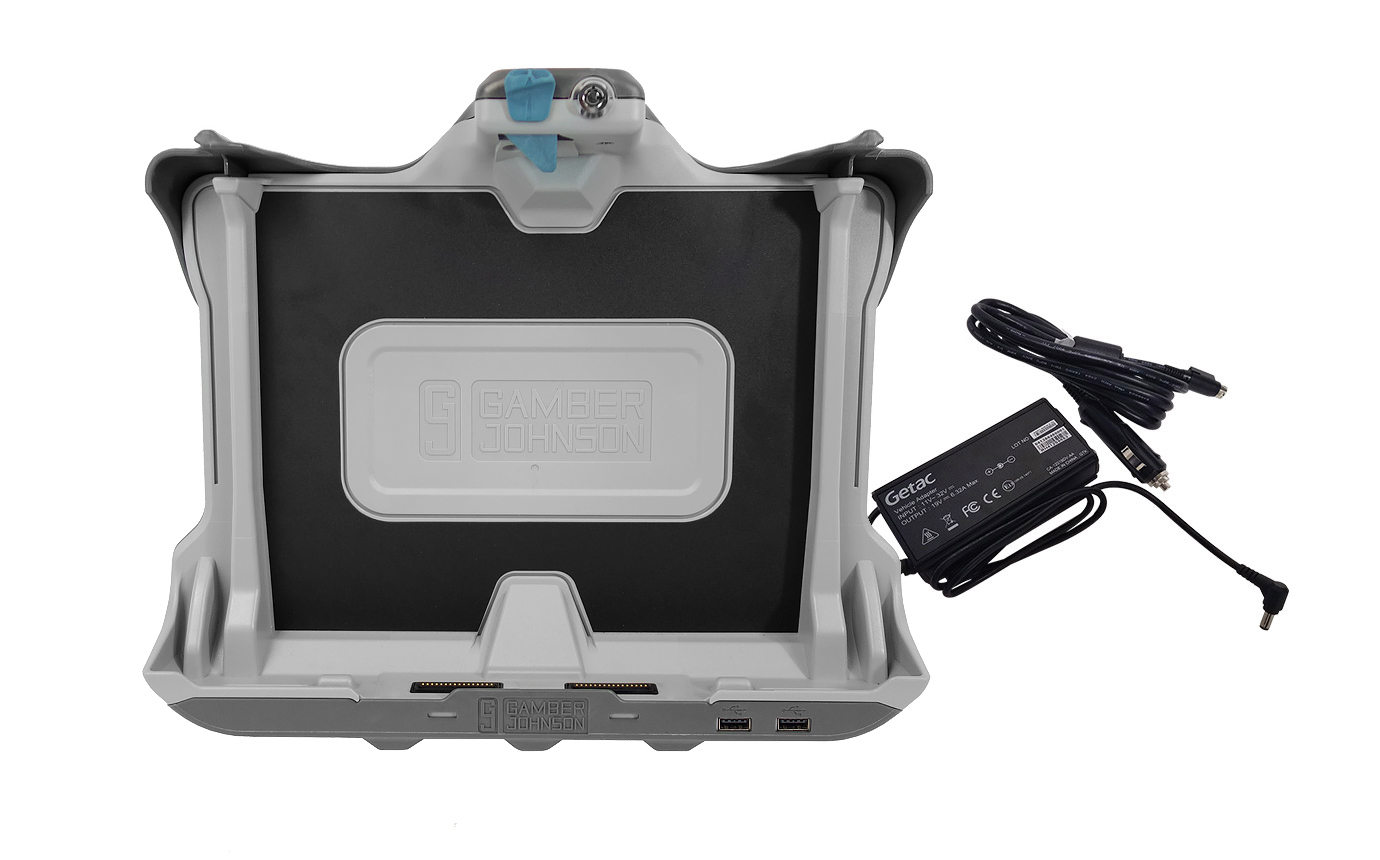

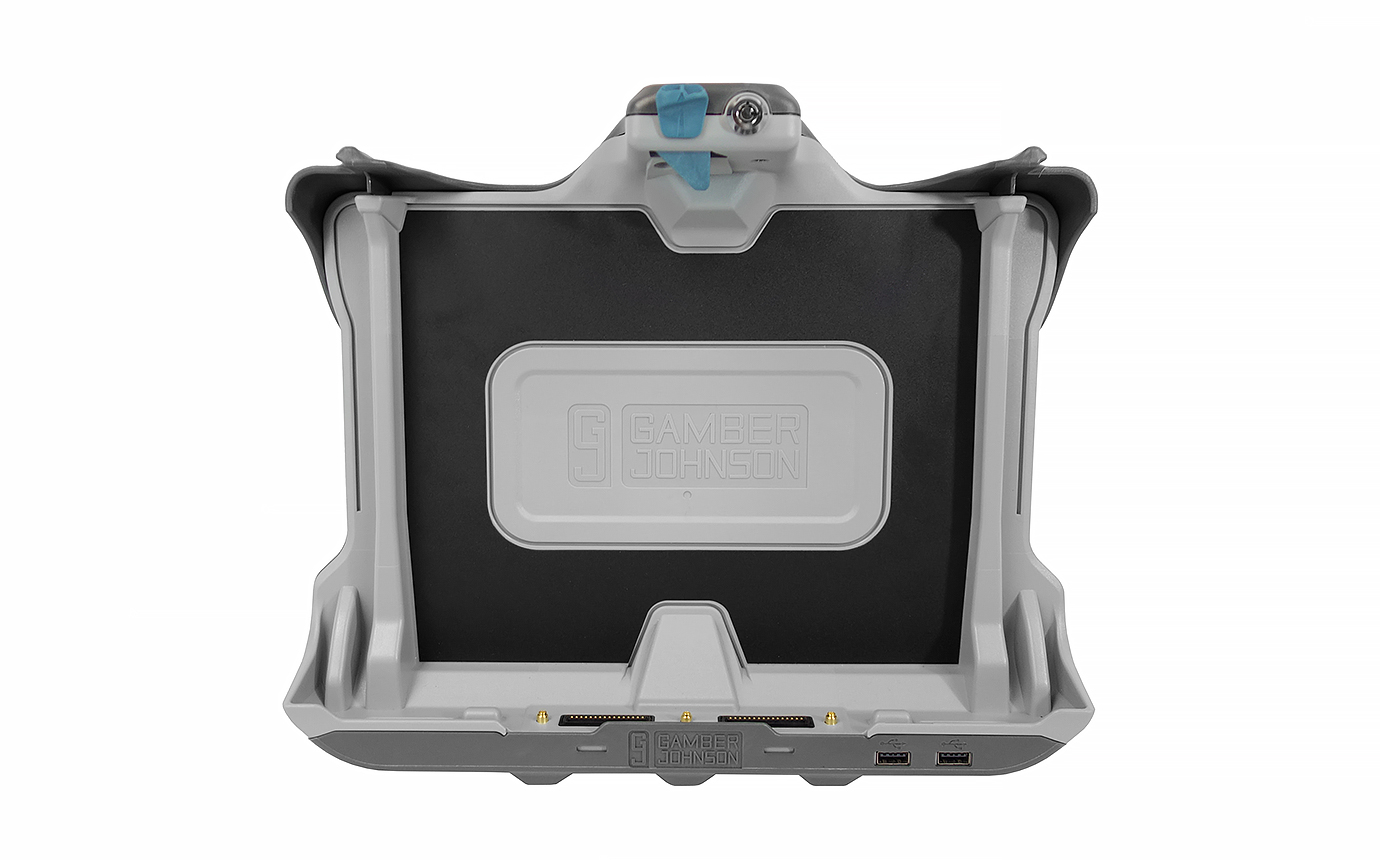

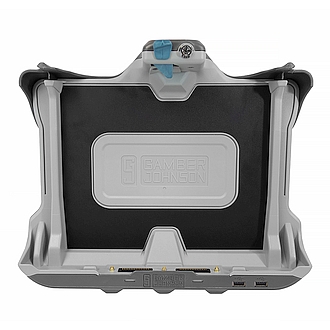

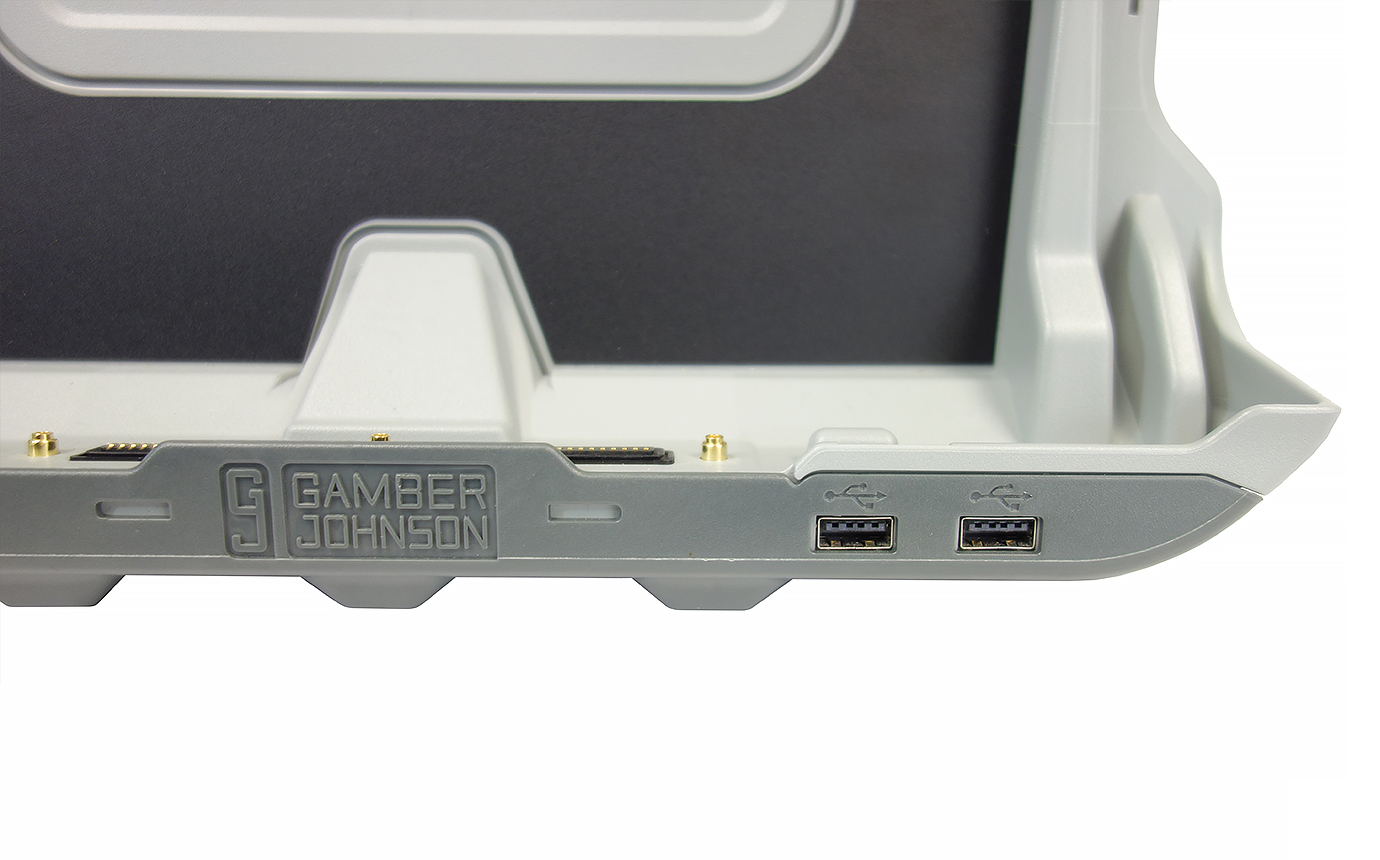

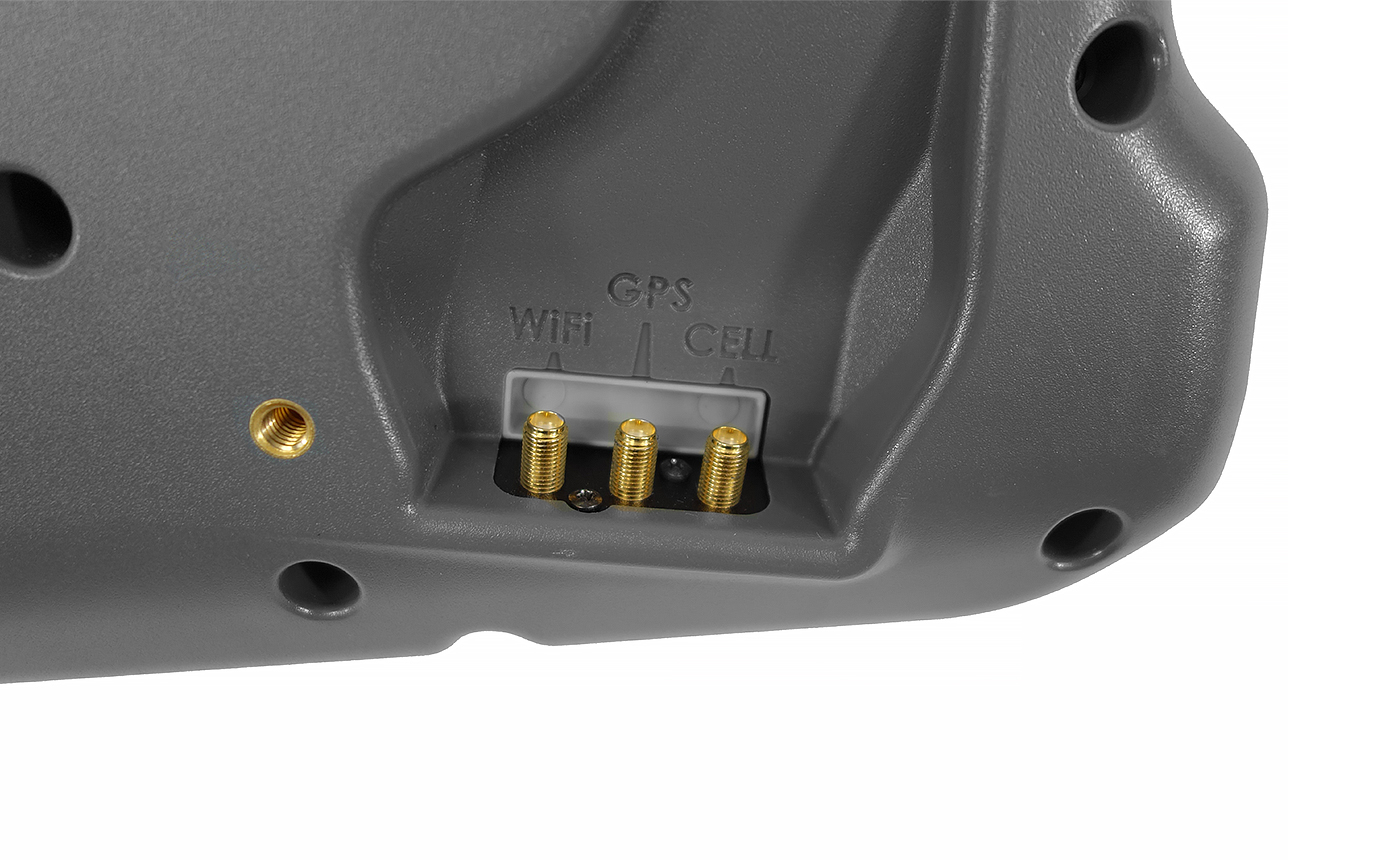

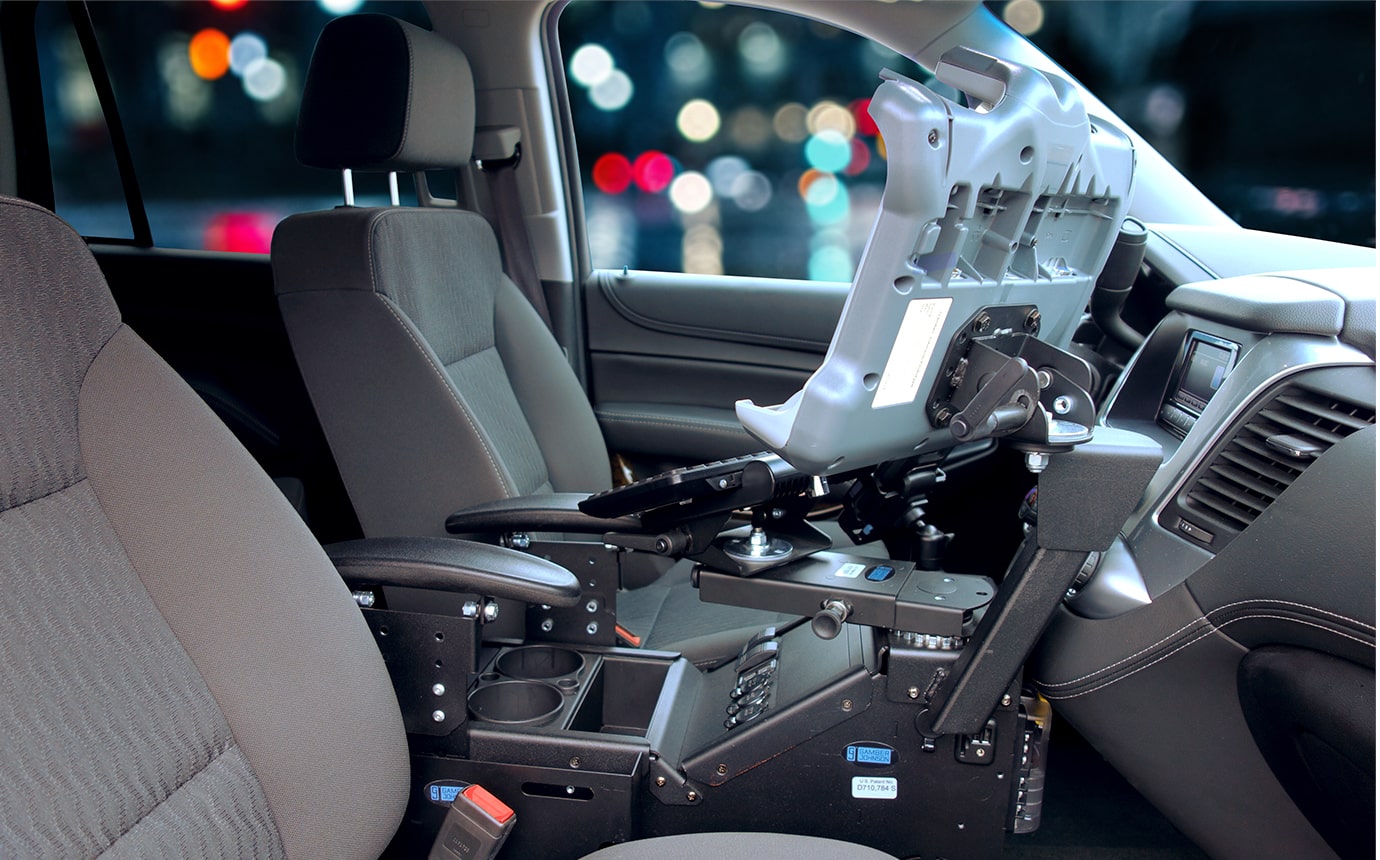

Gamber-Johnson Dock for Getac K120 Tablet with RF Antenna Pass-through 7160-1084-03 Gamber-Johnson Dock for Getac K120 Tablet with RF Antenna Pass-through 7160-1084-03 Close-up Gamber-Johnson Dock for Getac K120 Tablet with Auto Power Adapter without RF Antenna Pass-through 7160-0694-00 Gamber-Johnson Dock for Getac K120 Tablet with Auto Power Adapter and RF Antenna Pass-through 7160-0694-03 Gamber-Johnson Dock for Getac K120 Tablet Ports Gamber-Johnson Dock for Getac K120 Tablet Tri Pass-through Close-up Gamber-Johnson Dock for Getac K120 Tablet Mounted in Vehicle



  • Designed for the Getac K120 12-inch fully rugged tablet
  • Easy to use one-handed operation:
    • - Insert bottom of computer into docking station, push top of computer against latch button until latch engages
    • - To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station
  • Accommodates rotating hand strap, hard handle, and bar code scanner
  • Upward-facing I/O ports; cable strain relief and cable management system
  • Access to all tablet control buttons and ports while tablet is docked
  • Steel guide pins for proper alignment during docking
  • VESA 75 mounting pattern
  • Rounded edges to enhance personal safety
  • Gamber-Johnson rugged construction and reliability
  • Composite/aluminum design for reduced weight and durability



Gamber-Johnson Docking Stations
Part Number Description Price*
543314200603 Gamber-Johnson 7160-1085-00 Vehicle Cradle without Vehicle Charger for K120 Tablet £362.00
543314200604 Gamber-Johnson 7160-1085-03 Vehicle Cradle with Tri Pass-through, without Vehicle Charger for K120 Tablet £410.00

543314200601 Gamber-Johnson 7160-1084-00 Vehicle Dock without Vehicle Charger for K120 Tablet £797.00
543314200602 Gamber-Johnson 7160-1084-03 Vehicle Dock with Tri Pass-through, without Vehicle Charger for K120 Tablet £844.00
543314200605 Gamber-Johnson 7160-0694-00 Vehicle Dock with Vehicle Charger for K120 Tablet £942.00
543314200606 Gamber-Johnson 7160-0694-03 Vehicle Dock with Tri Pass-through and Vehicle Charger for K120 Tablet £990.00

*Please note all prices shown are exclusive of VAT



Request a Quotation





Gamber-Johnson Docking Station Specifications
Certifications and Testing Getac Certified
  Vibration Tested: MIL-STD 810G Operational/Non-Operational
  Shock Crash Hazard: SAE J1455; Mechanical Shock: 40G
  Cycle Test: Latch, Lock, and Docking Connector - 30,000 Cycles
  Environmental: Thermal Shock; High/Low Temperature Operational & Storage
  FCC, CE, RoHS Certified
Dimensions Weight: 3.20 lbs (1.45 kg)
  Height: 11.63 in (29.50 cm)
  Width: 13.19 in (33.5 cm)
  Depth: 4.38 in (11.1 cm)

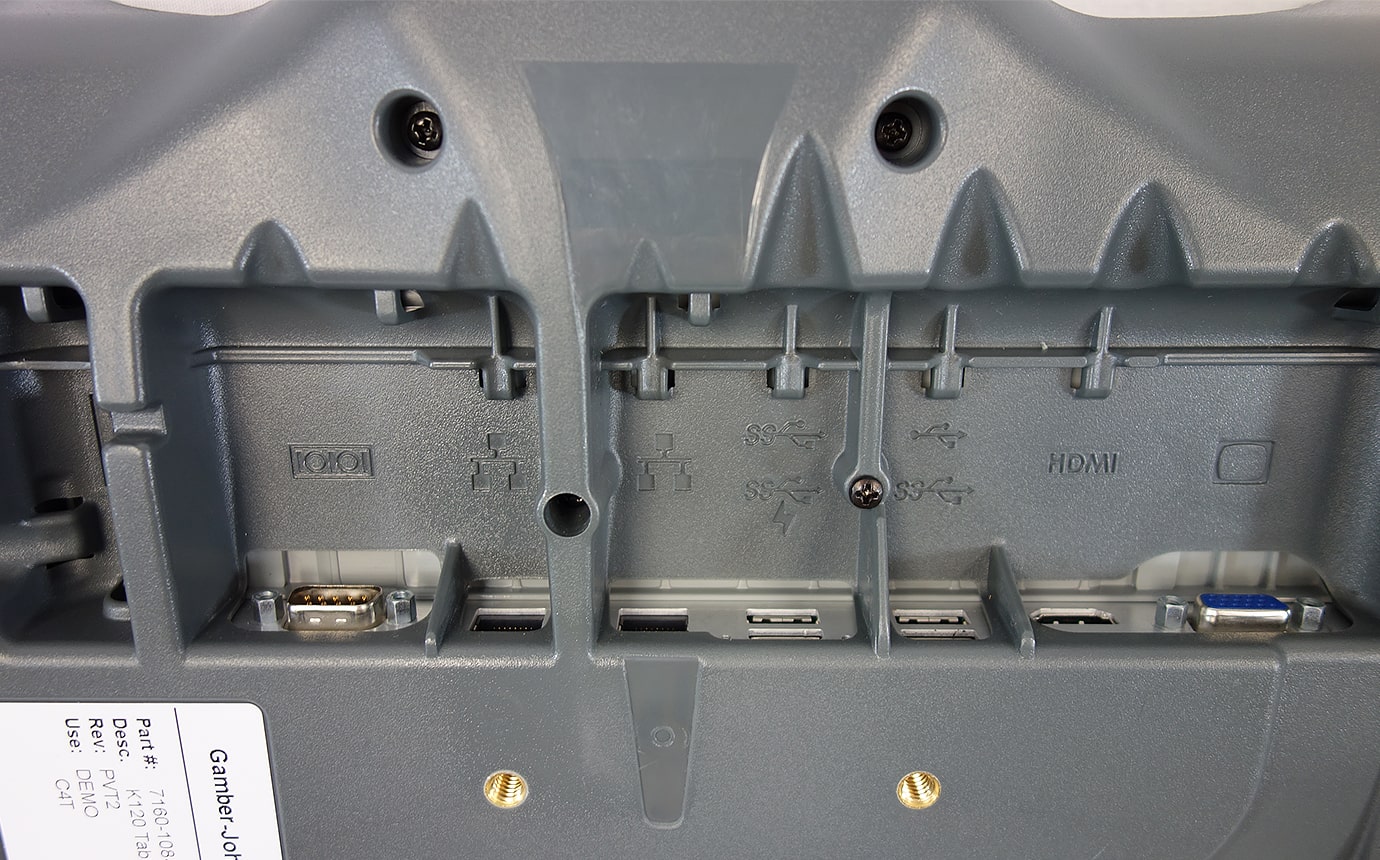

Port Replication Getac Certified Electronics
  RS232 Serial (1)
  VGA D-Sub 15 Pin (1)
  HDMI 19 Pin (1)
  USB 2.0 – 4 Pin Forward-Facing (2), Rear (1)
  USB 3.0 – 9 Pin (3)
  Ethernet RJ45 (2)
  Power Input: 19 Vdc
  Antenna: TRI RF (SMA) (optional)



These Gamber-Johnson docking stations are compatible with the following Getac models:

Getac K120 Tablet G1
Getac K120 Tablet G2
Getac K120 Tablet G2-R
Getac K120 Tablet G3
