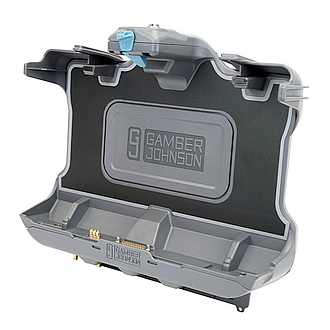

Gamber-Johnson Docking Station for Getac F110 Tablet
Engineered for the demanding work environments in utility, public safety, and material handling
Designed for the Getac F110 fully rugged tablet, the Gamber-Johnson F110 docking station helps field service professionals meet the demands of extreme working environments.
Full port replication (dock) provides the peripheral connections needed to support a mobile office environment and the fast dock/release saves time when taking the tablet out for your work. This docking station accommodates the magnetic strip reader and hand strap. The keyed-lock provides added security and theft deterrence.
- Designed for the Getac F110 tablet computer
- Getac certified electronics
- Docking station accommodates the tablet’s mag strip reader and rotating hand strap
- Access to all tablet control buttons and ports while the tablet is docked
- Downward-facing I/O ports; integrated cable strain relief and cable management system
- Floating docking connector for reliable connectivity in the most rugged environments
- One-hand docking and release for efficient use all day long
- Keyed lock for theft deterrence
- Rounded edges to enhance personal safety
- Gamber-Johnson rugged construction and reliability
- Composite design for reduced weight and durability
- VESA 75 mounting pattern
| Part Number | Description | Price* |
| 543391800003 | Gamber-Johnson 7160-1642-00 Vehicle Cradle without Vehicle Charger for F110 | £283.00 |
| 543391800004 | Gamber-Johnson 7160-1642-03 Vehicle Cradle with Tri Pass-through, without Vehicle Charger for F110 | £328.00 |
| 543391800001 | Gamber-Johnson 7160-1584-00 Vehicle Dock without Vehicle Charger for F110 | £575.00 |
| 543391800002 | Gamber-Johnson 7160-1584-03 Vehicle Dock with Tri Pass-through, without Vehicle Charger for F110 | £618.00 |
| 543391800013 | Gamber-Johnson 7160-1584-40 Vehicle Dock with Powered RS232 (Serial), without Vehicle Charger for F110 | £575.00 |
| 543391800014 | Gamber-Johnson 7160-1584-43 Vehicle Dock with Powered RS232 (Serial) and Tri Pass-through, without Vehicle Charger for F110 | £618.00 |
*Please note all prices shown are exclusive of VAT
| Certifications and Testing | Getac Certified |
| Vibration Tested: MIL-STD 810H Operational/Non-Operational | |
| Shock Crash Hazard: SAE J1455; Mechanical Shock: 40G | |
| Cycle Test: Latch, Lock, and Docking Connector - 30,000 Cycles | |
| Environmental: Humidity, Thermal Shock; High/Low Temperature Operational & Storage | |
| FCC, CE, MKCA, RoHS Certified | |
| Dimensions | Weight: 2.88 lbs (3.31 kg) |
| Height: 13.33 in (33.86 cm) | |
| Width: 11.75 in (29.85 cm) | |
| Depth: 4.69 in (11.91 cm) | |

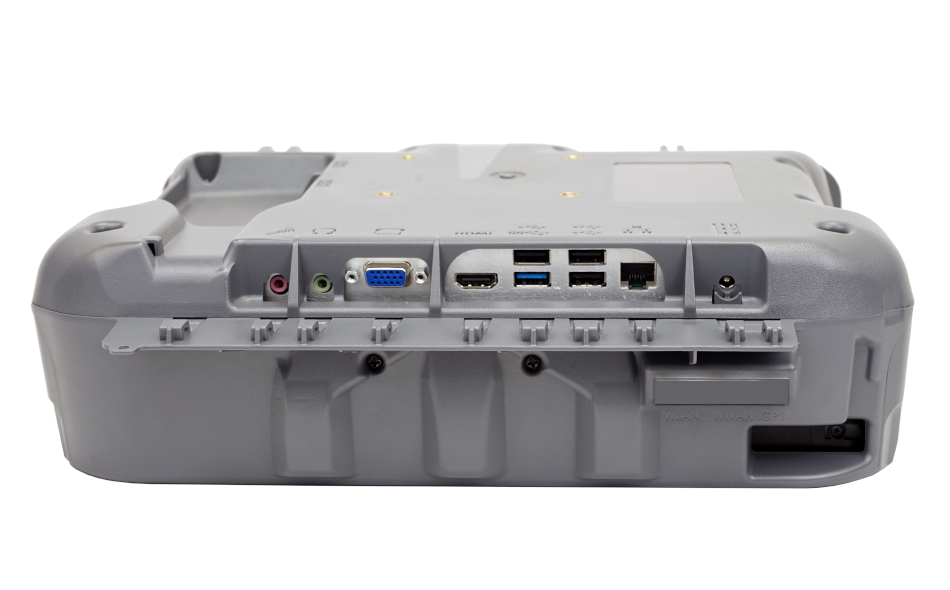

| Port Replication | Getac Certified Electronics |

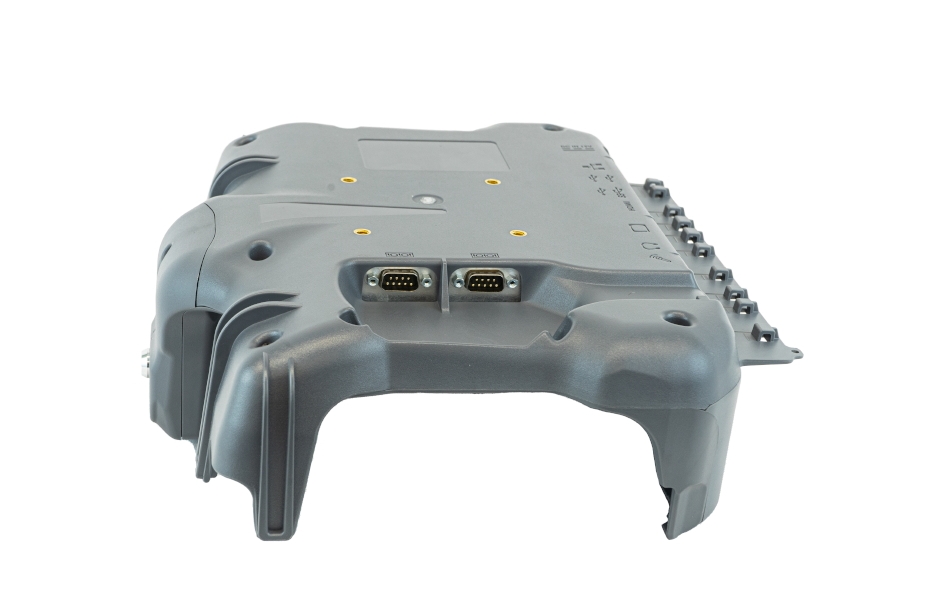

| Serial: D-sub 9 Pin (2) | |
| VGA D-Sub 15 Pin (1) | |
| HDMI (1) | |
| USB 2.0 - 4 Pin (3) | |
| USB 3.0 - 9 Pin (1) | |
| Ethernet RJ45 (1) | |
| Speakers/Microphone (1 each) | |
| Power Input: 19 Vdc | |

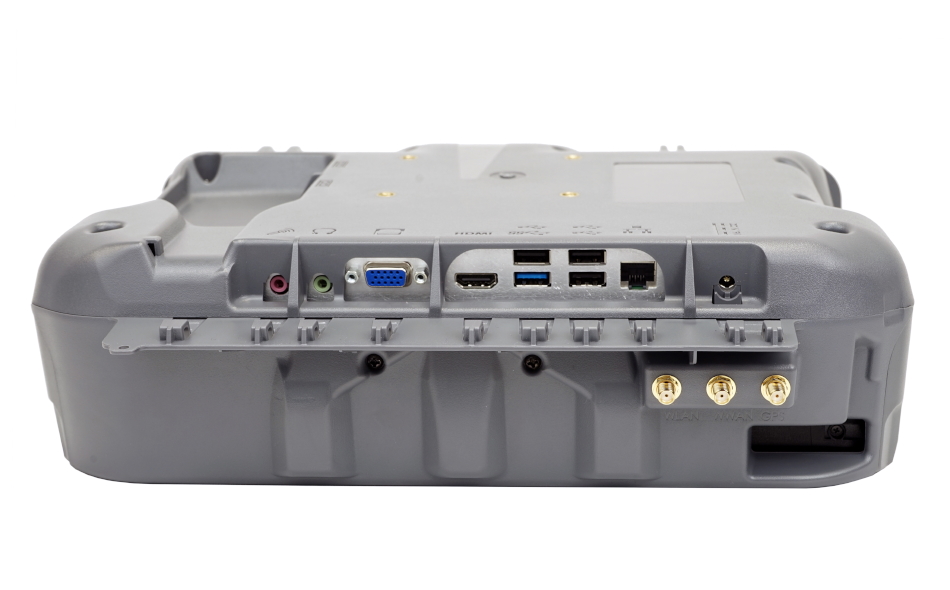

| Antenna: TRI RF (SMA) (Optional) |
These Gamber-Johnson docking stations are compatible with the following Getac models:
Getac F110 Tablet G1-5
Getac F110 Tablet G6
Getac F110 Tablet G7
