Gamber-Johnson Docking Station for Getac A140 Tablet
Engineered for the demanding work environments in utility, public safety, and material handling

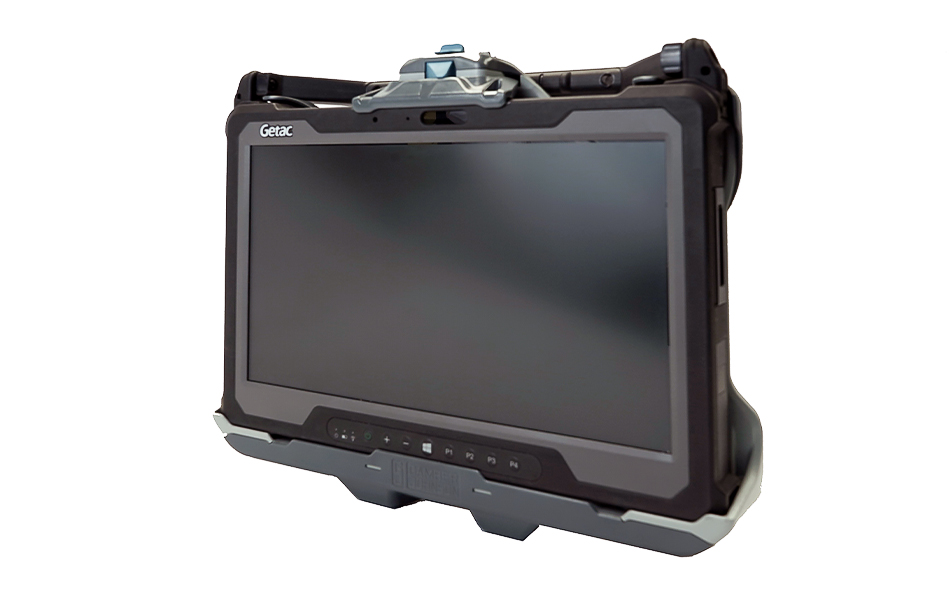

Designed for the Getac A140 fully rugged tablet, the Gamber-Johnson A140 docking station is perfect for leveraging the capabilities of the A140 tablet. The docking station combined with Gamber-Johnson mounting equipment creates the perfect mobile office solution for the field service worker, firefighter, or public safety official.
The docking station provides full port replication to link to the peripherals needed to support the mobile office and the quick release latch makes it easy to take the tablet out of the vehicle for fieldwork. This docking station accommodates the built-in rubber hand strap, stylus, and even the optional multi-function hard handle. The keyed-lock provides added security and theft deterrence.
- Designed for the Getac A140 14-inch fully rugged tablet computer
-
Easy to use one-handed operation:
- - Insert bottom of computer into docking station, push top of computer against latch lever until latch engages
- - To remove, push up on latch-button with thumb to disengage and pull computer out of docking station
- Accommodates built-in rubber hand strap, stylus, and optional multi-function hard handle
- Upward-facing I/O ports; cable strain relief and cable management system
- Access to all tablet control buttons, ports, smart card reader and front camera while tablet is docked
- Steel guide pins for proper alignment during docking
- VESA 75 mounting pattern
- Optional lock (keyed alike) for theft deterrence
- Rounded edges to enhance personal safety
- Gamber-Johnson rugged construction and reliability
- Composite/aluminum design for reduced weight and durability
| Part Number | Description | Price* |

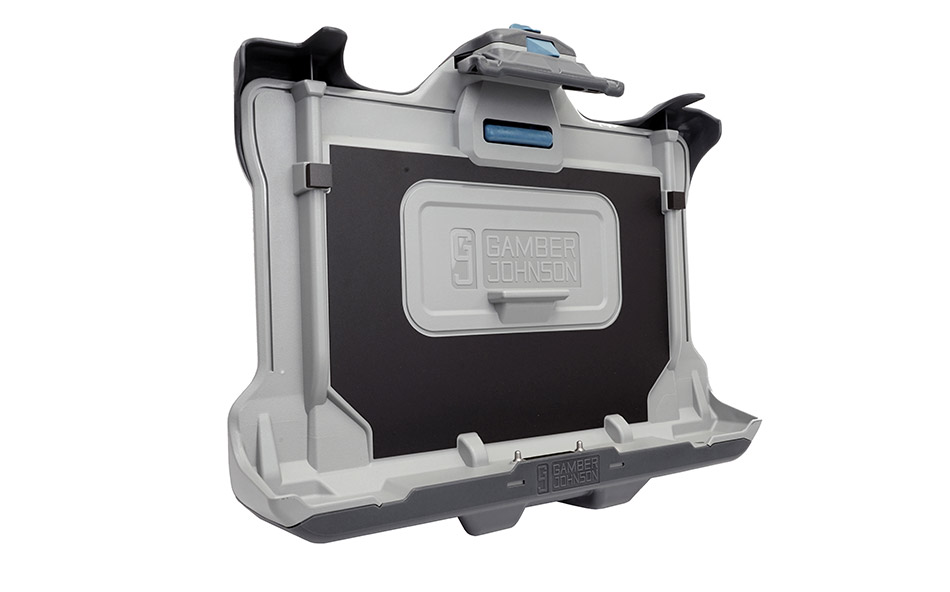

| 543314010505 | Gamber-Johnson 7160-1247-00 Vehicle Cradle without Vehicle Charger for A140 | £362.00 |

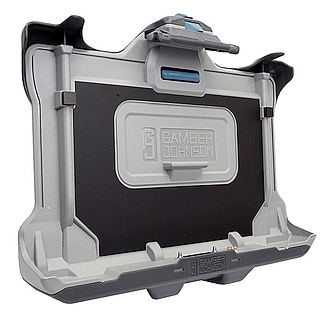

| 543314010506 | Gamber-Johnson 7160-1247-03 Vehicle Cradle with Tri Pass-through, without Vehicle Charger for A140 | £418.00 |

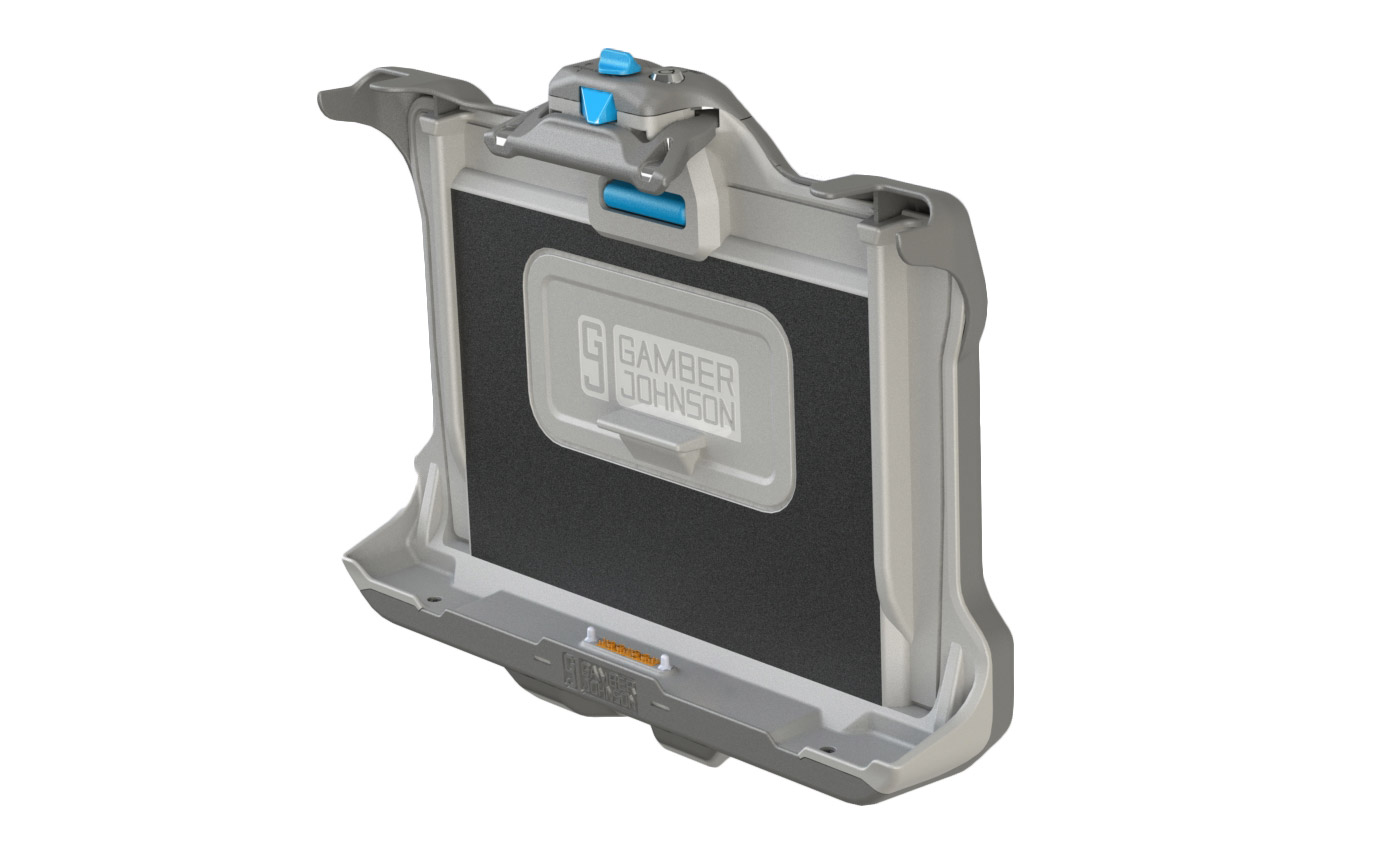

| 543314010501 | Gamber-Johnson 7160-1246-00 Vehicle Dock without Vehicle Charger for A140 | £731.00 |

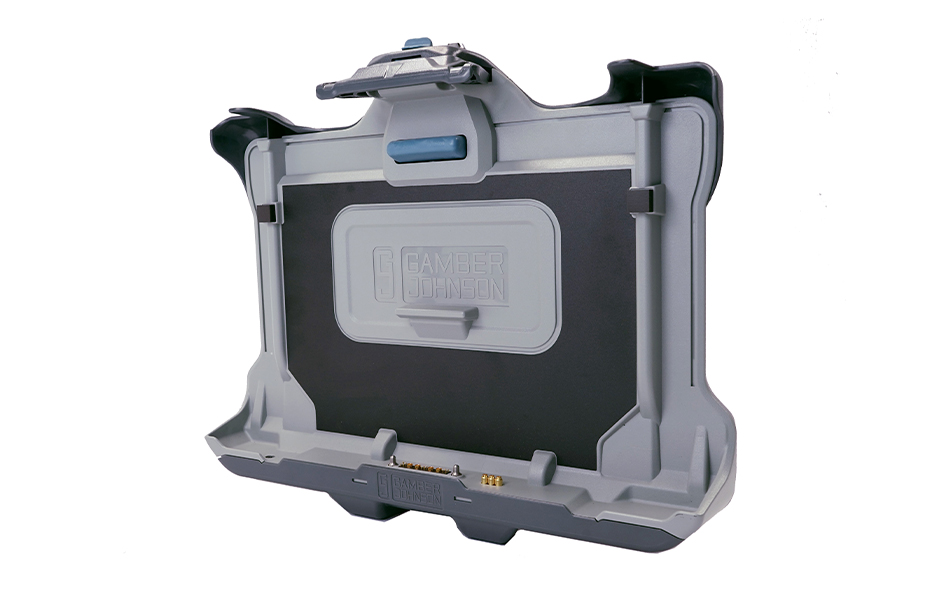

| 543314010502 | Gamber-Johnson 7160-1246-03 Vehicle Dock with Tri Pass-through, without Vehicle Charger for A140 | £787.00 |
*Please note all prices shown are exclusive of VAT
| Certifications and Testing | Getac Certified |
| Vibration Tested: MIL-STD 810G Operational/Non-Operational | |
| Shock Crash Hazard: SAE J1455; Mechanical Shock: 40G | |
| Cycle Test: Latch, Lock, and Docking Connector - 30,000 Cycles | |
|
Environmental: Thermal Shock; High/Low Temperature Operational and Storage |
|
| FCC, CE, RoHS Certified | |
| Dimensions | Weight: 3.85 lbs (1.74 kg) |
| Height: 12.59 in (31.9 cm) | |
| Width: 15.18 in (38.5 cm) | |
| Depth: 3.31 in (8.4 cm) | |
| Port Replication | Getac Certified Electronics |
| Serial: D-Sub 9 Pin (1) | |
| VGA D-Sub 15 Pin (1) | |
| HDMI (1) | |
| USB 2.0 - 4 Pin (3) | |
| USB 3.0 - 9 Pin (1) | |
| Ethernet RJ45 (1) | |
| Speakers/Microphone (1 each) | |
| Power Input: 19 Vdc | |
| Antenna: TRI RF (SMA) (optional) |
These Gamber-Johnson docking stations are compatible with the following Getac models:
Getac A140 Tablet G1
Getac A140 Tablet G2
