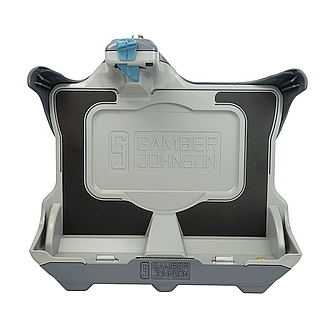

Gamber-Johnson Docking Station for Panasonic Toughbook FZ-A3 Tablet

Part Number PCPE-GJA3V02

Keep your fleet connected in the warehouse, around the community, and on the road with Gamber-Johnson’s rugged docking stations designed for the Panasonic Toughbook® A3 tablet computer.

Combine the Panasonic Toughbook A3 tablet computer with Gamber-Johnson’s new vehicle docking station; connect to your network through the dock’s Ethernet port and utilize the two powered USB ports to connect your peripherals. The onehanded dock/release saves time when taking the tablet out for use and the docking station ensures your tablet remains charged all day.

• Compatible with the Panasonic Toughbook A3 tablet computer
• Built utilizing Panasonic Certified electronics
• Docking station design accommodates the A3 tablet hand strap with the extended battery
• Easy to use one-handed operation:
  • Insert bottom of computer into the docking station, push top of computer against latch button until latch engages to secure device
  • To undock and remove, push up on latch-button with thumb to disengage and pull device out of the docking station
• Tablet control buttons and ports are easily accessible while the tablet is docked
• Downward-facing I/O ports for integrated cable strain relief and cable management system
• Dual RF antenna pass through for reliable connectivity
• Keyed lock for theft deterrance
• VESA 75mm mounting pattern
• Rounded edges to enhance personal safety

Gamber-Johnson Docking Stations

Part Number	Description	Price*
PCPE-GJA3V02	Gamber-Johnson Docking Station for Toughbook FZ-A3 Tablet	£457.15

*Please note all prices shown are exclusive of VAT







Gamber-Johnson Docking Station Specifications

Compatibility	TOUGHBOOK A3
Testing Specifications	MIL-STD 810G Shock / Vibration
	SAE J1455 Crash Tested
	Cycle Tested: 30,000 cycles latch mechanism and docking connector
	Environmental Testing: High/Low temperature operational/storage and humidity
Antenna Pass-through	Dual RF
Port Replication	Full
Weight	2.15 lbs / 0.98 kg
Height	10.28 in / 26.11 cm
Width	11.33 in / 28.78 cm
Depth	4.59 in / 11.66 cm
Warranty	12 months



This Gamber-Johnson cradle is compatible with the following Toughbooks:

Panasonic Toughbook FZ-A3 Tablet Mk1

Infocase Toughmate Elastic X-Strap for Toughbook FZ-A3 and CF-20 Tablet

Part Number PCPE-INFA3XS

Economically priced and vehicle dock compatible, this solution will improve productivity and efficiency. Designed to reduce wrist fatigue, this accessory makes the Toughbook A3 feel lighter in the user's arm. Compatible with the TOUGHBOOK 20.

Infocase X-Strap

Part Number	Description	Price*
PCPE-INFA3XS	Infocase Toughmate Elastic X-Strap for FZ-A3 and CF-20 Tablet	£62.45

*Please note all prices shown are exclusive of VAT







Panasonic PCPE-INFA3XS Specification

Item	Description
Product Type	Hand strap
Intended For	Tablet
Materials	Vinyl, Nylon, Steel
Suggested Accessories	Mini Shoulder Strap
Dimensions (WxHxD inch)	Hand Pad - 4.5 x 2.75 x 0.25 Corner Straps - 7 x 0.375 x 0.04
Weight	0.6 lbs
Warranty	Limited warranty - 1 year



This Infocase X-Strap is compatible with the following Toughbook models:

Panasonic Toughbook FZ-A3 Mk1
Panasonic Toughbook CF-20 Mk1 Tablet
Panasonic Toughbook CF-20 Mk2 Tablet
