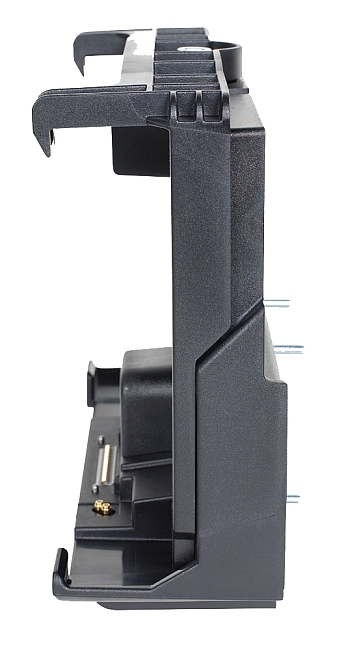

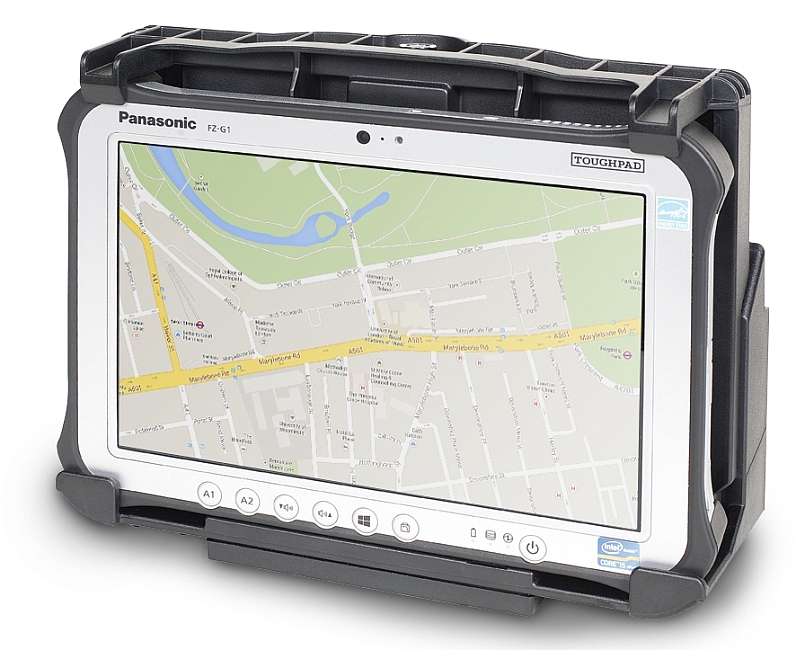

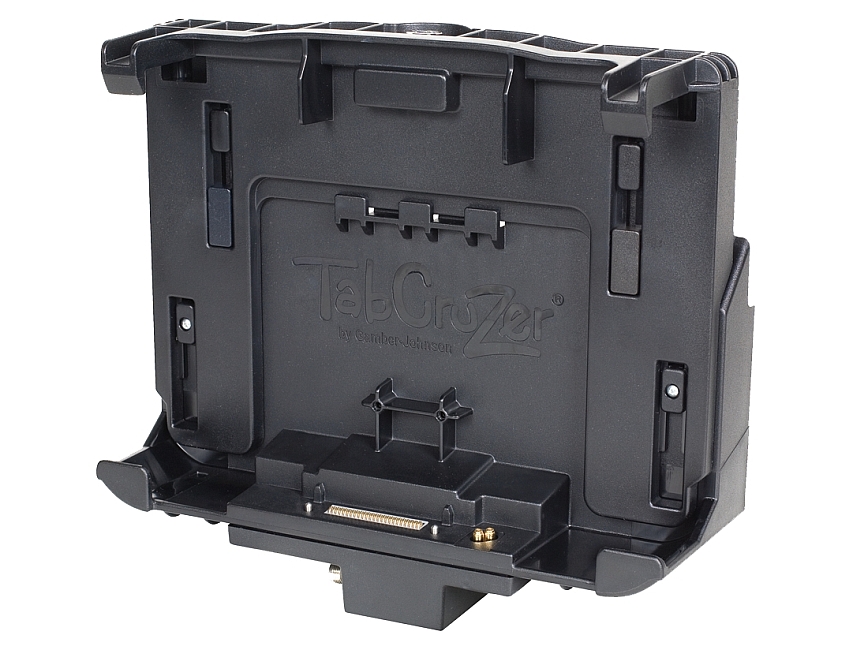

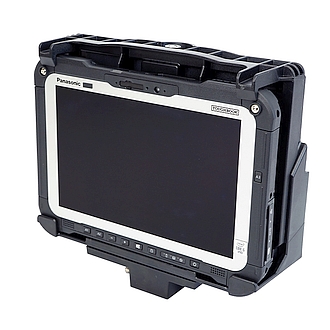

Gamber-Johnson Vehicle Docks for Panasonic Toughpad FZ-G1 and Toughbook FZ-G2
Model Numbers PCPE-GJG1V01/02/05/09
Made for each other: Gamber-Johnson's docking station perfectly complements the Toughpad FZ-G1 offering a complete vehicle docking experience. Gamber Johnson is an industry leader in design innovation and in manufacturing high quality Toughpad vehicle solutions. Their development process includes extensive testing that results in the most rock solid docking solutions on the market today. These docks are designed, developed and manufactured to create an improved vehicle experience.
Features:
- Gamber-Johnson has worked with Panasonic to perform the appropriate tests needed to qualify the product as Toughbook Certified
- Designed using MIL-STD-810G test procedures
- Designed for the Toughpad FZ-G1 and Toughbook FZ-G2
- Docking Station design accommodates extended battery, smart card reader, rear hand strap and bumper guards
- Docking station mounting pattern is VESA 75mm
- Docking station can be mounted either vertically or horizontally
- Alignment tabs prevent damage to the docking connector when docking the computer
- Steel and Composite design for reduced overall weight
- Rugged construction for long-term durability
- Warranty is 12 month RTB
| Model Number | Description | Price* |
| PCPE-GJG1V01 | Gamber-Johnson Vehicle Dock, Full Port Replication without Antenna Pass-Through for FZ-G1 and G2 | £593.95 |
| PCPE-GJG1V02 | Gamber-Johnson Vehicle Dock, Full Port Replication with Antenna Pass-Through for FZ-G1 and FZ-G2 | £644.95 |
| PCPE-GJG1V05 | Gamber-Johnson Vehicle Dock with No Electronics for FZ-G1 and FZ-G2 | £272.95 |
| PCPE-GJG1V09 | Gamber-Johnson Vehicle Dock, Lite Port Replication with Antenna Pass-Through for FZ-G1 and G2 | £603.95 |
*Please note all prices shown are exclusive of VAT
| Specifications / Model Numbers | PCPE-GJG1V01 | PCPE-GJG1V02 | PCPE-GJG1V05 | PCPE-GJG1V09 |
| Electronics | Yes | Yes | No | Yes |
| Antenna Pass-Through (TNC) | No | Yes | No | Yes |
| Key Type | Keyed Alike | Keyed Alike | Keyed Alike | Keyed Alike |
| USB 3.0 ports | x2 | None | x2 | |
| HDMI | x1 | None | None | |
| VGA | x1 | None | None | |
| Serial (D-sub 9 pin) | x1 | None | x1 | |
| Ethernet (RJ45) | x1 | None | x1 | |
| Power input (DC-IN) | x1 | None | x1 | |
| Dimensions | ||||
| Height | 232.2 mm (9.14") | 251.2 mm (9.89") | 232.2 mm (9.14") | 251.2 mm (9.89") |
| Length | 285 mm (11.22") | 285 mm (11.22") | 285 mm (11.22") | 285 mm (11.22") |
| Depth | 96.5 mm (3.8") | 96.5 mm (3.8") | 96.5 mm (3.8") | 96.5 mm (3.8") |
| Weight | 1.13 kg (2.5 lbs.) | 1.13 kg (2.5 lbs.) | 900 g (1.98 lbs.) | 910g (2.5 lbs.) |
These Gamber-Johnson vehicle docks are compatible with the following Toughpads and Toughbooks:
Panasonic Toughpad FZ-G1 Mk1
Panasonic Toughpad FZ-G1 Mk2
Panasonic Toughpad FZ-G1 Mk3
Panasonic Toughpad FZ-G1 Mk4
Panasonic Toughpad FZ-G1 Mk5
Panasonic Toughbook FZ-G2 Standard Mk1
Panasonic Toughbook FZ-G2 Standard Mk2
Panasonic Toughbook FZ-G2 Standard Mk3
Panasonic Toughbook FZ-G2 Quick Release SSD Mk1
Panasonic Toughbook FZ-G2 Quick Release SSD Mk2
Panasonic Toughbook FZ-G2 Quick Release SSD Mk3
