Havis Docking Station for Getac K120 Tablet
Part Numbers 543314200111/2 and 543314200101/2
- Docking station for Getac K120 tablet
- Optional triple pass-through rf antenna connections
- Low profile design maximizes available space inside of vehicle
- Full port replication and integrated strain relieving provide simple, safe, and secure connectivity to essential peripherals, as well as convenient and efficient cable
- Rounded corners and edges provide safety in accidents and during airbag deployment, in addition to daily use and operation of docking station
- Designed to fit all Havis and VESA 75 hole pattern mounting equipment, as well as most competitors
- Lock and key supplied for peace of mind theft deterrence
- Package - docking station with power supply LPS-211 (multipurpose bracket) and panel mount (LPS-208) for Getac K120 tablet
- Includes LPS-211 accessory bracket for mounting the power supply directly to the docking station
- Includes LPS-208 panel mount bracket for convenient mounting of a power supply (purchased separately)
| Part Number | Description | Price* |
| 543314200111 | Havis DS-GTC-901 Docking Station without Vehicle Charger for K120 Tablet | £820.00 |
| 543314200112 | Havis DS-GTC-901-3 Docking Station without Vehicle Charger, with Tri Pass-through for K120 Tablet | £872.00 |
| 543314200101 | Havis PKG-DS-GTC-901 Docking Station without Vehicle Charger, with Power Supply Mounting Brackets for K120 Tablet | £853.00 |
| 543314200102 | Havis PKG-DS-GTC-901-3 Docking Station without Vehicle Charger, with Tri Pass-through and Power Supply Mounting Brackets for K120 Tablet | £905.00 |
*Please note all prices shown are exclusive of VAT
| Compatible computer | Getac K120 tablet |
| Dimensions | 11.7" l, 11.95" w, 3.9" h (297.2mm x 303.5mm x 99.1mm) |
| Certifications | Vibration Testing: MIL-STD 810G 514.58, crash test: SAE J1455 30mph Crash Testing, cycle test: latch handle & docking connectors mechanism 30,000 cycles, environmental testing: hot/cold operational & storage and thermal shock; bump testing |
| Connectivity | USB: fully-powered USB 2.0 (3 total - 2 front-facing, 1 on I/O panel), USB 3.0 (3); Ethernet: RJ45 (2); serial: DB9 (1); video: VGA (1), HDMI (1); dock input power: (1) |
| Dock input power | 19V DC |
| Docking station net weight | 3.75 lbs (1.70 kg) |
| Docking station product weight | 5.27 lbs (2.39 kg) |
| Gross weight | 5.5 lbs (DS-GTC-901), 6.5 lbs (PKG-DS-GTC-901) |
These Havis docking stations are compatible with the following Getac models:
Getac K120 Tablet G1
Getac K120 Tablet G2
Getac K120 Tablet G2-R
Getac K120 Tablet G3
Havis Docking Station for Getac K120 Laptop with Screen Support
Part Numbers 543314200011/2
- Package - docking station with optional tri-pass rf antenna and DS-DA-422 (screen support) for Getac K120 convertible laptop
- Includes DS-DA-422 screen support, designed to support the laptop screen and reduce vibration
- Low profile design maximizes available space inside of vehicle
- Full port replication and integrated strain relieving provide simple, safe, and secure connectivity to essential peripherals, as well as convenient and efficient cable
- Rounded corners and edges provide safety in accidents and during airbag deployment, in addition to daily use and operation of docking station
- Designed to fit all Havis and VESA 75 hole pattern mounting equipment, as well as most competitors
- Lock and key supplied for peace of mind theft deterrence
| Part Number | Description | Price* |
| 543314200011 | Havis PKG-DS-GTC-1001 Docking Station without Vehicle Charger, with Screen Support for K120 Laptop | £1048.00 |
| 543314200012 | Havis PKG-DS-GTC-1001-3 Docking Station without Vehicle Charger, with Tri Pass-through and Screen Support for K120 Laptop | £1110.00 |
*Please note all prices shown are exclusive of VAT
| Compatible computer | Getac K120 convertible laptop |
| Docking station dimensions (with mounting bracket) | 11.66" l x 13.32" w x 2.68" h (296mm x 338mm x 68.2mm) |
| Docking station dimensions (without mounting bracket) | 11.66" l x 13.32" w x 2.43" h (296mm x 338mm x 61.7mm) |
| Certifications | Vibration Testing: MIL-STD 810G 514.8; crash test: SAE J1455 30mph Crash Testing; cycle test: latch handle & docking connectors mechanism, 30,000 cycles; environmental testing: hot/cold operational & storage and thermal shock; bump testing |
| Connectivity | USB: fully-powered USB 2.0 (3 total - 2 front facing, 1 on I/O panel), USB 3.0 (3); Ethernet: RJ45 (2); serial: DB9 (1); video: VGA (1), HDMI (1); dock input power: (1); optional rf: (3 SMA connectors) |
| Dock input power | 19V DC |
| Docking station product weight (without mounting bracket) | 4.41 lbs (2.00 kg) (PKG-DS-GTC-1001), 4.47 lbs (2.03 kg) (PKG-DS-GTC-1001-3) |
| Docking station product weight (with mounting bracket) | 5.79 lbs (2.63 kg) (PKG-DS-GTC-1001), 5.85 lbs (2.65 kg) (PKG-DS-GTC-1001-3) |
| Docking station product weight | 7.42 lbs (3.37 kg) (PKG-DS-GTC-1001), 7.48 lbs (3.39 kg) (PKG-DS-GTC-1001-3) |
| Product weight | 8.5 lbs (3.86 kg) |
| Gross weight | 8.5 lbs |
These Havis docking stations are compatible with the following Getac models:
Getac K120 Convertible Laptop G1
Getac K120 Convertible Laptop G2
Getac K120 Convertible Laptop G2-R
Getac K120 Convertible Laptop G3
Gamber-Johnson Docking Station for Getac K120 Tablet
Engineered for the demanding work environments in utility, public safety, and material handling
Designed for the Getac K120 fully rugged tablet, the Gamber-Johnson K120 tablet docking station provides two front-facing USB ports and an array of rear replication ports to link peripherals within the vehicle.
The docking station features a quick release latch making it easy to take in and out of a vehicle and it accommodates the rotating hand strap, hard handle, and bar code scanner. The keyed lock provides added security and Gamber-Johnson’s quality and reliability ensure the dock will provide years of uninterrupted service.
- Designed for the Getac K120 12-inch fully rugged tablet
-
Easy to use one-handed operation:
- - Insert bottom of computer into docking station, push top of computer against latch button until latch engages
- - To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station
- Accommodates rotating hand strap, hard handle, and bar code scanner
- Upward-facing I/O ports; cable strain relief and cable management system
- Access to all tablet control buttons and ports while tablet is docked
- Steel guide pins for proper alignment during docking
- VESA 75 mounting pattern
- Rounded edges to enhance personal safety
- Gamber-Johnson rugged construction and reliability
- Composite/aluminum design for reduced weight and durability
| Part Number | Description | Price* |
| 543314200603 | Gamber-Johnson 7160-1085-00 Vehicle Cradle without Vehicle Charger for K120 Tablet | £362.00 |
| 543314200604 | Gamber-Johnson 7160-1085-03 Vehicle Cradle with Tri Pass-through, without Vehicle Charger for K120 Tablet | £410.00 |
| 543314200601 | Gamber-Johnson 7160-1084-00 Vehicle Dock without Vehicle Charger for K120 Tablet | £797.00 |
| 543314200602 | Gamber-Johnson 7160-1084-03 Vehicle Dock with Tri Pass-through, without Vehicle Charger for K120 Tablet | £844.00 |
| 543314200605 | Gamber-Johnson 7160-0694-00 Vehicle Dock with Vehicle Charger for K120 Tablet | £942.00 |
| 543314200606 | Gamber-Johnson 7160-0694-03 Vehicle Dock with Tri Pass-through and Vehicle Charger for K120 Tablet | £990.00 |
*Please note all prices shown are exclusive of VAT
| Certifications and Testing | Getac Certified |
| Vibration Tested: MIL-STD 810G Operational/Non-Operational | |
| Shock Crash Hazard: SAE J1455; Mechanical Shock: 40G | |
| Cycle Test: Latch, Lock, and Docking Connector - 30,000 Cycles | |
| Environmental: Thermal Shock; High/Low Temperature Operational & Storage | |
| FCC, CE, RoHS Certified | |
| Dimensions | Weight: 3.20 lbs (1.45 kg) |
| Height: 11.63 in (29.50 cm) | |
| Width: 13.19 in (33.5 cm) | |
| Depth: 4.38 in (11.1 cm) | |
| Port Replication | Getac Certified Electronics |
| RS232 Serial (1) | |
| VGA D-Sub 15 Pin (1) | |
| HDMI 19 Pin (1) | |
| USB 2.0 – 4 Pin Forward-Facing (2), Rear (1) | |
| USB 3.0 – 9 Pin (3) | |
| Ethernet RJ45 (2) | |
| Power Input: 19 Vdc | |
| Antenna: TRI RF (SMA) (optional) |
These Gamber-Johnson docking stations are compatible with the following Getac models:
Getac K120 Tablet G1
Getac K120 Tablet G2
Getac K120 Tablet G2-R
Getac K120 Tablet G3
Gamber-Johnson Docking Station for Getac K120 Laptop
Engineered for the demanding work environments in utility, public safety, and material handling
Designed for the Getac K120 fully rugged computer, the Gamber-Johnson K120 laptop docking station provides two front-facing fast-charging USB ports and an array of rear replication ports to link peripherals within the vehicle. The docking station features a quick-release latch and it accommodates the computer’s rotating hand strap, and magnetic strip reader.
The keyed lock provides added security: when notebook is closed and screen is latched, the lock will secure the keyboard and the computer. Gamber-Johnson’s quality and reliability ensure the dock will provide years of uninterrupted service.
- Compatible with the Getac K120 computer
- Docking Station design accommodates MSR and rotating hand strap (sold separately)

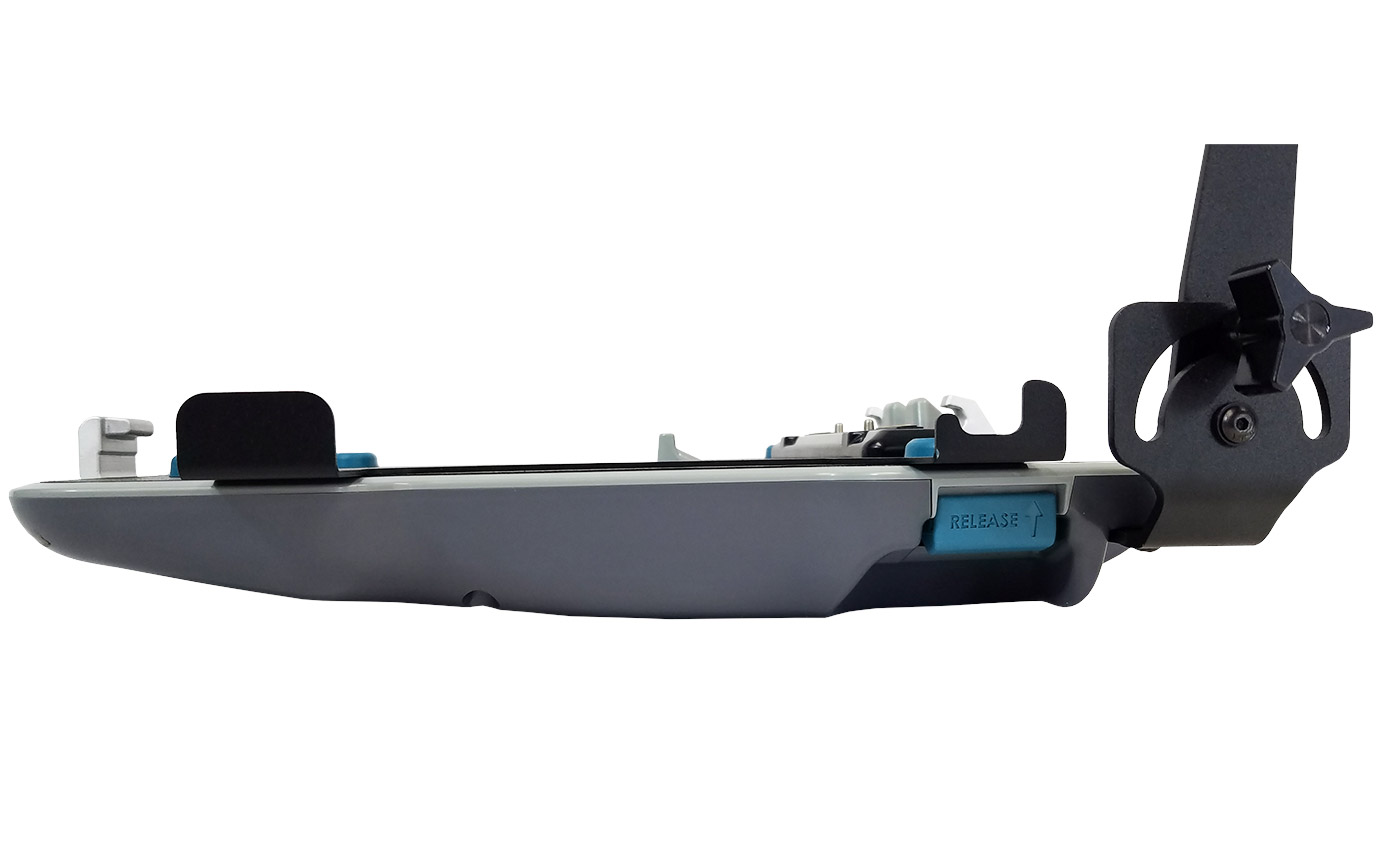

- Rear corner release button, easily remove the computer with the push of a button
- Access to all computer control buttons and ports while the notebook is docked

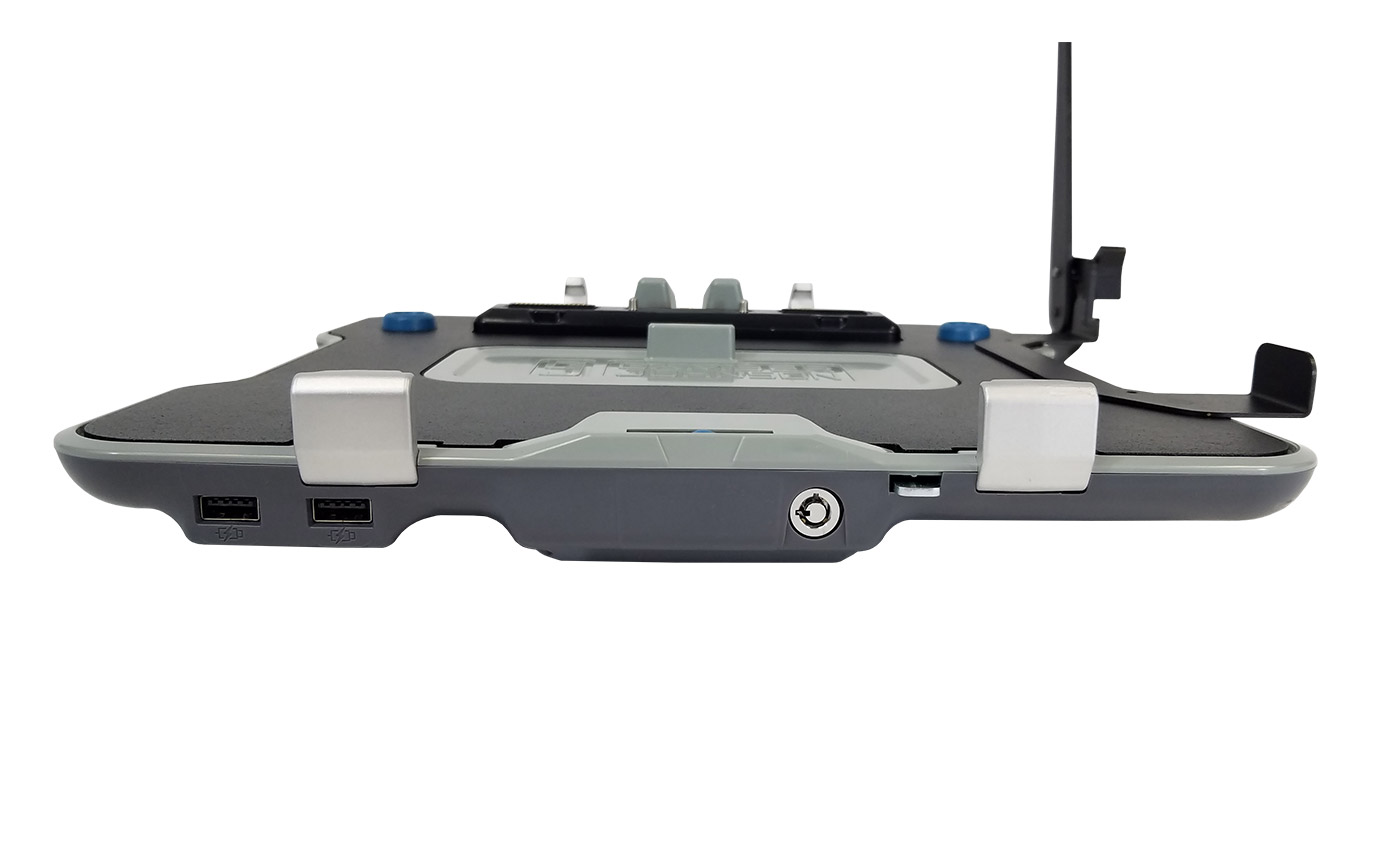

- Forward-facing I/O ports; integrated cable strain relief and cable management system
- Floating docking connector for reliable connectivity in the most rugged environments
- When the computer is closed and screen is latched, the lock will secure the keyboard and the computer
- Rounded edges to enhance personal safety
- Gamber-Johnson rugged construction and reliability
- VESA 75mm mounting pattern
| Part Number | Description | Price* |

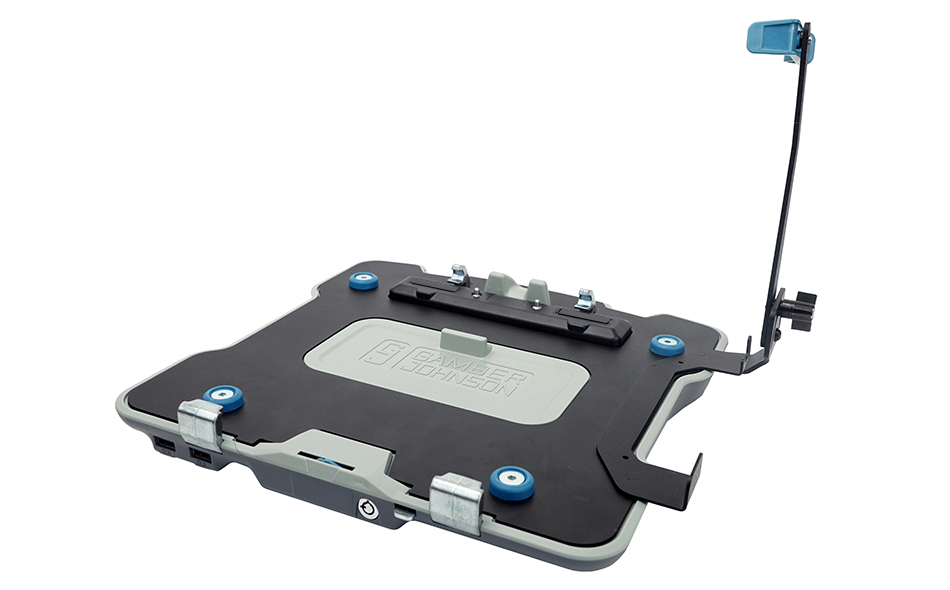

| 543314200503 | Gamber-Johnson 7160-1083-00 Vehicle Cradle without Vehicle Charger for K120 Laptop | £465.00 |

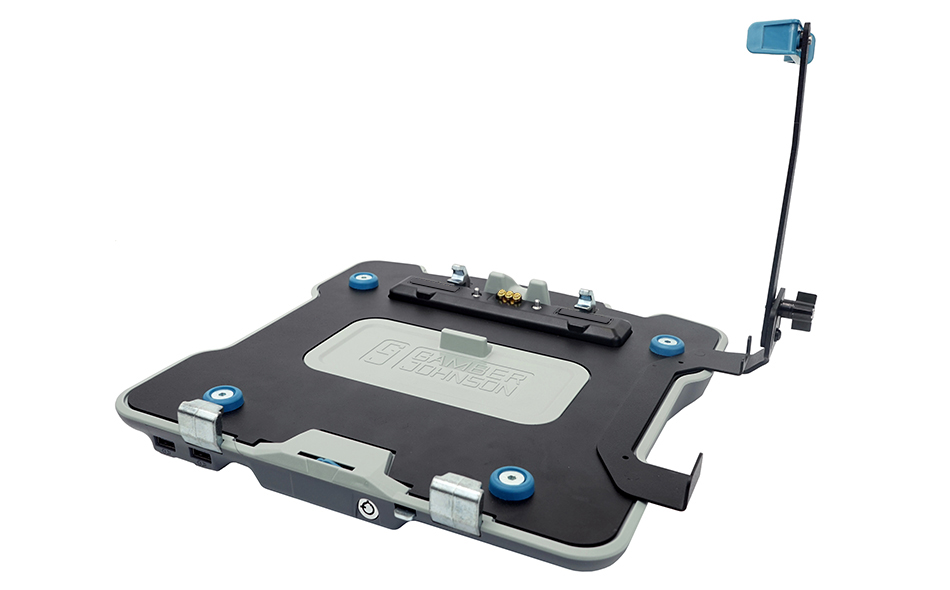

| 543314200504 | Gamber-Johnson 7160-1083-03 Vehicle Cradle with Tri Pass-through, without Vehicle Charger for K120 Laptop | £567.00 |
| 543314200501 | Gamber-Johnson 7160-1082-00 Vehicle Dock without Vehicle Charger for K120 Laptop | £939.00 |

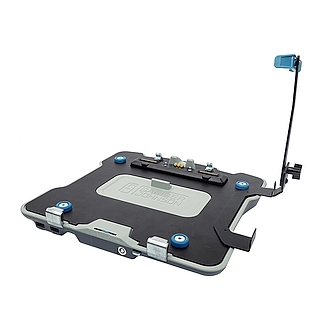

| 543314200502 | Gamber-Johnson 7160-1082-03 Vehicle Dock with Tri Pass-through, without Vehicle Charger for K120 Laptop | £1034.00 |
*Please note all prices shown are exclusive of VAT
| Certifications and Testing | Getac Certified |
| Vibration Tested: MIL-STD 810G Operational/Non-Operational | |
| Shock Crash Hazard: SAE J1455; Mechanical Shock: 40G | |
| Cycle Test: Latch, Lock, and Docking Connector - 30,000 Cycles | |
| Environmental: Thermal Shock; High/Low Temperature Operational & Storage | |
| FCC, CE, RoHS Certified | |
| Dimensions | Weight: 4.25 lbs (1.92 kg) |
| Height: 2.5 in (6.50 cm) | |
| Width: 11.6 in (29.5 cm) | |
| Depth: 12.1 in (30.7 cm) | |

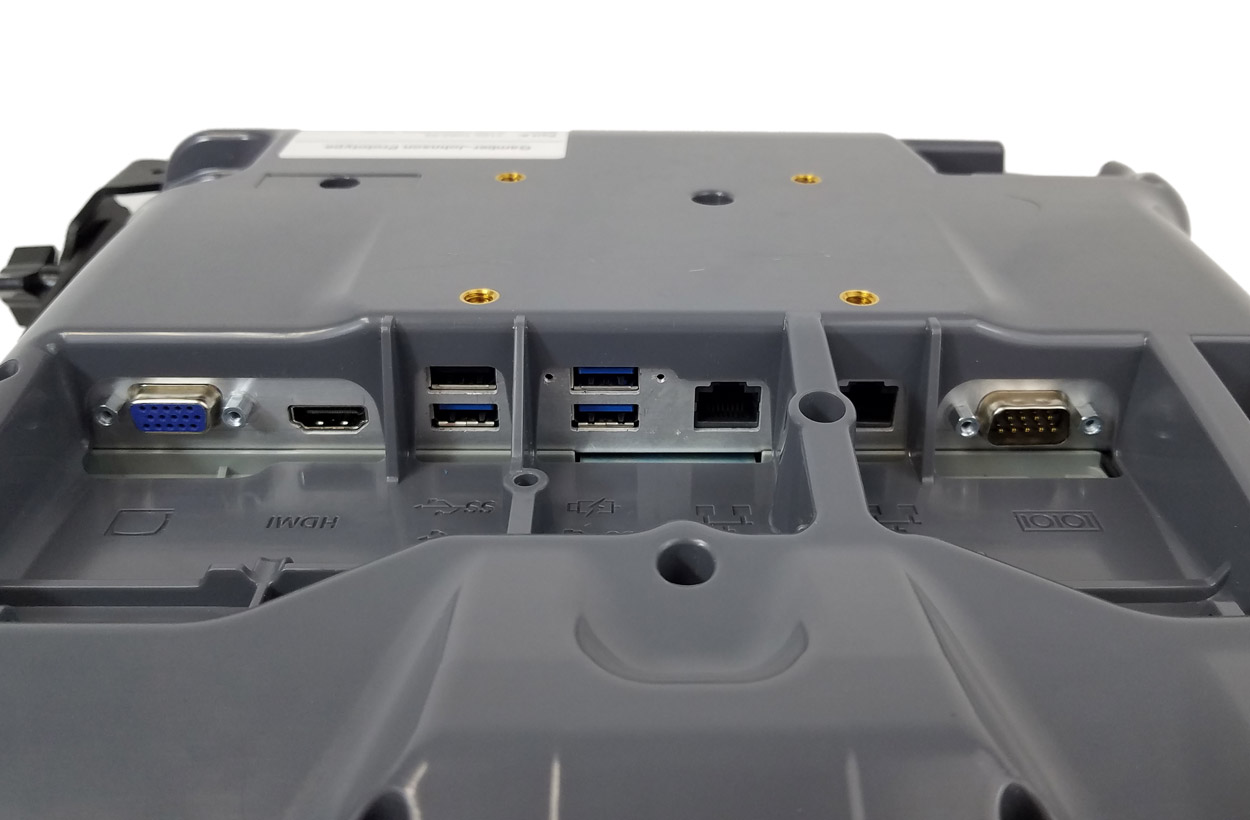

| Port Replication | Getac Certified Electronics |
| RS232 Serial (1) | |
| VGA D-Sub 15 Pin (1) | |
| HDMI 19 Pin (1) | |
| USB 2.0 - 4Pin Forward-Facing (2), Rear (1) | |
| USB 3.0 - 9 Pin (3) | |
| Ethernet RJ45 (2) | |
| Power Input: 19 Vdc | |
| Antenna: TRI RF (SMA) (optional) |
These Gamber-Johnson docking stations are compatible with the following Getac models:
Getac K120 Tablet G1
Getac K120 Tablet G2
Getac K120 Tablet G2-R
Getac K120 Tablet G3
