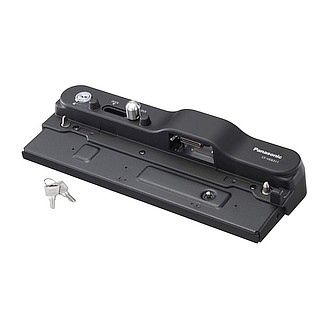

Panasonic CF-31 Desktop Port Replicator Part No CF-VEB311U
Desktop Port Replicator for Toughbook CF-31
| Model Number | Description | Price* |
| CF-VEB311U | Panasonic Desktop Port Replicator for Toughbook CF-31 | £280.75 |
*Please note all prices shown are exclusive of VAT
| Item | Description |
| Power Supply Input | DC 15.6 V |
| Expansion Bus Connector | 80-pin female |
| External Display port | Mini Dsub 15-pin female |
| HDMI Port | Type A*1 |
| LAN Connector 1 |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T |
| LAN Connector 2 |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX |
| Serial Port A | Dsub 9-pin male |
| Serial Port B | Dsub 9-pin male |
| Microphone Jack | Miniature jack, 3.5 DIA (Use only a monaural condenser microphone.) |
| Headphone Jack | Miniature jack, 3.5 DIA |
| USB Ports | 4-pin, USB 2.0*2 × 3 |
|
Physical Dimensions (Width × Depth × Height) |
340 mm × 128 mm × 76 mm {13.4" × 5" × 3.3"} |
| Weight | Approx. 1.8 kg {4 lb.} |
| Operating Environment |
Temperature: 5 °C to 35 °C {41 °F to 95 °F} Humidity: 30 % RH to 80 % RH (no condensation) |
*1Does not guarantee operation of all HDMI-compatible peripherals
*2Does not guarantee operation of all USB-compatible peripherals
This Panasonic desktop port replicator is compatible with the following Toughbooks:
Panasonic Toughbook CF-31 Standard Mk1
Panasonic Toughbook CF-31 Standard Mk2
Panasonic Toughbook CF-31 Standard Mk3
Panasonic Toughbook CF-31 Standard Mk4
Panasonic Toughbook CF-31 Mk5
Panasonic Toughbook CF-31 Mk6
