Gamber-Johnson Lite Vehicle Dock for Toughpad FZ-M1 and FZ-B2

Model Numbers PCPE-OCM1CD1/3/4

Image of a Gamber-Johnson Lite Vehicle Dock for Toughpad FZ-M1 and FZ-B2 PCPE-OCM1CD1/3/4

Image of a Gamber-Johnson Lite Vehicle Dock for Toughpad FZ-M1 and FZ-B2 PCPE-OCM1CD1 Image of a Gamber-Johnson Lite Vehicle Dock for Toughpad FZ-M1 and FZ-B2 PCPE-OCM1CD1 Image of a Gamber-Johnson Lite Vehicle Dock for Toughpad FZ-M1 and FZ-B2 PCPE-OCM1CD1 Image of a Gamber-Johnson Lite Vehicle Dock for Toughpad FZ-M1 and FZ-B2 PCPE-OCM1CD1

A specially designed slim, field-serviceable vehicle dock which accommodates both FZ-M1 and FZ-B2 Toughpad devices.

This dock has been created to reduce the overall size and weight of the dock and tablet combination for those customers who do not require any of the additional options available for their Toughpad FZ-M1 or FZ-B2 device.

A unique removable electronics panel has been incorporated into the design of this dock (except on non-electronic version), which means the user can quickly and easily replace the panel in the case of damaged connectors, significantly reducing downtime in the field.

Features:

  • Designed specifically for Toughpad FZ-M1 and FZ-B2 devices
  • Designed according to MIL-STD-810G test criteria
  • Slim design for space saving
  • Unique removable electronics panel for replacement in the field
  • Reduced port replication: 2 x USB 2.0 and LAN port
  • Optional dual antenna pass-through
  • Non electronic version available (without removable electronics panel)
  • VESA 75mm mounting pattern
  • Alignment tabs to prevent damage to the docking connector when docking
  • Rugged construction for reduced weight and long-term durability
  • Docking mechanism tested to 30,000 cycles
  • 1 year standard warranty (pick up and return)
  • 3 and 5 year Extended Warranty and Accidental Damage Warranty options available



Gamber-Johnson Lite Vehicle Docks
Model Number Description Price*
PCPE-OCM1CD1 Gamber-Johnson Lite Vehicle Dock with Reduced Port Replication, without Antenna Pass-Through for Toughpad FZ-M1 and FZ-B2 £809.30
PCPE-OCM1CD3 Gamber-Johnson Lite Vehicle Dock with Reduced Port Replication, with Antenna Pass-Through for Toughpad FZ-M1 and FZ-B2 £804.00
PCPE-OCM1CD4 Gamber-Johnson Lite Vehicle Dock with Reduced Port Replication, with no Electronics for Toughpad FZ-M1 and FZ-B2 £209.50



Vehicle Dock Extended Warranties
Model Number Description Price*
CF-LESPND3P Extended Warranty - 3 Years £28.00
CF-LESPND5P Extended Warranty - 5 Years £53.00
CDS-LESPTAD3P Accidental Damage warranty - 3 Years £94.00
CDS-LESPTAD4P Accidental Damage warranty - 4 Years £101.00
CDS-LESPTAD5P Accidental Damage warranty - 5 Years £183.00

*Please note all prices shown are exclusive of VAT



Gamber-Johnson Lite Vehicle Dock Specification
Model Number PCPE-OCM1CD1 PCPE-OCM1CD3 PCPE-OCM1CD4
Power Supply Input DC 16V None
LAN Port 1x RJ45 -
USB Port 2x USB 2.0 -
Serial Port - -
HDMI Port - -
VGA Port - -
Headphone - -
Microphone - -
Antenna Pass-Through No Yes -
Lock No
Dimensions:
Width 223 mm (8.79") 223 mm (8.79")
Depth 159 mm (6.231") 76 mm (2.98")
Height 184 mm (7.26") 184 mm (7.26")
Weight 0.59 kg (1.3 lb) 0.44 kg (0.97 lb)
Warranty 1 Year Standard Warranty (pick up and return). Extended Options Available.
FZ-M1 Configurations not Supported Barcode Reader, Serial Port, Smartcard Reader, NFC, UHF/RFID, Hot-Swappable Battery, Hand Strap (and Stylus)

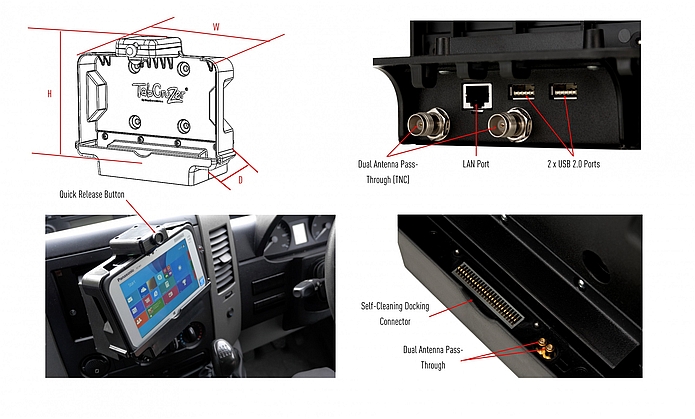

Image of a Gamber-Johnson Lite Vehicle Dock for Toughpad FZ-M1 PCPE-OCM1CD1/3/4 Ports



These Gamber-Johnson Lite Vehicle Docks are compatible with the following Toughpads:

Panasonic Toughpad FZ-M1 Value Mk1
Panasonic Toughpad FZ-M1 Value Mk2
Panasonic Toughpad FZ-M1 Mk1
Panasonic Toughpad FZ-M1 Mk2
Panasonic Toughpad FZ-B1 Mk1
Panasonic Toughpad FZ-B2 Mk2
