Zebra ZT231 RFID Industrial Printer
Affordable, industrial RFID printing/encoding
| Zebra ZT231 RFID Printer Models and Prices | Zebra ZT231 Ribbons and Labels | Zebra ZT231 RFID Printer Specification |
Today’s supply chain is driving the need for real-time omni-channel visibility, end-to-end transparency and rigorous safety and compliance. At the same time, production costs are escalating and timelines are shrinking. Stay competitive with RFID. Zebra’s ZT231 RFID introduces affordable, quality UHF RFID printing and encoding for greater tracking capabilities and efficiencies – all in a space-saving footprint.

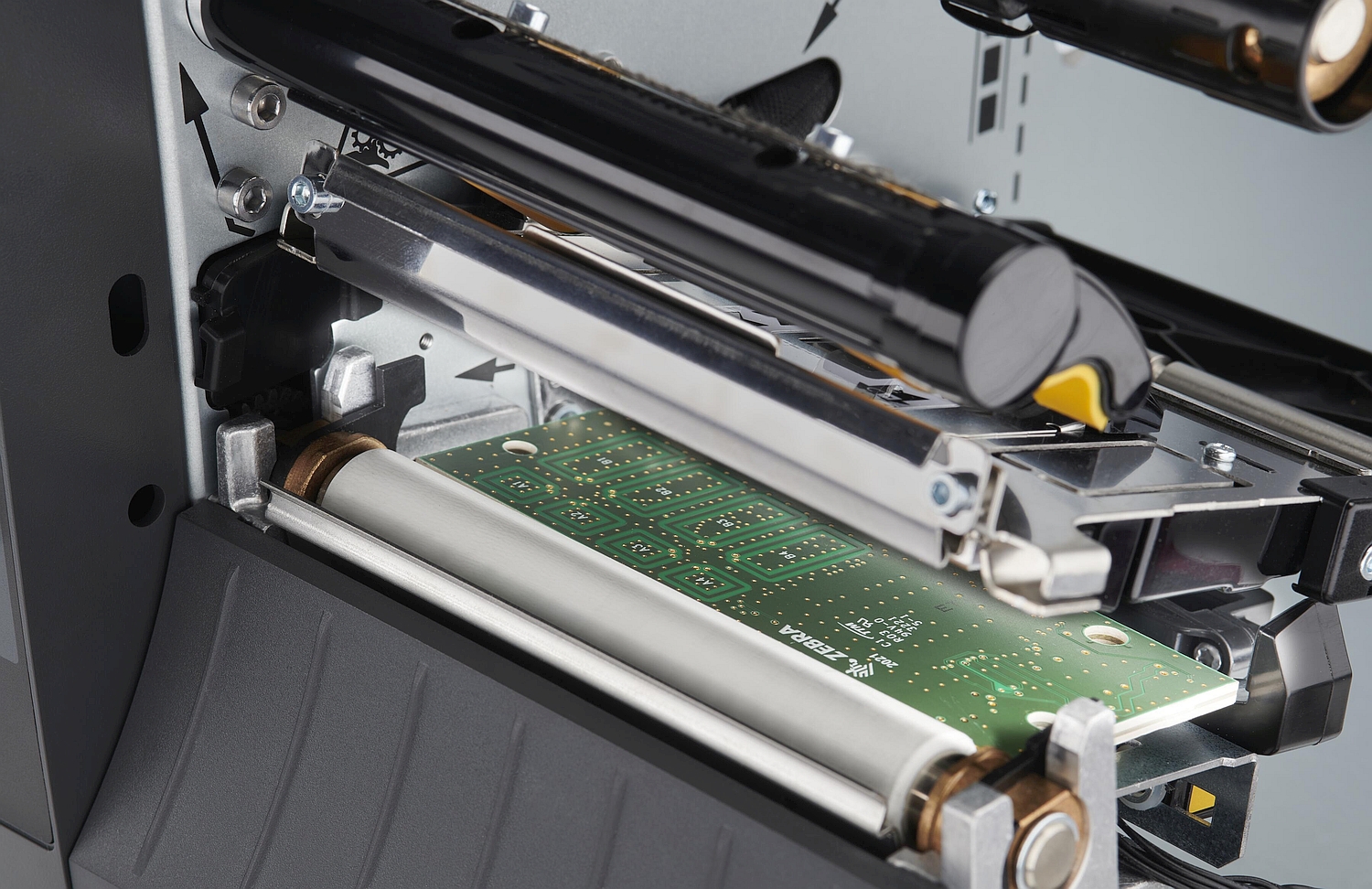

Whether you’re new to RFID or a seasoned pro, Zebra’s own RE40 module makes RFID printing and encoding intuitive and flexible. Maximize your choice of media with their adaptive encoding array and auto calibration features. Rely on the ZT231 RFID to encode the right tag and quickly produce crisp barcodes, texts and graphics with 300 dpi resolution at 8 ips.
Future-proof your printing with the long-lasting quality and innovation you expect from Zebra. The ZT231 RFID features a durable, metal frame to handle light-industrial environments. It’s engineered to evolve with printing and RFID technology advancements to give you years of performance.
The ZT231 RFID is easy to install, use and manage with Zebra’s Print DNA™ suite of apps. Reduce training time and see printer status at a glance with the large color touchscreen. Change RFID settings with the touch of a finger or gloved hand. Get your questions answered with helpful, how-to videos.
The benefits of buying a ZT231 RFID don’t end at the point of purchase. Expand your printer’s capabilities with field-installable media-handling or connectivity upgrades when you need them.
Markets and Applications
|
|
| Model Number | Description | Price* |
| ZT23142-T0E00CFZ | Zebra ZT231 RFID 203dpi Thermal Transfer Printer | £1846.00 |
| ZT23143-T0E00CFZ | Zebra ZT231 RFID 300dpi Thermal Transfer Printer | £2059.00 |
ZT231 RFID standard features include UK and Euro Power Cords, Ethernet, USB, USB Host, Serial, Bluetooth.
*Please note all prices shown are exclusive of VAT
| Zebra ZT231 | Zebra ZT411 | Zebra ZT421 | Zebra ZT510 | Zebra ZT610 |
 |
 |
 |
 |
 |
| From £656.00 | From £1109.00 | From £2095.00 | From £1525.00 | From £1770.00 |
View All:
Zebra Industrial Printers
Zebra Printers
| Type | Part Number | Description | Price* | |
| Media Handling | P1123335-041 | Zebra Cutter Upgrade for ZT111, ZT211, ZT231 | £379.95 | |
| P1123335-042 | Zebra Peel Upgrade for ZT111, ZT211, ZT231 | £172.95 | ||
| P1037974-027 | Zebra Media Hanger for ZT111, ZT210, ZT211, ZT220, ZT230, ZT231 | £25.95 | ||
| P1037974-028 | Zebra Platen Roller for ZT111, ZT210, ZT211, ZT220, ZT230, ZT231 | £44.95 | ||
| P1037974-037 | Zebra Catch Tray for Cutter for ZT111, ZT210, ZT211, ZT220, ZT230, ZT231 | £25.95 | ||
| Printheads | P1123335-012 | Zebra 203 dpi Printhead for ZT111, ZT211, ZT231 | £289.95 | |
| P1123335-056 | Zebra 203 dpi Enhanced Printhead for ZT111, ZT211, ZT231, ZT231R | £279.95 | ||
| P1123335-013 | Zebra 203 dpi Printhead for ZT111, ZT211, ZT231 | £389.95 | ||
| P1123335-057 | Zebra 203 dpi Enhanced Printhead for ZT111, ZT211, ZT231, ZT231R | £379.95 | ||
| Printhead Conversion | P1123335-017 | Zebra 203 dpi to 300 dpi Conversion Kit for ZT111, ZT211, ZT231 | £389.95 | |
| P1123335-054 | Zebra 203 dpi to 300 dpi Conversion Kit for ZT111, ZT211, ZT231, ZT231R | £379.95 | ||
| P1123335-018 | Zebra 300 dpi to 203 dpi Conversion Kit for ZT111, ZT211, ZT231 | £289.95 | ||
| P1123335-055 | Zebra 300 dpi to 203 dpi Conversion Kit for ZT111, ZT211, ZT231, ZT231R | £279.95 | ||
| Connectivity | P1123335-035 | Zebra Ethernet Card for ZT111, ZT211, ZT231 | £279.95 | |
| P1083320-037C | Zebra Wireless Card 802.11ac | £310.95 | ||
| Other | P1109127 | Zebra Designer 3 Pro Software Digital License Key | £175.99 | |
| P1109020 | Zebra Designer 3 Pro Software Physical License Key | £175.99 | ||
| 79830M | Zebra Ribbon Supply Spindle for Ribbons Coated Inside for ZT111, ZT211, ZT231, ZT410, ZT411 | £79.95 |
| Part Number | Description | Price* |
| Ribbons | ||
| 03200BK06030 | Zebra 3200 Premium Wax/Resin Ribbon 60mm x 300m, box of 6 | £45.95 |
| 03200BK08330 | Zebra 3200 Premium Wax/Resin Ribbon 83mm x 300m, box of 6 | £63.95 |
| 03200BK11030 | Zebra 3200 Premium Wax/Resin Ribbon 110mm x 300m, box of 6 | £84.95 |
| 05095BK06030 | Zebra 5095 Performance Resin Ribbon 60mm x 300m, box of 6 | £89.95 |
| 05095BK08330 | Zebra 5095 Performance Resin Ribbon 83mm x 300m, box of 6 | £124.95 |
| 05095BK11030 | Zebra 5095 Performance Resin Ribbon 110mm x 300m, box of 6 | £164.95 |
| Labels | ||
| 76180 | Zebra Z-Perform 1000T TT Economy paper Label 102mm x 152mm, Perm Adhesive, 950 p/r, box of 4 | £62.95 |
| 76059 | Zebra Z-Select 2000T TT Premium paper Label 102mm x 64mm, Perm Adhesive, 2220 p/r, box of 4 | £91.95 |
| 76060 | Zebra Z-Select 2000T TT Premium paper Label 102mm x 152mm, Perm Adhesive, 950 p/r, box of 4 | £91.95 |
| Part Number | Description | Price* |
| Z1A2-ZT231-100 | Zebra OneCare, Essential, Purchased within 30 days of Device, ZT231, ZT231 RFID, Second Business Day Onsite, 1 Year, Non-comprehensive Cover | £183.95 |
| Z1AE-ZT231-3C0 | Zebra OneCare, Essential, Purchased within 30 days of Device, ZT231, ZT231 RFID, 3 Day TAT, 3 Years, Comprehensive Cover | £229.95 |
| Z1A2-ZT231-1C0 | Zebra OneCare, Essential, Purchased within 30 days of Device, ZT231, ZT231 RFID, Second Business Day Onsite, 1 Year, Comprehensive Cover | £293.95 |
| Z1AE-ZT231-5C0 | Zebra OneCare, Essential, ZT231, ZT231 RFID, 5 Years, Carry-in, Parts & Labour, Comprehensive Cover | £374.95 |
*Please note that all prices shown are exclusive of VAT
| RFID | Supports tags compatible with: UHF EPC Gen 2 V2.1, ISO/IEC 18000 -63 and RAIN RFID protocols |
| Integrated RFID system is user-upgradable in the field | |
| Adaptive Encoding Technology automatically selects optimum encode settings | |
| Standard Features | Print methods: direct-thermal or thermal-transfer |
| Construction: metal frame and metal enclosures | |
| Bi-fold media door with large clear window | |
| Side-loading supplies path for simplified media and ribbon loading | |
| Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality | |
| Three-color LEDs for quick printer status | |
| 4.3” color resistive touch screen with intuitive menu for quick operation and settings | |
| Communications: USB 2.0, RS-232 Serial port, 10/100 Ethernet, and USB Host | |
| ENERGY STAR® certified | |
| Bluetooth Low Energy (BTLE) technology for enhanced location precision | |
| ZebraDesigner Essentials – easy label design tool free at www.zebra.com/zebradesigner | |
| Real-Time Clock (RTC) | |
| Physical Characteristics | Dimensions* |
|
ZT231 RFID Closed: 17 in. L x 9.5 in. W x 11 in. H 432 mm L x 241 mm W x 279 mm H |
|
|
ZT231 RFID with Liner Takeup Unit: 17 in. L x 9.5 in. W x 12.75 in. H 432 mm L x 241 mm W x 324 mm H |
|
| Weight | |
|
ZT231 RFID: 20 lbs./9.1 kg ZT231 RFID with Liner Takeup Unit: 24 lbs./10.9 kg |
|
| *Dimensions are for the base model printer. Consult your sales representative for specifics regarding other configurations. | |
| Printer Specifications | Resolution |
| 203 dpi/8 dots per mm | |
| 300 dpi/12 dots per mm (optional) | |
| Memory | |
|
256 MB SDRAM memory 256 MB on-board linear Flash memory |
|
| Maximum Print Width | |
| 4.09”/104 mm | |
| Maximum Print Speed | |
|
12 ips (203 dpi) 8 ips (300 dpi) |
|
| Media Sensors | |
| Moveable transmissive and reflective sensors | |
| Maximum Print Length | |
|
203 dpi: 157 in/3988 mm 300 dpi: 73in/1854 mm |
|
| Media Characteristics | Minimum Label and Liner Length |
|
Tear mode: 0.7 in/18 mm Cutter mode: 1 in/25 mm Peel mode: 0.5 in/13 mm |
|
| Media Width | |
| 0.75 in./19.4 mm to 4.50 in./114 mm | |
| Media Roll Size | |
|
8.0 in./203 mm O.D. on a 3.0 in./76 mm I.D. core 6.0 in./152 mm O.D. on a 1.0 in./25 mm I.D. core |
|
| Media Thickness | |
| 0.003 in./0.076 mm to 0.010 in./0.25 mm | |
| Media Types | |
| Continuous, die-cut, notch, black mark | |
| Ribbon Characteristics (Thermal-transfer option only) | Standard Length |
| 1,476 ft./450 m | |
| Width | |
| 1.57 in./40 mm to 4.33 in./110 mm | |
| Core | |
| 1.0 in./25.4 mm | |
| Operating Characteristics | Operating Temp. |
|
Thermal transfer: 40ºF to 105ºF/5º to 40ºC Direct thermal: 32ºF to 105ºF/0º to 40ºC |
|
| Storage/Transportation Temperature | |
| -40ºF to 140ºF/-40º to 60ºC | |
| Operating Humidity | |
| 20% to 85% non-condensing | |
| Storage Humidity | |
| 5% to 85% non-condensing | |
| Electrical | |
| Universal auto-ranging (PFC-compliant) power supply 100-240 VAC; 50-60 Hz ENERGY STAR certified | |
| Agency Approvals | |
| IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, UKCA, VCCI, RCM, S- Mark, CCC, CU EAC, BSMI, KCC, & BIS | |
| Print DNA Software | This printer is supported by the Print DNA suite of software capabilities to get your printer up and running quickly and securely, and enable your printer to evolve with your business needs. Print DNA features may vary by model, and some features may require a license. For more information, please visit www.zebra.com/printdna |
| Firmware | ZBI 2.0™ — Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more. |
| ZPL and ZPL II™ — Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers. | |
| Barcode Symbologies |
Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with 2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code 2D Barcodes: Aztec, Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, RSS-14 (and composite) |
| Fonts and Graphics | 7 bitmapped, 1 smooth-scalable (CG Triumvirate™ Bold Condensed*) Pre-loaded Unicode™-compliant scalable fonts for EMEA character sets International character sets supporting the following code page: IBM® Code Page 850 Supports user-defined fonts and graphics, including custom logos ZPL II drawing commands including boxes and lines 64 MB user available Flash memory storage for downloadable objects; 32 MB user-available SDRAM |
| Options and Accessories | Communication |
| • 802.11ac Wi-Fi option card | |
| • 10/100 Ethernet option card | |
| • Applicator Interface | |
| Media Handling | |
| • Peel — a front-mount, passive-peel with no take-up spindle | |
| • Peel — a front-mount, passive-peel with liner take-up spindle (factory-fit only) | |
| • Cutter — a front-mount guillotine cutter | |
| RFID* | |

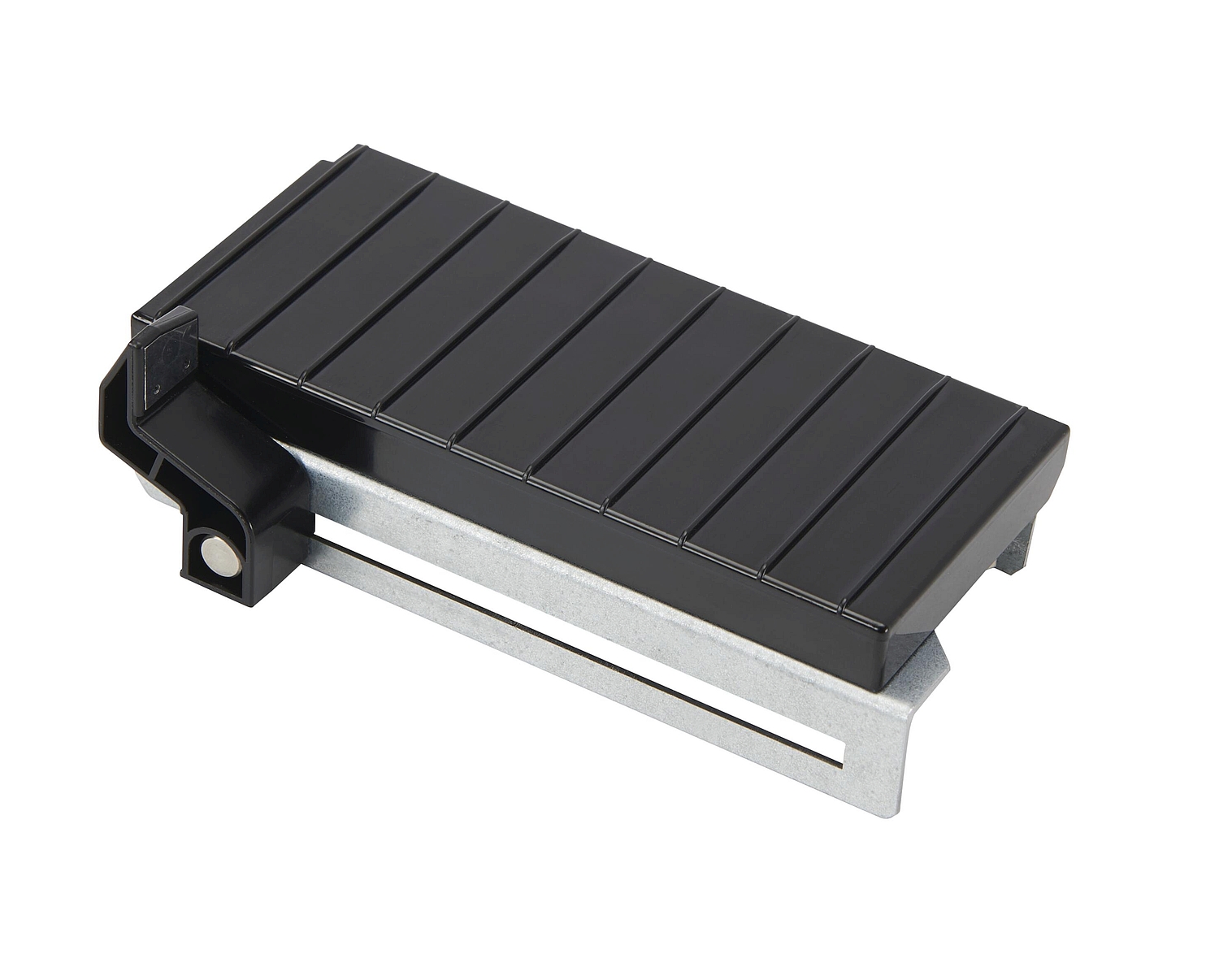

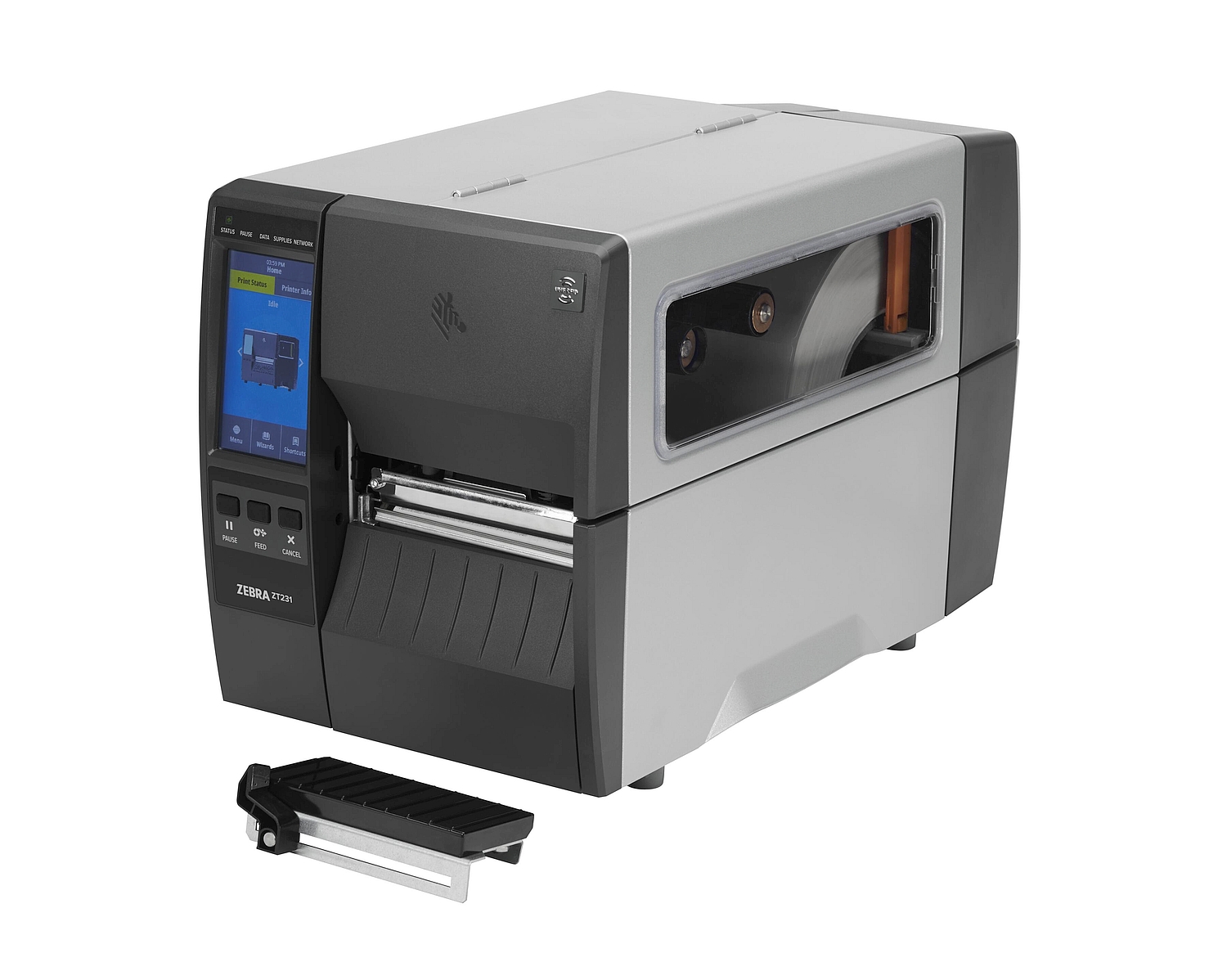

| • UHF field-installable RFID kit | |
| Keyboard Display Unit | |
| • ZKDU™ keyboard display units for stand-alone printing applications | |
| Managed Print Services (MPS) Made Simple | These printers offer innovative remote management, analytics and security capabilities that make them the obvious choice for MPS. With the Print DNA software suite, your Zebra MPS provider can remotely manage and optimize your printers, track and automate supplies replenishment and ensure security. For more information, please visit www.zebra.com/managed-print-services |
