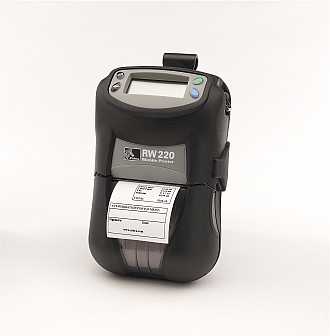

Zebra RW220 Printer

Rugged Mobile Printer

Image of a Zebra RW220 Mobile Printer

Wireless Printers Add Versatility to Printing Tasks on the Open Road

Designed for the Road Warrior, the Zebra RW series of mobile printers are ideal for printing delivery receipts and invoices on the go. The modular design allows users to choose among wireless options, card readers, and integral accessories such as vehicle mounts for simplified route printing. Easy-access vehicle mounting cradles and charging options as well as user-intuitive interfaces and angled displays enhance the convenience and simplicity of mobile printing.

Rough and Ready Durability for Reliable Printing

Uniquely designed for harsh outdoor environments, RW series mobile printers endure extreme temperatures and weather conditions. Bounce it in the truck, carry it in the rain, drop it to the pavement, and expect the same performance day in and day out.

Resilient and lightweight, these IP54-certified printers can withstand the harsh demands of a number of route accounting and field service printing applications, including:

  • Invoices
  • Delivery receipts
  • Service estimates
  • Sales orders
  • Inventory management
  • Mobile point-of-sale

Rugged and Easy to Use Printer

  • IP54 certified for resistance to windblown water and dust
  • Damage-resistant to multiple drops of up to 6 feet to concrete
  • Weight of 1 1/2 to 2 pounds for effortless mobility
  • Resistant to extreme hot and cold temperatures

Ergonomically Designed to Fit Comfortably on the Hip

  • Single push-button media access for simple re-loading
  • Angled LCD for easy viewing of printer status comes as standard

Smart and Sophisticated Operation

  • Print using the same commands as your Zebra tabletop or desktop printers with common language support.
  • Choose the wireless connectivity module that suits your needs: 802.11b/g, Bluetooth 2.0.
  • Quickly and easily print complex labels, symbologies and graphics thanks to the RW series' fast processor and large memory.

Image of a Zebra RW220 Printer with label Image of a Zebra RW220 Printer with credit card and label Image of a Zebra RW220 Printer with tool belt Image of a Zebra RW220 Printer Image of a Zebra RW220 Printer with credit card

Zebra RW220 Portable Receipt Printer Models
Model Number Description Price*
R2D-0U0A000E-00 Zebra RW220 Roadwarrior DT 200dpi Mobile Printer with CPCL, Cable Only (incl Battery and Belt Clip) £373.00
R2D-0UBA000E-00 Zebra RW220 Roadwarrior DT 200dpi Mobile Printer with CPCL, Bluetooth (incl Battery and Belt Clip) £459.00
R2D-0UBA010E-00 Zebra RW220 Roadwarrior DT 200dpi Mobile Printer with CPCL, Bluetooth, Mag Card/Smart Card Reader [EMV-Cert] (incl Battery and Belt Clip) £552.00
R2D-0UKA000E-00 Zebra RW220 Roadwarrior DT 200dpi Mobile Printer with CPCL, 802.11g (Zebra Radio) (incl Battery and Belt Clip) £597.00



Alternative Models
Zebra ZQ110 Zebra iMZ220 Zebra iMZ320 Zebra RW420 Zebra P4T
Image of a Zebra ZQ110 Printer Image of a Zebra iMZ220 Printer Image of a Zebra iMZ320 Printer Image of a Zebra RW420 Printer Image of a Zebra P4T Printer
From £169.00 From £259.00 From £299.00 From £480.00 From £595.00

View All Zebra Mobile Printers
View All Zebra Printers



Zebra RW220 Printer Chargers
Part Number Description Price*
AT18737-2 UK QL/RW/P4T Series Lithium-Ion Fast Charger £57.00
AT18737-3 Europe QL/RW/P4T Series Lithium-Ion Fast Charger £57.00
AC18177-1 UK QL/RW/P4T Series Lithium - Ion Quad Charger (charges up to 4 QL/RW/P4T batteries) £325.00
AC18177-2 Europe QL/RW/P4T Series Lithium - Ion Quad Charger (charges up to 4 QL/RW/P4T batteries) £325.00
CC16614-G1 Li Ion DC/DC 12 VDC - Open Ended Cable - (for vehicle charging without the cradle) £99.00
CC16614-G2 Li Ion DC/DC 9-30 VDC (for vehicle charging without the cradle) £169.00
CC16614-G3 Li Ion DC/DC 30-60 VDC (for vehicle charging without the cradle) £235.00
CC16614-G4 Running Charger (AN16740-1 must also be ordered for use in the UK and mainland Europe) £199.00
CC16614-G9 Li Ion DC/DC 12 VDC with cigarette lighter adapter (for vehicle charging without the cradle) £99.00



Zebra RW220 Printer Accessories
Part Number Description Price*
AK18026-002 RW 220 four cell Li Ion battery £63.00
RW2BB-10 RW 220 Li-Ion Battery Box (10 x RW 220 Li-Ion batteries) £630.00
AK17463-018 RW 220 Vehicle Cradle (includes mounting arm and base plate. Power supply sold separately) £119.00
AK17463-019 RW 220 Vehicle Cradle (no charging electronics) £39.00
AT17010-1 USB-A to USB Mini-B cable £17.50
AK18698-1 USB-A to USB Mini-B cable Right angled connector, Strain Relief, 36" £20.00
AK18698-2 USB-A to USB Mini-B cable Right angled connector, Strain Relief, 72" £20.00
BL17205-1 Serial, RJ-45, interlocking cable £27.50
BT11132-1 RW Series Shoulder Strap (For use with printer or Routepalette) £8.33
AK18026-001 RW 220 Soft Case £44.00
AN16740-1 Bag of International Plugs (US), EU, UK), for use with Li-Ion AC Charger (CC16614-G4) £22.50
105950-035 Print Head Cleaning Pens x 12 £30.00

*Please note that all prices shown are exclusive of VAT

Zebra RW220 Mobile Printer Full Specification
Printer Specifications Maximum Print Area
  Width
  2.20"/56 mm
  Length
  Continuous
  Resolution
  203 dpi/8 dots per mm
  Maximum Print Speed
  3"/76.2 mm per second maximum
  Physical Characteristics
  Base Version
  Width: 4.4"/112 mm
  Depth: 2.9"/74 mm
  Height: 6.8"/173 mm
  Weight: 1.45 lbs./658 g
  Card Reader Version
  Width: 4.4"/112 mm
  Depth: 3.2"/81.2 mm
  Height: 6.8"/173 mm
  Weight: 1.55 lbs./703 g
  Media Specifications
  Media width
  1"/25 mm to 2.37"/60 mm
Print Characteristics Print method: Direct thermal
  Resolution: 203 dpi/8 dots per mm
  Maximum print speed: 3"/76.2 mm per second
Memory 8 MB Flash, 16 MB RAM
Physical Characteristics Construction: Impact-modified polycarbonate, abrasion-resistant rubber overmold
  Drop specification: 6-foot multiple drops to concrete
  LCD: Ergonomic, angled display for better viewing
  Strain relief RS 232 serial interface
  Self-centering media holders
  IP54-certified
Standard Features Rugged design
  4-button angled LCD (standard)
  Standard serial and USB interfaces
  Advanced 32-bit architecture for high-speed processing
  Enhanced battery management
Operating Characteristics Environment
  Meets IP54 certification
  Operating Temp. -4º F/-20º C to 131º F/55º C
  Storage/Environ. -22º F/-30º C to 149º F/65º C
  Operating Humidity 10-90% non-condensing
  Storage Humidity 10-90% non-condensing
  Electrical
  Standard 2.0 Ah, 7.4V battery
  External charging options (vehicle and AC)
  Shock-mounted internal components
  Selectable baud rate: 9600 to 115.2 Kbps
  Xon/Xoff or hardware flow control (RTS/CTS)
  USB 2.0 full speed support, 12 Mbits/second (for setup and configuration)
  RS-232C serial port (RJ-45 connector) for cabled use
  Regulatory
  FCC Part 15 Class B, VCCI Class B, NOM/NYCE CE compliance (Class B), C-Tick, CSA
ZebraLink™ Solutions Software
  ZebraDesigner™ Pro
  Zebra Mobile SDK
  ZebraNet™ Bridge Enterprise
  Zebra Universal Driver
  Label Vista
  Auto-detect firmware load
  Battery management (monitors battery for longer life and performance)
  Networking and Connectivity
  Bluetooth® v. 2.0
  802.11b/g Zebra Value Radio
  Native wireless security support: VPN, WPA/WPA2, WEP, Kerberos, WPA-PSK, EAP-TLS, EAP-TTLS, EAP-FAST, LEAP, PEAP, 802.11i
  Firmware
  Wavelink Avalanche®
  Motorola® MSP
  Native CPCL with ZPL• ®, EPL™, and XML support (standard)
Media Characteristics Max. Roll Size (O.D.): 2.25"/57 mm
  Max. Media Width: 2.37"/60 mm
  I.D. core: .75"/19 mm or 1.38"/ 34.9 mm
  Thickness: .002"/.05 mm to .0063"/.16 mm
  Media Types: direct thermal tags or receipt paper, synthetic media, UV coated media, limited label support
  For optimum print quality and printer performance, use genuine Zebra™ supplies.
Fonts/Graphics/Symbologies Fonts and Character Sets
  Standard fonts*: 25 bitmapped, 1 smooth, scalable (CG Triumvirate™ Bold Condensed)
  Optional fonts: downloadable bitmapped and scalable fonts
  International character sets (optional): Chinese 16 x 16 (trad), 16 x 16 (simplified), 24 x 24 (simplified); Japanese 16 x 16, 24 x 24, Hebrew/Arabic
  Graphic Features
  Supports user-defined fonts and graphics — including custom logos
  Bar Code Symbologies
  Linear Bar Codes: Code 39, Code 93, UCC/EAN- 128, EAN-14, Code 128, UPC-A, UPC-E, EAN-8, EAN-13,
EAN-14, UPC and EAN 2-of-5 digital extensions, Plessey, FIM Postnet, Interleaved 2-of-5, MSI, Codabar
  2-Dimensional: Aztec, Data Matrix, GS1 DataBar™ (RSS) family (12 bar codes), MaxiCode, PDF417, QR Code
  *Contains UFST from Monotype Imaging, Inc.
Options and Accessories Magnetic stripe reader and EMV-certified smart card reader
  Lithium Ion Fast AC Charger
  Lithium Ion Quad Charger
  Cigarette lighter charger (for in-vehicle charging)
  Vehicle cradle for docking and charging
  Ram Mount Kit
  Shoulder Strap/Hand Strap
  Environmental Soft Case
  XML Support Applications and Documentation utility CD

* Specifications subject to change without notice.
