Zebra QLn320 Printer

Direct Thermal Mobile Label Printer

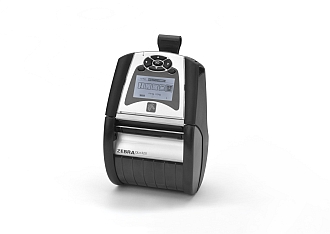

Image of a Zebra QLn320 Mobile Printer
Zebra QLn320 Printer Models and Prices Zebra QLn320 Labels Zebra QLn320 Specification

Zebra’s popular QL™ family of direct thermal mobile label printers has built a highly satisfied following based upon its proven drop-resistant durability; user-friendly, productivity-boosting features; and easy integration. As Zebra’s third generation of QL printers, the QLn™ series extends these QL-platform benefits to the “nth” power—whether you choose the QLn320™ for 3-inch-wide printing, or the soon-to-come 2-inch QLn220™ printer.

A new seamless, one-piece design and tempered-glass display join the printer’s rubber-infused over-molding to make the lightweight printer even more durable. The QLn printer can boost your operation’s productivity through a larger, sharper, easier-to-navigate display; faster, higher-quality printing; a variety of proactive alerts that help keep working printers in employees’ hands; and many convenient charging accessories. And your IT department will find the QLn easier to integrate into existing environments with such features as Zebra Global Printing (coming soon), improved network performance, and ZebraLink™ support. Also prolong printer uptime and enhance operations productivity with remote Ethernet-connected printer, battery, configuration, and firmware management, all supported by ZebraLink™ tools.

Ideal for These Applications

  • Retail — shelf-edge labels, mark-down labels, price labels and tags, sell-by labels, transfer and return labels
  • Healthcare — bedside specimen labels, pharmacy labels

Image of a Zebra QLn320 Printer Connectivity Image of a Zebra QLn320 Printer Display Image of a Zebra QLn320 Printer Image of a Zebra QLn320 Printer and price label Image of a Zebra QLn320 Printer with media Image of a Zebra QLn320 Printer with shelf label Image of a Zebra QLn320 Printer with shipping label

Zebra QLn320 Mobile Printer Models
Model Number Description Price*
QN3-AU1AEE11-00 Zebra QLn320 DT 203dpi Mobile Printer with CPCL, Cable Only (incl Battery, Shoulder Strap and Belt Clip) £419.00
QN3-AUBAEE11-00 Zebra QLn320 DT 203dpi Mobile Printer with CPCL, Bluetooth (incl Battery, Shoulder Strap and Belt Clip) £455.00
QN3-AUGAEE11-00 Zebra QLn320 DT 203dpi Mobile Printer with CPCL, 802.11g Zebra Radio (incl Battery, Shoulder Strap and/ Belt Clip) £535.00



Alternative Models
Zebra RW220 Zebra RW420 Zebra P4T Zebra QLn220 Zebra QLn420
Image of a Zebra RW220 Printer Image of a Zebra RW420 Printer Image of a Zebra P4T Printer Image of a Zebra QLn220 Printer Image of a Zebra QLn420 Printer
From £373.00 From £480.00 From £595.00 From £384.00 From £483.75

View All Zebra Mobile Printers
View All Zebra Printers



Zebra QLn320 Printer Chargers
Part Number Description Price*
P1031365-041 UK QLn AC Adapter (charges battery inside printer, also works with QLn-EC) £34.30
P1031365-042 EU QLn AC Adapter (charges battery inside printer, also works with QLn-EC) £34.30
AC18177-1 UK QL/RW/P4T Series Lithium - Ion Quad Charger (charges up to 4 QL/RW/P4T batteries) £235.20
AC18177-2 EU QL/RW/P4T Series Lithium-Ion Quad Charger (charges up to 4 QL/RW/P4T batteries) £235.20
P1031365-064 UK SC2 Li-Ion Smart Charger + AC Adapter £58.95
P1031365-065 EU SC2 Li-Ion Smart Charger + AC Adapter £58.95
P1031365-034 UK QLn EC Single Ethernet Cradle + 25W AC Adapter £99.00
P1031365-035 EU QLn EC Single Ethernet Cradle + 25W AC Adapter £99.00
P1031365-046 UK QLn EC4 Quad Ethernet Cradle + 50W AC Adapter £395.00
P1031365-047 EU QLn EC4 Quad Ethernet Cradle + 50W AC Adapter £395.00
P1031365-050 EC4 Quad Ethernet Cradle Wall Mount £22.50



Zebra QLn320 Printer Accessories
Part Number Description Price*
P1031365-025 Spare Battery - Lithium - Ion Battery for the QLn220/QLn320 £58.50
P1031365-026 QLn Shoulder Strap £9.95
P1031365-027 QLn Hand Strap £9.95
P1031365-029 QLn320 Soft Case (includes shoulder strap) £59.95
P1031365-052 QLn Serial Cable QL Plus Adapter (with strain relief, female DIN, allows QL Plus cables to be used with QLn) £17.50
P1031365-053 QLn Serial Cable PC-DB9 (with strain relief - Equivalent to old RS232 cable) £30.00
P1031365-054 Serial Cable (with strain relief) to MC9000 - Equivalent to QL cable CL17305-1 £30.00
P1031365-055 PC-USB cable (with strain relief) - Equivalent to QL USB cable AT17010-1 £17.50
P1031365-056 Serial Cable (with strain relief) to Telzon Adapter - Equivalent to QL cable BL11122-1 £25.00
P1031365-057 Serial Cable (with strain relief) to LS2208 Scanner - Equivalent to QL serial cable AK18192-1 £25.00
P1031365-104 Serial Cable (with strain relief) to LS2208 Scanner Extended £25.00
P1031365-058 Serial Cable (with strain relief) to MC3000 - Equivalent to QL serial cable AK17591-345 £52.50
P1031365-060 Serial Cable (with strain relief) to MC3000 - Equivalent to QL serial cable AK17708-1 £52.50
P1031365-061 Serial DEX Cable (with strain relief) - Equivalent to QL serial cable BL16713-1 £25.00
P1031365-062 Serial Cable (with strain relief) to RJ45 - Equivalent to QL cable BL12093-1 £25.00
P1031365-028 Belt Clip Replacement Kit (Qty 20) £30.00
105950-035 Print Head Cleaning Pens x 12 £30.00
P1050667-038 QLn Desktop Stand £35.00



Zebra QLn320 Printer Aftermarket
Part Number Description Price*
3003060 Z-Select 2000D Reduced Price Label 50.8mm x 38.1mm, box of 20 £43.00
3003353 Z-Select 2000D Reduced Price Label 60mm x 50mm, box of 16 £66.40
3003349 Z-Perform 1000D 110 Tag Shelf Edge Ticket 76.2mm x 38.1mm, box of 16 £69.60

*Please note that all prices shown are exclusive of VAT

Zebra QLn320 Mobile Printer Full Specification
Standard Features Apple® iOS, Android, Windows Mobile and Blackberry® connectivity
  Direct thermal printing of barcodes, text and graphics
  CPCL, EPL and ZPL programming languages
  256 MB Flash supports downloadable programs, receipt formats, fonts, and graphics
  2,450mAh (nominal) 18.1Wh removable Li-ion smart battery
  Built-in battery charger
  Black mark and gap media sensing using fixed center position sensors
  Easy-to-use peel-and-present mode
  Label-present sensor for issuing labels one at a time
  Tear bar for easy receipt dispensing
  Belt clip for unobtrusive and convenient printing (not compatible with extended-capacity battery)
  Centre-loading media locking for variable roll widths
  “Clamshell” design for easy media loading
  Management: Mirror, SNMP, Web server (with customisable HTML pages), Wavelink Avalanche®
  Large easy-to-read LCD control panel (240 x 128 pixels)
  LCD can be customised using WML (text and icons)
  Five-way navigation buttons, two software-defined keys
  Printer alerts on the display, help menus
  Tolerance of multiple drops from 1.52m/5' to concrete
  IP43 dust- and water-resistance rating (IP54 with soft case)
  400 MHz 32-bit ARM processor
  XML support
  Supports vertical and horizontal printing
  Printers can be used in any orientation
  QR barcode links to web-based help pages
  Zebra Print Touch simplifies Bluetooth pairing and launches web-based help pages with Near Field Communication (NFC) enabled devices
  Label odometer
  Real-time clock
Printer Specifications Resolution
  203 dpi/8 dots per mm
  Memory
  128 MB RAM; 256 MB Flash (standard)
  Print width
  2.9"/72 mm
  Print length
  Min: 0.5"/12.7 mm
  Max: 32"/813 mm
  Print speed
  Up to 4"/100 mm per second
  Media sensors
  Black mark and gap media sensing using fixed center position sensors; Label present sensor for issuing labels one at a time
Operating Characteristics Environment
  Operating Temperature: -4° F/-20° C to 122° F/50° C
  Storage/Transport Environment: -13° F/-25° C to 158° F/65° C
  Operating Humidity: 10% to 90% non-condensing
  Storage Humidity: 10% to 90% non-condensing
  Agency approvals
  Emissions: FCC Part 15, Subpart B, EN55022 Class-B, EN60950, EN55024 and VCCI class B
  Susceptibility: EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, and EN61000-4-5
  Safety: CE, UL, TUV, CSA
Media Characteristics Media width
  1.0"/25 mm to 3.125"/79 mm
  Media length
  0.5"/12.7 mm to 32"/813 mm or continuous
  Maximum media roll size
  2.6"/66 mm OD on a 0.75"/19 mm or 1.375"/34.9 mm I.D core
  Media thickness
  2.3 mil to 6.5 mil (label) or 5.5 mil (tag stock)
  Media types
  Die-cut, roll-fed, receipt, linerless, black bar, black mark
Physical Characteristics Width: 4.6"/117 mm
  Height: 3.3"/84 mm
  Depth: 6.8"/173 mm
  Weight: 1.6 lbs/0.72 kg with battery
  Note: The extended-capacity Li-ion smart-battery option adds 0.09kg/0.20lb to the weight and 16mm/0.6" to the height of the printer.
Link-OS Solutions Software Tools Document Design: Quickly design a customised print solution using your business data and Zebra's intuitive, plug-and-print design tools.
  Device Integration: Zebra offers apps and products designed to help you integrate Zebra devices into your existing systems.
  Device Management: Manage your print operations locally and globally with Zebra's suite of device management tools.
  Developer Tools: Provides you the tools you need to create your own apps, including documentation, source code, programming languages, templates and more.
  Firmware
  ZPL II™
  CPCL, EPL
  Zebra Unicode Solution
  ZBI 2.0™ (optional)
Fonts/Graphics/Symbologies Fonts and character sets
  Five resident scalable, rotatable fonts available from 12-48 pt.
  Downloadable soft fonts
  Optional international character sets
  Barcode symbologies
  Barcode Ratios: 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1
  Linear barcodes: Codabar (NW-7), Code 39, Code 93, Code 128, EAN-8, EAN-13 (2 and 5 digit extensions), Interleaved 2-of-5, UCC/EAN-128, UPC-A, UPC-E (2 and 5 digit extensions) MSI/Plessey, FIM/Postnet
  Two-dimensional: Aztec Code, Data Matrix, GS1 DataBar™ (RSS), MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39
Communication and Interface Capabilities ZebraNet® 802.11n option – provides 802.11a/b/g/n WLAN support with:
  - WEP (PSK only), TKIP and AES encryption
  - WPA and WPA2
  - 802.1x (with WPA or WPA2 only) EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP
  - 802.11d and 802.11i
  - Simultaneous dual radio with Bluetooth 3.0
  - Wi-Fi® Certification
  - Fast roaming using PMK caching, CCKM or Fast Session resumption
  Bluetooth 3.0 radio
  - Security modes 1 – 4
  - Made for iPod®/iPhone®/iPad®” certified
  - Key Bonding
  10/100 Ethernet support (via docking cradle)
  Cabled Communications Specifications
  USB 2.0 full-speed interface (12 Mbps)
  Mini-B connector with optional strain relief
  Serial interface: 14-pin RS-232C port for communication to terminal or other host up to 115.2 Kbps
Options and Accessories Charging Options
  Charge the battery inside the printer using: AC adapter; Single cradle; Quad cradle
  Charge the battery outside the printer using: Smart charger; Quad charger
  Optional Features and Accessories
  Linerless printing (with silicone platen roller only)
  ZBI 2.x
  Spare batteries
  4300mAh (nominal) 31.0Wh removable extended-capacity Li-ion smart battery
  AC adapter
  SC2 smart battery single charger
  Quad battery charger
  QLn-EC – single-bay Ethernet and charging cradle (not compatible with extended-capacity battery)
  QLn-EC4 – quad-bay Ethernet and charging cradle, with internal switch and stacking port (not compatible with extended-capacity battery)
  Shoulder strap
  Hand strap
  Soft case (IP54 rating when used) – not compatible with extended-capacity battery
  Serial and USB cables with strain relief
  Vehicle Charger (8-18V) with Cigarette Lighter Adapter

* Specifications subject to change without notice.
