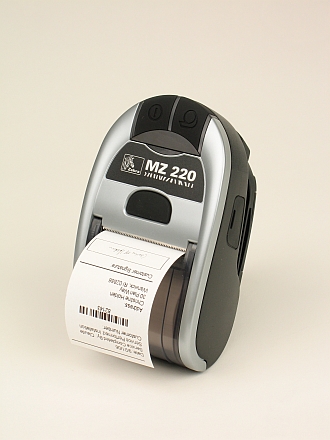

Zebra MZ220 Printer
Zebra Power in the Palm of Your Hand
These easy-to-operate mobile receipt printers are a great first step for users looking to replace pen and paper documentation, pre-printed receipts, or unreliable mobile printers. Mobile workforces all over the world can benefit from the MZ series’ compact convenience in business applications such as:
- Field Repair/Installation
- Deliveries
- Restaurant Tableside Payments
- Mobile Point-of-Sale
- Parking Citations
- Onboard Transportation Ticketing
- Utility Billing/Meter Reading
Mini Zebra Printers Take Your Business Where It Needs to Go!
Get the benefits and value associated with Zebra with the MZ series of economical receipt printers. Each tiny MZ printer can be a smart assistant for any mobile receipt printing application where you need quick, simple receipts on demand. Use 802.11g, Bluetooth®, IrDA® or USB to connect to a handheld or smart phone device and produce crisp, clear receipts!
Sleek, Subtle Sidekicks
These unobtrusive printers can be worn comfortably for a full shift, without interfering with the user’s tasks. And because it’s a Zebra, there’s no compromise in reliability when you choose an MZ series entry-level printer.
Meet the MZ Series!
The MZ series: powerful Zebra printing in the palm of your hand. Entry-level mobile receipt printers for simply printing documentation on the go!
A Sidekick That Won’t Weigh You Down
- At 3/4 of a pound or less, these lightweight printers can be worn a full shift, without any burden or bother
- Comfortably wear the printer via belt clip or shoulder strap for unobtrusive and convenient printing
Simple to Operate
- Single push-button media access for simple re-loading
- Intuitive LEDs indicate on/off, error and connectivity status
Economical Alternative
- A simple, reliable and affordable printer alternative
- Base model includes AC adapter and IrDA
Palm-Sized Printing Power
- High-speed processor and extensive memory for printing complex bar codes and fonts
- Secure 802.11g wireless, USB or Bluetooth connectivity
| Model Number | Description | Price* |
| M2E-0UB0E060-00 | Zebra MZ220 DT 203dpi Mobile Printer (UK) with CPCL, Bluetooth (Incl Battery, Charger (UK) and Belt Clip) | £266.00 |
| M2E-0UB0E020-00 | Zebra MZ220 DT 203dpi Mobile Printer (EU) with CPCL, Bluetooth (Incl Battery, Charger (EU) and Belt Clip) | £266.00 |
| Part Number | Description | Price* |
| AK18372-1 | Shoulder Strap | £7.00 |
| AK18354-1 | MZ220 Protective Skin (Includes Shoulder Strap) | £15.90 |
| AK18851-1 | MZ220 Protective Case | £27.50 |
| AK18356-2 | Cigarette Lighter Adapter for MZ220 or MZ320 | £18.30 |
| AK18353-1 | MZ Series Spare Battery | £50.00 |
| MZ2BB-10 | MZ220/320 Li-Ion Battery Box (10 x MZ 220 Li-Ion batteries) | £500.00 |
| AK18355-5 | AC Power Supply - EU Adaptor | £19.40 |
| AK18355-6 | AC Power Supply - UK Adaptor | £19.40 |
| AK18342-5 | MZ Series 4 Bay Charging Station - EU Adaptor | £181.00 |
| AK18342-6 | MZ Series 4 Bay Charging Station - UK Adaptor | £181.00 |
| AT17010-1 | USB-A to USB Mini-B cable | £17.50 |
| AK17527-001 | VPN license: License, Password & QSG for enabling VPN on your MZ Series printer with 802.11g Zebra Radio | £35.00 |
| 105950-035 | Print Head Cleaning Pens x 12 | £30.00 |
| Part Number | Description | Price* |
| 3006129 | Z Perform 1000D 80 Receipt Receipt Media 80 Micron 50mm x Cont, Box of 30 | £39.00 |
| 3006130 | Z Perform 1000D 60 Receipt Recept Media 60 Micron 50mm x Cont, Box of 30 | £49.00 |
*Please note that all prices shown are exclusive of VAT
| Printer Specifications | Print Characteristics |
| Print method: Direct Thermal | |
| Resolution: 203 dpi/8 dots per mm | |
| Maximum print speed: 3"/76.2 mm per second | |
| Print Area | |
| Maximum Width: 1.9"/48 mm | |
| Maximum Length: 32"/813 mm | |
| Memory | |
| 8 MB SRAM; 4 MB Flash | |
| Physical characteristics | |
| Width: 3.18"/80.8 mm | |
| Depth: 2.26"/57.4 mm | |
| Height: 5.34"/167.6 mm | |
| Weight (with battery): .70 lbs./.32 kg | |
| Standard Features | Smart battery management (monitors battery for longer life and performance) |
| Resident scalable fonts | |
| 32-bit high-performance processor | |
| Paper-out sensor | |
| Single-push-button media cover release for easy loading and unloading | |
| Translucent media cover for media-low/-out anticipation | |
| External power on/off control from keypad, terminal, or printer | |
| AC adapter included | |
| IrDA/USB 2.0 support | |
| Operating Characteristics | Environment |
| Operating Temp. 14º F/-10º C to 122º F/50º C | |
| Storage Environ. -4º F/-20º C to 140º F/60º C | |
| Operating Humidity 10-90% non-condensing | |
| IP42 rated for resistance to water | |
| Resists repeated 4' drops to concrete | |
| Electrical | |
| 1.5 Ah Li-Ion battery | |
| Shock-mounted internal components | |
| Communication Interface | |
| USB 2.0 port | |
| Supported Internet Protocols: TCP, UDP, DHCP, FTP, Telnet, Http, LPD, SNMP, SMTP, POP3 | |
| IrDA (standard) | |
| 802.11b/g (optional) | |
| Bluetooth (optional) | |
| Windows® compatibility: (CE.NET, Pocket PC, Windows Mobile 2002, Windows Mobile 2003 SE, Windows XP, 2000 and NT via Zebra Windows printer driver and/or our Active X controls and other applications.) | |
| Agency Approvals | |
| FCC Part 15 and EN55022 Class B limits; FCC, ICS, and European Standards for Bluetooth and 802.11b/g; CSA and IEC 60950 standard for Safety; NOM, C-tick, VCCI, S-Mark | |
| Media Characteristics | Max. Roll Size: 1.88"/47.8 mm O.D. on a .4"/10.2 mm to .75"/19 mm I.D. core |
| Max. Media Width: 2.0" (+/- 0.03")/50.8 mm (+/- 0.76mm) | |
| Thickness: 2 mil/.0508 mm to 4 mil/0.1016 mm | |
| Media Types: direct thermal receipt paper, or UV coated media | |
| For optimum print quality and printer performance, use Genuine Zebra supplies. | |
| Fonts/Graphics/Symbologies | Fonts and Character Sets |
| Standard fonts*: 25 bitmapped, 1 smooth, scalable (CG Triumvirate™ Bold Condensed) | |
| Optional fonts: downloadable bitmapped and scalable fonts | |
| International character sets (standard): Chinese 16 x 16 (traditional), 16 x 16 (simplified), 24 x 24 (simplified); Japanese 16 x 16, 24 x 24, Hebrew/Arabic, Korean, Greek | |
| Graphic Features | |
| Supports user-defined fonts and graphics — including custom logos | |
| Bar Code Symbologies | |
| Code 39, Code 93,UCC/EAN128,Code 128, Codabar (NW-7), Interleaved 2-of-5, UPC-A, UPC-E, 2 & 5 digit add-on, EAN-8, EAN-13, EAN14, 2 & 5 digit add-on, PDF417, MaxiCode, Reduced Space Symbology® (RSS) and Composite Symbology®, QR code, MSI/Plessey, FIM Post Net, TLC 39 Bar code | |
| *Contains UFST® from Monotype Imaging, Inc. | |
| Options and Accessories | Bluetooth connectivity |
| 802.11b/g connectivity | |
| Protective case | |
| Shoulder strap | |
| Four-bay printer power station | |
| Vehicle power adapter |
* Specifications subject to change without notice.
