Zebra EM220 Printer

Pocket-sized printer for mobile receipt printing

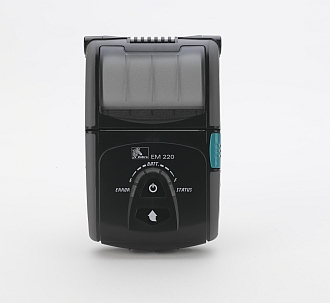

Image of a Zebra EM220 Mobile Receipt Printer

Zebra’s ultra-compact EM 220 is a convenient mobile receipt printer that fits neatly into a pocket. With intuitive operation and optional Bluetooth® 2.0 wireless connectivity, the EM 220 is easy to use and ideal for customer-facing environments where space is at a premium.

The EM 220 receipt printer provides a flexible solution for an array of applications. The latest addition to the Zebra mobile printer family, the EM 220 printer gives high quality printing at a compelling price.

Key features:

  • Pocket-sized and lightweight
  • Simple operation
  • Single-push-button media-cover release for easy loading and unloading
  • Integrated magnetic card reading (Bluetooth printers only)

Ideal for:

  • Onboard transportation ticketing
  • Law enforcement – issuing fines and fixed penalties
  • Retail queue busting
  • Hospitality service applications

Image of a Zebra EM220 Printer with belt case Image of a Zebra EM220 Printer Image of a Zebra EM220 Printer with receipt Image of a Zebra EM220 Printer and media roll Image of a Zebra EM220 Printer with media cover open Image of a Zebra EM220 Printer with card Image of a Zebra EM220 Printer in pocket

Zebra EM220 Printer Models
Model Number Description Price*
W2A-0U10E060-00 Zebra EM220 DT 203dpi Printer with ASCII, USB (Incl Battery and Wall Charger (UK)) £182.00
W2A-0U10E020-00 Zebra EM220 DT 203dpi Printer with ASCII, USB (Incl Battery and Wall Charger (EU)) £182.00
W2A-0UB1E060-00 Zebra EM220 DT 203dpi Printer with ASCII, Bluetooth, MCR (Incl Battery and Wall Charger (UK)) £325.00
W2A-0UB1E020-00 Zebra EM220 DT 203dpi Printer with ASCII, Bluetooth, MCR (Incl Battery and Wall Charger (EU)) £325.00



Zebra EM220 Printer Accessories
Part Number Description Price*
P1002523 Leather Case £29.00
P1002522 USB Cable (to connect printer to PC) £16.50
P1002521 Serial Cable (to connect printer to PC) £16.50
P1002512 Lithium Ion Battery £59.00
P1002514 Battery Cradle (Holds a single battery to charge outside of the printer) £20.00
P1006772-2 Spare Li-Ion Battery Wall Charger - EU Adaptor (one is included with printer) £35.00
P1006772-6 Spare Li-Ion Battery Wall Charger - UK Adaptor (one is included with printer) £35.00
105950-035 Print head Cleaning pens x 12 £30.00



Zebra EM220 Aftermarket
Part Number Description Price*
3007158-T Z Perform 1000D 60 Receipt Media 60 Micron 57mm x Cont, box of 25 £32.50
3007159-T Z Perform 1000D 80 Receipt Media 80 Micron 57mm x Cont, box of 25 £33.90

*Please note that all prices shown are exclusive of VAT

Zebra EM220 Mobile Printer Full Specification
Standard Features Direct thermal printing 8 dots/mm (203 dpi) print resolution
  2 MB Flash / 8 MB SRAM memory
  7.4V, 1.2 Ah Li-Ion battery
  Serial/USB connection
  Tear strip for easy receipt dispensing
  Supports vertical or horizontal printing
  Open access design for easy loading
  Li-Ion charger and belt strap included with printer
  Tolerance of multiple drops up to 1.2m to concrete
  Sensors detects door, open, out of paper, preprinted media alignment
  LEDs indicate connectivity and battery status
Printing Specifications Resolution: 8 dots/mm (203 dpi) resolution
  Memory: 2 MB Flash / 8 MB SRAM memory
  Maximum print width: 50.8 mm (2.0”)
  Print Speed: Print speed: up to 80 mm 3.15”/ per second
Media Specifications Media Width: 2.28”( +/- 0.2”) / 58.0 mm (+/-.5mm)
  Maximum print width: 2.0” / 50.8 mm
  Maximum roll length: 40’ with 3.2 mil paper
  Roll Diameter: Core OD 18.5±0.5mm (0.728 +/-0.0196”)
      Label Roll OD Max. 1.57” / 39.9 mm
  Maximum media thickness: 4 mil / 0.1016 mm
Operating characteristics Environmental
  Operating Temp. 14º F/-10º C to 122º F/50º C
  Relative humidity: 20% - 70% non-condensing
  Electrical Specifications
  Standard battery: 7.4 V, 1.2 Ah Li-Ion battery, rechargeable Li-Ion battery
  Agency approvals
  EMC & Safety Standards
  Europe: CE Mark: CE 0984, DEMKO GS: EN60950-1: 2001
  North America: FCC rules part 15C
  NRTL Safety Approval IEC60950-1:2001
  Safety Standards: CB-scheme: IEC60950-1: 2001
  CE Mark, EMC Directive 2004/108/EC, R&TTE Directive 95/5/EC, Radio Spectrum EN300328 v1.6.1
  Low Voltage Directive 2006/95/EC Safety: EN60950-1:2001
  International Marks: UL, FCC, CE, GS, CCC, SRRC, NCC, CB, GOST-R, TELEC, SIG, PSI, C-Tick, OFTA, VCCI, IC, SIRIM, NOM, COFETEL, S-MARK, CNC, ANATEL, WPC, IDA, NTC license
Physical characteristics Width: 79.5mm (3.1”)
  Height: 126.7mm (5.0”)
  Depth: 43.6mm (1.7”)
  Weight: 0.24kg (0.52lbs) *Weight with battery and no media is provided.
Options and accessories Optional Bluetooth® v. 2.0 short range connectivity and card reader
  Single battery cradle to be used with charger
  Quad battery charger
  Replacement charger
  Leather case
  Spare battery
  Software
    Drivers
      Win95/98/ME/2000/NT/XP/2003/Vista
      OPOS drivers
      SDK/WinCE 4.2, WinCE 5.0 WinCE 6.0
  Printer Control Language
  Communicates in printable ASCII characters
  Compatible with mainframe, mini and PC hosts
  Downloadable objects include graphics
Bar Code Symbologies Bar Code Symbologies: Codabar, ITF, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN 8, EAN 13, EAN 18
  Two-dimensional Bar Codes: PDF 417, MaxiCode, QR Code, Data Matrix
Fonts and graphics Character size: Font A: 12 x 24, Font B 9 x 24
  Characters per line: Font A: 32, Font B: 42,
  Character sets: Alphanumeric character: 95
  Extended character: 128 x 30 pages
  International character set support: (KOR, CHN, JPN) - 128 x 20 pages, International: 32.
Communication and interface capabilities Communication interface: Serial/USB
  Wireless: Bluetooth v. 2.0.

* Specifications subject to change without notice.
