Zebra ZM400 Printer

Die-Cast Metal Frame Printer

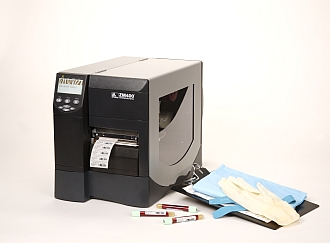

Image of a Zebra ZM400 Thermal Printer
Zebra ZM400 Printer Models and Prices Zebra ZM400 Ribbons and Labels Zebra ZM400 Specification

Zebra’s best-in-class Z Series printers just got better! The Zebra ZM400 printer includes additional productivity-enhancing features and modern, flexible network connectivity for easy system integration in most manufacturing, warehousing and business applications. This industrial/commercial workhorse also delivers efficient 4-inch-wide labeling thanks to its quick throughput and 10 inches-per-second print speed.

The Zebra ZM400 offers a multitude of options including 600-dpi (24 dots/mm) resolution and design enhancements make this new-generation Z Series printer even easier to operate, load, and maintain.

On top of the hard-working durability and easy use of these die-cast metal frame printers, the speed-optimised Zebra ZM400 and ZM600 are perfect for:

  • Item labeling and tagging
  • Packaging/Pallet labeling
  • Compliance labeling
  • Inventory and asset management
  • Shipping/Receiving
  • Hospitality/Transportation ticketing
  • Pharmacy/Healthcare labeling

Image of a Zebra ZM400 Printer with small labels Image of a Zebra ZM400 Printer with large labels Image of a Zebra ZM400 Printer

Zebra ZM400 Printer Models
Model Number Description Price*
ZM400-2104-0000T Zebra ZM400 Printer 8 dot TT/DT EPL (UK/EU) £795.00
ZM400-200E-0000T Zebra ZM400 Printer 8 dot TT/DT ZPL (UK/EU) £795.00
ZM400-200E-0100T Zebra ZM400 Printer 8 dot TT/DT ZPL with Internal ZebraNet 10/100 PrintServer (UK/EU) £895.00
ZM400-200E-3000T Zebra ZM400 Printer 8 dot TT/DT ZPL with Value Peel (UK/EU) £902.00
ZM400-200E-0200T Zebra ZM400 Printer 8 dot TT/DT ZPL with ZebraNet Wireless Plus (Radio card not included) (UK/EU) £953.00
ZM400-200E-0300T Zebra ZM400 Printer 8 dot TT/DT ZPL with Internal ZebraNet 10/100 PrintServer & ZebraNet Wireless Plus (Radio card not included) (UK/EU) £972.00
ZM400-200E-4000T Zebra ZM400 Printer 8 dot TT/DT ZPL with Value Peel with Liner TakeUp (UK/EU) £983.00
ZM400-201E-3000T Zebra ZM400 Printer 8 dot TT/DT ZPL with 64MB Onboard Flash Memory and Value Peel (UK/EU) £999.00
ZM400-200E-5000T Zebra ZM400 Printer 8 dot TT/DT ZPL with Value Peel with Full Roll Rewind (UK/EU) £1035.00
ZM400-200E-5100T Zebra ZM400 Printer 8 dot TT/DT ZPL with Value Peel with Full Roll Rewind and Internal ZebraNet 10/100 PrintServer (UK/EU) £1087.00
ZM400-200E-1000T Zebra ZM400 Printer 8 dot TT/DT ZPL with Cutter (UK/EU) £1137.00
ZM400-200E-1100T Zebra ZM400 Printer 8 dot TT/DT ZPL with Cutter with Catch Tray and Internal ZebraNet 10/100 PrintServer (UK/EU) £1189.00

ZM400-300E-0000T Zebra ZM400 Printer 12 dot TT/DT ZPL [UK/EU] £980.00
ZM400-300E-0100T Zebra ZM400 Printer 12 dot TT/DT ZPL with Internal ZebraNet 10/100 PrintServer (UK/EU) £1043.00
ZM400-300E-3000T Zebra ZM400 Printer 12 dot TT/DT ZPL with Value Peel (UK/EU) £1057.00
ZM400-300E-0200T Zebra ZM400 Printer 12 dot TT/DT ZPL with ZebraNet Wireless Plus (Radio card not included) (UK/EU) £1128.00
ZM400-300E-0300T Zebra ZM400 Printer 12 dot TT/DT ZPL with Internal ZebraNet 10/100 PrintServer & ZebraNet Wireless Plus (Radio card not included) (UK/EU) £1148.00
ZM400-300E-4000T Zebra ZM400 Printer 12 dot TT/DT ZPL with Value Peel with Liner TakeUp (UK/EU) £1158.00
ZM400-300E-5000T Zebra ZM400 Printer 12 dot TT/DT ZPL with Value Peel with Full Roll Rewind (UK/EU) £1211.00
ZM400-300E-5100T Zebra ZM400 Printer 12 dot TT/DT ZPL with Value Peel with Full Roll Rewind and Internal ZebraNet 10/100 PrintServer (UK/EU) £1263.00
ZM400-300E-1000T Zebra ZM400 Printer 12 dot TT/DT ZPL with Cutter (UK/EU) £1302.00
ZM400-300E-1100T Zebra ZM400 Printer 12 dot TT/DT ZPL with Cutter with Catch Tray and Internal ZebraNet 10/100 PrintServer (UK/EU) £1355.00

ZM400-600E-0000T Zebra ZM400 Printer 24 dot TT/DT ZPL (UK/EU) £1565.00
ZM400-600E-0100T Zebra ZM400 Printer 24 dot TT/DT ZPL with Internal ZebraNet 10/100 PrintServer (UK/EU) £1650.00
ZM400-600E-3000T Zebra ZM400 Printer 24 dot TT/DT ZPL with Value Peel (UK/EU) £1675.00
ZM400-600E-0200T Zebra ZM400 Printer 24 dot TT/DT ZPL with ZebraNet Wireless Plus (Radio card not included) (UK/EU) £1735.00
ZM400-600E-0300T Zebra ZM400 Printer 24 dot TT/DT ZPL with Internal ZebraNet 10/100 PrintServer & ZebraNet Wireless Plus (Radio card not included) (UK/EU) £1755.00
ZM400-600E-4000T Zebra ZM400 Printer 24 dot TT/DT ZPL with Value Peel with Liner TakeUp (UK/EU) £1766.00
ZM400-600E-5000T Zebra ZM400 Printer 24 dot TT/DT ZPL with Value Peel with Full Roll Rewind (UK/EU) £1818.00
ZM400-600E-5100T Zebra ZM400 Printer 24 dot TT/DT ZPL with Value Peel with Full Roll Rewind and Internal ZebraNet 10/100 PrintServer (UK/EU) £1870.00
ZM400-600E-1000T Zebra ZM400 Printer 24 dot TT/DT ZPL with Cutter (UK/EU) £1910.00
ZM400-600E-1100T Zebra ZM400 Printer 24 dot TT/DT ZPL with Cutter with Catch Tray and Internal ZebraNet 10/100 PrintServer (UK/EU) £1962.00



Zebra ZM400 Printer Options
Part Number Description Price*
  Media Handling
79841 Cutter with Catch Tray £567.00
79831M Value Peel (passive peel, no liner takeup spindle) £141.67
79868M Liner takeup spindle ONLY - full roll liner take-up spindle (to accompany Value-Peel) £304.00
79835 Rewind and Value Peel combination - internally rewinds full roll of printed labels2 £458.00
  Print Head Conversion Kit
79807 203 and 300 dpi to 600 dpi Print Head Conversion Kit £1000.00
79806 203 and 600 dpi to 300 dpi Print Head Conversion Kit £379.00
79805 300 and 600 dpi to 203 dpi Print Head Conversion Kit £325.00
  Connectivity
P1031031 External ZebraNet 10/100 PrintServer v2 £139.00
79823 Internal ZebraNet 10/100 PrintServer £238.00
P1032271 ZebraNet b/g Print Server (Radio card included)4 £371.00
29651-006M ZebraNet Wireless Plus (Radio card not included) £338.00
  Other
120182G-001 KDU Plus (Keyboard Display Unit)3 £154.00
79830M Alternate Ribbon Coated In Spindle £64.17



Zebra ZM400 Printer Aftermarket
Part Number Description Price*
79800M ZM400 203 dpi (8 dot) Print Head £275.00
79801M ZM400 300 dpi (12 dot) Print Head £319.00
79802M ZM400 600 dpi (24 dot) Print Head £835.00
27295-R1 RZ400 RFID Upgrade kit for ZM400 £1246.00
48766-001 ZBI 2 Programming Language Licence (1 Printer) £66.00
44902 Print Head cleaning film, 106mm wide, pack of 3 (reduces residue build up) £10.00



Zebra ZM400 Printer Supplies
Part Number Description Price*
  Ribbons
02300BK11045 2300 Economy Wax 110mm x 450M, box of 12 £90.65
02100BK11045 2100 Special Wax 110mm x 450M, box of 12 £107.72
03200BK11045 3200 Premium wax/resin 110mm x 450M, box of 6 £93.65
  Labels
76180 Z-Perform 1000T - Economy paper Label 102mm x 152mm, box of 4 £38.85
76059 Z-Select 2000T - Premium paper Label 102mm x 64mm, box of 4 £55.60
76060 Z-Select 2000T - Premium paper Label 102mm x 152mm, box of 4 £55.60

*Please note that all prices shown are exclusive of VAT

Zebra ZM400 Printer Full Specification
Standard Features Print methods: Thermal transfer or direct thermal
  Construction: Die-cast aluminum base, frame and printhead mechanism
  Metal media cover with large clear window
  Element Energy Equalizer™ (E3™) for superior print quality
  Auto-calibration
  Real-time clock
  Auto-ranging (90–265 VAC) power supply
  Color-coded operator cues
  Multi-language control panel with back-lit
  240 x 128 pixel display
  ZPL II®
  XML-Enabled printing—Direct-connect integration for bar code label printing that eliminates license fees and print server hardware, and lowers customization and programming costs
Printer Specifications Resolution: 203 dpi/8 dots per mm; 300 dpi/12 dots per mm; 600 dpi/24 dots per mm (ZM400 only)
  Memory: Standard: 8 MB Flash, 16 MB DRAM; Optional: Factory Installed 64 MB Flash
  Print Width: 4.09”/104 mm
  Print Length: with 203 dpi: 157”/3,988 mm; with 300 dpi 73”/1,854 mm; with 600 dpi 39”/991 mm
  Print Speed: 203 dpi: 10”/254 mm per second; 300 dpi: 8”/203 mm per second; 600 dpi: 4”/102 mm per second
  Media Sensors: Fixed reflective sensor; Adjustable transmissive sensor media characteristics
  Maximum label and liner length: Maximum non-continuous: 39”/991 mm
  Maximum label and liner width: 4.5”/114 mm
  Maximum roll diameter: 8.0”/203 mm
  Core diameter: 3”/76 mm
  Media thickness: 0.0023”/0.058 mm to 0.010”/.25 mm
  Media types: Continuous, die-cut, tags, black-mark; For optimum print quality and performance, use
genuine Zebra™ supplies.
Ribbon Characteristics Outside diameter: 3.2”/81.3 mm
  Standard length: 984’/300 m or 1476’/450 m
  Ratio: 3:1 media roll to ribbon; Ribbon must be at least as wide as media
  Width: 2.00”/51 mm to 4.33”/110 mm
  Ribbon setup: Ribbon wound ink-side out (ribbon wound ink-side in can be used with optional ribbon spindle on ZM400)
  Core I.D.: 1.0”/25.4 mm
Operating Characteristics Environmental
  Operating temperature: 32º F/0º C to to 104º F/40º C (Direct Thermal) 40º F/5º C to 104º F/40º C (Thermal Transfer)
  Storage temperature: -40º F/-40º C to 140º F/60º C
  Operating humidity: 20-85% non-condensing
  Storage humidity: 5-85% non-condensing
  Electrical
  Universal auto-ranging (PFC-compliant) power supply 90-265 VAC; 48-62Hz
  Agency Approvals
  IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2,3
  Markings: cULus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, CCC, GOST-R, BMSI, S-Mark, MIC, ZIK
Physical Characteristics Width: 10.9”/278 mm
  Height: 13.3”/338 mm
  Depth: 18.7”/475 mm
  Weight: 32.4 lbs/15 kg
  Shipping weight: 49 lbs/22 kg
Zebralink™ Solutions Software
  ZebraDesigner™ Pro
  ZebraDesigner for XML
  ZebraNet™ Bridge Enterprise
  ZebraNet Utilities v 7.0
  Zebra Universal Driver
  ZBI-Developer™
  Additional scalable and bitmapped fonts available
  Networking/Connectivity
  ZebraNet® Internal Wireless Plus
  ZebraNet Wireless Plus
  ZebraNet 10/100 Print Server
  ZebraNet PrintServer II (external)
  RS-232C serial port
  High-speed, IEEE1284, bi-directional parallel interface
  USB 2.0
  Firmware
  ZPL II®
  EPL™
  XML-Enabled Printing
  APL™
  Web View
  Alert
  ZBI 2.0™
Fonts/Graphics/Symbologies Fonts and Character Sets
  7 bitmapped, 1 smooth scalable
  Native open type font support
  Global Printing—Unicode™ compliant for fast multilanguage, on demand thermal printing right out of the box.
  Contains UFST® from Monotype Imaging Inc.
  Graphic Features
  Supports user-defined fonts and graphics—including custom logos
  ZPL II drawing commands—for boxes and lines
  Bar Code Symbologies
  Linear Bar Codes: Code 11, Code16k, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case C Codes, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
  2-Dimensional: Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, GS1 DataBar (RSS), Aztec
Options and Accessories Factory installed 64 MB Flash memory option
  Cutter with catch tray
  Peel—a front mount, passive peel option with no liner take-up
  Liner take-up (works with peel option)—full roll liner take-up spindle (fits standard base, ZM400 only)
  Rewind—internally rewinds full label roll on 3” core (comes with taller, non-standard printer base)
  RS-422/485 serial port adapter
  Optional ribbon spindle to support ribbon wound ink-side in (ZM400 only)

* Specifications subject to change without notice.
