Zebra S4M Printer

Thermal, On-Demand, Metal Barcode Printer

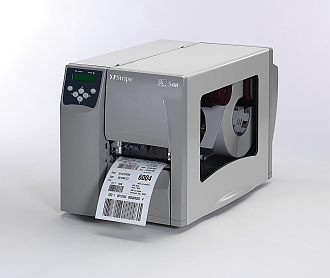

Image of a Zebra S4M Thermal Printer
Zebra S4M Printer Models and Prices Zebra S4M Ribbons and Labels Zebra S4M Specification

S4M™—The Simple Way to Add Dependable Printing

Whether you’re new to barcoding, upgrading from a desktop printer, or adding new printers, the Zebra S4M thermal printer delivers an affordable solution for many labeling requirements.

Designed for the budget-minded, this printer offers you ease of use, the durability of a metal frame/case, and a full 8" media roll capacity that means fewer label changes. The Zebra S4M is an outstanding value compared to similar printers on the market.

Simple to Use

The S4M printer’s front control panel features a streamlined menu for simple navigation, while its proven side-loading design eliminates threading of labels and ribbons for quick, easy loading. The result: your operators have more time to focus on more productive tasks.

Simple to Integrate

The Zebra S4M printer offers a variety of ways to connect—from serial, parallel, and USB interfaces to internal 10/100 Ethernet or wireless 802.11b—for simple system integration. And it will fit right in with your other Zebra printers because it speaks the same programming languages (ZPL® and EPL™). Plus, Zebra’s APL™ language lets you easily change from other-brand printers to S4M printers without changing your label formats.

Zebra’s S4M printer provides the features needed to support many applications, including:

  • Compliance labeling—comply with the latest industry and customer requirements
  • Manufacturing—provide accurate, end-to-end identification to track materials through your factory or supply chain
  • Distribution—bar code labeling for packing, shipping, inventory management
  • Healthcare patient safety— hospital pharmacy unit-dose labeling, specimen and lab labeling, wristband printing, admissions/records labeling

Image of a Zebra S4M Printer with label and box Image of a Zebra S4M Printer with label Image of a Zebra S4M Printer

Zebra S4M Printer Models
Model Number Description Price*
S4M00-2104-0100D Zebra S4M Printer DT 200dpi with EPL, RS232 Serial, Parallel, USB (UK/EU) £534.00
S4M00-200E-0100D Zebra S4M Printer DT 200dpi with ZPL, RS232 Serial, Parallel, USB (UK/EU) £534.00
S4M00-200E-0700D Zebra S4M Printer DT 200dpi with ZPL, RS232 Serial, USB, Internal ZebraNet PrintServer 10/100 Ethernet (UK/EU) £562.00
S4M00-200E-0100T Zebra S4M Printer TT/DT 200dpi with ZPL, RS232 Serial, Parallel, USB (UK/EU) £565.00
S4M00-2104-0100T Zebra S4M Printer TT/DT 200dpi with EPL, RS232 Serial, Parallel, USB (UK/EU) £565.00
S4M00-200E-1100D Zebra S4M Printer DT 200dpi with ZPL, RS232 Serial, Parallel, USB, Peel (UK/EU) £609.00
S4M00-2104-0110T Zebra S4M Printer TT/DT 200dpi with EPL, RS232 Serial, Parallel, USB, Real Time Clock (RTC) (UK/EU) £636.00
S4M00-2104-0700T Zebra S4M Printer TT/DT 200dpi with EPL, RS232 Serial, USB, Internal ZebraNet PrintServer 10/100 Ethernet (UK/EU) £645.00
S4M00-200E-0700T Zebra S4M Printer TT/DT 200dpi with ZPL, RS232 Serial, USB, Internal ZebraNet PrinterServer 10/100 Ethernet (UK/EU) £589.00
S4M00-200E-1100T Zebra S4M Printer TT/DT 200dpi with ZPL, RS232 Serial, Parallel, USB, Peel (UK/EU) £669.00
S4M00-2114-0100T Zebra S4M Printer TT/DT 200dpi with EPL, RS232 Serial, Parallel, USB, Flash (64MB) (UK/EU) £689.00
S4M00-200E-0210T Zebra S4M Printer TT/DT 200dpi with ZPL, RS232 Serial, USB, Internal ZebraNet PrintServer 10/100 Ethernet, Real Time Clock (RTC) (UK/EU) £689.00
S4M00-200E-1200T Zebra S4M Printer TT/DT 200dpi with ZPL, RS232 Serial, USB, Internal ZebraNet PrintServer 10/100 Ethernet, Peel (UK/EU) £727.00
S4M00-200E-0400T Zebra S4M Printer TT/DT 200dpi with ZPL, RS232 Serial, USB, ZebraNet Wireless Plus PrintServer (requires Wireless Card) (UK/EU) £722.00
S4M00-300E-0100D Zebra S4M Printer DT 300dpi with ZPL, RS232 Serial, Parallel, USB (UK/EU) £697.00
S4M00-300E-0100T Zebra S4M Printer TT/DT 300dpi with ZPL, RS232 Serial, Parallel, USB (UK/EU) £756.00
S4M00-300E-0700T Zebra S4M Printer TT/DT 300dpi with ZPL, RS232 Serial, USB, Internal ZebraNet PrintServer 10/100 Ethernet (UK/EU) £808.00
S4M00-300E-1100T Zebra S4M Printer TT/DT 300dpi with ZPL, RS232 Serial, Parallel, USB, Peel (UK/EU) £838.00



Zebra S4M Printer Options
Part Number Description Price*
13831-002 ZebraDesigner™ Pro v2 £165.00
G20009M Real Time Clock Kit £75.00
G20037M Field Installable Parallel kit £58.33
P1031033 Internal ZebraNet 10/100 PrintServer v2 £238.00
P1032272 ZebraNet b/g Print Server (includes wireless card) £371.00
29882-001M ZebraNet Wireless Plus Printserver(does not include wireless card) £338.00
G20046 Field Installable Peel kit £125.00
120182G-001 KDU Plus (Keyboard Display Unit)² £154.00
P1031031 External ZebraNet 10/100 PrintServer v2 £139.00
G20111 200 dpi Printhead Field Retrofit Kit (Change a 300 dpi printer to 203 dpi) £325.00
G20112 300 dpi Printhead Field Retrofit Kit (Change a 203 dpi printer to 300 dpi) £379.00



Zebra S4M Printer Aftermarket
Part Number Description Price*
G41400M S4M 203dpi (8 dot) Print Head £275.00
G41401M S4M 300dpi (12 dot) Print Head £319.00
48766-001 ZBI 2 Programming Language Licence (1 Printer) £66.00
44902 Print Head cleaning film, 106mm wide, pack of 3 (reduces residue build up) £10.00



Zebra S4M Printer Supplies
Part Number Description Price*
  Ribbons
02300BK11045 2300 Economy Wax 110mm x 450M, box of 12 £90.65
02100BK11045 2100 Special Wax 110mm x 450M, box of 12 £107.72
03200BK11045 3200 Premium wax/resin 110mm x 450M, box of 6 £93.65
  Labels
76180 Z-Perform 1000T Economy paper Label 102mm x 152mm, box of 4 £38.85
76059 Z-Select 2000T Premium paper Label 102mm x 64mm, box of 4 £55.60
76060 Z-Select 2000T Premium paper Label 102mm x 152mm, box of 4 £55.60

*Please note that all prices shown are exclusive of VAT

Zebra S4M Printer Full Specification
Standard Features Print methods: Direct thermal;Thermal transfer (optional)
  Construction: Die-cast metal frame with sheet metal enclosure
  Metal media cover with enlarged clear window
  Element Energy Equalizer™ (E3™) for superior print quality
  XML-Enabled printing–direct-connect integration for bar code label printing; eliminates license fees and print server hardware and lowers customization and programming costs
  Back-lit LCD control panel
  Parallel, USB 1.1 and RS-232 serial ports
Printer Specifications Resolution: 203 dpi/8 dots per mm; 300 dpi/12 dots per mm (optional)
  Memory: Standard: 4 MB Flash, 8 MB DRAM
  Print Width: 4.09”/104 mm
  Print Length: 203 dpi: 157”/3,988 mm; 300 dpi: 73”/1,854 mm (optional)
  Print Speed: 6”/152 mm per second
  Media Sensors: Transmissive and reflective sensing sensors
Media Characteristics Maximum non-continuous label length: 39”/991 mm
  Maximum label and liner width: 0.75”/19.4 mm to 4.50’/114 mm
  Maximum media roll size: 8.0”/203 mm O.D. on a 3.0”/76 mm I.D. core; 6.0”/152 mm O.D. on a 1.0”/25 mm I.D. core
  Media thickness: 0.003”/0.076 mm to 0.010”/0.25 mm
  Media types: Continuous, die-cut, tags, black-mark
Ribbon Characteristics Outside diameter: 3.2”/81.3 mm
  Standard length: 984’/300 m or 1476’/450 m
  Ratio: 2:1 media roll to ribbon ratio for 984’/300 m; 3:1 media roll ribbon ratio for 1476’/450 m
  Width: 1.57”/40 mm to 4.33”/110 mm
  Ribbon setup: Ribbon wound ink-side out
  Core I.D.: 1.0”/25.4 mm
Operating Characteristics Environmental
  Operating temperature: 40º F/5º C to 104º F/40º C (Thermal Transfer); 32º F/0º C to 104º F/40º C (Direct Thermal)
  Storage temperature: -40º F/-40º C to 140º F/60º C
  Operating humidity: 20-85% non-condensing
  Storage humidity: 5-85% non-condensing
  Electrical
  Universal auto-ranging (PFC-compliant) power supply 90-265 VAC; 48-62Hz
  Agency Approvals
  IEC60950, EN55022 Class B, EN55024, EN61000-3-2, EN 61000-3-3.
  Markings: cULus, CE, Marking,FCC-B, ICES-003, VCCI, C-Tick, NOM, IRAM, CCC, GOST-R
Physical Characteristics Width: 10.7”/272 mm
  Height: 11.6”/295 mm
  Depth: 18.8”/477 mm
  Weight: 27.2 lbs/12.4 kg
  Shipping weight: 33.5 lbs/15.2 kg
Zebralink™ Solutions Software
  ZebraDesigner™Pro
  ZebraDesigner for XML
  ZebraDesigner
  ZebraNet™Bridge Enterprise
  ZebraNet Utilities v 7.0
  Zebra Universal Driver
  ZBI-Developer™
  Networking Options
  ZebraNet® Internal Wireless Plus option
  ZebraNet Wireless Plus option—supports ZPL® and EPL™
  ZebraNet 10/100 Print Server option (internal or external)
  Firmware
  ZPL II®
  Global Printing
  EPL2™
  XML-Enabled printing
  APL-I™/APL-D™
  Webview
  Alert
  ZBI 2.0™
Fonts and Graphics 7 bitmapped, 1 smooth scalable (CG Triumvirate™ Bold Condensed)
  International character sets supporting the following code page: IBM® Code Page 850 International character set
  Support user-defined fonts and graphics—including custom logos
  ZPL II drawing commands—including boxes and lines
  Contains UFST® from Monotype Imaging Inc.
Bar Code Symbologies Linear: Code 11, Code 39, Code 93, Code 128 subsets A/B/C and UCC case C codes, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2 or 5 digit extensions, Plessy, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code, GS1 DataBar (RSS)
  2-Dimensional: Aztec, Codablock, PDF417, Code 4, Data Matrix, GS1 Databar (RSS), MaxiCode, QR Code, MicroPDF417, TLC 39
Options and Accessories Printhead 300 dpi/12 dots per mm
  Peel—a front mount, passive peel option, with no take-up spindle
  Factory installed 64 MB Flash memory option
  Real-time clock (RTC) option
  Thermal transfer ribbon handling option
  Keyboard display unit (KDU)
  Factory installed full-width guillotine knife cutter and catch tray

* Specifications subject to change without notice.
