Zebra 110PAX4 Print Engine

Versatile, 4-Inch-Wide OEM Print Engine

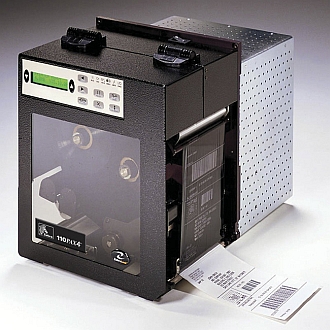

Image of a Zebra 110PAX4 Print Engine
Zebra 110PAX4 Print Engine Models and Prices Zebra 110PAX4 Ribbons and Labels Zebra 110PAX4 Specification

PAX4™ print engines deliver superior performance and reliability.

The Zebra 110PAX4 and the 170PAX4 print engines are the performance leaders in mission-critical print-and-apply applications. With increased throughput and enhanced connectivity, including wireless and Ethernet, along with all-metal construction and outstanding print quality, PAX4 print engines deliver outstanding value, reliability, and durability.

Better Than Ever for High-Volume Needs

With improved serviceability, faster first-label-out time, and a fully functional real-time clock, the Zebra PAX4 print engines deliver what it takes to make print-and-apply solutions super performers. European voltage requirements are now met with the 28V I/O option.

Real-time Connectivity and Control

Reduce downtime and increase productivity. Using advanced ZebraLink Solutions, PAX4 print engines offer instant status alert messages and centralized control, allowing you to troubleshoot quickly and keep production lines moving.

Designed for high-speed, high throughput applications, both the Zebra 110PAX4 (for 4 inch printing) and the Zebra 170PAX4 (for print widths up to 6 inches wide) are ideal for print/apply systems including:

  • Mission-critical industrial applications
  • High-volume product, carton, case, and pallet labeling
  • Packaging

Image of a Zebra 110PAX4 Print Engine

Zebra 110PAX4 Print Engine Models
Model Number Description Price*
112EL0E-00000 Zebra 110PAX4 Print Engine Left Hand TT/DT 200dpi with ZPL II/XML, Serial, Parallel £3295.00
112ER0E-00000 Zebra 110PAX4 Print Engine Right Hand TT/DT 200dpi with ZPL II/XML, Serial, Parallel £3295.00
113EL0E-00000 Zebra 110PAX4 Print Engine Left Hand TT/DT 300dpi with ZPL II/XML, Serial, Parallel £3439.00
113ER0E-00000 Zebra 110PAX4 Print Engine Right Hand TT/DT 300dpi with ZPL II/XML, Serial, Parallel £3439.00
112EL3E-00000 Zebra 110PAX4 Print Engine Left Hand TT/DT 200dpi with ZPL II/XML, Serial, Int ZebraNet 10/100 PrintServer £3439.00
112ER3E-00000 Zebra 110PAX4 Print Engine Right Hand TT/DT 200dpi with ZPL II/XML, Serial, Int ZebraNet 10/100 PrintServer £3439.00
113ER3E-00000 Zebra 110PAX4 Print Engine Right Hand TT/DT 300dpi with ZPL II/XML,  Serial, Int ZebraNet 10/100 PrintServer £3589.00
113EL3E-00000 Zebra 110PAX4 Print Engine Left Hand TT/DT 300dpi with ZPL II/XML, Serial, Int ZebraNet 10/100 PrintServer £3589.00



Zebra 110PAX4 Print Engine Options
Part Number Description Price*
120182G-001 KDU Plus (Keyboard Display Unit) ** £154.00
29651-004M ZebraNet Wireless Plus PrintServer (does not include wireless card)2 £338.00
P1032274 ZebraNet b/g Print Server (includes wireless card)3 £404.00
P1031031 External ZebraNet 10/100 PrintServer v2 £139.00
G57546 Internal ZebraNet 10/100 PrintServer £238.00
G57056M 5 V I/O Applicator Interface Kit £141.67
G57389M 24-28V I/O Applicator Interface Kit £162.00
G33114M Serial Port Converter: RS to RS485/422 £41.67
G33109M Serial Port Converter: DB9 to DB25 £30.00



Zebra 110PAX4 Print Engine Aftermarket
Part Number Description Price*
G57202-1M 110Pax RH/LH 203dpi (8 dot) £213.00
G57212M 110Pax RH 300dpi (12 dot) £316.00
G57242M 110Pax LH 300dpi (12 dot) £316.00
48766-001 ZBI 2 Programming Language Licence (1 Printer) £66.00
44902 Print Head cleaning film, 106mm wide, pack of 3 (reduces residue build up) £10.00
G57533PM 110Pax Packing detail £85.00



Zebra 110PAX4 Print Engine Supplies
Part Number Description Price*
  Ribbons
02300BK11090 2300 Economy Wax 110mm x 900M, box of 6 £89.20
02300BK11045 2300 Economy Wax 110mm x 450M, box of 12 £90.65
02100BK11045 2100 Special Wax 110mm x 450M, box of 12 £107.72
  Labels
76180 Z-Perform 1000T Economy paper Label 102mm x 152mm, box of 4 £38.85
76059 Z-Select 2000T Premium paper Label 102mm x 64mm, box of 4 £55.60
76060 Z-Select 2000T Premium paper Label 102mm x 152mm, box of 4 £55.60

*Please note that all prices shown are exclusive of VAT

Zebra 110PAX4 Printer Full Specification
PRINTER SPECIFICATIONS Print width: 4.1"/104 mm
  Print length:
    Maximum non-continuous media: 39"/990 mm
    Maximum continuous media: 100"/2540 mm
PHYSICAL CHARACTERISTICS Width: 9.6"/245 mm
  Height: 11.8"/300 mm
  Depth: 16.4"/417 mm
  Weight: 36.5 lbs./15.6 kg
MEDIA CHARACTERISTICS Media width (label and liner): .625"/16 mm to 4.5"/114 mm
  Media thickness (label and liner): 0.0058"/0.148 mm to 0.010"/0.254 mm
MEDIA TYPES Continuous, die-cut or black mark
RIBBON CHARACTERISTICS Outside diameter: 4.0"/101.6 mm O.D
  Standard length: 2,955'/900 m
  Ratio:Ribbon is recommended to be at least as wide as media
  Ribbon setup: Ribbon wound coated-side out
  Core I.D.: 1.0"/25.4 mm I.D. core
STANDARD FEATURES Resolution: 203 dpi/8 dots per mm; 300 dpi/12 dots per mm
  Memory:10 MB DRAM; 2 MB non-volatile Flash
  Print methods: Thermal transfer or direct thermal
  Print Speed: 12"/305 mm per second (203 dpi) 8"/203 mm per second (300 dpi)
  Media Sensors: Transmissive and reflective
  Orientation: Right-hand or left-hand
  Industrial all-metal construction
  10 MB DRAM
  2 MB non-volatile Flash Memory
  Applicator interface
  Multilingual backlit LCD
  Enhanced Alert notification—monitors printhead condition
  Multi-level Element Energy Equalizer™ (E3®) for superior print quality
  32-bit 133 MHz RISC processor
  Zebra printer driver for Windows® 3.X and Windows 95/98/NT/2000
  Real-time clock
OPERATING CHARACTERISTICS Environmental (Thermal Transfer)
  Operating Temp. 40º F/5º C to 104º F/40º C
  Storage Temp. -40º F/-40º C to 160º F/71º C
  Operating Humidity: 20% to 95% non-condensing R.H.
  Storage Humidity: 5% to 95% non-condensing R.H.
  Electrical
  Universal power supply with power-factor correction 90-264 VAC, 48-62 Hz
  Agency Approvals
  UL-60950 3rd edition, CAN/CSA-C22.2 No 60950-00 3rd edition, FCC part 15 - Class A, ICES-003, EN60950, EN55022-Class A, EN61000-6-2, VCCI, CCC
RELATED PRODUCTS Options and Accessories
  PCMCIA cards
  CompactFlash® cards
  Linear PCMCIA cards available 8 MB and 32 MB
  64 MB On-Board Linear Flash Memory
  RFID Ready+
  WGLA through Swiss 721
  Firmware support for downloadable TrueType™ fonts
  PC memory card
  Additional fonts available
ZEBRALINK SOLUTIONS Software
  ZebraDesigner™ Pro
  ZebraDesigner for XML
  ZebraNet™ Bridge Enterprise
  ZebraNet Utilities v 7.0
  Zebra Universal Driver
  Networking
  ZebraNet® 10/100 Print Server
  ZebraNet Wireless Print Server
  Firmware
  ZPL® II—Universal language for Zebra printers. Simplifies label formatting and enables format compatibility with other Zebra printers.
  Global Printing—Unicode™-compliant for fast multi-language, on-demand thermal printing right out of the box.
  XML-enabled Printing - Direct-connect integration for barcode label printing that eliminates license fees and printer server hardware, and lowers customisation and programming costs.
  Web View—Enables you to connect and control your bar code printer’s Web interface using a common Web browser.
  Alert—Printers equipped with ZebraNet print servers will notify you via any email-enabled, wired, or wireless device to minimize downtime.
COMMUNICATIONS AND INTERFACE
CAPABILITIES
High-speed bi-directional parallel interface, Centronics® compatible.
  High serial interfaces: RS-232C and RS422 with DB9F connector
  RS-485 multi-drop capability
  Configured baud rate (110 to 57.6 kB), parity, data bits, and stop bits
  Applicator interface with DB15F connector
BAR CODE SYMBOLOGIES Linear bar codes
  Codabar, Code 11, Code 39, code 93, Code 128 with subsets A/B/C and UCC Case codes, EAN-8, EAN-13, Industrial 2-of-5, Interleaved 2-of-5, IBST-128, Logmars, MSI, Planet Code, Plessey, POSTNET, Standard 2-of-5, UPC-A, UPC-E, UPC and EAN 2 or 5 digit extensions
  2-Dimensional
  Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF, PDF417, QR Code and TLC 39, Aztec
FONTS AND GRAPHICS Fonts and Character Sets
  Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent
  Smooth scalable font Ø (CG Triumvirate™ Bold Condensed) is expandable dot-by-dot, height and width independent
  Sets: IBM® Code Page 850 International Characters
  Contains UFST® from Monotype Imaging, Inc.
  Graphic Features
  Supports user-defined fonts and graphics— including custom logos

* Specifications subject to change without notice.
