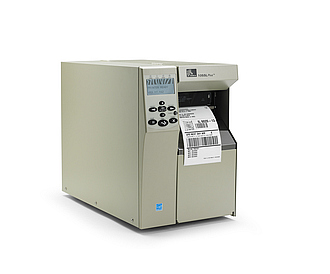

Zebra 105SLPlus Printer
Economical, dependable, high-performance printing
| Zebra 105SLPlus Printer Models and Prices | Zebra 105SLPlus Ribbons and Labels | Zebra 105SLPlus Specification |
Zebra’s 105SLPlus printer provides economical, dependable, high-performance printing. This rugged printer is built for continuous operation, with exactly the features needed for fast, reliable and cost-effective printing in your manufacturing and warehousing environments.
Zebra created the 105SLPlus printer with ease of use in mind. The icon-based, multilingual graphical LCD user interface is intuitive to operate, minimising user training and making the printer ideal for a multitude of languages and global applications. The simplified ribbon-loading process minimises downtime.
The 105SLPlus printer offers durable all-metal construction and a robust print mechanism to withstand the toughest environments.
The 105SLPlus printer leverages Zebra’s proven electronics platform to offer increased speed for high-volume applications – and increased storage of formats, fonts and graphics. The print quality is outstanding, with E3™ technology that also extends the life of the printhead.
The 105SLPlus printer is designed to easily fit into existing operations. Multiple standard connectivity options including parallel, serial, USB and Ethernet, coupled with full backwards, compatibility, make integration fast and simple. For added connectivity, choose the optional ZebraNet™ b/g Print Server for wireless support.
Ideal for:
-
Manufacturing
- Product identification labels
- Packaging labels
- Receiving/put-away labelling
- Work-in-process
-
Transportation & Logistics
- Order picking/packing
- Shipping/receiving
- Cross-docking
- Compliance labelling
-
Retail
- Shipping
- Returns
-
Government
- Asset-tracking
- Compliance labelling
| Model Number | Description | Price* |
| 102-80E-00000 | Zebra 105SLPlus Printer TT/DT 203dpi with Standard Features | £1099.00 |
| 102-80E-00010 | Zebra 105SLPlus Printer TT/DT 203dpi with Standard Features and 64MB On-Board Linear Flash Memory | £1169.00 |
| 102-80E-00100 | Zebra 105SLPlus Printer TT/DT 203dpi with Standard Features and Cutter | £1373.00 |
| 102-80E-00200 | Zebra 105SLPlus Printer TT/DT 203dpi with Standard Features and Full Rewind/Peel | £1270.00 |
| 102-80E-00210 | Zebra 105SLPlus Printer TT/DT 203dpi with Standard Features, Full Rewind/Peel and 64MB On-Board Linear Flash Memory | £1340.00 |
| 103-80E-00000 | Zebra 105SLPlus Printer TT/DT 300dpi with Standard Features | £1375.00 |
| 103-80E-00010 | Zebra 105SLPlus Printer TT/DT 300dpi with Standard Features and 64MB On-Board Linear Flash Memory | £1445.00 |
| 103-80E-00100 | Zebra 105SLPlus Printer TT/DT 300dpi with Standard Features and Cutter | £1648.00 |
| 103-80E-00110 | Zebra 105SLPlus Printer TT/DT 300dpi with Standard Features, Cutter and 64MB On-Board Linear Flash Memory | £1717.00 |
| 103-80E-00200 | Zebra 105SLPlus Printer TT/DT 300dpi with Standard Features and Full Rewind/Peel | £1546.00 |
| Zebra 110Xi4 203/300dpi | Zebra 110Xi4 600dpi | Zebra 140Xi4 | Zebra 170Xi4 | Zebra 220Xi4 |
 |
|
 |
 |
 |
| From £1666.50 | From £2813.00 | From £2595.00 | From £2874.75 | From £4430.00 |
| Part Number | Description | Price* |
| P1053360-011 | Kit Media Rewind Option 105SLPlus (Cannot be used with Cutter) | £235.55 |
| P1018252 | Kit Cutter Upgrade 105SLPlus (Cannot be used with Rewind) | £478.00 |
| P1053360-018 | Kit Printhead 203 dpi 105SLPlus | £251.10 |
| P1053360-019 | Kit Printhead 300 dpi 105SLPlus | £301.50 |
| P1032273 | ZebraNet b/g Print Server (Radio card included)1 | £291.00 |
| G41011M | Kit Platen Roller 105SLPlus | £29.00 |
| P1053360-012 | Kit Packaging 105SLPlus | £41.00 |
| 44902 | Print Head Cleaning Film, 106mm wide, pack of 3 (reduces residue build up) | £8.83 |
| 47362 | Print Head Cleaning Foam Tip Swabs, pack of 6 | £7.49 |
| 120182G-001 | KDU Plus (Keyboard Display Unit) | £154.00 |
| 48766-001 | ZBI 2 Programming Language Licence (1 Printer) | £53.50 |
1. 802.11 b/g printer configurations approved for use in the following countries: EU/EFTA, Macedonia, Russia, Saudi Arabia, South Africa, Turkey, Ukraine, United Arab Emirates
| Part Number | Description | Price* |
| Ribbons | ||
| 02300BK11045 | 2300 Economy Wax 110mm x 450M, box of 12 | £90.65 |
| 02100BK11045 | 2100 Special Wax 110mm x 450M, box of 12 | £107.72 |
| 03200BK11045 | 3200 Premium wax/resin 110mm x 450M, box of 6 | £93.65 |
| Labels | ||
| 76180 | Z-Perform 1000T Economy paper Label 102mm x 152mm, box of 4 | £38.85 |
| 76059 | Z-Select 2000T Premium paper Label 102mm x 64mm, box of 4 | £55.60 |
| 76060 | Z-Select 2000T Premium paper Label 102mm x 152mm, box of 4 | £55.60 |
*Please note that all prices shown are exclusive of VAT
| Standard Features | Full-function front panel and large multilingual backlit LCD display with user-programmable password protection |
| Thin-film printhead with Element Energy Equalizer™ (E3) for superior print quality | |
| 8MB flash memory, including 2MB user-available non-volatile memory storage for downloadable objects | |
| Serial RS-232 and bi-directional parallel ports with auto-detect | |
| USB 2.0 | |
| Dual media sensors (transmissive and reflective)selectable through software or front panel | |
| Internal ZebraNet 10/100 Print Server supports 10Base-T, 100Base-TX and fast Ethernet 10/100 auto-switching networks | |
| Printer Specifications | Resolution |
| 203dpi/8 dots per mm | |
| 300dpi/12 dots per mm (optional) | |
| Memory | |
| Standard: 16MB SDRAM; 8MB flash | |
| Print width | |
| 102mm/4.0" | |
| Print length | |
| 203dpi: 3,810mm/105" (with standard memory) | |
| 300dpi (optional): 2,540mm/100" (with standard memory) | |
| Print speed | |
| 203dpi: 305mm/12" per second | |
| 300dpi: 254mm/10" per second | |
| Media sensors | |
| Black mark and gap media sensing using fixed centre-position sensors; label-present sensor for issuing labels one at a time | |
| Media Specifications | Media types: continuous, die-cut, or black mark, notch |
| Media thickness (label and liner): 0.076mm/0.003" to 0.305mm/0.012" | |
| Maximum media roll size: 203mm/8.0" O.D. on a 76mm/3" I.D. core | |
| Media width (label and liner): 20mm/0.79" to 114mm/4.5" | |
| Maximum non-continuous label length: 991mm/39" | |
| Ribbon Characteristics | Standard lengths: 450m/1476' or 300m/984' |
| Provides 2:1 and 3:1 media-roll-to-ribbon ratios | |
| Maximum ribbon roll size: 81.3mm/3.2" O.D. on a 25.4mm/1.0" I.D. core | |
| Ribbon wound coated-side out | |
| Ribbon width: 20mm/0.79" to 110mm/4.33" | |
| Operating Characteristics | Environment |
| Operating environment: Thermal-transfer: 5°C/40°F to 40°C/105°F; Direct-thermal: 0°C/32°F to 40°C/105°F 20% to 85% non-condensing relative humidity | |
| Storage/Transportation environment: -40°C/-40°F to 60°C/140°F 5% to 85% non-condensing relative humidity | |
| Electrical | |
| Universal power supply with power-factor correction 100–240VAC, 47–63Hz | |
| Agency approvals | |
| IEC 60950-1, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3 | |
| Product markings: cTUVus, CE, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, GOST-R, BSMI, KCC and UkrSEPRO | |
| Physical Characteristics | Height: 393.7mm/15.5" |
| Width: 1,261.9mm/0.31" | |
| Depth: 517.5mm/20.38" | |
| Weight: 22.7kg/50 lb | |
| Options and Accessories | Cutter and catch tray |
| Media rewind spindle: internal finished-roll rewind or passive-peel with liner take-up spindle | |
| 64MB On-Board Linear Flash Memory (factory-installed only) | |
| Scalable and international fonts | |
| ZebraLink™ Solutions | Software |
| ZebraDesigner™ Pro | |
| ZebraDesigner for myXML | |
| ZebraNet Bridge Enterprise | |
| ZebraDesigner for mySAP™ | |
| ZebraDesigner for XML | |
| ZebraNet Utilities v 7.0 | |
| Optional connectivity | |
| ZebraNet b/g Print Server (internal) | |
| Firmware | |
| ZPL II® | |
| Zebra Global Printing Solution | |
| Web View & Alert | |
| ZBI 2.0™ (optional) | |
| Fonts and Character Sets | Zebra Global Printing solution including Unicode™ |
| Swiss 721 font standard | |
| Bitmap fonts A to H and GS symbols are expandable up to 10 times, height- and width-independent | |
| Smooth-scalable font Ø (CG Triumvirate™ Bold Condensed) is expandable dot-by-dot, height- and width-independent | |
| IBM® code page 850 international characters | |
| Contains UFST® from Monotype Imaging, Inc.Firmware support for downloadable TrueType™ fonts | |
| Additional fonts available | |
| Graphics features | |
| Supports user-defined fonts and graphics, including custom logos | |
| Barcode symbologies | |
| All standard linear and 2D barcodes supported |
* Specifications subject to change without notice.
