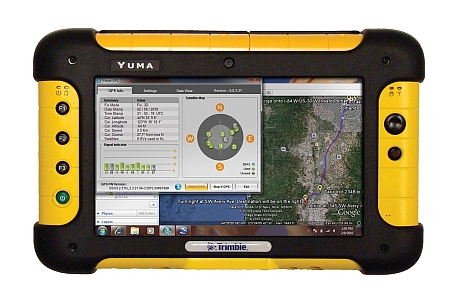

Trimble Yuma
Rugged Tablet Computer
- Outdoor rugged design
- Intel Atom 1.6 GHz processor
- 32 GB solid state hard drive
- Integrated WiFi b/g
- Integrated Bluetooth 2.1
- Integrated GPS
- 2 integrated cameras
- ExpressCard slot
- SDIO slot
- 7" sunlight readable touch screen display
- Ultra light weight
Trimble, the world leader in outdoor rugged computing, brings you the new Trimble® Yuma® rugged tablet computer, able to withstand even your challenging work environment. Safeguard your software and data in the face of dust, sand, mud, humidity and extreme temperature. Conduct inspections, collect information, capture photos and communicate with headquarters, all with the assurance that your data is protected. If this sounds like your everyday reality, take a closer look at the Trimble Yuma rugged tablet computer.
The Yuma rugged tablet was designed to be fully functional in any outdoor environment – no matter how extreme.
Overcoming the elements presents an initial challenge, since water, dust and dirt easily threaten the internal components of all but the most rugged of outdoor computers. The Yuma rugged tablet features an ingress protection rating of 67 (IP67), meaning it’s sealed against dust and has been water immersion tested for 30 minutes at a depth of one meter. Water and dust won’t sideline your Yuma rugged tablet.
Shock, vibration and extreme temperature fluctuation present a second level of challenges to outdoor computing. Its rugged design incorporates a solid state hard drive, eliminating internal moving parts and providing protection against stress from impact and vibration. In addition, MIL-STD-810F specifications ensure that your Yuma rugged tablet computer survives bitter cold, blistering desert heat and everything in between– even accidentally launching your Yuma rugged tablet off the tailgate of your truck.
What can you do with a Trimble Yuma rugged tablet that features an Intel® Atom™ 1.6 GHz processor, integrated WiFi, Bluetooth®, GPS, and two digital cameras, as well as SDIO and ExpressCard slots? With just this one computer you can…
- Collect and exchange data – lots of data
- Transfer data in real-time
- Run reports
- Receive dispatch orders on the road
- Take geo-tagged photographs
- Initiate VoIP communications
- Add secure memory for sensitive files
- Send email
- Write a report
- Find your way out of the forest
Whatever computing projects your work requires and wherever your work takes you, the Yuma rugged tablet meets the challenge. Go from the office to the truck to the field and back with one mobile computer. Plus, it works all day on one charge*.
Whether your office is an oil drilling rig, a military outpost, a fire station, a warehouse, a barn, or a muddy log truck, the Trimble Yuma rugged tablet gives you everything you need to get the job done. Tough-as-nails survivability and uncommon versatility merge to create the ultimate one-computer solution. Trade your desktop PC in for a Trimble Yuma rugged tablet computer – designed for the rugged life you lead.
* Applies to Extended Battery only. Based on 8-hour day with default settings
| Model Number | Description | Price* |
| YMA-FYS6AS-00 | Trimble Yuma Mobile Computer Yellow | £2515.00 |
| YMA-FGS6AS-00 | Trimble Yuma Mobile Computer Grey | £2515.00 |
| YMA-FYS6AE-00 | Trimble Yuma Mobile Computer Yellow with Extended Battery Set | £2585.00 |
| Part Number | Description | Price* |
| ACCAA-909 | Office Dock + Extended Batteries (Set of 2) | £712.26 |
| ACCAA-705 | Office Dock / 4xUSB/RS232 Serial/VGA/Ethernet (incl International Charge Kit) | £505.81 |
| ACCAA-303 | IKEY Rugged Keyboard | £254.84 |
| ACCAA-103 | Batteries / Extended (Set of 2) | £192.90 |
| ACCAA-757 | Pole Mount with Radio Hook | £125.81 |
| ACCAA-658 | Vehicle Charger Kit | £121.94 |
| ACCAA-104 | Batteries / Standard (Set of 2) | £112.90 |
| ACCAA-756 | Tactical Vehicle Mount | £87.10 |
| ACCAA-206 | Extended Cap for Yuma | £48.39 |
| ACCAA-612 | Deluxe Carry Case | £38.06 |
| ACCAA-659 | AC Power Kit | £38.06 |
| ACCAA-352 | Screen Protector / Anti-Glare | £20.00 |
| ACCAA-351 | Screen Protector / Ultra-Clear | £15.48 |
| ACCAA-660 | International AC Adaptor | £12.90 |
| ACCAA-252 | Hand Strap | £9.68 |
| ACCAA-353 | Display Cleaning Cloth | £6.45 |
| ACCAA-253 | Stylus Tether with Snap | £1.94 |
| T5D-00295 | Microsoft® Office® Home and Business 2010 (Word, Excel, Powerpoint, One Note, Outlook) | £149.00 |
| 269-14834 | Microsoft® Office® Professional 2010 (As Home and Business 2010, plus Access and Publisher) | £235.00 |
*Please note all prices shown are exclusive of VAT
| STANDARD FEATURES |
Genuine Windows 7 Professional |
| Intel Atom 1.6 GHz processor | |
| 1 GB DRAM | |
| 32 GB Solid State Hard Drive | |
| Sunlight readable color display | |
| 5 wire resistive touchscreen | |
| Rugged waterproof design | |
| Headphone/speaker mini-jack stereo | |
| Microphone/line-in mini-jack | |
| Outward facing autofocus 2 MP camera (video and photo) | |
| User facing 1.3 MP camera (video and photo) | |
| Integrated Bluetooth 2.1 Class 2 | |
| Integrated WiFi b/g (Cisco certification pending) | |
| Integrated GPS | |
| SDIO memory slot | |
| ExpressCard 34 mm slot | |
| Standard Battery set (4 hours)1 | |
| 12-month warranty | |
| STANDARD SOFTWARE | User’s Manual (electronic) |
| Internet Explorer | |
| G-Camera software linked to GPS | |
| GPS receiver control software | |
| STANDARD ACCESSORIES | AC charger with power cord |
| Stylus pen | |
| Tether for stylus pen | |
| Hand strap | |
| Screen protectors | |
| Extended Cap | |
| Display Cleaning Cloth | |
| OPTIONAL ACCESSORIES | Extended Battery Set (8-hour)1 |
| 12 V Vehicle Charger | |
| International Adaptor | |
| Pole Mount | |
| Tactical Vehicle Mount | |
| Office Docking Station (features a 2-bay extra battery charger) | |
| Lanyard for stylus | |
| Rugged Keyboard | |
| PHYSICAL | Size (LxWxH): 5.5 in x 9 in x 2 in (14 cm x 23 cm x 5 cm) |
| Weight: 2.6 lb (1.2 kg) including strap and standard batteries | |
| Colors: yellow w/ black or gray w/black | |
| Housing: Mg-Al | |
| Keys: six keys (power, enter, directional and 3 user programmable function buttons) | |
| ENVIRONMENTAL SPECIFICATIONS | Meets or exceeds: |
| Water: Immersed in 1 m of water for 30 minutes | |
| Water Jet 12.5 mm dia. @ 2.5 m–3 m, 100 Litre/min | |
| MIL-STD-810F, Method 512.4, Procedure I | |
| IEC-529, IP67 | |
| Sand & dust: 8 hours of operation with blowing talcum powder | |
| MIL-STD-810F, Method 510.3, Procedures I, II | |
| IEC-529, IP67 | |
| Drop: 26 drops from 4 ft (1.22 m) onto plywood over steel | |
| 6 additional drops at –22 °F (–30 °C) | |
| 6 additional drops at 140 °F (60 °C) | |
| MIL-STD-810F, Method 516.5, Procedure IV | |
| Vibration: General Minimum Integrity and Loose Cargo test | |
| MIL-STD 810F, Method 514.5, Procedure I, II | |
| Operating Temperature: –22 °F to 140 °F (–30 °C to 60 °C) | |
| MIL-STD 810F, Method 501.4, Procedure II | |
| MIL-STD 810F, Method 502.4, Procedure I, II, III | |
| Storage Temperature: –40 °F to 158 °F (–40 °C to 70 °C) | |
| MIL-STD 810F, Method 501.4, Procedure I | |
| MIL-STD 810F, Method 502.4, Procedure I, II, III | |
| Temperature shock: –22 °F/149 °F (–30 °C/+65 °C) | |
| MIL-STD-810F, Method 503.4, Procedure I | |
| Humidity: 90%RH temp cycle 32 °F/158 °F (0 °C/+70 °C) | |
| MIL-STD-810F, Method 507.4 | |
| Altitude: 15,000 ft at 73 °F (22 °C) and 40,000 ft. at –22 °F (–30 °C) | |
| MIL-STD-810F, Method 500.4, Procedures I, II, III | |
| ELECTRICAL | Processor: Intel Atom Z530 1.6 GHz processor |
| RAM Memory: 1 GB DDR2 | |
| Storage: 32 GB Solid State Hard Drive | |
| Expansion: SDIO memory slot | |
| ExpressCard 34mm slot | |
| Display: 7" widescreen 1024x600 WSVGA 650 nit | |
| Standard Batteries: Dual hot-swappable Lithium-Ion batteries, 2600 mAmp each | |
| Extended Batteries: Dual hot-swappable Lithium-Ion batteries, 5100 mAmp each | |
| I/O: USB 2.0 port (x2), 9-pin serial port (RS-232) | |
| DC power port, 32-pin docking | |
| External GPS Antenna via Vehicle Docking Station | |
| Integrated Bluetooth: .Billionton Bluetooth v. 2.1 + EDR Compliant Class 2 (2.5 mW) | |
| Integrated 802.11 b/g: Intel WiFi Link 5100 (CCX) | |
| Integrated GPS: SiRF STAR III, WAAS capable | |
| CERTIFICATIONS | MIL-STD-461E (RE102, RS103), RoHS compliant, MIL-STD-810F, IP67, TUV, C-Tick (Australia/New Zealand), FCC (US), CE (EU), IC (Canada), Section 508 compliant, CCXv4 |
1 To ensure best performance when temperatures are below –4 F (–20 C), be sure battery is inserted in the device only when in use. When device is not in use at these temperatures, keep batteries in a pocket or stored in a warmer area.
Specifications subject to change without notice.
