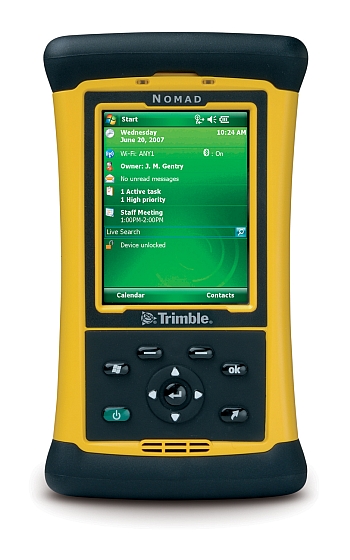

Trimble Nomad
Rugged Handheld Computer
- Outdoor rugged design
- Long-life battery
- 806 MHz processor
- Integrated WWAN capability
- Integrated GPS with SiRFstarIII and SiRFInstantFixII
- Integrated bar code scanner
- Integrated 5MP camera, with flash and geotagging
- Integrated Bluetooth and Wi-Fi wireless capability
- Full VGA display
- Windows Mobile 6.1
- Small and lightweight
The Trimble® Nomad® 900 series packs even more functionality into one of the most powerful and full-featured rugged handheld computers available. Standard features include an 806 MHz processor, a long-life lithium-ion battery, 512 MB to 2 GB of Flash storage and integrated wireless capabilities like GPS, Wi-Fi and Bluetooth®1. The high-resolution, sunlight-visible VGA display shows images, maps and data in crisp detail. Optional features include an integrated cellular WWAN, laser bar code scanner and a 5 MP color digital camera.
The Nomad computer also includes the latest Windows Mobile® 6.1 software, so it runs all the applications you use most, including a wide range of third-party software for industry specific applications.
The Nomad computer's many builtin capabilities make it easy to collect, save and transmit data in the field. The integrated SiRFstarIII GPS receiver with SiRFInstantFixII technology enables position acquisition in less time and in challenging environments such as in canyons, under heavy canopy and even inside buildings2. Now navigation is faster, more accurate, more reliable and more consistently available.
Quickly track your assets with the integrated 1D laser bar code scanner and upload changes from the field. The 5 megapixel camera and geotag-enabled software can capture high-resolution, full color images for inspection, maintenance and repair applications. With geotagging enabled, your photos will have precise locations stored in EXIF and/or overlaid on the image.
All models come with a Secure Digital (SD/ SDHC) slot. Depending on the model, even more capabilities can be added via a CompactFlash (CF Type II) slot.
Like other Trimble rugged handhelds, the Nomad computer meets rigorous MIL-STD- 810F military standards for impact, vibration, humidity, altitude and extreme temperatures. It also comes with an IP67 rating. That means the Nomad handheld is completely sealed against dust, and it can survive immersion in up to a meter of water for 30 minutes. Trimble rugged handhelds have proven their reliability and lower Total Cost of Ownership (TCO) over consumer grade handhelds3 in the field with thousands of real world users.
The Marvell 806 MHz processor, when combined with Trimble’s optimised graphics processing, advanced caching, and proprietary high-speed journaling file system, makes the next generation Trimble Nomad series one of the fastest Windows Mobile handheld computers on the market today. Tuned to maximise the integrated GPS receiver’s performance, the next generation Nomad also has an improved antenna design which significantly improves Time-to-First-Fix (TTFF) and fix under thick canopy.
1 Nomad 900B models have Bluetooth only.
2 Tracking ability and position accuracy will vary depending on building construction.
3 E-mail
This email address is being protected from spambots. You need JavaScript enabled to view it.
for a copy of the TCO White Paper.
| Flash | Card slots | BT | GPS | Wi-Fi | WWAN | Camera | Bar code scanner |
|
| 900B | 512 MB | SD/CF | x | |||||
| 900L | 1 GB | SD/CF | x | x | x | |||
| 900LC | 1 GB | SD | x | x | x | x | ||
| 900LE | 1 GB | SD | x | x | x | x | x | |
| 900X | 2 GB | SD/CF | x | x | x | x | ||
| 900XE | 2 GB | SD | x | x | x | x | x | x |
| Model Number | Description | Price* |
| NMDAAG-111-00 | Nomad 900B Grey, Bluetooth, 128MB RAM, 512MB Flash, USB Boot, Numeric Keyboard | £812.00 |
| NMDAAM-111-00 | Nomad 900B Military Green, Bluetooth, 128MB RAM, 512MB Flash, USB Boot, Numeric Keyboard | £812.00 |
| NMDABM-111-00 | Nomad 900B Military Green, Bluetooth, 128MB RAM, 512MB Flash, USB Boot, PDA Keyboard | £812.00 |
| NMDAAY-111-00 | Nomad 900B Yellow, Bluetooth, 128MB RAM, 512MB Flash, USB Boot, Numeric Keyboard | £812.00 |
| NMDAEG-111-00 | Nomad 900L Grey, 802.11b/g, Bluetooth, GPS, 128MB RAM, 1GB Flash, USB Boot, Numeric Keyboard | £1055.00 |
| NMDAEM-111-00 | Nomad 900L Military Green, 802.11b/g, Bluetooth, GPS, 128MB RAM, 1GB Flash, USB Boot, Numeric K/B | £1055.00 |
| NMDAEY-111-00 | Nomad 900L Yellow, 802.11b/g, Bluetooth, GPS, 128MB RAM, 1GB Flash, USB Boot, Numeric Keyboard | £1055.00 |
| NMDAFY-111-00 | Nomad 900L Yellow, 802.11b/g, Bluetooth, GPS, 128MB RAM, 1GB Flash, USB Boot, PDA Keyboard | £1055.00 |
| NMDAFY-121-00 | Nomad 900L Yellow, 802.11b/g, Bluetooth, GPS, 128MB RAM, 1GB Flash, Serial Boot, PDA Keyboard | £1055.00 |
| NMDAGG-111-00 | Nomad 900LC Grey, 802.11b/g, Bluetooth, Camera, GPS, 128MB RAM, 1GB Flash, USB Boot, Numeric K/B | £1211.50 |
| NMDAGM-111-00 | Nomad 900LC Military Green, 802.11b/g, Bluetooth, Camera, GPS, 128MB RAM, 1GB Flash, USB Boot, Numeric Keyboard | £1211.50 |
| NMDAGY-111-00 | Nomad 900LC Yellow, 802.11b/g, Bluetooth, Camera, GPS, 128MB RAM, 1GB Flash, USB Boot, Numeric Keyboard | £1211.50 |
| NMDAJG-111-00 | Nomad 900LE Grey, Laser, 802.11b/g, Bluetooth, Camera, GPS, 128MB RAM, 1GB Flash, USB Boot, Numeric Keyboard | £1387.50 |
| NMDAJY-111-00 | Nomad 900LE Yellow, Laser, 802.11b/g, Bluetooth, Camera, GPS, 128MB RAM, 1GB Flash, USB Boot, Numeric Keyboard | £1387.50 |
| NMDALG-111-00 | Trimble Nomad 900X Grey, 802.11b/g, Bluetooth, GSM, GPS, 128MB RAM, 2GB Flash, USB Boot, Numeric Keyboard | £1332.00 |
| NMDALY-111-00 | Nomad 900X Yellow, 802.11b/g, Bluetooth, GSM, GPS, 128MB RAM, 2GB Flash, USB Boot, Numeric Keyboard | £1332.00 |
| NMDANG-111-00 | Nomad 900XE Grey, Laser, 802.11b/g, Bluetooth, Camera, GSM, GPS, 128MB RAM, 2GB Flash, USB Boot, Numeric Keyboard | £1499.00 |
| NMDANY-111-00 | Nomad 900XE Yellow, Laser, 802.11b/g, Bluetooth, Camera, GSM, GPS, 128MB RAM, 2GB Flash, USB Boot, Numeric Keyboard | £1499.00 |
| Part Number | Description | Price* |
| ACCAA-751 | Trimble Nomad GPS Range Pole Bracket | £143.00 |
| ACCAA-653 | Trimble Vehicle Charger / 12Volt (for Nomad/Ranger X) | £137.50 |
| ACCAA-301 | Trimble Pistol Grip for Nomad | £100.40 |
| ACCAA-101 | Trimble Nomad Rechargeable Li-Ion Battery (5200mAh 3.8V) | £87.85 |
| ACCAA-100 | Trimble Nomad AA PowerBoot Module | £83.25 |
| ACCAA-150 | Trimble Nomad USB Boot | £69.50 |
| ACCAA-151 | Trimble Nomad Serial Boot / RS232 Serial 9M | £69.50 |
| ACCAA-200 | Trimble Extended CF-Cap for Nomad | £87.85 |
| ACCAA-652 | Trimble AC Charger [UK/EU/USA/AUS] (for Nomad/Ranger X) | £54.75 |
| ACCAA-650 | Trimble Nomad Battery Charger (req AC charger) | £46.50 |
| ACCAA-752 | Trimble Nomad X RAM Vehicle Mount | £43.75 |
| ACCAA-602 | Trimble Nomad Deluxe Case with Belt Clip and Shoulder Strap / Grey | £37.30 |
| ACCAA-201 | Trimble Standard CF-Cap for Nomad | £26.00 |
| ACCAA-600 | Trimble Nomad Standard Nylon Carry Case / Yellow | £23.60 |
| ACCAA-601 | Trimble Nomad Nylon Carry Case for Extended CF-Cap / Yellow | £23.60 |
| ACCAA-800 | Trimble Nomad Stylus Pen | £19.00 |
| ACCAA-550 | Trimble Nomad USB Data Cable | £14.40 |
| ACCAA-250 | Trimble Nomad Hand Strap | £11.60 |
| ACCAA-350 | Trimble Nomad Screen Protector / Ultra-Clear [Pack of 2] | £8.00 |
| ACCAA-358 | Trimble Nomad Screen Protector / Anti-Glare [Pack of 2] | £8.00 |
| ACCAA-802 | Trimble Nomad/Ranger Stylus Lanyard | £8.00 |
*Please note all prices shown are exclusive of VAT
| STANDARD FEATURES | Windows Mobile 6.1 (Professional in WWAN models; Classic in all other models) |
| Marvell 806 MHz XScale processor | |
| 128 MB DDR SDRAM | |
| 512 MB to 2 GB non-volatile Flash storage (4 GB SD card included with camera models) | |
| Full VGA display, sunlight-readable color TFT | |
| Touchscreen | |
| Rugged submersible design | |
| Integrated speaker and microphone | |
| Integrated Bluetooth 2.0 | |
| Secure Digital (SD/SDHC) slot | |
| Numeric keypad | |
| Notification LEDs | |
| USB host and client | |
| Headset jack (2.5 mm mono audio and microphone) | |
| 15-hour battery life (in active use with default settings) | |
| Keypad backlight for night use | |
| 12-month limited warranty | |
| CONFIGURATION OPTIONS | (See Nomad Configurations table below for details) |
| Integrated Quad-band GSM GPRS/EDGE capability | |
| Integrated GPS (SiRFstarIII, WAAS / SBAS capable, SiRFInstantFixII) | |
| Integrated Wi-Fi wireless capability | |
| CompactFlash (CF) (Type II) slot | |
| Integrated laser 1D bar code scanner | |
| Integrated digital camera (color, 5 megapixel resolution, with flash) | |
| Serial boot with 9-pin RS-232 port | |
| STANDARD SOFTWARE | Microsoft Office Mobile: Word Mobil, Excel Mobile, PowerPoint Mobile, Outlook Mobile, Pocket OneNote |
| Internet Explorer Mobile | |
| Notes/Tasks | |
| Calculator | |
| Windows Media Player | |
| Microsoft Pictures and Videos | |
| Online help | |
| Contacts/Calendar | |
| Adobe Reader LE | |
| STANDARD ACCESSORIES | Rechargeable Li-ion battery module |
| Rugged stylus with spring-loaded tip | |
| Stylus lanyard | |
| AC charger and international adapters | |
| USB data cable | |
| Standard Cap | |
| User’s guide | |
| Hand strap | |
| Screen protectors | |
| Getting Started CD with ActiveSync | |
| USB boot | |
| OPTIONAL ACCESSORIES | Carry case |
| Deluxe case with belt clip & neck strap | |
| Serial boot with 9-pin RS-232 port | |
| Serial interface cable | |
| AA battery module | |
| Spare battery charger | |
| Extended Cap | |
| Range pole bracket | |
| 12 V vehicle charger | |
| Vehicle mount | |
| Trigger pistol grip | |
| PHYSICAL | Size: 6.92 in x 3.92 in x 1.96 in (17.6 cm x 10 cm x 5.0 cm) |
| Weight: 21 ounces (596 g) including rechargeable battery | |
| Housing: Polycarbonate | |
| Colour: Yellow w/Black, Grey w/Black or Green w/Black | |
| CERTIFICATIONS | FCC, CE/R & TTE, IC (Canada), C-Tick, RoHS Compliant, PTCRB, GCF Compliant, AT&T network compatible, Section 508 compliant, CCX v4 ASD, MIL-STD-461E RE102, MIL-STD-461E RS103 |
| ENVIRONMENTAL SPECIFICATIONS | Meets or exceeds: |
| Water: Immersed in 3.3 ft (1 meter) of water for 30 minutes | |
| Water Jet 0.5 in dia. @ 8.2 ft–9.8 ft, 26.4 gallons/min | |
| (Water Jet 12.5 mm dia. @ 2.5 m–3 m, 100 Litre/min) | |
| MIL-STD-810F, Method 512.4, Procedure I, IEC-529, IP67 | |
| Sand & dust: 8 hours of operation with blowing talcum powder | |
| MIL-STD-810F, Method 510.3, Procedure I, II, IEC-529, IP67 | |
| Drop:26 drops at room temperature from 4 ft (1.22 m) onto plywood over concrete | |
| 6 additional drops at –22 °F (–30 °C) | |
| 6 additional drops at 140 °F (60 °C) | |
| MIL-STD-810F, Method 516.5, Procedure IV | |
| Vibration: General Minimum Integrity and Loose Cargo tests | |
| MIL-STD-810F, Method 514.5, Procedure I, II | |
| Operating Temperature: –22 °F to 140 °F (–30 °C to 60 °C) | |
| MIL-STD-810F, Method 501.4, Procedure II | |
| MIL-STD-810F, Method 502.4, Procedure I, II, III | |
| Storage Temperature: –40 °F to 158 °F (–40 °C to 70 °C) | |
| MIL-STD-810F, Method 501.4, Procedure I | |
| MIL-STD-810F, Method 502.4, Procedure I, II, III | |
| Temperature shock:.–22 °F/149 °F (–30 °C/+65 °C) | |
| MIL-STD-810F, Method 503.4, Procedure I | |
| Humidity: 90%RH temp cycle 32 °F/158 °F (0 °C/+70 °C) | |
| MIL-STD-810F, Method 507.4 | |
| Altitude: 15,000 ft (4,572 m) at 73 °F (23 °C) to 40,000 ft (12,192 m) at –22 °F (–30 °C) | |
| MIL-STD-810F, Method 500.5, Procedure I, II, III | |
| ELECTRICAL | Processor: Marvell PXA320 XScale 806 MHz |
| Memory: 128 MB DDR SDRAM; ~30 MB reserved | |
| Storage: 512 MB to 2 GB onboard non-volatile NAND Flash; ~50 MB reserved | |
| Expansion: 1x SD/SDHC slot (all models), | |
| 1x Type II CF slot (900B, 900L, 900X) | |
| 4 GB SD card included in camera-equipped Nomad 900 models | |
| Display: 480 x 640 pixel (VGA) 16-bit color TFT with LED backlight | |
| Batteries: 5200 mAh Li-ion rechargeable module4 | |
| I/O: USB host and client, power, headset jack | |
| GPS accuracy: 2–4 m SBAS corrected5 | |
| Radios: Bluetooth 2.0 + EDR; | |
| WLAN: Wi-Fi (CCX v4 ASD) (802.11b/g); | |
| WWAN: Quad-band GSM GPRS/EDGE |
4 To ensure best performance when temperatures are below –4 °F (–20 °C), be sure battery is inserted in the device only when in use. When device is not in use at these temperatures, keep batteries in a pocket or stored in a warmer area.
5 2–4 m (50%–95%) accuracy determined using Horizontal Root Mean Squared method – Open Sky
Specifications subject to change without notice.
