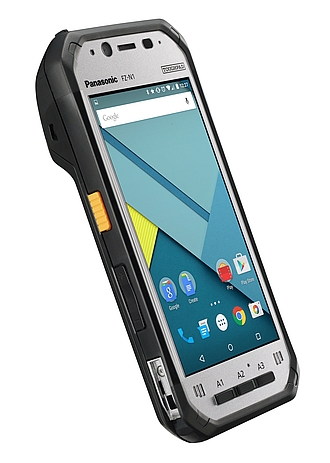

Panasonic Toughpad FZ-N1
4.7" Slim and Lightweight Handheld Android Tablet with Angled Rear Barcode Reader
| FZ-N1 Models and Prices | FZ-N1 Accessories | FZ-N1 Specification |
The Toughpad FZ-N1 with Android™ 5.1.1 is one of the thinnest and most lightweight handheld tablets in the 4.7" category. The device offers numerous unique features, including an angled rear barcode reader which protects users from repetitive strain and enhances productivity, and an optional passive and active pen for precise handwriting and signature capture.
This cutting-edge device has been designed for mobile workers in the postal and courier services, transportation and logistics, emergency and public safety, utilities, retail, manufacturing and defence sectors.
The FZ-N1 brings together the best of handheld, smartphone and barcode reader functionality into a single rugged and hard working tablet. Thanks to its fully-rugged design, with MIL-STD-810G certification, IP67 rating, 1.8-metre drop resistance* and the ability to withstand as many as 1,000 tumbles from a height of 1 metre, the device delivers a long life span and very low TCO. The user-replaceable and warm-swappable battery, combined with a range of accessories such as carry and mounting solutions, make it a truly mobile device.
- Android™ 5.1.1
- 4G LTE / 3G data and voice capability
- Integrated 1D/2D angled rear barcode reader
- Qualcomm® MSM8974AB 2.3 GHz Quad-core processor
- 2 GB RAM, 16 GB storage and microSD card slot
- 4.7" HD (1280 x 720) daylight-readable display with glove and rain mode
- Optional passive and active pen for precise signatures
- MIL-STD 810G certified with 1.8-metre drop* resistance
- IP67 rated (submersible in water up to 1 metre for 30 minutes)
- 8MP rear and 5MP front camera
- User-replaceable battery with warm-swap function
- NFC, Bluetooth 4.1, WiFi, micro USB port and docking connector
- Triple microphones for superior noise suppression
- Dual front speakers delivering in total up to 100 dBA
* Tested at Panasonic Factory
| Model Number | Description | Price* |
| FZ-N1AFCABZE | Panasonic Toughpad FZ-N1 with Barcode Reader, Warm Swap | £1049.00 |
| Options | Panasonic Hand Strap | £37.00 |
| Part Number | Description | Price* |
| FZ-LESPEW5 | Panasonic Toughpad Warranty Extension from 3 to 5 years | £114.00 |
| FZ-LESPAD3 | Panasonic Toughpad Accidental Damage - 3 years contract | £127.00 |
| FZ-LESPAD5 | Panasonic Toughpad Accidental Damage - 5 years (inc. warranty extension) | £294.00 |
*Please note that all prices shown are exclusive of VAT
Leasing the Toughpad FZ-N1 is available to organisations and typically costs from £34.28 p/m on a 3-year agreement. For more information see computer leasing.
| Panasonic Toughpad FZ-F1 | Panasonic Toughpad FZ-X1 | Panasonic Toughpad FZ-E1 | Panasonic Toughpad FZ-M1 Mk2 | Getac Z710 |
 |
 |
 |
 |
 |
| From £1099.00 | From £1042.00 | From £1099.00 | From £1380.00 | From £668.00 |
View All Rugged Tablets
View All Panasonic Toughbooks
View All Getacs
| Part Number | Description | Price* | |
| PCPE-GJN1V01 | Gamber-Johnson Vehicle Dock Keyed Alike with 16V DC-in Port for FZ-F1/N1 | £154.00 | |
| PCPE-GJN1V02 | Gamber-Johnson Vehicle Dock Keyed to Differ with 16V DC-in Port for FZ-F1/N1 | £154.00 | |
| PCPE-GJN1V03 | Gamber-Johnson Vehicle Dock Keyed Alike with no Power for FZ-F1/N1 | £137.00 | |
| PCPE-GJN1V04 | Gamber-Johnson Vehicle Dock Keyed to Differ with no Power for FZ-F1/N1 | £137.00 |
*Please note that all prices shown are exclusive of VAT
| Mobile Computing Platform | Qualcomm® MSM8974AB 2.3 GHz Quad-core processor |
| Operating System | Android™ 5.1.1 |
| Display | 4.7" HD (1280x720 pixels), 16:9 aspect ratio |
| 10 point multi-touch capacitive touchscreen with glove and rain mode | |
| Daylight viewable (up to 500 cd/m2) | |
| Anti-reflective and anti-glare screen treatments | |
| Supports both passive pen* and active pen* as default | |
| RAM, Storage and Expansion | 2 GB RAM, 16 GB eMMC and micro SDXC card slot (max. 64 GB) |
| Audio | 3 mics (2x Front & 1x Rear) |
| 2x Loud speakers (in total delivering up to 100 dBA) | |
| Barcode Reader | Angled rear barcode reader with aimer and light |
| 44 types of 1D/2D barcodes supported | |
| Camera | Rear: 8 MP rear camera with bright LED light (Video: 1920 x 1080 pixels (FHD) 30 fps, Still: 3264 x 2448 pixels (8MP)) |
| Front: 5 MP (Video: 1920 x 1080 pixels (FHD) 30 fps, Still: 2592 x 1944 pixels (5MP)) | |
| Sensors | Ambient light sensor, Digital compass, Gyro sensor, Acceleration sensor |
| Power | Battery (Standard / Extended*): |
| Standard: Li-ion 3.8V, 3,200 mAh (typ.) / Extended*: Li-ion 3.8V, 6,400mAh (typ.) | |
| User replaceable with warm swap function | |
| Battery operating time (Standard / Extended*): | |
| Continuous data access time**: up to 8 hours (TBD) / 16 hours (TBD) | |
| Talk time: up to 24 hours (TBD) / 48 hours (TBD) | |
| Standby time: up to 700 hours (TBD) / 1400 hours (TBD) | |
| AC Adapter: USB charger with micro USB cable | |
| Interfaces | micro USB 2.0: x1 (For charging and data transfer) |
| Docking connector: x1 | |
| Headset jack: x1 (3.5mm) | |
| Buttons | User configurable buttons: x5 (A1, A2, A3, left yellow and right yellow buttons) |
| Power on/off button: x1 | |
| Dedicated camera button: x1 (For rear or front camera) | |
| Volume buttons: x2 | |
| Wireless | Bluetooth: v4.1 (class 1) |
| WLAN: IEEE802.11 a/b/g/n/ac | |
| Voice & Data: LTE, HSPA+, UMTS, EDGE, GPRS, GSM | |
| Micro SIM slots: x2 (Dual SIM Single standby)*** | |
| GPS: GPS / GLONASS CEP50 (±2 to 4 m) | |
| NFC: Yes (Type A, Type B and Felica) | |
| Security | FIPS140-2 level-1 compliant, Built-in ARM ® TrustZone® |
| Ruggedness | Fully rugged design with sealed ports, MIL-STD-810G certified, 1.8 metre drop resistant |
| 2,000 drops (1,000 tumbles) each 1.0 m {3.2 ft.} | |
| Raised bezel for LCD impact protection | |
| IP67 rated (submersible in water up to 1 metre for 30 minutes) | |
| -10°C to +50°C operating temperature | |
| Dimensions (WxDxH) | 74 mm x 156 mm x 16.3 mm {2.91" x 6.12" x 0.64" } (without protruding parts) |
| Weight | 277g (0.61lb.) TBD |
| What's inside the box | FZ-N1 Handheld tablet, standard battery, USB charger with micro USB cable and operating instructions manual |
| Accessories | Single device cradle |
| Charging cup with stand | |
| AC adapter for charging cup with stand (60W) | |
| Multi device cradle (4-bay) | |
| AC Adaptor for multi device cradle (110W) | |
| Hand strap | |
| Holster | |
| Vehicle mount | |
| Standard battery pack (3200mAh) | |
| Extended battery pack (6400mAh) | |
| Shatterproof film | |
| Passive pen | |
| Active pen |
* Optional. **Battery life measurement conditions: Wireless LAN connection enabled; continuous access to the server while browsing; swipe every 1 second; page change every 30 seconds, communication every 30 seconds. ***Dual SIM - Single Standby (at any given instance only one SIM is active and the device could be switched to the other SIM by GUI). DO NOT STARE INTO BARCODE READER'S BEAM. CLASS 2 LASER PRODUCT. Specifications and features given herein may be changed at any time without prior notice and may vary depending on the region.
