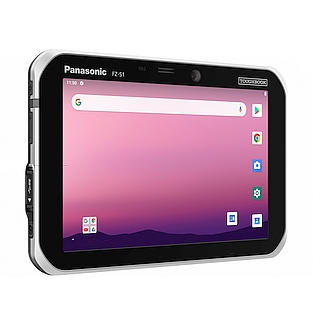

Panasonic Toughbook FZ-S1 Mk1
7" Rugged Android 10 Tablet
| FZ-S1 Mk1 Models and Prices | FZ-S1 Accessories | FZ-S1 Mk1 Specification |
The TOUGHBOOK S1 tablet - the ultimate rugged Android™ tablet for the truly mobile worker. This 7 inch screen device is easy to use in one hand, adaptable for a variety of tasks yet powerful and tough enough to cope with the busiest shift. It's at its best when in the hands of security and police forces patrolling the streets, technicians monitoring production lines, field services engineers carrying out inspections and maintenance or construction workers on site. The device also supports Panasonic COMPASS 2.0, the suite of enterprise management tools for Panasonic TOUGHBOOK rugged tablets and handheld devices running the Android operating system.
To ensure the rugged tablet can work as long as any shift, it is equipped with a simple click and switch design for warm swapping batteries. It takes away the need to interrupt work, power down the device or remove fiddly panels to change batteries. With two options of battery size, the device can operate for up to 14 hours on a single charge.
- Qualcomm® SDM660 Octa-Core Processor
- Android 10
- 7.0" WXGA(1280x800) with AR, IPS colour LCD (up to 500cd/m2 brightness)
- Gadget Port for flexibility
- Up to 14 hours battery life with standard battery
- Bluetooth™ Version 5.0 Class 1
- ARM® TrustZone® (Built-in) Security
- 5 MP Front camera, 13MP Rear camera with autofocus and LED flash
- Min. 150cm*** Drop Resistance
- -20 °C to 50 °C *** operating temperature
*** Tested by Panasonic
| Model Number | Description | Price* |
| FZ-S1AGAEAAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Standard Battery | £825.00 |
| FZ-S1AGA11A3 | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Standard Battery, 2nd USB | £870.00 |
| FZ-S1AGAEDAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Standard Battery, Smart Card Reader | £875.00 |
| FZ-S1AEAEAAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Standard Battery, 4G | £910.00 |
| FZ-S1AEBEAAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Standard Battery, 4G, Dual Pass-through | £955.00 |
| FZ-S1AEAEDAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Standard Battery, 4G, Smart Card Reader | £960.00 |
| FZ-S1AEBEDAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Standard Battery, 4G, Smart Card Reader, Dual Pass-through | £1005.00 |
| FZ-S1AGAFAAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Standard Battery, Barcode Reader L | £1175.00 |
| FZ-S1AGAFDAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Standard Battery, Barcode Reader L, Smartcard Reader | £1225.00 |
| FZ-S1AEAFAAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Standard Battery, 4G, Barcode Reader L | £1260.00 |
| FZ-S1AEAFDAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Standard Battery, 4G, Barcode Reader L, Smart Card Reader | £1310.00 |
| FZ-S1AEBFDAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Standard Battery, 4G, Barcode Reader L, Smart Card Reader, Dual Pass-through | £1355.00 |
| FZ-S1AGLEAAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Extended Battery | £845.00 |
| FZ-S1AGLECAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Extended Battery, 2nd USB | £890.00 |
| FZ-S1AGLEDAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Extended Battery, Smart Card Reader | £895.00 |
| FZ-S1AELEAAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Extended Battery, 4G | £930.00 |
| FZ-S1AEMEAAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Extended Battery, 4G, Dual Pass-through | £975.00 |
| FZ-S1AELEDAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Extended Battery, 4G, Smart Card Reader | £980.00 |
| FZ-S1AEMECAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Extended Battery, 4G, 2nd USB, Dual Pass-through | £1025.00 |
| FZ-S1AEMEDAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Extended Battery, 4G, Smart Card Reader, Dual Pass-through | £1030.00 |
| FZ-S1AGLFAAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Extended Battery, Barcode Reader L | £1195.00 |
| FZ-S1AGLFDAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Extended Battery, Barcode Reader L, Smart Card Reader | £1245.00 |
| FZ-S1AELFAAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Extended Battery, 4G, Barcode Reader L | £1280.00 |
| FZ-S1AELEBAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Extended Battery, 4G, Barcode Reader P | £1280.00 |
| FZ-S1AEMFAAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Extended Battery, 4G, Barcode Reader L, Dual Pass-through | £1325.00 |
| FZ-S1AELFCAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Extended Battery, 4G, Barcode Reader L, 2nd USB | £1330.00 |
| FZ-S1AELFDAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Extended Battery, 4G, Barcode Reader L, Smart Card Reader | £1335.00 |
| FZ-S1AEMFCAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Extended Battery, 4G, Barcode Reader L, Smart Card Reader | £1375.00 |
| FZ-S1AEMFDAS | Toughbook FZ-S1 Mk1, 4GB RAM, 64GB eMMC, Extended Battery, 4G, Barcode Reader L, Smart Card Reader, Dual Pass-through | £1380.00 |
| Part Number | Description | Price* |
| FZ-LESPAD3 | Panasonic Toughpad Accidental Damage - 3 years contract | £145.00 |
| FZ-LESPAD5 | Panasonic Toughpad Accidental Damage - 5 years (inc. warranty extension) | £335.00 |
*Please note that all prices shown are exclusive of VAT
Leasing the Toughbook FZ-S1 is available to organisations and typically costs from £28.30 p/m on a 3-year agreement. For more information see computer leasing.
| Panasonic Toughpad FZ-A3 Mk1 | Getac ZX70 G2 | Panasonic Toughpad FZ-N1 Mk2.5 | Getac T800 G2 | Panasonic Toughbook FZ-G2 Mk1 |
 |
 |
 |
 |
 |
| From £850.00 | From £715.00 | From £848.00 | From £995.00 | From £1835.00 |
View All:
Panasonic Toughbooks and Toughpads
Rugged Tablets
Getac Notebooks and Tablets
| Part Number | Description | Price* | |
| FZ-AAE184E1E | Panasonic AC Adapter for FZ-S1 | £40.75 | |
| FZ-VZSUT10U | Panasonic Standard Battery 3100mAh for FZ-S1 | £58.75 | |
| FZ-VZSUT11U | Panasonic Extended Battery 5380mAh for FZ-S1 | £78.30 | |
| PCPE-LNDL133 | Lind 5V Car Charger Bare Wires for FZ-S1 | £69.75 | |
| FZ-VCBT131E | Panasonic 5-Bay Battery Charger with AC Cord for FZ-S1 | £299.50 | |
| FZ-VEH5L1AAE | Panasonic 5-Bay Cradle with AC Cord for FZ-S1 | £511.75 | |
| FZ-VCH5L1AAE | Panasonic 5-Bay Charge only Cradle with AC Cord for FZ-S1 | £334.00 | |
| FZ-VEH1L1AAE | Panasonic Single Cradle with AC Cord for FZ-S1 | £102.35 | |
| CF-VNP025U | Panasonic Capacitive IP55 Stylus Pen for FZ-S1 | £22.50 | |
| CF-VNT002U | Panasonic Stylus Tether for FZ-S1 | £9.00 | |
| FZ-VPFS11U | Panasonic LCD Protective Film for FZ-S1 | £53.95 | |
| CF-VNS331U | Panasonic Shoulder Belt for FZ-S1 | £65.50 | |
| FZ-VSTS11U | Panasonic Rotating Hand Strap for FZ-S1 | £51.30 | |
| FZ-VNSS11U | Panasonic Shoulder Case for FZ-S1 | £64.50 |
| Part Number | Description | Price* | |
| PCPE-GJL1VM01 | Gamber-Johnson Vehicle Cradle, without Electronics for FZ-L1/S1 | £177.95 | |
| PCPE-GJL1VM02 | Gamber-Johnson Vehicle Docking Station, with USB, without Antenna Pass-through for FZ-L1/S1 | £215.35 | |
| PCPE-GJL1VM03 | Gamber-Johnson Vehicle Docking Station, with USB and Antenna Pass-through for FZ-L1/S1 | £282.40 | |
| PCPE-HAVS101 | Havis Tablet Vehicle Docking Station, without Antenna Pass-Through for FZ-S1 | £183.10 | |
| PCPE-HAVS102 | Havis Tablet Vehicle Docking Station, with Antenna Pass-Through for FZ-S1 | £233.40 | |
| PCPE-HAVS103 | Havis Vehicle Cradle, without Electronics for FZ-S1 | £121.20 |
| Mobile Computing Platform | Qualcomm® Snapdragon 660 Octa-Core 2,2 GHz |
| Operating System | Android® 10 |
| RAM | 4GB RAM |
| Graphic Chip | Qualcomm® Adreno 512 GPU |
| Storage | 64GB eMMC 5.1 |
| LCD | 7.0" WXGA (1280x800) with AR, IPS colour LCD (up to 500cd/m² brightness) |
| Bluetooth™ | Version 5.1 Class 1.5 |
| Wireless LAN | IEEE802.11 a/b/g/n/ac/d/h/i/r/k/v/w - 2.4GHz & 5GHz Support |
| Mobile Broadband* | 4G LTE, supports 3G - Sierra AirPrime® EM7455 |
| GPS | Integrated (GPS,GLONASS,Galileo,Beidou,QZSS) - CEP50 (±2 to 4m) |
| Sound | Single front speaker 94dBA, internal Microphone with noise suppression |
| Security | ARM® TrustZone® |
| NFC | ISO/IEC 21481 (TypeA, TypeB, FeliCa and ISO/IEC 15693) |
| Other Sensors | Acceleration, Ambient light, Digital Compass, Gyro |
| Camera | Front Camera: 5 MP |
| Rear Camera: 13 MP with autofocus and LED flash | |
| Interfaces | USB: x1 USB 3.0 Type-C |
| Micro SD/SDXC Memory Card: x1 | |
| Headset: x1 | |
| Port Replicator: x1 | |
| Dual Antenna Connector*: x1 | |
| DC In: via USB-Type-C | |
| Gadget Port* | Possible Gadgets: Barcorde Reader (P), Barcorde Reader (L), USB-Type A Port |
| Power | AC Adapter: not included |
| Battery: Lithium-Ion Extended Battery 5580mAh | |
| Battery Life: Up to 14 hours **** | |
| Power Management: Warm swap | |
| Dimensions (W x H x D) | 193mm × 131mm × 22.9mm without Gadgets |
| Weight | WiFi - 505g / 4G - 514g* |
| Testing Standards | Drop Resistance: Minimum 150cm*** |
| Dust Resistance: IEC529 (JIS C0920) IP6x** | |
| Water Resistance: IEC529 (JIS C0920) IPx5** IEC529 (JIS C0920) IPx7** | |
| Operating Temperature: -20 °C to 50 °C *** | |
| Standard Configuration | TOUGHBOOK S1, 4GB RAM, 64GB Storage, Extended Battery |
| Included in the box | Operating Instructions and USB Cable |
| * | Optional |
| ** | Tested by an independent third party lab following MIL-STD-810H and IEC 60529, Sections 13.4, 13.6.2, 14.2.5 and 14.3 |
| *** | Tested by Panasonic |
| **** | Battery life measurement conditions: Wireless LAN, connection enabled; continuous access to the server while browsing; swipe every 1 second; page change every 20 seconds |
