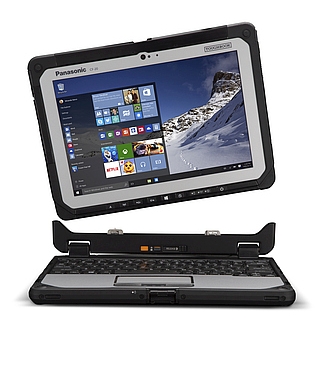

Panasonic Toughbook CF-20 Mk1

Windows 10 Pro Fully Rugged Detachable with 10.1" Outdoor Full-HD Display

The Panasonic Toughbook CF-20 delivers a new level of unrivalled versatility for mobile business computing as the first fully rugged detachable notebook. Offering the best of all worlds for mobile workers, the Toughbook can be used in 6 different modes to meet every business need. With its glove enabled touchscreen, up to 14 hour hot swappable battery life and purpose-built Vehicle Mount and Desktop Port Replicator, the Panasonic Toughbook CF-20 is an unrivalled mobile business machine.

This latest detachable device offers the richest set of business interfaces with additional customisable options to meet a worker's needs. It is the first fully rugged Toughbook to ship with Windows 10 Pro and the first Toughbook to be powered by 6th Generation Intel® Core™ vPro™ processor technology. Target industries for the device include insurance assessors, fleet management and car hire, field workers, maintenance and service technicians in utilities and telecommunications, as well as government agencies, defence and the emergency services.

Intel® Core™ m5-6Y57 vPro™ processor
Windows 10 Pro
Intel® HD Graphics 515
Next generation IPS outdoor display technology
10.1" high brightness WUXGA (1920x1200) display (up to 800cd/m2)
Capacitive 10 finger multi-touchscreen
Optional IP55 Digitiser
120 cm drop resistant (Main Unit)*
Water and dust resistant (IP65)*
up to 7 hours battery life (MobileMark™ 2007)
up to 14 hours battery life with second battery (MobileMark™ 2007)
User exchangeable battery
Hot swap function
Flexible configurations (serial, smartcard, 2D barcode reader)
Lightweight design - weighs approx. 1.76kg

* Tested at Panasonic Factory

**Panasonic Toughbook CF-20 Mk1 Touchscreen Models**
Model Number	Description	Price*
CF-20A0205TE	Panasonic Toughbook CF-20 Mk1 Touchscreen	£2320.00
CF-20A5108TE	Panasonic Toughbook CF-20 Mk1 Touchscreen with 4G	£2429.00
CF-20A0247TE	Panasonic Toughbook CF-20 Mk1 Touchscreen with Gadget Cover, Serial Port	£2409.00
CF-20A5140TE	Panasonic Toughbook CF-20 Mk1 Touchscreen with Gadget Cover, Serial Port, 4G	£2525.00
CF-20A0249TE	Panasonic Toughbook CF-20 Mk1 Touchscreen with Gadget Cover, 2D BCR	£2735.00
CF-20A5142TE	Panasonic Toughbook CF-20 Mk1 Touchscreen with Gadget Cover, 2D BCR, 4G	£2850.00
CF-20A0329TE	Panasonic Toughbook CF-20 Mk1 Touchscreen with Gadget Cover, 2D BCR, SCR	£2870.00
CF-20A5188TE	Panasonic Toughbook CF-20 Mk1 Touchscreen with Gadget Cover, 2D BCR, SCR, 4G	£2975.00

**Panasonic Toughbook CF-20 Mk1 Dual Touch Models**
Model Number	Description	Price*
CF-20C0205TE	Panasonic Toughbook CF-20 Mk1 Dual Touch	£2395.00
CF-20C5108TE	Panasonic Toughbook CF-20 Mk1 Dual Touch with 4G	£2495.00
CF-20C0247TE	Panasonic Toughbook CF-20 Mk1 Dual Touch with Gadget Cover, Serial Port	£2485.00
CF-20C5140TE	Panasonic Toughbook CF-20 Mk1 Dual Touch with Gadget Cover, Serial Port, 4G	£2585.00
CF-20C0249TE	Panasonic Toughbook CF-20 Mk1 Dual Touch with Gadget Cover, 2D BCR	£2799.00
CF-20C5142TE	Panasonic Toughbook CF-20 Mk1 Dual Touch with Gadget Cover, 2D BCR, 4G	£2899.00
CF-20C0329TE	Panasonic Toughbook CF-20 Mk1 Dual Touch with Gadget Cover, 2D BCR, SCR	£2950.00
CF-20C5188TE	Panasonic Toughbook CF-20 Mk1 Dual Touch with Gadget Cover, 2D BCR, SCR, 4G	£3050.00

**Panasonic Toughbook CF-20 Mk1 Options**
Option		Price*
4G	Tablet selectable port 1 - only 1 can be selected	£115.00
GPS	Tablet selectable port 1 - only 1 can be selected	£132.00
256GB to 512GB SSD Upgrade		£180.00
Std to OPAL SSD (All sizes)		£28.00
8GB to 16GB RAM Upgrade		£165.00
Serial Port (Projecting)	Tablet selectable port 2 - only 1 can be selected	£90.00
2D Barcode Reader (2D BCR) (Flat)	Tablet selectable port 2 - only 1 can be selected	£420.00
2nd USB 2.0 (Projecting)	Tablet selectable port 2 - only 1 can be selected	£90.00
Smart Card Reader (SCR) (IP64) (Flat)	Tablet selectable port 3 - only 1 can be selected	£115.00
NFC (Flat)	Tablet selectable port 3 - only 1 can be selected	£147.00
Fingerprint Reader (Flat)	Tablet selectable port 3 - only 1 can be selected	£148.00
Smart Card Reader (SCR) (IP65)	Tablet selectable port 3 - only 1 can be selected	£139.00
MGR	Tablet selectable port 3 - only 1 can be selected	£204.00
Hotswap (Tablet)	Tablet selectable port 3 - only 1 can be selected	£64.00

**Panasonic Toughbook CF-20 Extended Warranties**
Part Number	Description	Price*
CF-LESPEW5	Panasonic Toughbook Warranty Extension from 3 to 5 years	£129.00
CF-LESPAD3	Panasonic Toughbook Accidental Damage - 3 years contract	£145.00
CF-LESPAD5	Panasonic Toughbook Accidental Damage - 5 years (inc. warranty extension)	£336.00

*Please note that all prices shown are exclusive of VAT

Leasing the Toughbook CF-20 is available to organisations and typically costs from £87.24 p/m on a 3-year agreement. For more information see computer leasing.

**Alternative Models**
Unused Panasonic Toughbook CF-19 Mk5	Panasonic Toughpad FZ-Q2 Mk1	Panasonic Toughbook CF-33 2-in-1 Detachable Mk1	Panasonic Toughpad FZ-G1 Mk5	Getac V110 G4

From £1575.00	From £1655.00	From £2979.00	From £1865.00	From £1995.00

View All:
Panasonic Toughbooks and Toughpads
Getac Notebooks and Tablets

**Panasonic Toughbook CF-20 Accessories**
Part Number	Description	Price*
CF-AA6413CE	Panasonic Spare AC Adapter for CF-20	£54.00
CF-LND80S-FD	Lind Car Charger (12 - 16V) for CF-20	£121.60
CF-LND8024FD	Lind Car Charger (12 - 32V) for CF-20	£141.85
CF-LNDMLSTD	Lind Mil Spec Vehicle Charger (11 - 32V) for CF-20	£506.47
CF-LNDAC01	Lind AC/DC Combo Adapter for CF-20	£178.55
PCPE-LNDFH32	Lind Car Charger (12 - 32V) for Forklifts for CF-20	£310.50
PCPE-LNDFH60	Lind Car Charger (20 - 60V) for Forklifts for CF-20	£310.50
PCPE-LNDFH11	Lind Car Charger (70 - 110V) for Forklifts for CF-20	£340.25
CF-VNP022U	Panasonic Capacitive Stylus Pen for CF-20	£22.50
CF-VZSU0QW	Panasonic Li-Ion Battery Pack for CF-20	£98.50
CF-VCB201E	Panasonic 4-Bay Battery Charger inc AC Adapter for FZ-A2 (UK Code)	£248.50
CF-VCB201G	Panasonic 4-Bay Battery Charger inc AC Adapter for FZ-A2 (Continental Code)	£248.50
CF-VCB201T	Panasonic 4-Bay Battery Charger inc AC Adapter for FZ-A2 (Italian Code)	£248.50
CF-VCB201D	Panasonic 4-Bay Battery Charger inc AC Adapter for FZ-A2 (Swiss Code)	£248.50
CF-VEB201U	Panasonic Desktop Port Replicator for CF-20	£331.85
CF-VPF31U	Panasonic LCD Protective Film for CF-20	£45.00
PCPE-INF20B1	Infocase Mobility Bundle for CF-20	£43.20
PCPE-SL20VH1	CF-20/FZ-A2 Tablet with Keyboard Synthetic Holster Vehicle Mounting	£91.00
PCPE-SYS1548	CF-20/FZ-A2 Tablet Synthetic Case with Removable Screen Flap Non Docking	£91.00
PCPE-SYS1550	CF-20/FZ-A2 Tablet Synthetic Case with Removable Screen Flap Dockable	£91.00
PCPE-SYS1551	CF-20/FZ-A2 Tablet Bifold Case	£93.95
PCPE-LANCAB1	LAN Port Saver	£12.00
PCPE-SMBCR01	Socket Mobile 2D Barcode Scanner for CF-20	£553.25
PCPE-CRRFID1	USB RFID Reader	£81.65
PCPE-WLANANT	WLAN External Antenna for Vehicle	£36.50
PCPE-CRDLLP2	Cradlepoint COR IBR600 Semi-Rugged Router (Router only)	£716.00
PCPE-CRDSOL1	Cradlepoint COR IBR600 Semi-Rugged Router (Router with MIMO Antenna)	£853.00
PCPE-CRDL110	Cradlepoint Hub Large with WiFi	£1007.00
T5D-02316	Microsoft® Office® Home and Business 2016 (Word, Excel, Powerpoint, One Note, Outlook) All Languages	£177.85
269-16805	Microsoft® Office® Professional 2016 (As Home and Business 2016, plus Access and Publisher) All Languages	£298.65

**Panasonic Toughbook CF-20 Mobile Docking Solutions**
Part Number	Description	Price*
PCPE-GJ20V01	Gamber-Johnson Vehicle Dock Keyed Alike without Antenna Pass-Through for CF-20	£742.00
PCPE-GJ20V02	Gamber-Johnson Vehicle Dock Keyed Alike with Antenna Pass-Through for CF-20	£776.00
PCPE-GJ20V03	Gamber-Johnson Vehicle Dock Keyed to Differ without Antenna Pass-Through for CF-20	£742.00
PCPE-GJ20V04	Gamber-Johnson Vehicle Dock Keyed to Differ with Antenna Pass-Through for CF-20	£776.00
PCPE-GJ20V05	Gamber-Johnson Vehicle Dock Keyed Alike with No Electronics for CF-20	£554.00
PCPE-GJ20V06	Gamber-Johnson Vehicle Dock Keyed to Differ with No Electronics for CF-20	£554.00

PCPE-GJA2V01	Gamber-Johnson Slim Vehicle Dock Keyed Alike with no RF for CF-20 tablet portion	£272.00
PCPE-GJA2V02	Gamber-Johnson Slim Vehicle Dock Keyed Alike Dual RF for CF-20 tablet portion	£306.00
PCPE-GJA2V03	Gamber-Johnson Slim Vehicle Dock Keyed to Differ with no RF for CF-20 tablet portion	£272.00
PCPE-GJA2V04	Gamber-Johnson Slim Vehicle Dock Keyed to Differ Dual RF for CF-20 tablet portion	£306.00
PCPE-GJA2V05	Gamber-Johnson Slim Vehicle Dock Keyed Alike with no Electronics for CF-20 tablet portion	£145.00

PCPE-GJA2V06	Gamber-Johnson Expanded Vehicle Dock Keyed Alike with no RF for CF-20 tablet portion	£290.00
PCPE-GJA2V07	Gamber-Johnson Expanded Vehicle Dock Keyed Alike Dual RF for CF-20 tablet portion	£332.00
PCPE-GJA2V08	Gamber-Johnson Expanded Vehicle Dock Keyed to Differ with no RF for CF-20 tablet portion	£290.00
PCPE-GJA2V09	Gamber-Johnson Expanded Vehicle Dock Keyed to Differ Dual RF for CF-20 tablet portion	£332.00
PCPE-GJA2V10	Gamber-Johnson Expanded Vehicle Dock Keyed Alike with no Electronics for CF-20 tablet portion	£163.00

*Please note that all prices shown are exclusive of VAT

**Panasonic Toughbook CF-20 Mk1 Full Specification**
Mobile Computing Platform	Intel® Core™ m5-6Y57 vPro™ processor
	1.1 GHz up to 2.8 GHz with Intel® Turbo Boost Technology, 4MB Intel® Smart Cache
Operating System	Windows 10 Pro
	Windows® 7 Professional
RAM	8GB RAM
Graphic Chip	Intel® HD Graphics 515
Camera	Front: 2 MP
	Rear: 8 MP with autofocus and LED light
Storage	256 GB Solid State Drive (Serial ATA)
LCD	10.1" sunlight-viewable WUXGA Active Matrix (TFT) IPS colour LCD (up to 800cd/m² brightness)
Touchscreen	10 finger capacitive multi-touchscreen
	IP55 Digitiser optional
Bluetooth™	Version 4.1 Class 1
WLAN	Intel® Dual Band Wireless-AC 8260
Mobile Broadband	Optional 4G LTE
Dedicated GPS	Optional u-blox NEO-M8N with GPS/GLONASS/SBAS Support
LAN	x2 1000BASE-T / 100BASE-TX / 10Base-T (Main Unit and Keyboard Base)
Sound	WAVE and MIDI playback, Intel® High Definition Audio subsystem support, Microphone arrays (built-in)
Interfaces	USB 3.0: x3 (x2 Keyboard Base, x1 Main Unit)
	USB 2.0: x1 (Keyboard Base)
	LAN Connector: x2 RJ-45 (x1 Keyboard Base, x1 Main Unit)
	Serial: x1 (Keyboard Base) x1 optional (Main Unit Configuration Port)
	HDMI: x1 (Main Unit) x1 (Keyboard Base)
	VGA: x1 (Keyboard Base)
	Headset: x1 (Main Unit)
	Port Replicator Connector: x1
	Dual External Antenna Connector: x1 (Keyboard Base)
Configuration Port*	Serial, 2D Barcode Reader, 2nd USB 2.0
Business Expansion Module*	Smartcard Reader, NFC, Fingerprint Reader
Expansion Slots	Micro SD/SDXC Memory Card: x1 micro SDXC (Main Unit) x1 SDXC (Keyboard Base)
Power	AC Adapter: Input: 100V - 240V AC, 50Hz/60Hz, Output: 16 VDC, 4.06A
	Battery: Li-Ion 11.4 V, 2600mAh
	Operating Time: 7 hours (MobileMark™ 2007) 14 hours utilising 2 batteries in Main Unit and Keyboard Base (MobileMark™ 2007)
Security Features	TPM (Trusted Platform Module, TCG V1.2 compliant), Integrated hardware security lock slot, Password security (supervisor password, user password, HDD lock)
Physical Dimensions (W x D x H)	272 mm x 233 mm x 33.5 mm (Main Unit + Keyboard Base) 272mm x 196mm x 16.4mm (Main Unit)
Weight	Approx. 1.76kg (Main Unit + Keyboard Base) Approx 950g (Main Unit)
Accessories	Desktop Port Replicator CF-VEB201U
	Vehicle Dock CF-CDS20VM0x
	Battery Pack CF-VZSU0Q
	4 Bay Battery Charger CF-VCB201x
Testing Standards	Water resistance test: IP-X5**
	Dust resistance test: IP-6X**
	Gravity drop resistance test: 120 cm**
	Operating temperature: -10°C to +50°C {14°F to 122°F}
	Storage temperature: -20°C to +60°C {-4°F to 140°F}
