OKI MC861 Multifunction Printer A3 Colour and Mono

Print / Copy / Scan / Fax

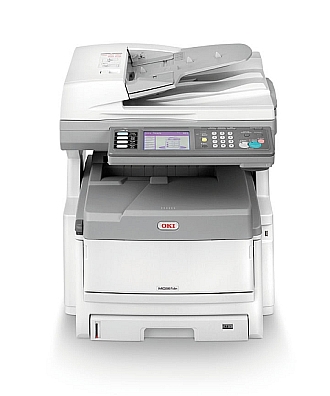

Image of an OKI MC861 Printer
MC861 Models and Prices MC861 Consumables MC861 Specification

The OKI MC861 is a true A3 MFP designed for the needs, floor space and budgets of small businesses and workgroups. Bringing fast, efficient and inexpensive A4 and A3 multifunctionality to the office, the OKI MC861 is available as a desktop or floor standing device. Its ultra compact design increases workgroup efficiency by providing easy access to copy, print, scan and fax. Even though it has full A3 capability, it is easily accommodated in the smallest of offices, bringing all functions within arms length of the user. Copy and print speeds are 26ppm in colour and 34ppm in mono (A4).

    • Print
    OKI multi-level print technology gives ultimate performance on wide range of media from A6 to A3 as well as banners up to 1.2 metres in length. PCL6, PCL5c, PostScript 3 emulations with auto duplex as standard.
    • Copy
    A 50 page RADF ensures walk up single and double sided copying is made easy with touch screen control. 25% to 400% enlargement / reduction with mixed size and duplex copying.
    • Scan
    Connects directly to the network for scan to E-Mail (Full LDAP support), local PC, Network and USB Port. Supports PDF, TIFF, JPEG and XPS with compression to reduce file size.
    • Fax
    Super G3 33.6kbps faxing with 500 speed dials, 32 group dials and a 1,000 page memory (72 hour battery) with auto redial and dual access. Incoming faxes can be forwarded by email to recipients.
  • 26ppm colour & 34ppm mono copy and print speed
  • Scan to email, network PC and USB memory
  • Fully functional fax (33.6Kbps) 3 secs per page
  • Forward incoming fax to email
  • Standard duplex printing (105gsm) and RADF scanning for double sided documents
  • 300 sheet tray & 100 sheet multi-purpose tray
  • Maximum 1,460 sheets from 4 paper sources (cdxn)
  • Media weight up to 200gsm from MPT, 120gsm from tray 1 and 176gsm from all other trays
  • PCL & PS3 emulation with 500MHz processor and 256MB memory
  • Standard HDD for job storage and encrypted secure print
  • USB Port for ‘Scan to’ USB memory stick
  • Energy Star compliant

Image of a OKI MC861 A3 Colour Multifunction Printer Front On Image of a OKI MC861 A3 Colour Multifunction Printer Image of a OKI MC861 A3 Colour Multifunction Printer Top Image of a OKI MC861 A3 Colour Multifunction Printer Image of a OKI MC861 A3 Colour Multifunction Printer with 2nd Tray and Tall Cabinet Image of a OKI MC861 A3 Colour Multifunction Printer with 2nd and 3rd Trays and Short Cabinet

OKI MC861 Multifunction Printer Models
Model Number Description Price*
01318201 OKI MC861dn Printer (Duplex, Networked) £1979.00
01318202 OKI MC861cdtn Printer (Tall Cabinet, Duplex, 2nd Tray, Networked) £2269.00
01318203 OKI MC861cdxn Printer (Short Cabinet, Duplex, 2nd and 3rd Trays, Networked) £2349.00


OKI MC861 Multifunction Printer Accessories
Part Number Accessory Description Price*
01182902 512MB RAM Enables easy printing in graphic intensive applications and handling of print jobs from many users £202.72
44020403 2nd Tray + Tall Cabinet Integrated 530-sheet 2nd paper tray and tall cabinet £342.00
44020503 2nd/3rd Tray + Short Cabinet Integrated 1060-sheet 2nd/3rd paper tray and short cabinet £499.00


OKI MC861 Multifunction Printer Consumables
Part Number Description Size Price*
44059253 OKI MC861 Yellow Toner Cartridge 10,000 pages £104.00
44059254 OKI MC861 Magenta Toner Cartridge 10,000 pages £104.00
44059255 OKI MC861 Cyan Toner Cartridge 10,000 pages £104.00
44059256 OKI MC861 Black Toner Cartridge 9,500 pages £44.00
44064009 OKI MC861 Yellow Image Drum 20,000 pages £72.00
44064010 OKI MC861 Magenta Image Drum 20,000 pages £72.00
44064011 OKI MC861 Cyan Image Drum 20,000 pages £72.00
44064012 OKI MC861 Black Image Drum 20,000 pages £72.00
43449705 OKI MC861 Transfer Belt 80,000 pages £69.00
43529405 OKI MC861 Fuser Unit 100,000 pages £72.00

*Please note that all prices shown are exclusive of VAT

OKI MC861 Printer Full Specification
PRINTER Print speed A4: 26ppm colour, 34ppm mono; A3: 15ppm colour, 17ppm mono
  Time to first print 10 seconds colour, 9.5 seconds mono
  Warm up time 90 seconds or less from power on
  Processor speed PowerPC 750 500MHz
INTERFACE AND SOFTWARE Connectivity Hi-Speed USB, 10/100-TX Ethernet, Parallel Port
  Printer languages PCL5c, PCL62; PostScript (Windows/Mac)
  Network & protocols 10Base-T/100Base-TX Ethernet Card with internal Web Server for printer and network card set-up and management. Includes POP3/APOP and SMTP Mail client for submission of print jobs and for alerts. All major network protocols supported - TCP/IP:- ARP, RARP, IPv4/v6, ICMPv4/v6, TCP, UDP, LPR, FTP, TELNET, HTTP(IPP), BOOTP, DHCP, SNMPv1/v3, DNS, DDNS, UPnP, Bonjour, WINS, SSL/TLS, SMTP, POP3, SNTP, WSDPrint, JetDirect protocols, NetBIOSoverTCP, Kerberos. NetWare 3.x, 4.x, 5.x & 6 with full NDS and NDPS support:- PServer, RPrinter, NDPS supported via dedicated OKI NDPS Gateway. Ethertalk:- ELAP, AARP, DDP, AEP, NBP, ZIP, RTMP, ATP, PAP. NetBEUI:- SMB, NetBIOS. Other:- EAP.
  OS Compatibility1 Windows 2000 / XP (32-bit & 64-bit) / Server 2003 (32-bit & 64-bit) / Server 2008 (32-bit & 64-bit) / Server 2008 R2 / Vista (32-bit & 64-bit) / 7 (32-bit & 64-bit); Mac OS X 10.3.9 or greater
  Advanced networking
& security
IPv6, 802.1x authentication, IPSec, SNMPv3, SSL3/TLS HTTPS encryption, Secure Erase, Data Encryption, MAC filtering, IP filtering, Secure Print
  Utility suite1 Color Correct, OKI LPR2, PrintSuperVision.net2, Swatch Utility, Template Manager2, Web Driver Installer2, WebPrint2, Print Control Server2, Print Control Client, Print Control Report Tool2, Storage Device Manager2, Gamma Utility, Profile Assistant, PDF Direct Utility2, Configuration Tool2, ActKey2
  Document Management Nuance PaperPort SEv112, Nuance OmniPage SEv162
PAPER HANDLING Paper capacity Tray 1: 300 sheets of 80gsm;
Multi-purpose tray: 100 sheets of 80gsm;
RADF: 50 sheets of 80gsm
  Paper capacity optional
2nd tray + tall cabinet
530 sheets of 80gsm (standard on MC861cdtn)
  Paper capacity optional
2nd/3rd tray + short cabinet
1060 sheets of 80gsm (standard on MC861cdxn)
  Maximum paper capacity MC861dn: 400 sheets of 80gsm; MC861cdtn: 930 sheets of 80gsm; MC861cdxn: 1,460 sheets of 80gsm
  Paper sizes Tray 1: A3, B4, A4, A5, B5, A6; Tray 2/3: A3, B4, A4, A5, B5; Multi-purpose tray: A3, B4, A4, B5, A5, A6. Envelopes (Com10, DL, C4, C5), Labels (Avery 7162, 7664, 7666), Transparencies. Support Custom size: Width 64-297mm Length 105-1200mm; RADF: A3, A4, A5, B4, B5; Duplex: A3, A4, A5, B4, B5. Supports custom size: Width 148.5-297mm Length: 182-431.8mm
  Paper weight Tray 1: 64 to 120gsm: Tray 2/3: 64 to 176gsm;
Multi-purpose tray: 64 to 200gsm; RADF: 42 to 128gsm;
Duplex: 64 to 105gsm;
  Duplex Standard
  Paper output 250 sheets face down, 100 sheets face up
TYPEFACES Printer fonts Scalable: 86 PCL fonts & 136 PostScript fonts, PCL Bitmap fonts, OCR-A/B, USPS ZIP Barcode
PRINT QUALITY Resolution ProQ2400 Multi-level technology, 1200 x 600dpi
  Enhancements Auto Colour Balance, Photo Enhance via Driver2
FAX Connectivity RJ11 x 2 (Line/Tel) PSTN, PBX
  Speed ITU-T G3 (Super G3) 33.6kbps
  Fast dialling 500 speed dials
  Groups 32
  Broadcast Up to 530
  Page memory 16MB (approx 1,000 pages)
GENERAL FEATURES Memory Standard RAM: 512MB (2 x 256MB);
Maximum RAM: 768MB (1 x 256MB, 1 x 512MB)
    Standard Hard Disk Drive: 40GB
  Environment Operating temperature/ humidity: 10°C to 32°C (17°C to 27°C recommended) / 20% to 80% RH (50% to 70% RH recommended)
    Storage temperature/ humidity: -10°C to 43°C /10% to 90% RH
  Power supply Single phase 220–240VAC, frequency 50/60Hz +/- 2%
  Power consumption Typical: 700W; Max: 1300W; Idle: 160W; Power Save: <25W
  Noise level Operating: 54dB(A) or less; Standby: 37dB(A) or less; Power save: Background level
  Dimensions (HxWxD) MC861dn: 669 x 565 x 658mm;
MC861cdtn: 1130 x 845 x 766mm;
MC861cdxn: 1130 x 845 x 766mm
  Weight3 MC861dn: 68kg approx; MC861cdtn: 95kg approx; MC861cdxn: 100kg approx
  Duty cycle Maximum: 75,000 pages/month;
Average: 10,000 pages per month
  Warranty 3 years extended warranty upon registration within 30 days of purchase
  Product order numbers MC861dn: 01318201; MC861cdtn: 01318202; MC861cdxn: 01318203
SCANNER Resolution 600 x 600dpi
  Speed Up to 34spm
  Colour depth Output 24 bit (8 bit x 3 RGB)
  Document input Up to 50 sheet RADF
  Contrast 7 Levels
  Address book LDAP & internal address book
  Scan to Folder (CIFS), E-Mail, FTP, HTTP, USB Memory
COPY First copy out 14.5 seconds colour, 13 seconds mono
  Speed 26cpm colour, 34cpm mono
  Resolution 600dpi
  Reduction / Enlargement 25-400 %
  Maximum copies 999
OPERATOR PANEL LCD Touch-screen 14.5cm back-lit
  Key pad 12 numeric, 4 main function buttons, Color & Mono Start, Setup, Job Programs, Reports, Reset, Help, Power Save, Interrupt Key, Fax Job View/Cancel & Stop Key
2nd tray + tall cabinet 44020403
  2nd/3rd tray + short cabinet 44020503
  Memory 512MB: 01182902
Toner cartridges*
(10,000 pages)
Cyan: 44059255; Magenta: 44059254; Yellow: 44059253
  Toner cartridge*
(9,500 pages)
Black: 44059256
  Image drum**
(20,000 pages)
Cyan: 44064011; Magenta: 44064010; Yellow: 44064009; Black: 44064012
  Transfer Belt
(80,000 pages)
  Fuser Unit
(100,000 pages)

* Toner: Number of A4 pages @ ISO/IEC 19798 coverage. Printer shipped with toner for 2,000 A4 pages. **Drum: Average number of A4 pages printed.

1Check local OKI website for latest driver releases and OS compatibility; 2Windows only; 3Including all consumables.
