Zebra P4T and RP4T Printer

The world’s first mobile RFID printer

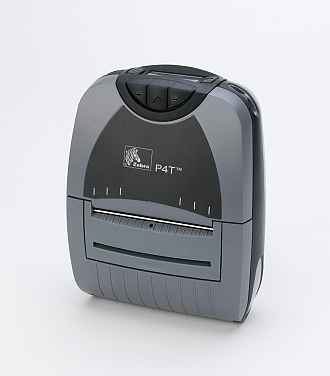

Image of a Zebra P4T Mobile Printer

Zebra’s P4T/RP4T is the first-ever mobile thermal-transfer printer with optional UHF RFID printing and encoding capability. The easy-to-carry P4T/RP4T printer enables users to print bar code labels and receipts where and when required on long-lasting and high-endurance thermal-transfer media – resulting in enhanced data and asset-tracking accuracy and improved workforce efficiency.

Thermal-transfer longevity

When paired with tested genuine Zebra thermal-transfer supplies, the P4T/RP4T printer produces 2- to 4-inch-wide labels or receipts that withstand harsh environments and offer archival longevity ranging from 18 months to more than 10 years.

UHF RFID capability

With the option to add the RFID capability, the P4T/RP4T printer is ideally suited to point-of-application UHF EPC Gen 2 smart-labelling applications for compliance or business improvement now – or in the future.

Advanced technology for ease of use and productivity

  • Advanced wireless: Bluetooth® 2.0, secure 802.11b/g
  • Serial/USB available as standard
  • Smart operation – intelligent battery monitoring and auto-adjusting ribbon cartridge
  • Rugged for outdoor use – IP14 dust and water-resistance rating; IP54 dust- and water resistance with optional soft case
  • Fast, easy media and ribbon loading
  • Comfortable to wear and hold
  • Easy to operate
  • Large LCD screen for operator interaction and real-time status reporting

Ideal for:

Manufacturing and warehousing

  • Receiving – inventory labelling
  • Shipping – picking labels
  • Work-in-process labelling
  • Lifetime product tracking

Transportation and logistics

  • Shipping labels for large items
  • Cross-docking
  • Container labelling

Healthcare

  • Blood-bag labels that meet ISBT-128 standards
  • Specimen labels

Retail

  • Outdoor sales item labelling
  • Cold-store bulk item labelling

Mobile-workforce applications

  • Label attachment at remote locations (repair history)
  • Utility labelling of outside plant
  • Durable and archivable receipts
  • Asset-tagging
  • Inventory control
  • Facilities management
  • Crime evidence bar code labels

Image of a Zebra P4T Printer, labelling on blood Image of a Zebra P4T Printer display Image of a Zebra P4T Printer Image of a Zebra P4T Printer with paper Image of a Zebra P4T Printer side connections Image of a Zebra P4T Printer with ribbon Image of a Zebra P4T Printer bottom

Zebra P4T and RP4T Printer Models
Model Number Description Price*
P4D-0U10E000-00 Zebra P4T TT/DT 203dpi Printer with CPCL, Cable only (Incl Battery) £595.00
P4D-0UB0E000-00 Zebra P4T TT/DT 203dpi Printer with CPCL, Bluetooth, Battery £675.00
P4D-1U10E001-00 Zebra RP4T TT/DT RFID 203dpi Printer with CPCL, Cable only (Incl Battery) £1395.00
P4D-1UB0E001-00 Zebra RP4T TT/DT RFID 203dpi Printer with CPCL, Bluetooth (Incl Battery) £1445.00
P4D-1UG0E001-00 Zebra RP4T TT/DT RFID 203dpi Printer with CPCL, 802.11g Zebra Radio (Incl Battery) £1695.00



Alternative Models
Zebra RW220 Zebra RW420 Zebra QLn220 Zebra QLn320 Zebra QLn420
Image of a Zebra RW220 Printer Image of a Zebra Rw420 Printer Image of a Zebra QLn220 Printer Image of a Zebra QLn320 Printer Image of a Zebra QLn420 Printer
From £373.00 From £480.00 From £384.00 From £419.00 From £453.00

View All Zebra Mobile Printers
View All Zebra Printers



Zebra P4T and RP4T Printer Chargers
Part Number Description Price*
AT18737-2 UK QL/RW/P4T Series Lithium - Ion Fast Charger £57.00
AT18737-3 EU QL/RW/P4T Series Lithium - Ion Fast Charger £57.00
AC18177-1 UK QL/RW/P4T Series Lithium - Ion Battery Quad Charger (charges up to 4 QL/RW/P4T batteries) £223.80
AC18177-2 EU QL/RW/P4T Series Lithium - Ion Battery Quad Charger (charges up to 4 QL/RW/P4T batteries) £223.80
AK18913-006 UK P4T Series Lithium - Ion AC Charger £59.00
AK18913-007 EU P4T Series Lithium - Ion AC Charger £59.00
P1005317-003 P-Series Vehicle Cradle with Cigarette Lighter Adapter (10-16 VDC) £199.00
P1005317-004 P-Series Vehicle Cradle with Open Ended Cable (10-16 VDC) £199.00
AK18831-1 12-15 VDC Power supply with Cigarette Lighter Adapter (For charging outside of a cradle - also for use with Route Palette) £49.00
AK18831-2 12-15 VDC Cable open ended £89.00
AK18913-003 15-60 VDC Adaptor (for use without Vehicle Cradle on a forklift - also for use with RW 420 Print Station and Route Palette) £65.00
AK18913-015 15-60 VDC Adaptor (for use with Vehicle Cradle on a forklift - also for use with RW 420 Print Station and Route Palette) £65.00



Zebra P4T and RP4T Printer Accessories
Part Number Description Price*
AK18913-001 P4T/RP4T Battery £112.50
P4T2BB-10 P4T/RP4T Li-Ion Battery Box (10 x P4T/RP4T Li-Ion batteries) £1250.00
AK18924-1 P4T/RP4T Soft Case £60.00
AK18926-3 Fork Lift Truck MountKit (with U-Arm bracket and fanfold bin) £288.00
P1010338 P-Series RAM Mount Kit £65.00
AN16618-1 Fanfold Bin (includes media spacer and mounting hardware) £50.00
105950-035 Print Head Cleaning Pens x 12 £30.00



Zebra P4T and RP4T Printer Aftermarket
Part Number Description Price*
3006291-T Z-Select 2000T Thermal Transfer Label Media (P4T) 101.6mm x 76.2mm, box of 9 £53.91

*Please note that all prices shown are exclusive of VAT

Zebra  P4T / RP4T Mobile Printer Full Specification
Standard features 8MB flash/16MB SRAM memory
  USB 2.0 serial connection
  32-bit processor
  Thermal-transfer or direct-thermal printing modes (with auto-sensing)
  Large LCD
  Fanfold support
  OpenACCESS™ design for easy media and ribbon loading
  Tolerant of multiple drops from up to 1.52m (5') to concrete
  Sensor detects gap, black bar, media, media width, door ajar and ribbon
  Smart battery and cartridge
  Shoulder strap
Printer specifications Resolution:
   8 dots per mm/203dpi
  Memory:
  8MB flash/16MB SRAM
  Maximum print width:
  104mm/4.09"
  Print speed:
  Direct thermal 76.2mm/3" per second
  Thermal transfer 38.1mm/ 1.5" per second
Media characteristics Maximum label and liner width:
  104.78mm/4.125"
  Maximum media roll size:
  66mm/2.6" O.D. on a 19.1mm/0.75" I.D. core (non-RFID media)
  66mm/2.6" O.D. on a 34.9mm/1.375" I.D. core (RFID media)
  Media thickness:
  0.08mm to 0.216mm/3.2 mil to 8.5 mil
  Media types:
  Receipts, tags on either synthetic or paper labels
Ribbon characteristics Ribbon type:
  Resin or wax/resin
  Standard length:
  30m/98.4"
  Ratio:
  Approximately 2:1 media to roll to ribbon depending on media thickness
  Ribbon width:
  110.0mm/4.33"
Operating characteristics Environmental
  DT operating temp.: -20°C/-4°F to 50°C/122°F
  TT operating temp.: 0°C/32°F to 45°C/113°F
  Storage temp.: -30°C/-22°F to 65°C/149°F
  Operating humidity: 10% to 90% non-condensing
  Electrical
  7.4V, 4200mAh rechargeable Li-Ion smart battery
  Agency Approvals
  EMC:
  FCC Part 15 and EN 55022 Class B limits
  Radio approval for Bluetooth, 802.11b/g & RFID
  FCC, Industry Canada
  Safety:
  IEC 60950, NRTL marking for US & Canada
  EU:
  EMC, LVD, R&TTE Directives
Physical characteristics Width:
  177.8mm/7"
  Height:
  218.4mm/8.6"
  Depth:
  76.2mm/3"
  Weight:
  1.32kg/2.9lb with ribbon and battery
Options and accessories Wireless connectivity options
  Bluetooth 2.0
  802.11b/g
  RFID Option
  Supports passive EPC Class 1 Gen 2 protocol
  Fully integrated ThingMagic® UHF RFID Reader/Encoder
  RFID ZPL® commands allow ease of RFID setup with maximum flexibility
  Variable RFID read and write power settings to support a wide variety of inlays
  RFID counters keep track of good and bad labels
  Verification and voiding of inlays to prevent usage of bad labels
  Interoperable with a wide variety of Gen 2 labels and tags
  Supports extended memory features of newer Gen 2 inlays
  AC adaptor
  AC single charger
  Quad battery charger
  RAM® mounting hardware for vehicles or forklifts
  Heavy-duty forklift mount
  DC adaptor
  In-vehicle mobile charger
  Nylon soft case
  Spare battery
  Cables
  Fanfold support
ZebraLink™ Solutions Software/Networking/Firmware
  CPCL
  ZPL**
  EPL™
  XML, WML for display programming
  **ZPL required for RFID support
Bar code symbologies Linear bar codes: Codabar (NW-7), Code 39, Code 93, Code 128, EAN-8, EAN-13, FIM Postnet, Interleaved 2-of-5, MSI, Plessey, UCC/EAN128, UPC-A, UPC-E, 2 and 5 digit extensions
  Two-dimensional: Aztec Code, Data Matrix, GS1 DataBar™ (RSS), MaxiCode, PDF417, QR Code
  Bar code ratios: 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1
Fonts and graphics Character sets
  Scalable text feature
  Standard resident fonts*** can be rotated in 90° increments
  International character set support
  ***Contains UFST® from Monotype Imaging, Inc.
  Graphic features
  Supports user-defined fonts, and graphics and logos
Communication and
interface capabilities
Communication interface: USB 2.0
  Wireless: Bluetooth, short-range radio-frequency connectivity
  Profiles supported: SPP
  WLAN (802.11b/g) support for the following security protocols: Airbeam Safe VPN, EAP-TLS, EAP-TTLS, LEAP, PEAP, EAP-FAST. WPA with the protocols listed and WPA2-PSK (AES or TKIP)

* Specifications subject to change without notice.
