Zebra iMZ220 Printer

Mobile Receipt Printer

Image of Zebra iMZ220 Mobile Receipt Printer
Zebra iMZ220 Printer Models and Prices Zebra iMZ220 Media Zebra iMZ220 Specification

A choice of mobile platforms to take business where it needs to go!

Get the benefits and value associated with using today’s smartphone and tablet devices. The new iMZ™ printers now support Bluetooth® connectivity to Apple® ioS, as well as Android™, WinMobile and BlackBerry® platforms. Print Touch™ simplifies Bluetooth pairing and launches Web-based help pages with near field communication (NFC)-enabled devices to provide a trouble-free user experience. Regardless of your choice, a smartphone, tablet or handheld, Zebra‘s new iMZ220 and iMZ320 printers are there to support your 48mm and 74mm receipt-printing business needs.

In addition to supporting the most popular operating systems of today’s smartphones and tablets, the new iMZ printers’ Link-OS™ software solutions rapidly configure, monitor, and integrate Zebra printers with your system. Using Profile Manager with AirWatch connector, you can quickly connect your printer with the AirWatch device-management system via WLAN. Use your current infrastructure with one tool for management of your mobile devices.

Building on this experience, you can create printing applications for the Apple, Windows®, Android, WinCE, WinMobile and BlackBerry platforms with the Link-OS Software Development Kit (SDK). Backed by a full range of Zebra software, it has never been easier to produce crisp, clear receipts – whatever the setting.



The Zebra iMZ220 is ideal for these applications:

  • Retail: Mobile point of sale, restaurant tableside receipts
  • Mobile Workforce: Utility billing/meter-reading, field repair/installations, parking violations
  • Transport & Logistics: onboard transportation ticketing, proof of delivery, delivery-failure notices, route sales

The iMZ series: powerful Zebra printing in the palm of your hand. Entry-level mobile receipt printers for simple document printing.

Sleek, subtle sidekicks

Each small iMZ printer can be a smart assistant for any mobile receipt-printing application where quick, simple receipts are needed on demand. These unobtrusive printers can be worn comfortably for a full shift without interfering with the user’s tasks. Easy to operate, they are a great first step for users looking to replace pen-and-paper documentation, preprinted receipts, or unreliable mobile printers. Mobile workforces all over the world can benefit from the iMZ series’ compact convenience in business applications – and because it’s a Zebra, there’s no compromise on reliability.

A sidekick that won’t weigh you down

  • At 0.34kg or less, these lightweight printers can be worn a full shift without any burden or bother
  • Comfortably wear the printer via belt clip or shoulder strap for unobtrusive and convenient printing

Simple to operate

  • Single push-button media access for simple reloading
  • Intuitive LEDs indicate on/off, error, and connectivity status

Economical alternative

  • A simple, reliable and affordable printer alternative
  • Each iMZ printer comes standard with USB and Bluetooth connectivity, allowing you to communicate with mobile devices running on iOS, WinMobile, Android and BlackBerry operating systems

Palm-sized printing power

  • High-speed processor and extensive memory for printing complex barcodes, fonts and graphics
  • iMZ printers now come with an 802.11n option with dual-band support (2.4GHz – 802.11 b/g/n and 5GHz – 802.11 a/n) for those overcrowded wireless networks in retail environments where business operations need communication at the less-crowded 5GHz band
  • Secure Bluetooth 2.0, 802.11a/b/g/n (optional) or USB (client) connectivity, Wi-Fi® and Cisco® CCX V4 ASD-certified

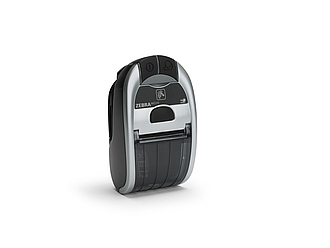

Image of a Zebra iMZ220 Printer Head-On Image of a Zebra iMZ220 Printer Head-On with Media Image of a Zebra iMZ220 Printer Left Image of a Zebra iMZ220 Printer Left with Media Image of a Zebra iMZ220 Printer Right Image of a Zebra iMZ220 Printer Right with Media Image of a Zebra iMZ220 Printer Icons Image of Zebra iMZ220 and iMZ320 Printer Group Image of Zebra iMZ220 and iMZ320 Printer GroupImage of a Zebra iMZ220 Printer USB Port



Zebra iMZ220 Printer Models
Model Number Description Price*
M2I-0UB0E020-00 Zebra iMZ220 DT 203dpi Printer with USB, Bluetooth (Incl Battery / Wall Charger [EU]) £259.00
M2I-0UB0E060-00 Zebra iMZ220 DT 203dpi Printer with USB, Bluetooth (Incl Battery / Wall Charger [UK]) £259.00
M2I-0UN0E020-00 Zebra iMZ220 DT 203dpi Printer with USB, Bluetooth, WLAN Dual Radio1 (Incl Battery / Wall Charger [EU]) £367.00
M2I-0UN0E060-00 Zebra iMZ220 DT 203dpi Printer with USB, Bluetooth, WLAN Dual Radio1 (Incl Battery / Wall Charger [UK]) £367.00

Included with each printer: Battery, 128MB Flash, 128MB DRAM, CPCL & ZPL Programming languages, Belt Clip (integrated), AC Adaptor, Roll of Media, Customer Documentation CD. Note that cables must be ordered separately.

1 Note that WLAN radio option supports Dual Radio functionality (802.11n & Bluetooth) when F/W V73.19.6Z or greater is applied



Alternative Models
Zebra ZQ110 Zebra iMZ320 Zebra RW220 Zebra RW420 Zebra P4T
Image of a Zebra ZQ110 Printer Image of a Zebra iMZ320 Printer Image of a Zebra RW220 Printer Image of a Zebra RW420 Printer Image of a Zebra P4T Printer
From £169.00 From £299.00 From £373.00 From £480.00 From £595.00

View All Zebra Mobile Printers
View All Zebra Printers



Zebra iMZ220 Printer Accessories
Type Part Number Description Price*
Chargers AK18342-5 MZ Series 4 Bay Charging Station - EU Adapter £181.00
  AK18342-6 MZ Series 4 Bay Charging Station - UK Adapter £181.00
  P1051289 MZ Series Single Bay Charging Cradle (uses printer Adapter or order AK18355-5/6) £30.00
  AK18355-5 AC Power Supply - EU Adapter £19.40
  AK18355-6 AC Power Supply - UK Adapter £19.40
  AK18355-8 AC Power Supply - IL Adapter £19.40
  AK18356-2 MZ Series Cigarette Lighter Adapter (8-18 VDC) £18.30
Other AK18353-1 iMZ Series Spare Battery £50.00
  MZ2BB-10 Li-Ion Battery Box (10 x iMZ Series Li-Ion Batteries) £500.00
  AK18372-1 iMZ Series Shoulder Strap £7.00
  AK18354-1 iMZ220 Protective Skin (Includes Shoulder Strap) £15.90
  AK18851-1 iMZ220 Protective Case with Belt Strap (not compatible with a Shoulder Strap) £27.50
  AT17010-1 USB-A to USB Mini-B Cable £14.00
Kits RK18403-001 MZ220/iMZ220 Platen & Media Cover Kit (x5) £40.00
  105950-035 Print Head Cleaning Pens x 12 £30.00



Zebra iMZ220 Printer Media
Part Number Description Price*
3006129 Z-Perform 1000D 80Micron 50mm x 14.6Mtr Continuous Paper Mobile Printer Receipts, Box of 30 £39.00
3006130 Z-Perform 1000D 60Micron 50mm x 20.3Mtr Continuous Paper Mobile Printer Receipts, Box of 30 £49.00

*Please note that all prices shown are exclusive of VAT



Zebra iMZ220 Printer Full Specification
Standard Features Direct-thermal printing of barcodes, text and graphics
  203dpi resolution (8 dots/mm)
  Print speed: up to 102mm/s (4 ips)
  CPCL and ZPL™ programming languages
  Resident fixed and scalable fonts
  400MHz 32-bit ARM® processor with 128MB RAM
  128MB flash supports downloadable programs, receipt formats, fonts, and graphics
  USB port
  1.6Ahr Li-Ion battery
  Built-in battery charger
  Optical out-of-media sensing using fixed centre-position sensor
  Tear bar for easy receipt dispensing
  Supports vertical and horizontal printing
  Printer can be used in any orientation
  Fixed media-roll width
  “Clamshell” design for easy media loading
  Management: Mirror, SNMP, Web server (with customisable HTML pages), Wavelink Avalanche® [Future firmware update]
  Four LEDs as user interface indicators
  1.2m (4') drop to concrete (multiple times)
  Label odometer
  Bluetooth 2.1
  Security modes 1–4
  Bluetooth printing from Apple devices (iOS5, iOS6)
  IP42-rated for dust- and water-resistance (IP54 with durability-enhacing case)
  Print Touch via NFC
Printer Specifications Resolution: 203dpi/8 dots per mm
  Memory: 128MB RAM; 128MB flash
  Print Width: 48.3mm/1.9"
  Print Length: Max: Continuous
  Print Speed: Up to 102mm/4" per second
Physical Characteristics Width: 80.77mm/3.18"
  Height: 135.6mm/5.34"
  Depth: 57.4mm/2.26"
  Weight: 0.32kg/0.70lb with battery
  For applications that require more content to be printed, opt for the 73.7mm print-width iMZ320 printer
Operating Characteristics Environment
  Operating temperature: -10ºC/14ºF to 50ºC/122ºF
  Storage environment: -20ºC/-4ºF to 60ºC/140ºF
  Operating humidity 10–90% non-condensing
  Agency Approvals
  FCC Part 15 and EN 55022 Class B limits; FCC, IC, and European Standards for Bluetooth and 802.11a/b/g/n; TÜV and IEC 60950 standard for Safety; NOM, C-Tick, VCCI, S-Mark, PSE, CCC, MII Bluetooth SIG-registered, CCX and Wi-Fi-certified
Communication and Interface Capabilities ZebraNet™ 802.11a/b/g/n radio with support for:
  – WEP, TKIP and AES encryption (802.1x )
  – EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP
  – 802.11i (WPA2), 802.11d, 802.11h
  – 802.11n (optional): Wi-Fi (802.11n)-certified, Cisco CCX v4 ASD-certified
  USB 2.0
  Bluetooth 2.1 (includes Bluetooth support for iOS devices)
  Windows compatibility: (CE .NET, Pocket PC, Windows Mobile 2002, Windows Mobile 2003 SE, Windows XP, 2000 and NT via Zebra Windows printer driver and/or our Mobile SDK controls and other applications)
  Android 2.3, 4.0, 4.1
  iOS 6, iOS 5
  Dual radio 802.11a/b/g/n & Bluetooth 3.0 radio (Coming soon)
Media Characteristics Max. roll size: 47.8mm/1.88" O.D. on a 10.2mm/0.4" to 19mm/0.75" I.D. core
  Max. media width: 50.8mm (± 0.76mm)/2.0" (± 0.03")
  Thickness: 0.0508mm/2 mil to 0.1016mm/4 mil
  Media types: Direct-thermal receipt paper, or UV coated media. For optimum print quality and printer performance, use genuine Zebra supplies
Fonts/Graphics/Symbologies Fonts and Character Sets
  Standard fonts: 25 bitmapped, 1 smooth-scalable (CG Triumvirate™ Bold Condensed)
  Optional fonts: Downloadable bitmapped and scalable fonts
  International character sets/code pages supported: USA, Germany, France, Sweden, Spain, Norway, Italy, CP850, UK, (Latin 9), Chinese GB18030, BIG 5 (Traditional), Japanese and Korean supported in 16 x 16 and 24 x 24. Thai and others upon request
  Graphics Features
  Supports user-defined fonts and graphics – including custom logos
  Barcode Symbologies
  Barcode ratios: 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1
  Linear barcodes: Codabar (NW-7), Code 39, Code 93, Code 128, EAN-8, EAN-13, 2 and 5 digit add-on, Interleaved 2-of-5, UCC/EAN 128, UPC-A, UPC-E, 2 and 5 digit add-on
  Two-dimensional: Aztec Code, Data Matrix, GS1/DataBar™ (RSS) family, MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39
Options and Accessories Bluetooth 2.1 connectivity
  802.11n (a/b/g/n) connectivity
  Protective silicone skin
  Durability-enhancing case (IP54 rating when using the case)
  Shoulder strap
  iMZ series 4-bay power station
  Vehicle adaptor
  Optional Features
  Linerless printing (with silicone platen roller only) through CAG (Custom Application Group) request
  ZBI 2.x: Powerful programming language that lets printers run standalone applications, connect to peripherals, and much more
ZebraLink™ Solutions Print Touch™
  Profile Manager with AirWatch connector
  Link-OS Software Development Kit
  ZebraDesigner™ Pro
  ZebraDesigner
  ZebraNet™ Bridge Enterprise
  ZebraDesigner driver
  Zebra Setup Utility
  ZBI-Developer™
  Firmware
  iMZ printers support CPCL and ZPL programming languages. The ZPL programming language ensures full compatibility with many other Zebra printers.
Testing The iMZ series printers have been tested with industry-leading applications to verify interoperability and improve overall optimisation when with validated terminals.

* Specifications subject to change without notice.
