Zebra 105SL Printer

Thermal, On-Demand, All-Metal Barcode Printer

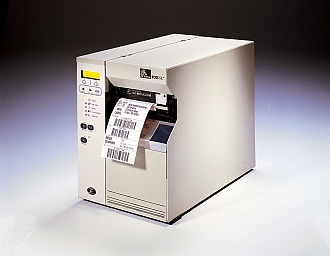

Image of a Zebra 105SL Printer
Zebra 105SL Printer Models and Prices Zebra 105SL Ribbons and Labels Zebra 105SL Specification

Serious about barcoding? Here’s the choice of experience.

The Zebra 105SL printer combines enhanced memory, processing capacity, and features with rugged and reliable all-metal construction. Proven platform longevity plus fast processing and print speed make it the choice of experienced users who value reliability, productivity, consistent print quality, network compatibility, and superior service and support

Cutting-edge network connectivity

The Zebra 105SL printer offers flexible connectivity solutions including ZebraNet® Wireless Print Server to free you to move or reconfigure the printer without costly recabling, plus ZebraNet 10/100 Print Server, which offers a complete wired solution when using 10Base-T, 100Base-TX, and fast Ethernet 10/100 auto-switching networks. And with Zebra advanced printer management, gain the efficiency and the ease of centralized monitoring and control of your Zebra printers and ZebraNet print servers.

The 105SL is ideal for moderate- to high-volume printing applications (including distributed, batch, or single format) in:

  • Manufacturing and compliance labeling
  • Logistics and inventory control
  • Product identification marking
  • Work in process

A tough steel housing, metal interior components, and an extruded metal printhead mechanism contribute to the105SL’s reliability in industrial environments.

Image of a Zebra 105SL Metal Barcode Printer Image of a Zebra 105SL Metal Barcode Printer and boxes

Zebra 105SL Printer Models
Model Number Description Price*
10500-200E-0000 Zebra 105SL Printer TT/DT 203dpi with ZPLII, RS232 Serial, Parallel £1076.50
10500-200E-0070 Zebra 105SL Printer TT/DT 203dpi with ZPLII, Int ZebraNet 10/100 PrintServer £1177.50
10500-200E-0500 Zebra 105SL Printer TT/DT 203dpi with ZPLII, Wireless PrintServer Plus (without wireless card) £1217.90
10500-200E-3000 Zebra 105SL Printer TT/DT 203dpi with ZPLII, Label Peel-Off (Full roll internal rewind of label liner) £1219.25
10500-200E-2000 Zebra 105SL Printer TT/DT 203dpi with ZPLII, RS232 Serial, Parallel, Full Rewind/Peel £1269.50
10500-200E-3071 Zebra 105SL Printer TT/DT 203dpi with ZPLII, Label Peel-Off, Liner Rewind, Int ZebraNet 10/100 PrintServer, Reflective (Black Mark) Media Sensor £1364.40
10500-200E-1070 Zebra 105SL Printer TT/DT 203dpi with ZPLII, Cutter, Int ZebraNet 10/100 PrintServer £1528.20
10500-300E-0000 Zebra 105SL Printer TT/DT 300dpi with ZPLII, RS232 Serial, Parallel £1339.75
10500-300E-0001 Zebra 105SL Printer TT/DT 300dpi with ZPLII, Reflective (Black Mark) Media Sensor £1391.20
10500-300E-0070 Zebra 105SL Printer TT/DT 300dpi with ZPLII, Int ZebraNet 10/100 PrintServer £1433.75
10500-300E-2000 Zebra 105SL Printer TT/DT 300dpi with ZPLII, Full Rewind, Peel £1553.00
10500-300E-2070 Zebra 105SL Printer TT/DT 300dpi with ZPLII, Full Rewind, Peel, Int ZebraNet 10/100 PrintServer £1631.65
10500-300E-1071 Zebra 105SL Printer TT/DT 300dpi with ZPLII, Cutter, Int ZebraNet 10/100 PrintServer, Reflective (Black Mark) Media Sensor £1836.95



Zebra 105SL Printer Options
Part Number Description Price*
120182G-001 KDU Plus (Keyboard Display Unit) ** £154.00
G33180 Peel Option Field Install Kit (Full Roll Internal Rewind of Label Liner) (Not Compatible with Cutter Option) £252.00
G33181 Rewind Option Field Install Kit (Full Roll Internal Rewind of Printed Labels) (Not Compatible with Cutter Option) £380.00
G48459 Cutter Catch Tray £96.00
G40457 Internal Fan-Fold Supply Bin (Not Compatible with Rewind or Peel Option) £143.00
G47480 Internal ZebraNet 10/100 PrintServer3 £212.00
P1031031 External ZebraNet 10/100 PrintServer v2 £139.00
29651-003M ZebraNet Wireless Plus PrintServer(does not include wireless card)3 £338.00
G48924 Twinax Interface £874.00
G48925 Coax Interface £874.00
G38226M Reflective (Black Mark) Media Sensor £62.00
G33114M Optional RS422/RS485 Adapter £41.00



Zebra 105SL Printer Aftermarket
Part Number Description Price*
G32432-1M 105SL 203dpi (8 dot) Print Head £265.00
G32433M 105SL 300dpi (12 dot) Print Head £329.00
48766-001 ZBI 2 Programming Language Licence (1 Printer) £66.00
44902 Print Head cleaning film, 106mm wide, pack of 3 (reduces residue build up) £10.00
45311PM 105SL Packing detail £69.17



Zebra 105SL Printer Supplies
Part Number Description Price*
  Ribbons
02300BK11045 2300 Economy Wax 110mm x 450M, box of 12 £90.65
02100BK11045 2100 Special Wax 110mm x 450M, box of 12 £107.72
03200BK11045 3200 Premium wax/resin 110mm x 450M, box of 6 £93.65
  Labels
76180 Z-Perform 1000T Economy paper Label 102mm x 152mm, box of 4 £38.85
76059 Z-Select 2000T Premium paper Label 102mm x 64mm, box of 4 £55.60
76060 Z-Select 2000T Premium paper Label 102mm x 152mm, box of 4 £55.60

*Please note that all prices shown are exclusive of VAT

Zebra 105SL Printer Full Specification
Standard Features Print methods: Thermal transfer or direct thermal
  Construction: 12-gauge steel frame with metal • interior components
  Thin-film printhead with E3® Printhead Energy Control
  Fast 32-bit processors
  Real-time clock
  Selectable print speeds up to 203mm (8")  per second
  ZebraLink™ connectivity
  Transmissive media sensor
  Standard 2-line, 16-character LCD control panel
  ZPL II ® – universal language for Zebra printers
Operating Characteristics Environment
  Operating Temperature: 5°C (41°F) to 40°C (104° F)
  Storage/Transport Environment: -40°C (-40°F) to 60°C (140°F)
  Operating Humidity: 20 to 85% non-condensing
  Storage Humidity: 5 to 85% non-condensing
  Electrical
  Universal power supply with power-factor correction 90-264VAC; 48-63Hz
  Communication Interface Capabilities
  Centronics ® RS-232, RS-422** and RS-485** serial ports; IEEE 1284 bi-directional parallel port
   **May require optional adaptor
  Agency Approvals
  UL 1950; CISPR 22 (Class B); CSA 950; IEC 950; 801-2, -3 and -4 standards; Canadian Doc. (Class A); FCC (Class A); CE compliance
Media Characteristics Labels
  Max. Roll Size: 203mm (8") O.D. on a 76mm (3") I.D. core
  Thickness (label & liner): 0.076mm (0.003") to 0.305mm (0.012")
  Width (label & liner): 20mm (0.79") to 115mm (4.52")
  Media Types: Roll-feed, die-cut, continuous, fanfold, tags, tickets
  For optimum print quality and print engine performance, use Genuine Zebra® Supplies.
  Ribbons
  Ribbon is recommended to be at least as wide as media.
  Max. Roll Size: 81.3mm (3.2") O.D. on a 25.4mm (1") I.D. core
  Ribbon Width: 20mm (0.79") to 114mm (4.5")
  Standard Lengths: 300m (984’) to 450m (1,476’) capacity; provides 2:1 and 3:1 media-roll-to-ribbon ratios
  Ribbon Setup: Ribbon wound ink-side out
Fonts/Graphics/Symbologies Fonts and Character Sets
  Standard Fonts: 7 bitmapped, 1 smooth-scalable (CG Triumvirate™ Bold Condensed)
  Contains UFST® from Agfa Monotype Corporation
  Pre-loaded Unicode™-compliant scalable fonts for EMEA character sets
  Sets: IBM® Code Page 850 International character set
  Graphic Features
  Supports user-defined fonts and graphics, including custom logos
  ZPL II drawing commands, including boxes, circles and diagonal lines
  Bar Code Symbologies
  Linear Bar Codes: Codabar, Code 11, Code 39, Code 93, Code128 with subsets A/B/C and UCC Case Codes, EAN-8, EAN-13, Industrial 2-of-5, Interleaved 2-of-5, ISBT-128, Logmars, MSI, Plessey, Postnet, RSS, Standard 2-of-5, UPC-A, UPC-E, UPC and EAN 2 or 5 digit extensions
  2-Dimensional: Codablock, Code 49, Data Matrix, • MaxiCode, MicroPDF417, PDF417, QR Code, RSS
Options and Accessories 300dpi printhead
  PCMCIA memory slot (up to 32MB flash)
  Full-width cutter with orderable catch tray
  Internal rewind spindle
  Peel/liner rewind (for print-and-apply)
  Reflective media sensor
  Fanfold bin
  ZebraNet® 10/100 Print Server (internal or external)
  ZebraNet PrintServer II (internal or external)
  ZebraNet Wireless Plus Print Server
  Twinax and coax interfaces (internal)
  European and Asian font sets
ZebraLink Solutions Software
  ZebraDesigner™ Pro
  ZebraNet™ Bridge Enterprise
  ZebraNet Utilities v 7.0
  Zebra Universal Driver
  European and Asian font sets
  Networking
  ZebraNet 10/100 Print Server (internal or external)
  ZebraNet Wireless Plus Print Server
  ZebraNet PrintServer II (internal or external)
  Twinax and coax interfaces (internal)
  Firmware
  ZPL II – Universal language for Zebra printers. Simplifies label formatting and enables format compatibility with other Zebra printers
  Web View – Enables you to connect and control your bar code printer’s Web interface using a common Web browser
  Alert – Printers equipped with ZebraNet print servers will notify you via any e-mail-enabled wired or wireless device to minimise downtime
  Technical Specification
  Maximum Print Area
  Width: 104mm (4.09")
  Length with 203dpi: 2,692mm (106") (with standard memory)
  Length with 300dpi (optional): 1,651mm (65") (with standard memory)
  Resolution
  8 dots per mm (203dpi) (standard)
  12 dots per mm (300dpi) (optional)
  Maximum Print Speed
  203mm (8") per second (203/300dpi)
  Memory
  Standard: 6MB DRAM
  4MB flash
  Optional: 32MB flash (PCMCIA card)
  Physical Characteristics
  Width: 283mm (11.2")
  Depth: 459mm (19.5")
  Height: 394mm (15.5")
  Weight: 25kg (55lb)

* Specifications subject to change without notice.
