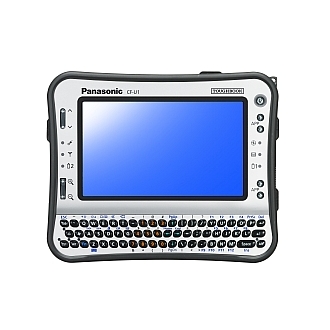

Used Panasonic Toughbook CF-U1 Mk1
Fully Rugged Ultra Mobile PC
| CF-U1 Mk1 Models and Prices | CF-U1 Accessories | CF-U1 Mk1 Specification |
As the world's first ruggedised ultra mobile PC, the Toughbook CF-U1 combines maximum functionality and connectivity in a compact size with extreme durability. At 1060 grams, the unit can withstand falls as high as 120 cm, and is IP54 compliant for dust and moisture resistance.
Data can be input through either the keyboard, or with a pen or finger on the 5.6-inch touchscreen which is viewable even in direct sunlight. With the WSVGA resolution (1024 x 600), 1GB of memory, 16GB solid-state hard drive (optional 32GB) and energy efficient 1.33GHz Intel® Atom CPU the CF-U1 can run under constant use for up to 9 hours.
A full-function operating system (Windows® XP or Windows Vista®) makes the CF-U1 the better high-performance alternative compared to conventional handhelds, while standard WLAN and Bluetooth delivers the latest wireless technologies. And the optional integrated HSDPA, GPS and other application-specific modules make the CF-U1 the mobile multifunctional tool for even the most demanding working conditions.
- Extremely rugged, fanless, dust and water resistant design (IP54, MIL-STD 810F)
- Genuine Windows Vista® Business or Genuine Windows® XP Professional
- Intel® Atom™ Processor
- 5.6” LCD with touchscreen (WSVGA)
- Drop resistant from a height of 120cm
- Dual hot swappable batteries providing up to 9 hours battery life
- Wireless connectivity
- Lightweight – weighing only 1.06kg
| Model Number | Description | Price* |
| CF-U1AQC9FAB | Grade A Used Panasonic Toughbook CF-U1 Mk1 English Full Keyboard with HSDPA (3G+), GPS, Camera, 2D BCR, FPR, Windows XP Pro or Windows 7 Pro. 1-Year Limited RTB Warranty | £675.00 |
All used Toughbooks are supplied with a 12-month limited RTB warranty and have been thoroughly checked and tested including the hard drive and battery to ensure that you receive a Toughbook in flawless working condition. 'Grade A' indicates light signs of use with only minor cosmetic marks on the casing and a clean unmarked screen.
| Used Panasonic Toughbook CF-C1 Mk1 | Used Panasonic Toughbook CF-19 Mk2 | Panasonic Toughpad FZ-M1 Mk3 | Getac T800 G2 | Getac ZX70 G2 |
 |
 |
 |
 |
 |
| From £199.00 | From £350.00 | From £1380.00 | From £1059.00 | From £715.00 |
View All:
Panasonic Toughbooks and Toughpads
Rugged Tablets
Getac Notebooks and Tablets
| Part Number | Description | Price* | |
| CF-VEBU11U |
 |
Panasonic Cradle with Twin Battery Charger for CF-U1 | £288.95 |
| CF-VEBU12U |
 |
Panasonic Mini Port Replicator (Smart Card/LAN/Serial) for CF-U1 | £236.25 |
| CF-VEBU13U |
|
Panasonic Mini Port Replicator (LAN/Serial) for CF-U1 | £205.70 |
| CF-LND80S-FD |
 |
Lind Car Charger (12 - 16V) for CF-U1 | £166.25 |
| CF-LND8024FD |
 |
Lind Car Charger (12 - 32V) for CF-U1 | £196.55 |
| CF-LND8024BW |
 |
Lind Car Charger Bare Wires (12 - 32 V) with Mounting Plate for CF-U1 | £221.60 |
| CF-VCBU11U |
 |
Panasonic 4-Bay Battery Charger for CF-U1 | £459.25 |
| CF-VZSU53W |
 |
Panasonic Battery Pack (1 pc) for CF-U1 | £78.50 |
| CF-AA1633AE |
 |
Panasonic AC Adaptor for CF-U1 | £50.40 |
| CF-VPF12U |
 |
Panasonic 5.6" LCD Protective Film for CF-U1 | £21.95 |
| CF-VNP003U | Panasonic Stylus Pen for CF-U1 | £7.50 | |
| CF-VNT002U |
 |
Panasonic Tether / Bungee Cable for CF-U1 | £7.50 |
*Please note all prices shown are exclusive of VAT
| CPU | Intel® Atom™ Processor Z520 (1.33GHz, 512KB L2 cache) |
| OS | Genuine Windows Vista® Business Service Pack 1 or |
| Genuine Windows® XP Professional (Downgrade) | |
| Chipset | Intel® System Controller Hub |
| RAM | 1GB DDR2 SDRAM |
| VRAM | Max. 256MB |
| HDD | 16GB (Solid State Disk, 32GB optional) |
| LCD | 5.6” (TFT) color LCD with touchscreen, 1024 x 600 pixel (WSVGA) |
| Casing | Magnesium alloy casing encased with ABS and elastomer |
| Bluetooth™ | Version 2.0 + EDR |
| WLAN | Intel® Wireless WiFi Link 5100 Series (802.11a/b/g/draft-n) |
| Sound | Monaural speaker, supporting Intel® High Definition Audio subsystem |
| Input Devices | Touchscreen LCD |
| 61-key alphanumeric keyboard with dedicated Windows® key or | |
| 29-key numeric keyboard | |
| Zoom (in/out) and scroll (up/down) buttons | |
| 4 user-defined programmable buttons | |
| LEDs | Power, 2 x charge status, radio power status, radio reception level, SSD status, Alt, Fn, Shift, Ctrl |
| Interfaces | Microphone: Mini-jack, 3.5 DIA, stereo |
| Headphone: Mini-jack, 3.5 DIA, stereo | |
| USB 2.0: 1x | |
| Expansion connector: 1x Cradle I/O | |
| DC-IN: 1x | |
| Expansion Slot | SD/SDHC Memory Card: 1x |
| Security Chip | Optional TPM (Trusted Platform Module, TCG V1.2 compliant) |
| Power | Power Consumption: Approx. 20W/max. 60W (maximum when recharging) |
| AC Adaptor: Input: 100V – 240V AC, 50Hz/60Hz, Output: 16V DC, 3.75A | |
| Battery: Li-ion (7.2V, 2900mAh), 2 x 2-cell pack, hot swappable | |
| Battery life: Approx. 9h (Mobile Mark 2005, 60cd/m2 LCD brightness) | |
| Charging time: Power off: approx. 7h, Power on: approx. 10h | |
| Software | Adobe Reader 8, PC Information Viewer, Full Screen Zoom, Keyboard Button Manager, Intel® PROSet/Wireless WiFi Connection Utility, Bluetooth™ Stack for Windows® by TOSHIBA, Wireless Switch Utility, Hotkey Settings, Battery Recalibration Utility, Infineon TPM Professional Package (only model with TPM), Setup Utility |
| Dimensions (WxHxD) | 184mm x 151mm x 57mm/7.24" x 5.94" x 2.24" (including hand strap) |
| Weight | Approx. 1.06kg/2.30lbs (including hand strap) |
| Integrated Options | 3G Mobile Broadband (HSDPA) |
| Bar Code Reader (1D or 2D) or RFID Reader | |
| GPS | |
| Camera with dual LED light | |
| Fingerprint Reader | |
| 32GB SSD | |
| Warranty | 1-year warranty covering hardware failures for systems used as designed. |
