Panasonic Toughpad FZ-Y1 Standard Model

20" 4K Business Rugged Toughpad

Image of a Panasonic Toughpad FZ-Y1
FZ-Y1 Models and Prices FZ-Y1 Accessories FZ-Y1 Specification

The Toughpad 4K FZ-Y1 Standard model with Windows 8.1 Pro Update features a 20" brilliant 4K UHD resolution display designed for broadcasters, photographers, architects and sales people. Combined with the latest 5th generation Intel® Core™ i5 vPro™ Processor and 8GB RAM, the FZ-Y1 Standard model offers laptop class performance in a portable tablet form factor.

The Standard model is also equipped with a built-in USB 3.0 port, LAN port, HDMI 2.0 INPUT port (supports 4K) and Mini DisplayPort™ which makes it a practical tool to connect to any external peripherals.

The Toughpad 4K FZ-Y1 Standard model is a business rugged, portable tablet that breaks new ground in digital viewing with 4K resolution and collaborative working with touchscreen capabilities. Thanks to its 20" 4K resolution combined with its state-of-the-art computing performance in a portable form factor, one could use it as a powerful sales weapon with the help of 4K contents like interactive 4K catalogues, interactive 4K applications, promotional 4K videos and 4K photos.

  • Intel® Core™ i5-5300U vPro™ Processor
  • Windows 8.1 Pro Update
  • Intel® HD Graphics 5500
  • 4K (3840 X 2560) Ultra high resolution, 230ppi and 15:10 aspect ratio
  • 20" IPSa capacitive touch display with up to 10 finger recognition
  • 8 GB RAM and 256 GB SSD
  • Business rugged tablet at 2.41 kg and 12.5 mm thickness
  • Built-in USB 3.0 port, SDXC card slot, headphone jack and docking connector
  • Built-in LAN port, HDMI 2.0 INPUT port (supports 4K) and Mini DisplayPort™
  • Smart Card Reader as standard
  • Optional cradle with 1x LAN, 1x HDMI (out) and 3x USB 3.0
  • Bluetooth 4.0 and WiFi for wireless connectivity
  • HD (720p) Front camera
  • 3 year warranty as standard

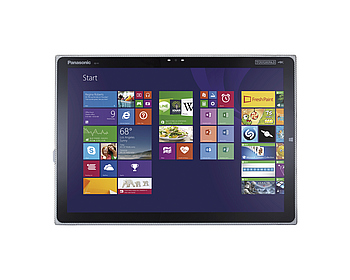

Image of a Panasonic Toughpad FZ-Y1 Front with Windows 8.1 Image of a Panasonic Toughpad FZ-Y1 Front with Windows 7 Image of a Panasonic Toughpad FZ-Y1 Front with Windows 7 Image of a Panasonic Toughpad FZ-Y1 Standard Model Left and Right Image of a Panasonic Toughpad FZ-Y1 Standard Model Top Image of a Panasonic Toughpad FZ-Y1 Standard Model Bottom



Panasonic Toughpad FZ-Y1 Standard Models
Model Number Description Price*
FZ-YCZCY103E Panasonic Toughpad FZ-Y1 Standard Model with SCR, LAN, HDMI (no Pen Option) £2670.00



Panasonic Toughpad FZ-Y1 Extended Warranties
Part Number Description Price*
UT-LESPEW5 Panasonic Toughpad Warranty Extension from 3 to 5 years £354.00
UT-LESPAD3 Panasonic Toughpad Accidental Damage - 3 years contract £389.00
UT-LESPAD5 Panasonic Toughpad Accidental Damage - 5 years (inc. warranty extension) £994.00

Leasing the Toughpad FZ-Y1 Standard model is available to organisations and typically costs from £96.99 p/m on a 3-year agreement. For more information see computer leasing.



Panasonic Toughpad FZ-Y1 Accessories
Part Number   Description Price*
CF-AA5713AE   Panasonic Spare AC Adapter for FZ-Y1 £64.39
PCPE-INF4K01 Image of an Infocase Tablet Carrying Portfolio Case for FZ-Y1 Infocase Tablet Carrying Portfolio Case for FZ-Y1 £299.39
UT-VEB5000WU Image of a Panasonic Desktop Cradle for FZ-Y1 UT-VEB5000WU Panasonic Desktop Cradle for FZ-Y1 £277.75
UT-VEB5005WU Image of a Panasonic Mounting Adapter Plate (for VESA arm) for FZ-Y1 Panasonic Mounting Adapter Plate (for VESA arm) for FZ-Y1 £85.12
UT-VPF5000U   Panasonic LCD Protective Film (Standard, Shining) for FZ-Y1 £62.00
UT-VPF5001U   Panasonic LCD Protective Film (AG) for FZ-Y1 £62.00

*Please note that all prices shown are exclusive of VAT



Panasonic Toughpad FZ-Y1 Standard Model Full Specification
Mobile Computing Platform
Intel® Core™ i5-5300U vPro™ processor
(2.3GHz, 3MB Intel® Smart Cache)
Operating System Windows 8.1 Pro Update 64-bit
RAM 8GB DDR3L SDRAM
Graphic Chip Intel® HD Graphics 5500
Front camera HD: 1280 x 720 pixels, 30 fps
Storage 256 GB Solid State Drive
LCD 4K (3840 x 2560 pixels) Ultra high resolution, 230 ppi 20" IPSa display with 15:10 aspect ratio
Touchscreen 10 finger capacitive multi-touchscreen (10 finger recognition)
Bluetooth® Version 4.0 + EDR Class 1
WLAN Intel® Dual Band Wireless-AC 7265 802.11a/b/g/n/ac
Sound WAVE and MIDI playback, Intel® High Definition Audio subsystem support, Monaural speaker
Interface USB 3.0: x1 (with CHARGE function)
  LAN Connector: x1 (Gigabit)
  HDMI 2.0 INPUT: x1 (supports 4K)
  Mini DisplayPort™: x1
  Headphone jack: x1
  Port Replicator connector: x1 (24 Pin)
  Smartcard Reader: x1
Expansion slots SDXC Memory card slot: x1 (max 64 GB)
Power AC Adapter: Input: 100 V - 240 V AC, 50 Hz/60 Hz, Output: 15.6 V DC, 7.05A
  Battery: Built-in Li-ion 11.1V, 4770mAh (typ.), 4590mAh (min.)
  Battery operating Time: Approx. 3.0 hours (MobileMark™ 2007, 60cd/m²)
  Battery charging Time: Power on - Approx. 4 hours, Power off - Approx. 2.5 hours
Security Features TPM (Trusted Platform Module, TCG V1.2 compliant), Integrated hardware security lock hole, Password security (supervisor password, user password, HDD lock)
Sensor Ambient light sensor, Magnetic Sensor, Gyro sensor, Acceleration sensor
Physical Dimensions (W x D x H) 475 mm x 334 mm x 12.5 mm {18.7"x13.1"x0.49"}
Weight Approx. 2.41 kg {Approx. 5.31 lbs}
Testing Standards Gravity drop resistance test: 76cm (bottom/operating)**, 30cm (26 angles/nonoperating)**
Accessories Carry bag: PCPE-INF4K01
  Desktop Cradle: UT-VEB5000WU
  Mounting adapter plate (VESA compatible)*: UT-VEB5005WU*
  LCD protection film (Shining): UT-VPF5000U
  LCD protection film (Matt /Anti Glare): UT-VPF5001U
  AC Adapter: CF-AA5713AE/G/T
  LCD cleaning towel: CF-VNC001W

* Works only together with Dektop Cradle (UT-VEB5000WU)
** Tested at Panasonic factory and does not guarantee against damage or malfunction
