Panasonic Toughpad FZ-M1 Value Mk2

Pocket Size, Fanless, Fully Rugged Windows 10 Pro Tablet with 7" Outdoor Display

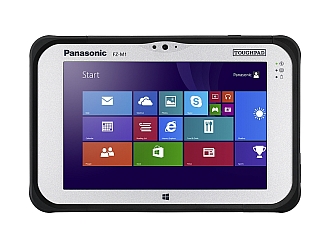

Image of a Panasonic Toughpad FZ-M1
FZ-M1 Value Mk2 Models and Prices FZ-M1 Accessories FZ-M1 Value Mk2 Specification

Ideal for industry sectors using light applications and looking to replace their ageing business PDAs, the FZ-M1 Value version with its energy efficient and mobility-designed Intel Atom processor is an affordable and flexible mobile solution. With its capacitive, 10-finger multi-touch display and flexible configurable ports this Windows 10 Pro device can be used in the field whilst benefitting from connectivity options to ensure data is always available when needed. The flexible configuration ports gives business users the legacy port options they require in a compact, fully rugged and lightweight form factor.

The Toughpad FZ-M1 shares its DNA with the Toughbook family of products from Panasonic, combining ergonomic and durable design that has made Toughbook the first choice for field workforces. Panasonic has created the fully rugged, highly mobile and pocket size Toughpad FZ-M1 to answer the needs of organisations that require Windows 10 Pro functionality in a durable tablet for outdoor field workers. Never before has so much flexibility and performance been packed into such a compact, durable tablet with such great outdoor viewing capability.

  • Intel® Atom™ x5-Z8550 Processor
  • Windows 10 Pro
  • Fanless design
  • Intel HD graphics
  • 7" WXGA (1280x800) outdoor display (up to 500cd/m2)
  • Capacitive 10 finger multi-touchscreen
  • 180cm shock resistant*
  • Water and dust resistant (IP65)*
  • Up to 9 hours battery life
  • Up to 20 hours battery life with high capacity battery (optional)
  • User exchangeable battery
  • Hot swap battery optional (in combination with business expansion module)
  • Flexible configuration port (LAN, 2D Barcode Reader, USB 2.0)
  • Integrated business expansion module (NFC, UHF RFID, Smartcard Reader)
  • Lightweight - weighs approx. 540g

* Tested by an independent third party lab following MIL-STD-810G and IEC 60529, Sections 13.4, 13.6.2, 14.2.5 and 14.3



Image of a Panasonic Toughpad FZ-M1 Flat Image of a Panasonic Toughpad FZ-M1 Flat Left Image of a Panasonic Toughpad FZ-M1 Flat Right Image of a Panasonic Toughpad FZ-M1 Front Image of a Panasonic Toughpad FZ-M1 Glove Touch Image of a Panasonic Toughpad FZ-M1 Glove Touch Image of a Panasonic Toughpad FZ-M1 Left Image of a Panasonic Toughpad FZ-M1 Right Image of a Panasonic Toughpad FZ-M1 Stylus Image of a Panasonic Toughpad FZ-M1 Touch

Image of a Panasonic Toughpad FZ-M1 Image of a Panasonic Toughpad FZ-M1 Image of a Panasonic Toughpad FZ-M1 Image of a Panasonic Toughpad FZ-M1 Image of a Panasonic Toughpad FZ-M1 Image of a Panasonic Toughpad FZ-M1 Image of a Panasonic Toughpad FZ-M1 Image of a Panasonic Toughpad FZ-M1 Image of a Panasonic Toughpad FZ-M1 Image of a Panasonic Toughpad FZ-M1



Panasonic Toughpad FZ-M1 Value Mk2 Models
Model Number Description Price*
FZ-M1D150YTE Panasonic Toughpad FZ-M1 Value Mk2 £965.00
FZ-M1D150CTE Panasonic Toughpad FZ-M1 Value Mk2 with 4G £1088.00
FZ-M1D153CTE Panasonic Toughpad FZ-M1 Value Mk2 with 4G, Battery Hot-Swap, Barcode Reader £1359.00



Panasonic Toughpad FZ-M1 Value Mk2 Options
Option   Price*
256GB SSD   £148.00
4G Selectable port 1 - only 1 can be selected £139.00
GPS Selectable port 1 - only 1 can be selected £117.00
Dual Pass-Through   £44.00
Battery Hotswap   £47.00
2nd USB   £53.00
MSR   £109.00
Smart Card Reader Selectable port 2 - only 1 can be selected £58.00
NFC Selectable port 2 - only 1 can be selected £70.00
2D BCR With Battery Hotswap - Selectable port 3 - only 1 can be selected £305.00
Serial Port With Battery Hotswap - Selectable port 3 - only 1 can be selected £127.00
LAN With Battery Hotswap - Selectable port 3 - only 1 can be selected £96.00
UHF RFID Can not be selected with another Selectable port 2 or 3 option £342.00



Panasonic Toughpad FZ-M1 Extended Warranties
Part Number Description Price*
FZ-LESPEW5 Panasonic Toughpad Warranty Extension from 3 to 5 years £114.00
FZ-LESPAD3 Panasonic Toughpad Accidental Damage - 3 years contract £127.00
FZ-LESPAD5 Panasonic Toughpad Accidental Damage - 5 years (inc. warranty extension) £294.00

*Please note that all prices shown are exclusive of VAT

Leasing the Toughpad FZ-M1 is available to organisations and typically costs from £33.64 p/m on a 3-year agreement. For more information see computer leasing.



Alternative Models
Panasonic Toughpad FZ-M1 Mk2 Used Panasonic Toughpad FZ-G1 Mk1 Panasonic Toughpad FZ-A2 Mk1 Panasonic Toughpad FZ-B2 Mk2 Getac Z710
Image of a Panasonic Toughpad FZ-M1 Image of a Panasonic Toughpad FZ-G1 Tablet Image of a Panasonic Toughpad FZ-A2 Tablet Image of a Panasonic Toughpad FZ-B2 Mk2 Image of a Getac Z710
From £1380.00 From £1250.00 From £905.00 From £716.00 From £668.00

View All Rugged Tablets
View All Panasonic Toughbooks
View All Getacs



Panasonic Toughpad FZ-M1 Accessories
Part Number   Description Price*
CF-AA6373AE Image of a Panasonic FZ-M1 Spare AC Adapter CF-AA6373AE Panasonic Spare AC Adapter for FZ-M1 £39.75
FZ-VZSU94W Image of a Panasonic Li-Ion Battery Pack 2-Cell for Toughpad FZ-M1 FZ-VZSU94W Panasonic Li-Ion Battery Pack (2-Cell) for FZ-M1 £98.50
FZ-VZSU95W Image of a Panasonic Li-Ion Battery Pack 4-Cell for Toughpad FZ-M1 FZ-VZSU95W Panasonic Li-Ion Battery Pack (4-Cell) for FZ-M1 £132.15
FZ-VEBM11U Image of a Panasonic Lite Desktop Port Replicator for Toughpad FZ-M1 FZ-VEBM11U Panasonic 'Lite' Desktop Cradle (USB x2, LAN) for FZ-M1 £202.75
FZ-VEBM12U Image of a Panasonic Full Desktop Port Replicator for Toughpad FZ-M1 FZ-VEBM12U Panasonic Desktop Cradle (USB x2, LAN, VGA, HDMI, Serial, Battery Charger Slot) for FZ-M1 £277.75
FZ-VCBM11U Image of a Panasonic 4-Bay Battery Charger for Toughpad FZ-M1 FZ-VCBM11U Panasonic 4-Bay Battery Charger for FZ-M1 £239.90
FZ-VNPM11U Image of a Panasonic Capacitive Stylus Pen for Toughpad FZ-M1 FZ-VNPM11U Panasonic Capacitive Stylus Pen for FZ-M1 £22.50
FZ-VPFM11U   Panasonic LCD Protective Film for FZ-M1 £42.50
FZ-WSDM11251   Panasonic 256GB SSD for FZ-M1 £319.20
FZ-VNSM12U Image of a Panasonic Shoulder Strap for Toughpad FZ-M1 FZ-VNSM12U Panasonic Shoulder Strap for FZ-M1 £61.90
FZ-VSTM11U Image of a Panasonic Hand Strap for Toughpad FZ-M1 FZ-VSTM11U Panasonic Hand Strap for FZ-M1 £18.00
FZ-VSTM12U Image of a Panasonic Rotating Hand Strap for Toughpad FZ-M1 FZ-VSTM12U Panasonic X-Hand Strap for FZ-M1 £45.95
FZ-VSTM13U   Panasonic Hand Strap with MSR Option for FZ-M1 £18.00
PCPE-INFM1SS   Infocase Shoulder Strap for FZ-M1 £52.85
CF-LND80S-FD Image of a Lind Vehicle Charger CF-LND80S-FD Lind Car Charger (12 - 16V) for FZ-M1 £107.55
CF-LND8024FD Image of a Lind Vehicle Charger CF-LND8024FD Lind Car Charger (12 - 32V) for FZ-M1 £136.85
CF-LNDMLSTD Image of a Lind MIL STD Vehicle Charger CF-LNDMLSTD Lind Mil Spec Vehicle Charger (11 - 32V) for FZ-M1 £420.00
PCPE-SYSM101   Tablet Leather Case with Screen Flap for FZ-M1 £66.00
PCPE-INFM1AO   Infocase Always-On Case for FZ-M1 £69.60
PCPE-INFM1BH   Infocase Belt Holster with Shoulder Strap for FZ-M1 £56.40
PCPE-SYSM105   Extended Battery / Soft PVC Screen Cover SSE Case for FZ-M1 £45.60
T5D-02316   Microsoft® Office® Home and Business 2016 (Word, Excel, Powerpoint, One Note, Outlook) All Languages £177.85
269-16805   Microsoft® Office® Professional 2016 (As Home and Business 2016, plus Access and Publisher) All Languages £298.65



Panasonic Toughpad FZ-M1 Mobile Docking Solutions
Part Number   Description Price*
PCPE-GJM1V01 Image of a Gamber-Johnson Standard Vehicle Dock for Toughpad FZ-M1 PCPE-GJM1V01 Gamber-Johnson Standard Vehicle Dock with Full Port Replication and RF-Pass-Through for FZ-M1 £508.00
PCPE-GJM1V02 Image of a Gamber-Johnson Standard Vehicle Dock for Toughpad FZ-M1 PCPE-GJM1V02 Gamber-Johnson Standard Vehicle Dock with Full Port Replication and No RF-Pass-Through for FZ-M1 £455.00
PCPE-GJM1V03 Image of a Gamber-Johnson Value Vehicle Dock for Toughpad FZ-M1 and FZ-B2 PCPE-GJM1V03 Gamber-Johnson Value Vehicle Dock with Reduced Port Replication and RF-Pass-Through for FZ-M1 and FZ-B2 £464.00
PCPE-GJM1V04 Image of a Gamber-Johnson Value Vehicle Dock for Toughpad FZ-M1 and FZ-B2 PCPE-GJM1V04 Gamber-Johnson Value Vehicle Dock with Reduced Port Replication and No RF-Pass-Through for FZ-M1 and FZ-B2 £412.00
PCPE-GJM1V05 Image of a Gamber-Johnson Value Vehicle Dock for Toughpad FZ-M1 and FZ-B2 PCPE-GJM1V05 Gamber-Johnson Value Vehicle Dock with No Electronics for FZ-M1 and FZ-B2 £267.00
PCPE-OCM1CD1 Image of a Gamber-Johnson Lite Vehicle Dock for Toughpad FZ-M1 and FZ-B2 PCPE-OCM1CD1 Gamber-Johnson Lite Vehicle Dock with Reduced Port Replication, without Antenna Pass-Through for Toughpad FZ-M1 and FZ-B2 £809.30
PCPE-OCM1CD3 Image of a Gamber-Johnson Lite Vehicle Dock for Toughpad FZ-M1 and FZ-B2 PCPE-OCM1CD3 Gamber-Johnson Lite Vehicle Dock with Reduced Port Replication, with Antenna Pass-Through for Toughpad FZ-M1 and FZ-B2 £804.00
PCPE-OCM1CD4 Image of a Gamber-Johnson Lite Vehicle Dock for Toughpad FZ-M1 and FZ-B2 PCPE-OCM1CD4 Gamber-Johnson Lite Vehicle Dock with Reduced Port Replication, with no Electronics for Toughpad FZ-M1 and FZ-B2 £209.50

*Please note that all prices shown are exclusive of VAT



Panasonic Toughpad FZ-M1 Value Mk2 Full Specification
Mobile Computing Platform Intel® Atom x5-Z8550 processor
1.44GHz up to 2.4GHz, 2MB Cache
Operating System Windows 10 Pro
RAM 2GB (4GB optional)
Graphic Chip Intel® HD Graphics
Camera Front: 2mpixel
Rear: 8mpixel with autofocus and LED flash
Storage 128GB eMMC
LCD 7" sunlight-viewable WXGA Active Matrix (TFT) colour LCD (up to 500cd/m² brightness)
Touchscreen 10 finger capacitive multi-touchscreen
Bluetooth® Version 4.1 + EDR Class 1
WLAN Intel® Dual Band Wireless-AC 8260
4G Mobile Broadband Optional (Gobi 5000), supports 3G
GPS Optional
NFC Optional, ISO 14443
Sound WAVE and MIDI playback, Intel® High Definition Audio subsystem support, Microphone arrays (built-in)
Interface USB 3.0: x1
  Headset: x1
  Port Replicator Connector: x1
  Dual Antenna Connector: x1 optional
Configuration Port* LAN, 2D Barcode Reader, USB 2.0
Business expansion Module* NFC, UHF RFID, Smartcard Reader
Expansion slots Micro SD/SDXC Memory Card: x1
Power AC Adapter: Input: 100V - 240V AC, 50Hz/60Hz, Output: 16V DC, 4.06A
  Battery: Lithium-Ion (7.2V, 3320mAh)
  Operating Time: 9 hours, MobileMark™ 2007, 60cd/m²
  Hot Swap Battery: Optional via business expansion module
Security Features TPM (Trusted Platform ModuleTCG V2.0 Windows 10 compliant)
Integrated hardware security lock slot
Physical Dimensions (W x D x H) 203mm x 18mm x 132mm {7.98" x 5.20" x 0.71"}
Weight Approx. 540g {Approx. 1.2lbs}
Testing Standards Water resistance test: IP-X5**
  Dust resistance test: IP-6X**
  Gravity drop resistance test: 180cm**
Accessories AC-Adapter: CF-AA6373AE/G/T
  2-Cell Battery: FZ-VZSU94W
  4-Cell Battery: FZ-VZSU95W
  4-Bay Battery Charger: FZ-VCBM11U
  Desktop Cradle: FZ-VEBM12U
  Lite Desktop Cradle: FZ-VEBM11U
  Capacitive Stylus Pen: FZ-VNPM11U

* One option exclusive possible in configuration port / business expansion module
** Tested by an independent third party lab following MIL-STD-810G and IEC 60529, Sections 13.4, 13.6.2, 14.2.5 and 14.3
