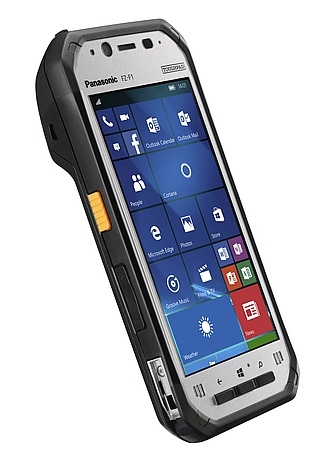

Panasonic Toughpad FZ-F1

4.7" Slim and Lightweight Handheld Tablet with Angled Rear Barcode Reader

Image of a Panasonic Toughpad FZ-F1
FZ-F1 Models and Prices FZ-F1 Accessories FZ-F1 Specification

The Toughpad FZ-F1 with Windows 10 IoT Mobile Enterprise is one of the thinnest and most lightweight handheld tablets in the 4.7" category. The device offers numerous unique features, including an angled rear barcode reader which protects users from repetitive strain and enhances productivity, and an optional passive and active pen for precise handwriting and signature capture.

This cutting-edge device has been designed for mobile workers in the postal and courier services, transportation and logistics, emergency and public safety, utilities, retail, manufacturing and defence sectors.

The FZ-F1 brings together the best of handheld, smartphone and barcode reader functionality into a single rugged and hard working tablet. Thanks to its fully-rugged design, with MIL-STD-810G certification, IP67 rating, 1.8-metre drop resistance* and the ability to withstand as many as 1,000 tumbles from a height of 1 metre, the device delivers a long life span and very low TCO. The user-replaceable and warm-swappable battery, combined with a range of accessories such as carry and mounting solutions, make it a truly mobile device.



  • Windows 10 IoT Mobile Enterprise
  • 4G LTE / 3G data and voice capability
  • Integrated 1D/2D angled rear barcode reader
  • Qualcomm® MSM8974AB 2.3 GHz Quad-core processor
  • 2 GB RAM, 16 GB storage and microSD card slot
  • 4.7" HD (1280 x 720) daylight-readable display with glove and rain mode
  • Optional passive and active pen for precise signatures
  • MIL-STD 810G certified with 1.8-metre drop* resistance
  • IP67 rated (submersible in water up to 1 metre for 30 minutes)
  • 8MP rear and 5MP front camera
  • User-replaceable battery with warm-swap function
  • NFC, Bluetooth 4.1, WiFi, micro USB port and docking connector
  • Triple microphones for superior noise suppression
  • Dual front speakers delivering in total up to 100 dBA

* Tested at Panasonic Factory



Image of a Panasonic Toughpad FZ-F1 Front Image of a Panasonic Toughpad FZ-F1 Left Image of a Panasonic Toughpad FZ-F1 Image of a Panasonic Toughpad FZ-F1 Image of a Panasonic Toughpad FZ-F1 Image of a Panasonic Toughpad FZ-F1 with Extended Battery Pack Image of a Panasonic Toughpad FZ-F1 with Extended Battery Pack Image of a Panasonic Toughpad FZ-F1 with Extended Battery Pack

Image of a Panasonic Toughpad FZ-F1 with Extended Battery Pack Image of a Panasonic Toughpad FZ-F1 with Extended Battery Pack Image of a Panasonic Toughpad FZ-F1 with Extended Battery Left Image of a Panasonic Toughpad FZ-F1 with Extended Battery Right Image of a Panasonic Toughpad FZ-F1 with Extended Battery Vertical Image of a Panasonic Toughpad FZ-F1 with Handstrap Image of a Panasonic Toughpad FZ-F1 Split Screen Image of a Panasonic Toughpad FZ-F1 Old vs New



Panasonic Toughpad FZ-F1 Models
Model Number Description Price*
FZ-F1BFCAAZE Panasonic Toughpad FZ-F1 with Barcode Reader, Warm Swap £1099.00
Options Panasonic Hand Strap £37.00



Panasonic Toughpad FZ-F1 Extended Warranties
Part Number Description Price*
FZ-LESPEW5 Panasonic Toughpad Warranty Extension from 3 to 5 years £114.00
FZ-LESPAD3 Panasonic Toughpad Accidental Damage - 3 years contract £127.00
FZ-LESPAD5 Panasonic Toughpad Accidental Damage - 5 years (inc. warranty extension) £294.00

*Please note that all prices shown are exclusive of VAT

Leasing the Toughpad FZ-F1 is available to organisations and typically costs from £34.93 p/m on a 3-year agreement. For more information see computer leasing.



Alternative Models
Panasonic Toughpad FZ-N1 Panasonic Toughpad FZ-X1 Panasonic Toughpad FZ-E1 Panasonic Toughpad FZ-M1 Mk2 Getac Z710
Image of a Panasonic Toughpad FZ-N1 Android Tablet Image of a Panasonic Toughpad FZ-X1 Android Tablet Image of a Panasonic Toughpad FZ-E1 Windows Tablet Image of a Panasonic Toughpad FZ-M1 Tablet Image of a Getac Z710
From £1049.00 From £1042.00 From £1099.00 From £1380.00 From £722.00

View All Rugged Tablets
View All Panasonic Toughbooks
View All Getacs



Panasonic Toughbook FZ-F1 Accessories
Part Number   Description Price*
CF-AA6373AE Image of a Panasonic AC Adapter CF-AA6373AE Panasonic Spare Power Supply for FZ-F1/N1 £39.75
FZ-VZSUN110U Image of a Panasonic Standard Battery Pack for Toughpads FZ-F1 and FZ-N1 Panasonic Li-Ion Standard Battery Pack 3200mAh for FZ-F1/N1 £91.25
FZ-VZSUN120U Image of a Panasonic Extended Battery Pack for Toughpads FZ-F1 and FZ-N1 Panasonic Li-Ion Extended Battery Pack 6400mAh for FZ-F1/N1 £137.25
FZ-VCBN11U Image of a Panasonic Charging Cup for Toughpads FZ-F1 and FZ-N1 Panasonic Charging Cup for FZ-F1/N1 £124.85
FZ-VEBN111E Image of a Panasonic Single Device Cradle for Toughpads FZ-F1 and FZ-N1 Panasonic Single Device Cradle inc UK AC Adapter for FZ-F1/N1 £309.40
FZ-VEBN1113 Image of a Panasonic Single Device Cradle for Toughpads FZ-F1 and FZ-N1 Panasonic Single Device Cradle inc Continental AC Adapter for FZ-F1/N1 £309.40
FZ-VEBN111D Image of a Panasonic Single Device Cradle for Toughpads FZ-F1 and FZ-N1 Panasonic Single Device Cradle inc Swiss AC Adapter for FZ-F1/N1 £309.40
FZ-VEBN121E Image of a Panasonic Four Bay Cradle for Toughpads FZ-F1 and FZ-N1 Panasonic Four Bay Cradle inc UK AC Adapter for FZ-F1/N1 £720.00
FZ-VEBN1213 Image of a Panasonic Four Bay Cradle for Toughpads FZ-F1 and FZ-N1 Panasonic Four Bay Cradle inc Continental AC Adapter for FZ-F1/N1 £720.00
FZ-VEBN121D Image of a Panasonic Four Bay Cradle for Toughpads FZ-F1 and FZ-N1 Panasonic Four Bay Cradle inc Swiss AC Adapter for FZ-F1/N1 £720.00
FZ-VSTN12U Image of a Panasonic Holster for Toughpads FZ-F1 and FZ-N1 Panasonic Holster for FZ-F1/N1 £46.10
FZ-VPFN11U   Panasonic LCD Protective Film for FZ-F1/N1 (10pcs) £126.50
CF-VNP021U Image of a Panasonic Capacitive Stylus Pen for Toughpads FZ-F1 and FZ-N1 Panasonic Thin-nib (2mm) Stylus for FZ-F1/N1 £19.00
PCPE-LDYST01   LINDY Capacitive Stylus Pen for FZ-F1/N1 £18.00
CF-LND80S-FD Image of a Lind Vehicle Charger CF-LND80S-FD Lind Car Charger (12 - 16V) for FZ-F1/N1 £95.25
CF-LND8024FD Image of a Lind Vehicle Charger CF-LND8024FD Lind Car Charger (12 - 32V) for FZ-F1/N1 £121.00
PCPE-LNDAC01 Image of a Lind AC/DC Combo Power Adapter PCPE-LNDAC01 Lind AC/DC Combo Adapter for FZ-F1/N1 £140.00
PCPE-LNDFH32 Image of a Lind Car Charger (12 - 32V) for Forklifts PCPE-LNDFH32 Lind Car Charger (12 - 32V) for Forklifts for FZ-F1/N1 £269.00
PCPE-LNDFH60 Image of a Lind Car Charger (20 - 60V) for Forklifts PCPE-LNDFH60 Lind Car Charger (20 - 60V) for Forklifts for FZ-F1/N1 £269.00
PCPE-LNDFH11 Image of a Lind Car Charger (70 - 110V) for Forklifts PCPE-LNDFH11 Lind Car Charger (70 - 110V) for Forklifts for FZ-F1/N1 £323.00

*Please note that all prices shown are exclusive of VAT



Panasonic Toughpad FZ-F1 Full Specification (Preliminary)
Mobile Computing Platform Qualcomm® MSM8974AB 2.3 GHz Quad-core processor
Operating System Windows 10 IoT Mobile Enterprise
Display 4.7" HD (1280x720 pixels), 16:9 aspect ratio
  10 point multi-touch capacitive touchscreen with glove and rain mode
  Daylight viewable (up to 500 cd/m2)
  Anti-reflective and anti-glare screen treatments
  Supports both passive pen* and active pen* as default
RAM, Storage and Expansion 2 GB RAM, 16 GB eMMC and micro SDXC card slot (max. 64 GB)
Audio 3 mics (2x Front & 1x Rear)
  2x Loud speakers (in total delivering up to 100 dBA)
Barcode Reader Angled rear barcode reader with aimer and light
  44 types of 1D/2D barcodes supported
Camera Rear: 8 MP rear camera with bright LED light (Video: 1920 x 1080 pixels (FHD) 30 fps, Still: 3264 x 2448 pixels (8MP))
  Front: 5 MP (Video: 1920 x 1080 pixels (FHD) 30 fps, Still: 2592 x 1944 pixels (5MP))
Sensors Ambient light sensor, Digital compass, Gyro sensor, Acceleration sensor
Power Battery (Standard / Extended*):
  Standard: Li-ion 3.8V, 3,200 mAh (typ.) / Extended*: Li-ion 3.8V, 6,400mAh (typ.)
  User replaceable with warm swap function
  Battery operating time (Standard / Extended*):
  Continuous data access time**: up to 8 hours (TBD) / 16 hours (TBD)
  Talk time: up to 24 hours (TBD) / 48 hours (TBD)
  Standby time: up to 700 hours (TBD) / 1400 hours (TBD)
  AC Adapter: USB charger with micro USB cable
Interfaces micro USB 2.0: x1 (For charging and data transfer)
  Docking connector: x1
  Headset jack: x1 (3.5mm)
Buttons User configurable buttons: x3 (front 'Search' button, left yellow and right yellow buttons)
  Power on/off button: x1
  Dedicated camera button: x1 (For rear or front camera)
  Volume buttons: x2
Wireless Bluetooth: v4.1 (class 1)
  WLAN: IEEE802.11 a/b/g/n/ac
  Voice & Data: LTE, HSPA+, UMTS, EDGE, GPRS, GSM
  Micro SIM slots: x2 (Dual SIM Single standby)***
  GPS: GPS / GLONASS CEP50 (±2 to 4 m)
  NFC: Yes (Type A, Type B and Felica)
Security FIPS140-2 level-1 compliant, Built-in ARM ® TrustZone®
Ruggedness Fully rugged design with sealed ports, MIL-STD-810G certified, 1.8 metre drop resistant
  2,000 drops (1,000 tumbles) each 1.0 m {3.2 ft.}
  Raised bezel for LCD impact protection
  IP67 rated (submersible in water up to 1 metre for 30 minutes)
  -10°C to +50°C operating temperature
Dimensions (WxDxH) 74 mm x 156 mm x 16.3 mm {2.91" x 6.12" x 0.64" } (without protruding parts)
Weight 277g (0.61lb.) TBD
What's inside the box FZ-F1 Handheld tablet, standard battery, USB charger with micro USB cable and operating instructions manual
Accessories Single device cradle
  Charging cup with stand
  AC adapter for charging cup with stand (60W)
  Multi device cradle (4-bay)
  AC Adaptor for multi device cradle (110W)
  Hand strap
  Holster
  Vehicle mount
  Standard battery pack (3200mAh)
  Extended battery pack (6400mAh)
  Shatterproof film
  Passive pen
  Active pen

* Optional. **Battery life measurement conditions: Wireless LAN connection enabled; continuous access to the server while browsing; swipe every 1 second; page change every 30 seconds, communication every 30 seconds. ***Dual SIM - Single Standby (at any given instance only one SIM is active and the device could be switched to the other SIM by GUI). DO NOT STARE INTO BARCODE READER'S BEAM. CLASS 2 LASER PRODUCT. Specifications and features given herein may be changed at any time without prior notice and may vary depending on the region.
