Panasonic Toughpad FZ-E1

5" Handheld Tablet with BCR*, Data & Voice

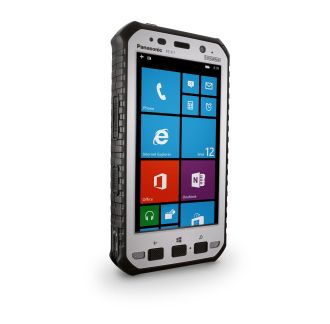

Image of a Panasonic Toughpad FZ-E1
FZ-E1 Models and Prices FZ-E1 Accessories FZ-E1 Specification

The Toughpad FZ-E1 brings together the best of handheld, smartphone and Barcode reader* functionality into a single rugged and hard working 5" tablet. It is the ideal tool for mobile workers in the transportation & logistics, postal services, MoD, emergency & public safety, utilities, retail and manufacturing sectors. Thanks to its fully-rugged design with MIL-STD-810G certification, IP68 ratings and 3 meter drop resistance, the FZ-E1 promises a long life span and very low TCO. With operating temperatures of -20°C to +60°C, glove & rain-enabled daylight-readable display and a high capacity 6200mAh battery, field workers can operate anywhere, anytime and for as long as they need.

Despite its small 5" display form factor, the FZ-E1 comes packed with the ability of a smartphone, handheld and barcode reader* in a fully rugged IP68 water & dust proof design. Its state of the art Qualcomm® 2.3 GHz quadcore processor together with 2GB RAM guarantees high performance. The user replaceable and hot swappable 6200 mAh battery comes as standard and offers an amazing 14 hours of continuous data access; 23 hours talk time or 1000 hours in standby.

  • Windows Embedded 8.1 Handheld
  • 4G LTE / 3G Data and Voice capability
  • Qualcomm® MSM8974AB 2.3 GHz Quad-core processor
  • 2 GB RAM and 32GB flash storage
  • 5" HD (1280 x 720) daylight-readable display with Glove & Rain mode
  • MIL-STD 810G certified with 3 meter drop** resistance
  • IP68 rated (Submersible in water up to 1.5 meters for 30 minutes)
  • -20°C to +60°C operating temperature
  • User replaceable high capacity battery with hot swap function
  • Up to 14 hours continous data access time; up to 23 hours talk time; up to 1000 hours standby time
  • Integrated 1D/2D Barcode reader*
  • Enterprise level security (FIPS140-2 level-1 compliant & Built-in ARM® TrustZone®)
  • 3 microphones for intelligent noise cancellation
  • Loud volume twin speakers (up to 100 dB)
  • 2 user configurable buttons (for shortcut to applications)

* Optional
** Tested at Panasonic Factory

Image of a Panasonic Toughpad FZ-E1 Front Image of a Panasonic Toughpad FZ-E1 Front Left Image of a Panasonic Toughpad FZ-E1 Front Right Image of a Panasonic Toughpad FZ-E1 Scanner Image of a Panasonic Toughpad FZ-E1 Right Image of a Panasonic Toughpad FZ-E1 Dock and Battery Image of a Panasonic Toughpad FZ-E1 and Dock Image of a Panasonic Toughpad FZ-E1 Top Down Image of a Panasonic Toughpad FZ-E1 Micro USB Image of a Panasonic Toughpad FZ-E1 Close Up Image of a Panasonic Toughpad FZ-E1 Right Closed Image of a Panasonic Toughpad FZ-E1 Right Closed Image of a Panasonic Toughpad FZ-E1 Right Open Image of a Panasonic Toughpad FZ-E1 with Strap Image of a Panasonic Toughpad FZ-E1 with Strap Image of a Panasonic Toughpad FZ-E1 Top Image of a Panasonic Toughpad FZ-E1 with Battery Image of a Panasonic Toughpad FZ-E1 Back Image of a Panasonic Toughpad FZ-E1 Bottom Image of a Panasonic Toughpad FZ-E1 Left

Panasonic Toughpad FZ-E1 Models
Model Number Description Price*
FZ-E1BFCAACE Panasonic Toughpad FZ-E1 with Bar Code Reader and Handstrap £1099.00



Panasonic Toughpad FZ-E1 Extended Warranties
Part Number Description Price*
FZ-LESPEW5 Panasonic Toughpad Warranty Extension from 3 to 5 years £114.00
FZ-LESPAD3 Panasonic Toughpad Accidental Damage - 3 years contract £127.00
FZ-LESPAD5 Panasonic Toughpad Accidental Damage - 5 years (inc. warranty extension) £294.00

*Please note that all prices shown are exclusive of VAT

Leasing the Toughpad FZ-E1 is available to organisations and typically costs from £35.91 p/m on a 3-year agreement. For more information see computer leasing.



Alternative Models
Panasonic Toughpad FZ-X1 Panasonic Toughpad FZ-F1 Panasonic Toughpad FZ-N1 Panasonic Toughpad FZ-M1 Mk2 Getac Z710
Image of a Panasonic Toughpad FZ-X1 Android Tablet Image of a Panasonic Toughpad FZ-F1 Windows Tablet Image of a Panasonic Toughpad FZ-N1 Android Tablet Image of a Panasonic Toughpad FZ-M1 Tablet Image of a Getac Z710
From £1042.00 From £1099.00 From £1049.00 From £1380.00 From £668.00

View All Rugged Tablets
View All Panasonic Toughbooks
View All Getacs



Panasonic Toughbook FZ-E1 Accessories
Part Number   Description Price*
CF-AA6373AE   Panasonic Spare Power Supply for FZ-E1 £39.75
FZ-VZSUX100J Image of a Panasonic Li-Ion Battery Pack FZ-VZSUX100J Panasonic Li-Ion Battery Pack for FZ-E1 £85.80
FZ-VCBX111E   Panasonic 4-Bay Battery Charger (inc AC Adapter) for FZ-E1 £310.50
FZ-VEBX111U Image of a Panasonic Desktop Port Replicator FZ-VEBX111U Panasonic Cradle for FZ-E1 £199.10
FZ-VEBX121E   Panasonic 4-Bay Cradle (inc AC Adapter) for FZ-E1 £572.65
FZ-VSTX111U Image of a Panasonic Holster FZ-VSTX111U Panasonic Holster for FZ-E1 £35.85
PCPE-INFX1DS Image of a Infocase Dura Strap PCPE-INFX1DS Infocase Dura Strap for FZ-E1 £37.95
PCPE-INFX1SS Image of a Infocase Shoulder Strap PCPE-INFX1SS Infocase Shoulder Strap for FZ-E1 £31.00
PCPE-SYSE101 Image of a Systemslink Two Arm Strap PCPE-SYSE101 Systemslink Two Arm Strap for FZ-E1 £36.35
FZ-VPFX11U   Panasonic LCD Protective Film for FZ-E1 (10pcs) £107.50
PCPE-LDYST01   LINDY Capacitive Stylus Pen for FZ-E1 £18.00
CF-LND80S-FD Image of a Lind Vehicle Charger CF-LND80S-FD Lind Car Charger (12 - 16V) for FZ-E1 £107.55
CF-LND80SBW Image of a Lind Vehicle Charger CF-LND80SBW Lind Car Charger (12 - 16V) with Mounting Plate for FZ-E1 £112.50
CF-LND8024FD Image of a Lind Vehicle Charger CF-LND8024FD Lind Car Charger (12 - 32V) for FZ-E1 £136.85
PCPE-LNDFH32 Image of a Lind Car Charger (12 - 32V) for Forklifts PCPE-LNDFH32 Lind Car Charger (12 - 32V) for Forklifts for FZ-E1 £269.00
PCPE-LNDFH60 Image of a Lind Car Charger (20 - 60V) for Forklifts PCPE-LNDFH60 Lind Car Charger (20 - 60V) for Forklifts for FZ-E1 £269.00
PCPE-LNDFH11 Image of a Lind Car Charger (70 - 110V) for Forklifts PCPE-LNDFH11 Lind Car Charger (70 - 110V) for Forklifts for FZ-E1 £323.00
PCPE-GJE1VM1 Image of a Gamber-Johnson Vehicle Dock PCPE-GJE1VM1 Gamber-Johnson Vehicle Dock for FZ-E1 £235.00

*Please note that all prices shown are exclusive of VAT



Panasonic Toughpad FZ-E1 Full Specification
Mobile Computing Platform Qualcomm® MSM8974AB 2.3 GHz Quad-core processor
Operating System Windows Embedded 8.1 Handheld
RAM 2 GB
Graphics Adreno 320
Display 5" HD (1280 x 720) display
  10 point multi touch capacitive touchscreen with glove and rain modes
  Daylight viewable (up to 500 cd/m2)
  Anti-reflective and anti-glare screen treatments      VA display with direct bonding
Storage 32 GB eMMC
Storage expansion micro SDXC card slot (max. 64 GB)
Audio 3 mics (2x Front & 1x Rear)
  2x Loud volume speaker (up to 100 dB)
Camera Rear: 8 MP rear camera with LED light
  Front: 1.3 MP
Sensors Ambient light sensor, digital compass, gyro and acceleration sensors
Power Battery: Li-ion 3.8V, 6200 mAh
                User replaceable with hot swap function
  Battery operating time: up to 14 hours continous data access***
                                            up to 23 hours talktime
                                            up to 1000 hours standby time
  Battery charging time: 50% charge in 1.2 hours (Quick charging)
                                           Full charge in Approx. 3.6 hours
  AC Adapter: Input: 100V-240V AC, 50Hz/60Hz, Output: 16V DC, 3.75A
Interfaces Micro USB 2.0: x1 (For charging and Data transfer)
  DC-IN: x1 (For quick charging)
  Docking connector: x1 (13 Pin)
  Headset jack: x1 (3.5mm)
Buttons User configurable buttons: x1 in the front (Search button) & x1 in the side
  Power on/off button: x1
  Dedicated camera button: x1 (For rear camera)
  Volume buttons: x2
Wireless Bluetooth: v4.0 (class 1)
  WLAN: IEEE802.11 a/b/g/n/ac
  Voice & Data: LTE, HSPA+, UMTS, EDGE, GPRS, GSM
  Micro SIM slots: x2 (Reboot required to change SIM)
  GPS: 2m CEP50 (±2 to 4m) GLONASS
  NFC: Yes (Felica Type A, Type B)
Security FIPS140-2 level-1 compliant, Built-in ARM® TrustZone®
Ruggedness Fully rugged design with sealed ports, MIL-STD-810G certified, 3 meter drop resistant
  Raised bezel for LCD impact protection
  IP68 rated (submersible in water up to 1.5 meters for 30 minutes)
  -20°C to +60°C operating temperature
Dimensions (WxDxH) 87.4 x 165 x 30.9 mm {3.4"x 6.5" x 1.2"}
Weight Without BCR: approx. 426 g {0.94 lb.}   With BCR: approx. 432 g {0.95 lb.}
What's inside the box FZ-E1 Handheld tablet, AC adapter and operating instructions manual
Options 1D/2D Barcode reader (36 types of barcode supported)
Accessories Standard AC Adaptor (60W ) CF-AA6373AE/G/T/D
  AC Adaptor for Multi Device Cradle (110W) CF-AA5713AE/G/T
  Single Device Cradle FZ-VEBX111U
  Multi Device Cradle (4-bay) FZ-VEBX121U
  Multi Battery Charger FZ-VCBX111U
  Hand Strap FZ-WSTX111
  Corner Ring FZ-WCRX111
  Holster FZ-VSTX111U
  Battery Pack (6200mAh) FZ-VZSUX100J

*** Battery life measurement conditions: Wireless LAN connection enabled; continuous access to the server while browsing; swipe every 1 second; page change every 30 seconds, communication every 30 seconds.
