Getac PS236
Fully Rugged Handheld
| Getac PS236 Models and Prices | Getac PS236 Accessories | Getac PS236 Specification |

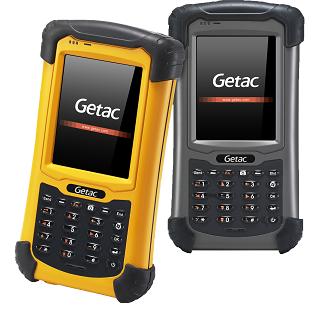

Getac PS236 is the first fully rugged handheld built to meet MIL-STD-810G with high speed HSDPA wireless networking. The built-in GPS receiver, e-compass, altimeter, and 3 megapixel auto-focus camera have been neatly integrated to develop an all-in-one solution. Featuring RS232 serial port and USB OTG, Getac PS236 provides high compatibility and flexible connectivity for various industrial applications. The embedded 4GB memory storage plus an external SDHC card slot supporting up to 16GB ensure extensive data process and storage. Two keypad options, numeric keypad and PDA keypad, are designed to meet different user needs. The PS236 further offers substantially long battery life up to 10 hours** to provide all-day power. This world’s first fully rugged handheld with comprehensive GIS functionalities is built for extreme conditions to deliver all you need, and more.
- MIL-STD-810G and IP67 Certified
- Microsoft Windows Mobile® 6.1
- 3.5G WWAN (HSDPA / WCDMA / EDGE / GPRS / GSM)
- RS232 Serial Port and USB OTG
- SDIO / SDHC Card Slot for Flexible Expansion and Storage
- Field Swappable 5600mAh Li-Ion Battery with Long Battery Life
- Embedded High Sensitivity GPS Receiver and 3 Megapixel Auto-focus Camera
| Model Number | Description | Price* |
| PS236GGDNY1461CWWE | Getac PS236 Grey with Windows Mobile 6.1 Classic, Numeric Keyboard | £1074.00 |
| PS236GGNNY1461CWWE | Getac PS236 Grey with Windows Mobile 6.1 Classic, PDA Keyboard | £1074.00 |
| PS236GYDNY1461CWWE | Getac PS236 Yellow with Windows Mobile 6.1 Classic, Numeric Keyboard | £1074.00 |
| PS236GYNNY1461CWWE | Getac PS236 Yellow with Windows Mobile 6.1 Classic, PDA Keyboard | £1074.00 |
| PS236GGDDY1461PWWE | Getac PS236 Grey with Windows Mobile 6.1 Professional, HSDPA, Numeric Keyboard | £1449.00 |
| PS236GGNDY1461PWWE | Getac PS236 Grey with Windows Mobile 6.1 Professional, HSDPA, PDA Keyboard | £1449.00 |
| PS236GYDDY1461PWWE | Getac PS236 Yellow with Windows Mobile 6.1 Professional, HSDPA, Numeric Keyboard | £1449.00 |
| PS236GYNDY1461PWWE | Getac PS236 Yellow with Windows Mobile 6.1 Professional, HSDPA, PDA Keyboard | £1449.00 |
| Part Number | Description | Price* |
| PS236-VEHCHGR | Vehicle Charger | £119.00 |
| PS236-OFFDOCK | Office Dock | £116.00 |
| PS236-CAMERA-1.0 | Camera Software for PS236 / Version 1.0 WWE | £116.50 |
| PS236-ACADPT | AC Adapter [UK/EU/US] | £41.40 |
| PS236-BATTERY | Battery | £41.40 |
| PS236-PERPCAP | Peripheral Cap | £24.17 |
| PS236-BELTCLIP | Hand Strap with Belt Clip | £6.23 |
| PS236-HANSTRP | Hand Strap | £4.14 |
| PS236-STYLUS | Stylus | £3.50 |
| PS236-USBCABL | Cable / USB Host | £2.80 |
| PS236-FILM | Protection Film | £0.18 |
*Please note that all prices shown are exclusive of VAT
| Operating System | Genuine Windows Mobile® 6.1 Professional |
| Genuine Windows Mobile® 6.1 Classic | |
| Mobile Computing Platform | Marvell PXA310 806MHz |
| Display | 3.5" TFT LCD VGA (480 x 640) |
| Transflective sunlight readable display | |
| Pressure sensitive touchscreen | |
| Storage & Memory | 128MB MDDR |
| 256MB NAND flash and 4GB iNAND | |
| Keypad | Numeric keypad or PDA keypad |
| Expansion Slots | SDIO / SDHC card slot x 1 (up to 16GB SDHC memory card) |
| I/O Interface | Serial port (9-pin; D-sub) x 1 |
| USB OTG (client 2.0 and host 1.1; 5-pin; type Mini AB) x 1 | |
| Microphone x 1 | |
| Speaker x 1 | |
| DC in Jack x 1 | |
| Docking connector (4-pin) x 1 | |
| Communication Interface | Optional 3.5G WWAN (HSDPA / WCDMA / EDGE / GPRS / GSM) |
| 802.11 b/g | |
| Bluetooth (v2.0+EDR class 2) | |
| GPS (with internal antenna) | |
| Software | Microsoft Internet Explorer Mobile® |
| Microsoft Office Mobile Applications | |
| Microsoft Office Mobile® | |
| Microsoft® Windows Media® Player 10 Mobile | |
| Microsoft ActiveSync 4.5 for data sync | |
| Power | AC adapter (50W, 100-240VAC; 50 / 60Hz) |
| Li-Ion smart battery (5600mAh) (up to 10 hours of battery life)* | |
| Dimension (W x D x H) & Weight |
89 x 30 x 178 mm (3.5" x 1.18" x 7"), 500 g (17.64 oz) without 3G module |
|
Field Service Feature |
GPS: SiRFstarIII |
| 3M pixels auto focus camera | |
| E-compass | |
| Altimeter | |
| GPS Sensor Specification | Chipset: SiRFstarIII |
| Receiver Type: L1 (C / A) | |
| Channels: 20 channels all-in-view tracking | |
| Update Rate: 1 Hz | |
| Horizontal Accuracy: | |
| i) Autonomous: 5 m / 16.4 ft | |
| ii) DGPS : 1~3 m / 3.3~9.8 ft | |
| Cold Start Time: 45 sec average | |
| Warm Start Time: 30 sec average | |
| Hot Start Time: 1 sec average | |
| Reacquisition: 0.1 sec average | |
| Rugged Features | MIL-STD-810G and IP67 certified |
| Tamper-proof plastic case | |
| Vibration & drop resistant | |
| Tumbling resistant (1,000 cycles; 0.5 m / 1.6 ft) | |
| Optional EU explosive atmosphere ATEX certified** | |
| Environmental Specification | Temperature: |
| - Operating: -30°C to 60°C / -22°F to 140°F | |
| - Storage: -40°C to 70°C / -40°F to 158°F | |
| Humidity: | |
| - 95% RH , non-condensing | |
| Alphanumeric Data Entry | Soft input panel (SIP) on screen keyboard |
| Transcriber handwriting recognition | |
| Numeric keypad or PDA keypad | |
| Security Feature | WiFi for WPA/WPA2 operation |
| Authentication: OPEN, SHARED-KEY, PEAP (MS-CHAPv2, GTC, MD5), EAP-TLS, EAP-FAST, EAP-TTLS (PAP, CHAP, MS-CHAP, MS-CHAPv2, PAP / Token Card, EAP with GTC) | |
| Encryption: WEP, AES, TKIP | |
| Regulation | CE, FCC, UL, BSMI, NCC, CCC, SRRC, JRF, VCCI, PSE, A-Tick / C-Tick |
| Inbox Accessory | Microsoft getting started disc |
| AC charger | |
| USB cable | |
| Protection film | |
| Hand strap | |
| Quick start guide | |
| Battery | |
| Stylus | |
| Stylus tether |
* Battery performance will vary with software applications, wireless settings, power management settings, LCD brightness, customized modules and environmental conditions. Battery life and charge cycles vary by use and settings.
** The ATEX SKU, PS236-Ex, is certified for use in hazardous location zone 2 and 22. Please contact Getac sales representatives.
