Quatech SPP-100 PCPE-PCM2PAR

EPP/Parallel PCMCIA Card

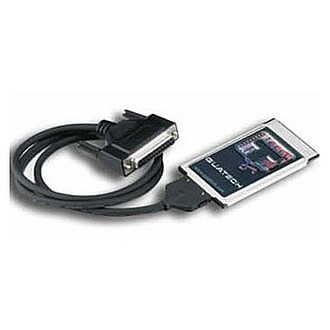

Image of a Quatech SPP-100 Parallel to PCMCIA Card

Add a High-Speed EPP Parallel Port to any PCMCIA-Enabled Laptop, Handheld or Desktop Computer

The SPP-100 fully supports the IEEE 1284 EPP standard, and functions exactly like a computer’s native parallel port. Thus, unlike the many USB to parallel converters on the market, the SPP-100 will work seamlessly with any hardware or software that requires either an EPP or standard parallel port. It is compatible with both 3.3V and 5V systems.

  • Fully supports the IEEE 1284 EPP interface standard
  • IBM PC parallel port compatible
  • Software configurable base address
  • Software configurable interrupt
  • Memory only interface supported
  • Five year warranty
  • RoHS compatible



Quatech EPP/Parallel PCMCIA Card
Model Number Description Price*
PCPE-PCM2PAR Quatech SPP-100 EPP/Parallel PCMCIA Card with DB25 Female Cable £147.00

*Please note all prices shown are exclusive of VAT

Quatech SPP-100 Full Specification
Bus Interface 16-bit PCMCIA, Release 8 and backward compliant
OS Support Windows 95/98/Me/NT/2000/XP/Vista
  Windows CE (see web for device compatibility)
  Linux (standard modes only)
  OS/2
  HP Palmtop
Data Rate 700 kbps (max)*
Ports 1 Parallel Port
Modes EPP Mode
  Standard Unidirectional Parallel Port Mode
  Standard Bidirectional Parallel Port Mode
Interrupt Levels IRQ 3-7, IRQ 9-12, IRQ 14, IRQ 15
Power Requirements 35 mA @ +5 V, 25 mA @ +3.3 V
Certifications CE, FCC Class B, RoHS and WEEE Compliant
Connector Standard DSUB-25 connector via included pigtail cable off the card as follows:
  PIN 1: STROBE
  PIN 2: D0
  PIN 3: D1
  PIN 4: D2
  PIN 5: D3
  PIN 6: D4
  PIN 7: D5
  PIN 8: D6
  PIN 9: D7
  PIN 10: ACK
  PIN 11: BUSY
  PIN 12: PERROR
  PIN 13: SELECTIN
  PIN 14: AUTOFEED
  PIN 15: NFAULT
  PIN 16: INT
  PIN 17: SELECT
  PIN 18: GND
  PIN 19: GND
  PIN 20: GND
  PIN 21: GND
  PIN 22: GND
  PIN 23: GND
  PIN 24: GND
  PIN 25: GND
* Actual baud rates can be affected by cabling and other factors
