OKI C830 N/DN/CDTN A3 Colour Printer

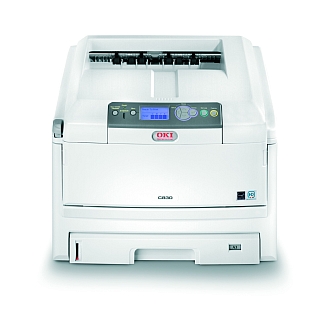

Image of OKI C830 N/DN/CDTN Printer
C830 Models and Prices C830 Consumables C830 Specification

The OKI C830’s remarkably small footprint means it is easily integrated into any office environment yet it has all the power to print professional looking A4 and A3 size documents. The OKI C830 comes with PostScript and PCL compatibility bringing platform flexibility together with an enhanced feature set which includes support for scalable intelligent barcode printing and encrypted secure print. A powerful 700Mhz processor with 256MB memory quickly set about producing even the most complex of jobs. Although small, the OKI C830 outpaces much of the competition by delivering output at a super fast 30ppm colour and 32ppm mono.

Small in size and with a low cost to own – the OKI C830 is able to deliver huge benefits to businesses that need access to fast high quality A4 and A3 colour printing. It takes up little more room than many A4 colour laser/LED printers making it easy to integrate into any environment. .

Peace of mind is provided by the OKI C830, bringing to the security conscious business user data encryption and secure erase in a compact and affordable package for Windows and Non Windows users alike. The OKI C830 gives users the ability to print full colour A3 which is ideal for business documents such as spreadsheets, posters, presentation boards, maps and project plans. A standard 400 sheet paper capacity is easily increased to a massive 1460 sheets from 4 paper sources for customers needing the flexibility of multiple paper trays.

The OKI C830 N LED printer provides network connection, with the OKI C830 DN providing both network support and Automatic Duplex printing to reduce paper costs. The OKI C830 CDTN LED Printer is supplied with a cabinet and extra paper tray, as well as network and Automatic Duplex printing supported.

  • Superb A3/A4 colour LED printer with PCL and PostScript for platform flexibility
  • Ultra compact and stylish design (HxWxD) 345x485x579mm (Smallest A3 colour laser/LED printer on the market)
  • Print Speed 30ppm colour, 32ppm mono
  • First print time 10sec colour, 9.5sec mono
  • 700Mhz processor with 256MB memory (Max 768MB)
  • Windows/Mac based host printing system
  • ProQ2400 Multi-level technology (1200 x 600dpi) with High Definition Toner
  • Flat paper path gives unrivaled media flexibility from A6 to A3 and including banners up to 1.2metre length
  • Media supported from 64 to 220gsm
  • 100 page Multi-Purpose Tray
  • 300 page Paper Tray
  • 1460 pages maximum paper capacity (with Optional Tray 2 and Tray 3 = 530 pages each)
  • 10/100BaseTX network, USB 2.0 and parallel interfaces as standard
  • High capacity toners (CMYK = 8,000 pages)
  • Easy to install and use plus OKI’s free Template Manager allows users to fully utilise the printers media capabilities
  • PCL6, PCL5c, PostScript 3, IBM PPR & Epson FX emulations
  • Extended feature set includes bar code printing and secure encrypted print
  • Optional HDD to support secure encryption print

Image of a OKI C830 Colour LED/Laser Printer Image of a OKI C830 Colour LED/Laser Printer Image of a OKI C830 Colour LED/Laser Printer Image of a OKI C830 Colour LED/Laser Printer Image of a OKI C830 Colour LED/Laser Printer Image of a OKI C830 Colour LED/Laser Printer

OKI C830 A3 Colour Printer Models
Model Number Description Price*
01235601 OKI C830n Printer (Networked) - Discontinued, Replacement model: OKI C831 £n/a
01235701 OKI C830dn Printer (Duplex, Networked) - Discontinued, Replacement model: OKI C831 £n/a
01235801 OKI C830cdtn Printer (Cabinet, 2nd Tray, Duplex, Networked) - Discontinued, Replacement model: OKI C831 £n/a



OKI C830 A3 Colour Printer Accessories
Part Number Accessory Description Price*
01182901 256MB RAM Enables easy printing in graphic intensive applications and handling of print jobs from many users £121.66
01182902 512MB RAM Enables easy printing in graphic intensive applications and handling of print jobs from many users £202.72
01207701 40GB Hard Disk Drive Enables sophisticated features such as password protected Secure Print, collate print and storage of forms, logos and fonts £202.72
44016213 2nd / 3rd Paper Tray Enables the support of 2 paper types/sizes from standard trays, more than doubling the standard paper capacity £145.96
44153703 Cabinet This free-standing cabinet can hold reams of paper (A4 and A3), spare toners and drums £202.72
43226003 Duplex unit Achieve professional double-sided printing with no loss of print speed, enabling booklet printing, reducing paper usage and saving space £202.72

*Please note that all prices shown are exclusive of VAT

OKI C830 A3 Colour Printer Consumables
Part Number Description Size Price*
09004651 OKI C830 Banner Paper 210mm x 900mm £call
09004581 OKI C830 Banner Paper 297 x 1200mm New extra long A3 banner paper media - 160gsm matt paper £call
09004618 OKI C830 Banner Paper 297mm x 900mm £call
09004450 OKI C830 Banner Paper A4 215 x 1200mm - Developed for use with OKI's colour LED printers, High quality 160gsm paper weight, Can be used easily in conjunction with OKI Printing Solutions Template Manager software, 40 sheets per box £call
44059105 OKi C830 Yellow Toner Cartridge 8,000 pages £113.79
44059106 OKI C830 Magenta Toner Cartridge 8,000 pages £113.79
44059107 OKI C830 Cyan Toner Cartridge 8,000 pages £113.79
44059108 OKI C830 Black Toner Cartridge 8,000 pages £52.52
44064009 OKi C830 Yellow Image Drum 20,000 pages £64.19
44064010 OKi C830 Magenta Image Drum 20,000 pages £64.19
44064011 OKi C830 Cyan Image Drum 20,000 pages £64.19
44064012 OKI C830 Black Image Drum 20,000 pages £64.19
43529405 OKi C830 Fuser Unit 100,000 pages £65.36
43449705 OKI C830 Transfer Belt 80,000 pages £65.36

*Please note that all prices shown are exclusive of VAT

OKI C830 A3 Colour Printer Full Specification
Speed & throughput A4 Print speed 30ppm colour, 32ppm mono
  A3 Print speed 16ppm colour, 17ppm mono
  Time to first print 10 seconds colour, 9.5 seconds mono
  Warm up time up to 90 seconds from power on and up to 75 seconds from power save
  Processor speed PowerPC750 700MHz
Print quality Resolution ProQ2400 Multi-level technology, 1200 x 600dpi
  Enhancements Auto Colour Balance, Photo Enhance via Driver (excludes Mac OS and all PostScript drivers)
Compatibility Printer languages PCL 6 (XL3.0) and PCL5c, PostScript 3 (clone), SIDM (IBM-PPR, EPSON-FX), PDF Direct Print v1.5
  Connectivity Hi-Speed USB, 10/100-TX Ethernet & IEEE 1284 Bi-directional Parallel
  OS Compatibility1 Windows 2000 / XP Home / XP Professional / XP Professional x64 / Server 2003 / Server 2003 x64 / Vista (32-bit) / Vista (64-bit) / Server 2008 / Server 2008 for x64; Mac OS X PowerPC 10.3.0 or greater / OS X Intel 10.4.4 or greater including OS X 10.5
  Advanced network and security IPv6, 802.1x authentication, SNMP V3, SSL3/TLS HTTPS encryption, Secure Print3, Secure Erase3, Data Encryption3, MAC filtering, IP filtering
  Barcode support Barcode with Checksum support
Utility Suite1   Color Correct, OKI LPR4, PrintSuperVision.net4, Swatch Utility, Template Manager 3.04, Web Driver Installer4, WebPrint4, Print Control Server4, Print Control Client, Print Control Report Tool, Storage Device Manager4, Gamma Utility, Profile Assistant3, PDF Direct Utility
Memory   Standard RAM: 256MB; Maximum RAM: 768MB;
  Hard Disk Drive 40GB (Optional)
Paper handling Paper capacity tray 1 300 sheets of 80gsm
  Paper capacity optional tray 2 530 sheets of 80gsm
  Paper capacity optional tray 3 530 sheets of 80gsm
  Paper capacity of multi-purpose tray 100 sheets of 80gsm
  Max paper capacity
(including optional paper trays)
1460 sheets of 80gsm
  Paper sizes Tray 1: A3, A4, A5, A6, B4, B5
    Tray 2/3: A3, A4, A5, B4, B5
    Multi-purpose tray: A3, A4, A5, B4, B5, A6; 10 Envelopes (Com-9, Com-10, DL, Monarch, C5); Labels (Avery 7162, 7664, 7666), Custom size (up to 1320.80mm length including banner)
    Duplex: A3, A4, A5, B4, B5; Custom size: Width 148.5-297mm Length 182-431.80mm
  Paper weight Tray 1: 64 - 120gsm, Trays 2/3: 64 - 176gsm, Multi-purpose tray: 64 to 220gsm, Auto Duplex: 64 to 105gsm
  Paper output 250 sheets face down, 100 sheets face up, 80gsm
Operating conditions Temperature/humidity 10°C to 32°C (17°C to 27°C recommended) / 20% to 80% RH (50% to 70% RH recommended)
  Storage -10°C to 43°C, 10% to 90% RH
Power requirements Power supply Single phase 220 to 240VAC, frequency 50/60Hz +/- 2%
  Power consumption Typical 570W, Peak 1350W, Idle 200W (average), Power Save <17W
Noise level   Operating: Up to 54dB(A), Standby: 37dB(A), Power save: Background Level
Dimensions (HxWxD)   C830n: 345 x 485 x 579mm; C830dn: 345 x 485 x 634mm; C830cdtn: 805 x 485 x 634mm
Weight2   C830n: 36kg approx; C830dn: 40kg approx; C830cdtn: 60kg approx
Duty cycle Printer duty (max) 75,000 pages/month
  Printer duty (average) 1,500 - 5,000 pages/month
Warranty   Pan European 1 year on-site
Accessories Duplex 43226003 (Standard on C830dn, C830cdtn)
  Memory 256MB (01182901), 512MB (01182902)
  Additional 2nd paper tray 44016213 (Standard on C813cdtn)
  Additional 3rd paper tray 44016213
  40GB Hard Disk Drive 01207701
  Cabinet 44153703 (Standard on C830cdtn)

* Toners: A4 pages yield compliant with ISO/ISC 19798. Drum: A4 pages average life. Printer shipped with 1,250 pages yield @ 5%.

1 Check local OKI Printing Solutions website for latest driver releases & OS Compatibility 2 Including all consumables 3 Hard Disk Drive required 4 Windows only
Oki support is available on 01753 819800
